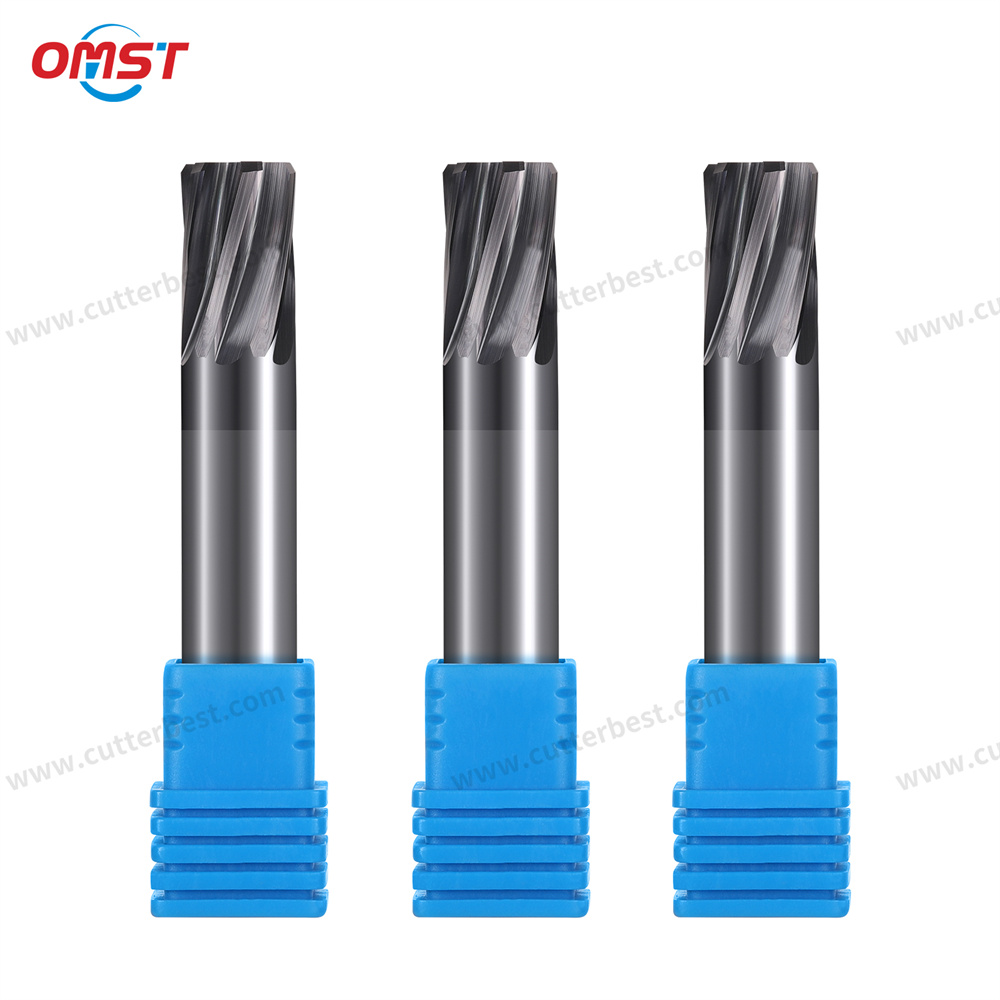

A Vollhartmetall-Reibahle provides final sizing and finishing for pre-machined holes on CNC machines, Bearbeitungszentren, und Präzisionsbearbeitungsgeräte. OMIST manufactures these machine-use reamers from solid carbide with a straight shank for stable and consistent CNC reaming applications.
Common metric products include 4-flute and 6-flute configurations. Zusätzlich, straight flute and spiral flute options are available to match different workpiece materials, hole conditions, und Bearbeitungsanforderungen.
Customers can choose common reference sizes or request non-standard carbide reamers for specific applications. Weitere Werkzeugoptionen für die Lochbearbeitung, Stöbern Sie in unserem Reibahlen product category. For custom requirements, a tool drawing or dimensioned sketch helps us review the required configuration more accurately.

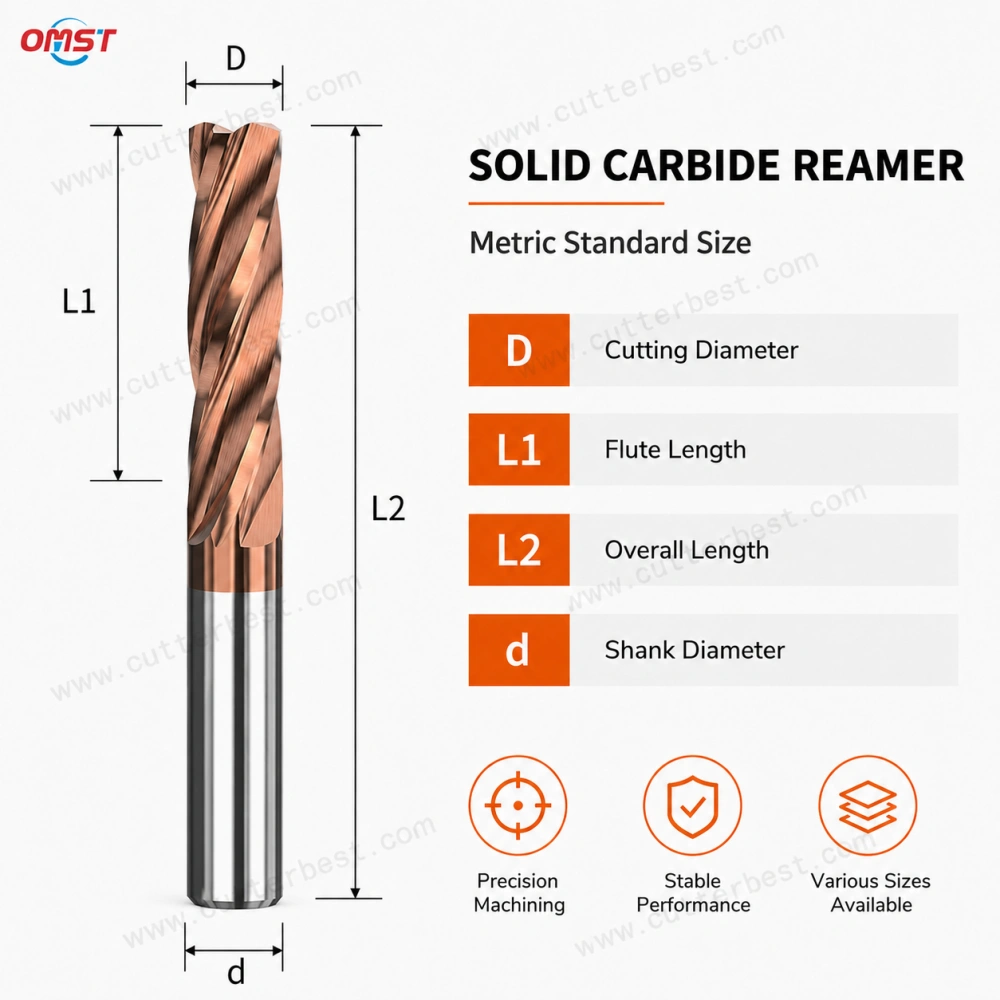

Solid Carbide Reamer Specification Options
The following table lists common metric reference sizes for OMIST solid carbide reamers. These dimensions help with standard product selection; Jedoch, they do not represent the full custom manufacturing range.
| Schnittdurchmesser | Flötenlänge | Flötenzählung | Gesamtlänge |
|---|---|---|---|
| Ø1mm | 15 mm | 4F | 50 mm |
| Ø1,5 mm | 15 mm | 4F | 50 mm |
| Ø2 mm | 15 mm | 4F | 50 mm |
| Ø2,5 mm | 20 mm | 4F | 50 mm |
| Ø3 mm | 20 mm | 4F | 50 mm |
| Ø3,5 mm | 25 mm | 4F | 50 mm |
| Ø4 mm | 25 mm | 4F | 50 mm |
| Ø4,5 mm | 25 mm | 4F | 50 mm |
| Ø5 mm | 30 mm | 4F | 60 mm |
| Ø5,5 mm | 30 mm | 4F | 60 mm |
| Ø6 mm | 30 mm | 6F | 60 mm |
| Ø7 mm | 30 mm | 6F | 60 mm |
| Ø8 mm | 35 mm | 6F | 70 mm |
| Ø9 mm | 40 mm | 6F | 80 mm |
| Ø10 mm | 40 mm | 6F | 80 mm |
| Ø11 mm | 40 mm | 6F | 80 mm |
| Ø12 mm | 40 mm | 6F | 80 mm |
| Ø13 mm | 60 mm | 6F | 100 mm |
| Ø14 mm | 60 mm | 6F | 100 mm |
| Ø15 mm | 60 mm | 6F | 100 mm |
| Ø16 mm | 60 mm | 6F | 100 mm |
| Ø18 mm | 60 mm | 6F | 100 mm |
| Ø20 mm | 60 mm | 6F | 100 mm |
Notiz: Dies sind gängige Referenzgrößen für die Standardauswahl. We can also evaluate other diameters, Flötenlängen, Gesamtlängen, Schaftabmessungen, und Werkzeugkonfigurationen nach Kundenzeichnung, Werkstückmaterial, und Bearbeitungsanforderungen.
Bewerbungen und Auswahl
Formstahl und gehärteter Stahl
OMIST supplies solid carbide reamers for mold steel and hardened steel. daher, when requesting a tool for these materials, please provide the workpiece material together with the required reamer size or drawing. This information helps us review the required tool specification.
Aluminium, Kupfer und Kunststoffe
Carbide reamers are also available for aluminum, Kupfer, and plastic workpieces. Because different materials may require different tool configurations, please include the workpiece material when requesting a standard or custom tool.
Straight and Spiral Flute Options
Both straight flute and spiral flute configurations are available. The appropriate configuration depends on the hole geometry, Werkstückmaterial, Bearbeitungsbedingungen, and specific tool requirements. If you are comparing these two flute designs, siehe unsere Führung für gerade Nuten vs. Spiralnuten-Reibahlen für Auswahlüberlegungen wie den Lochtyp, Spanrichtung, und unterbrochene Funktionen. daher, customers can provide the available machining information when the required flute configuration has not yet been confirmed.
Hauptmerkmale
Vollhartmetallkonstruktion
OMIST manufactures the cutting tool from solid carbide throughout for machine reaming applications.
Machine-Use Straight Shank Design
The current product range uses a straight shank. Infolge, these reamers are suitable for CNC machines, Bearbeitungszentren, und Präzisionsbearbeitungsgeräte.
4F and 6F Common Configurations
Common metric reference sizes include 4-flute and 6-flute configurations according to the diameter and tool specification.
Standard and Non-Standard Options
Customers can select common reference sizes. Alternativ, they can submit non-standard requirements when an existing configuration does not match the application.
Kundenspezifische Fertigung
OMIST can quote standard solid carbide reamers according to the required size, Menge, und Werkstückmaterial.
Für einen custom carbide reamer, we recommend providing a tool drawing or dimensioned sketch. Non-standard tools may combine different diameters, Flötenlängen, Gesamtlängen, Nutgeometrien, and other dimensions; therefore, a drawing makes specification review more efficient.
Wenn keine vollständige Zeichnung verfügbar ist, you can instead provide the main dimensions, Werkstückmaterial, Bearbeitungsanforderungen, und Menge. We will review the available information and confirm any additional details required for quotation.
Häufig gestellte Fragen
What is a solid carbide reamer used for?
A solid carbide reamer performs the final sizing and finishing of a pre-machined hole on CNC machines, Bearbeitungszentren, and other machine tools.
What standard solid carbide reamer sizes are available?
Our current reference table covers metric cutting diameters from Ø1 mm to Ø20 mm with common 4F and 6F configurations. Jedoch, these are reference sizes rather than the complete manufacturing range, so we can also evaluate other dimensions.
Do you supply both straight and spiral flute carbide reamers?
Ja. We supply both straight flute and spiral flute configurations. The required configuration depends on the workpiece, hole geometry, und Bearbeitungsanforderungen.
Can you manufacture custom carbide reamers from a drawing?
Ja. We can evaluate non-standard carbide reamers from a customer tool drawing or dimensioned sketch. Zusätzlich, the drawing helps us confirm the required dimensions and tool configuration before production.
What information should I provide for a carbide reamer quotation?
Für Standardgrößen, Bitte geben Sie die gewünschte Größe an, Menge, und Werkstückmaterial. For custom reamers, we recommend sending a tool drawing or dimensioned sketch. Alternativ, you can provide the main dimensions and machining requirements if a complete drawing is not available.
Request a Quote for Solid Carbide Reamers
Für Standardprodukte, Bitte senden Sie uns die erforderlichen Unterlagen zu Größe, Menge, und Werkstückmaterial. When requesting a non-standard solid carbide reamer, we recommend attaching a Werkzeugzeichnung oder bemaßte Skizze wann immer möglich.
To request a quotation or confirm a specification, Schicken Sie uns eine E-Mail or contact us directly through WhatsApp. Wenn keine vollständige Zeichnung verfügbar ist, simply send the main dimensions and machining requirements, and we will review the available information with you.
