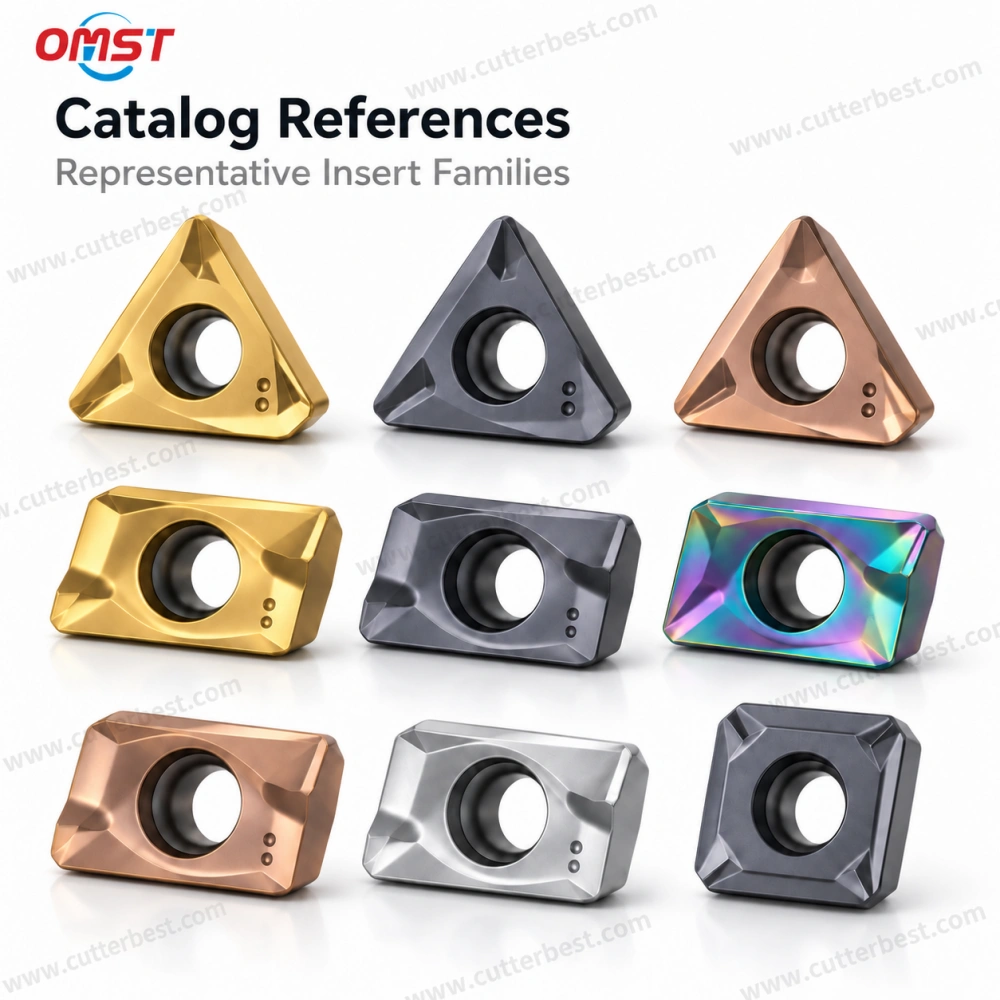

Shoulder Milling Insert Product Range
Shoulder milling inserts are grouped according to the machining application and corresponding cutter system rather than by insert shape alone. This keeps the product range separate from shape-based categories such as Insertos de fresado cuadrados.
This page focuses on replaceable inserts for confirmed shoulder milling systems. Cutter body references are used to support insert identification, matching review, and quotation rather than being presented as complete cutter-body products.
For the broader carbide insert range, ver Insertos de fresado.
90° Shoulder Milling References
The following insert references have been confirmed for 90° shoulder milling systems and can serve as references for inquiry review.
| Insert Reference | Corresponding Cutter Body References | Confirmed Operations | Confirmed Workpiece Materials |
|---|---|---|---|
| ADGT | MET190 / MHT190 | Side wall milling, cavity milling, fresado de ranuras, fresado por inmersión | Titanium alloy / high-temperature alloy, stainless steel, acero, hierro fundido |
| APMT1135 | EMP05 / BAP / ASSM | Fresado en hombro, fresado frontal, fresado de ranuras | Acero, stainless steel |
| APMT1604 | BAP / ASSM / M104 | Fresado en hombro, fresado frontal, fresado de ranuras, rough machining | Acero, stainless steel, hierro fundido, materiales duros |
These references are provided for inquiry purposes and do not represent a complete stock or model list. Actual product confirmation depends on the complete insert designation, sistema de corte, insertar bolsillo, and project requirement.
APMT1135 and APMT1604 are confirmed shoulder-system references on this page, but the APMT family itself covers broader insert requirements. For family-level APMT inquiries, ver APMT Milling Inserts.
Other Shoulder Milling Insert Requirements
If your required shoulder milling insert is not included in the references above, send the complete insert code whenever available.
When the exact designation is unknown, existing insert photos, información de embalaje, cutter body markings, pocket details, or available dimensions can provide a starting point for review.
The requirement should be confirmed against the actual cutter system rather than by assuming that another insert with a similar shape or size will fit.
Shoulder Milling and Cutter-System Information for Review
The machining application helps define the requirement, but the application name alone does not confirm the correct insert.
For a shoulder milling inquiry, useful information may include the required milling operation, existing cutter body model or marking, insert pocket information, clamping details, required shoulder geometry when known, and actual workpiece material.
Confirmed applications vary by insert reference. Por ejemplo, ADGT has confirmed references for side wall, cavidad, ranura, and plunge milling, while APMT1135 and APMT1604 have their own confirmed application ranges.
Workpiece material should therefore be reviewed together with the relevant insert reference and cutter system rather than treated as a universal material recommendation for all shoulder milling inserts.
Shoulder Insert Matching and Replacement Review
When sourcing a shoulder milling insert replacement, the cutter system is as important as the basic insert shape or size.
Two inserts may appear similar while differing in dimensions, pocket fit, mounting features, or other design details. OMIST reviews the available insert and cutter information before confirming the requirement.
Confirme la designación completa del inserto
Comience con la marca completa que se muestra en el prospecto o embalaje existente siempre que sea posible..
A complete designation provides a clearer basis for review than a general family name such as APMT or a visual comparison alone. If the marking is incomplete or difficult to read, enviar fotos claras del inserto existente.
Revise el cuerpo del cortador y el bolsillo de inserción
For a cutter body and insert pocket review, useful information can include:
- Modelo o marca del cuerpo del cortador.
- Marcado de inserto existente
- Clear insert photos
- Complete cutter photo
- Empty insert pocket photo
- Relevant clamping or retaining details
- Available insert dimensions
This information helps review the replacement requirement without assuming automatic compatibility.
Cuando el modelo de inserción es desconocido
If the exact insert model cannot be identified, send the information already available rather than selecting a replacement only from appearance.
Fotos de inserción existentes, cutter markings, an empty pocket photo, información de embalaje, and available dimensions can all support the review. OMIST can then advise whether further information is needed before quotation.
Evaluación de plaquitas no estándar basada en dibujos
If a standard catalog reference does not meet the requirement, OMIST can evaluate non-standard shoulder insert requirements from customer drawings and relevant application information.
Manufacturing feasibility is reviewed before quotation or production arrangements are confirmed.
Información a incluir
For a drawing-based evaluation, provide the available:
- Dibujo
- Dimensiones requeridas
- Referencia de plaquita o cortador existente, si corresponde
- Material de la pieza de trabajo
- Operación de mecanizado
- Cantidad requerida
A drawing submission starts the evaluation process but does not by itself confirm manufacturing feasibility.
How to Request a Shoulder Milling Insert Quote
Choose the inquiry path according to the information currently available.
Cuando tengas el código de inserción completo
Envíe la designación completa del inserto junto con la cantidad requerida.
If the insert must work with an existing cutter system and matching review is required, also provide the cutter body model or marking.
When Matching Review Is Needed
If the insert code alone does not confirm the complete requirement, provide the available information about the existing insert and cutter system.
Photos of the insert, cuerpo cortador, insertar bolsillo, or relevant marking can help with the matching review. Para requisitos no estándar, a drawing can be evaluated through the drawing-based feasibility process above.
Shoulder Milling Inserts FAQ
Are Shoulder Milling Inserts the Same as Square Milling Inserts?
No. Insertos de fresado cuadrados are grouped mainly by insert shape, while shoulder milling inserts are grouped according to shoulder milling application and the corresponding cutter system.
An insert may look square or near-square without automatically becoming a confirmed shoulder milling replacement.
Are Shoulder Milling Inserts the Same as APMT Inserts?
No. APMT is an insert family or designation group, while Shoulder Milling Inserts is an application- and cutter-system-based product category.
APMT1135 and APMT1604 are confirmed references for specific shoulder milling systems on this page, but this does not mean that every APMT insert automatically belongs to or matches an existing shoulder milling cutter system.
Are Shoulder Milling Inserts the Same as Shoulder Milling Cutters?
No. Shoulder milling inserts are the replaceable cutting inserts. A shoulder milling cutter is the cutter body or complete tooling system that holds the inserts.
This page focuses on inserts; cutter body information is used for matching and inquiry review.
Can Non-Standard Shoulder Insert Requirements Be Evaluated From Drawings?
Sí. OMIST can review customer drawings, dimensiones requeridas, cutter references, material de la pieza de trabajo, operación de mecanizado, and quantity before confirming manufacturing feasibility and quotation.
Request a Quote for Shoulder Milling Inserts
Send your shoulder milling insert requirement to OMIST for review. Si se desconoce el modelo exacto, send the available insert and cutter-system information for matching review.
Para una cotización, contact us by email at sales@cutterbest.com or WhatsApp at +86 159 0755 2669.
