APKT1135 Carbide Milling Inserts

APKT1135 Insert Product Range

APKT1135 is an exact insert model used within the APKT milling insert family. It should not be treated as one fixed APKT1135PDFR-MA product because different complete designations and corner-radius configurations are available.

OMIST uses APKT1135 as the main product identity and reviews the complete designation before confirming the correct insert for quotation.

Representative APKT1135 PDFR Configurations

Confirmed representative product references include:

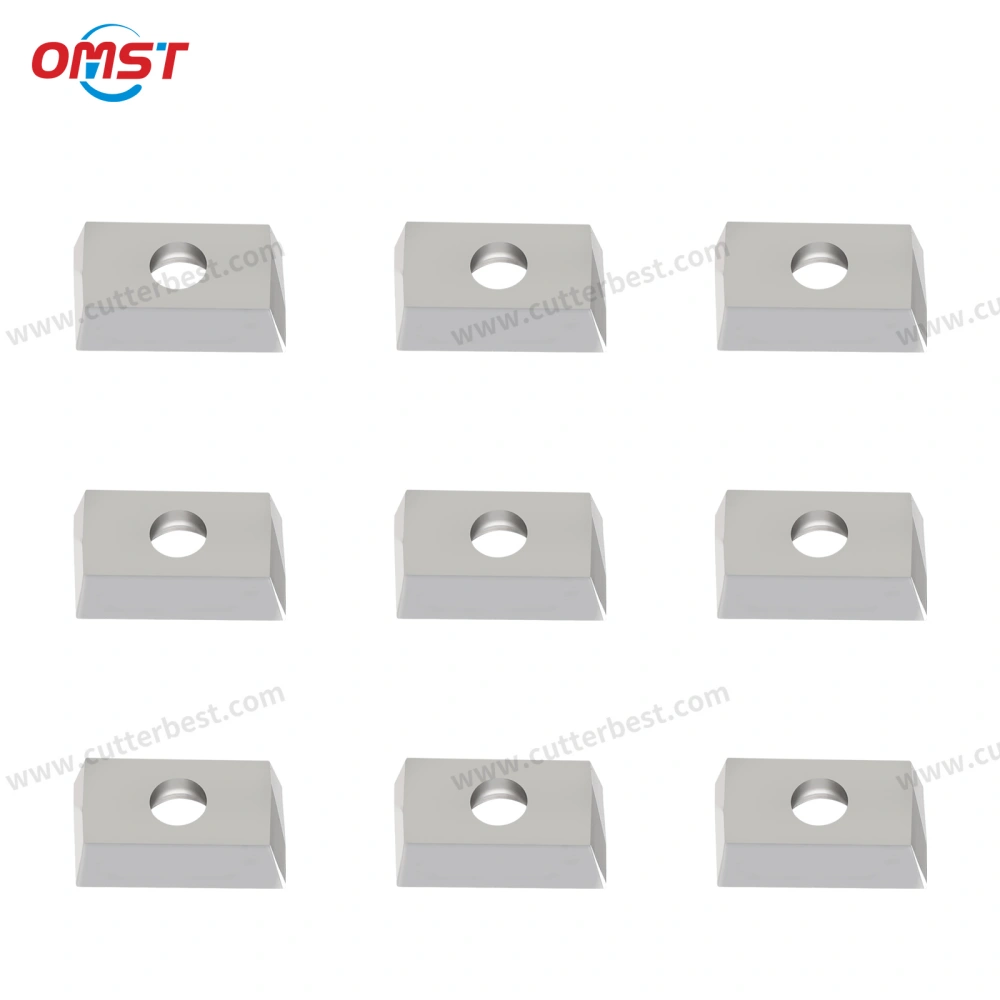

• APKT1135PDFR
• APKT1135PDFR-MA
• APKT1135PDFR-MAZ

MA and MAZ are representative configurations within the current product range. They should not be interpreted as universal suffix definitions across every supplier or brand.

The complete insert marking remains important because APKT1135 products can differ in geometry, 半径, 学年, and application requirement.

For other models within the same product family, 見る APKTインサート.

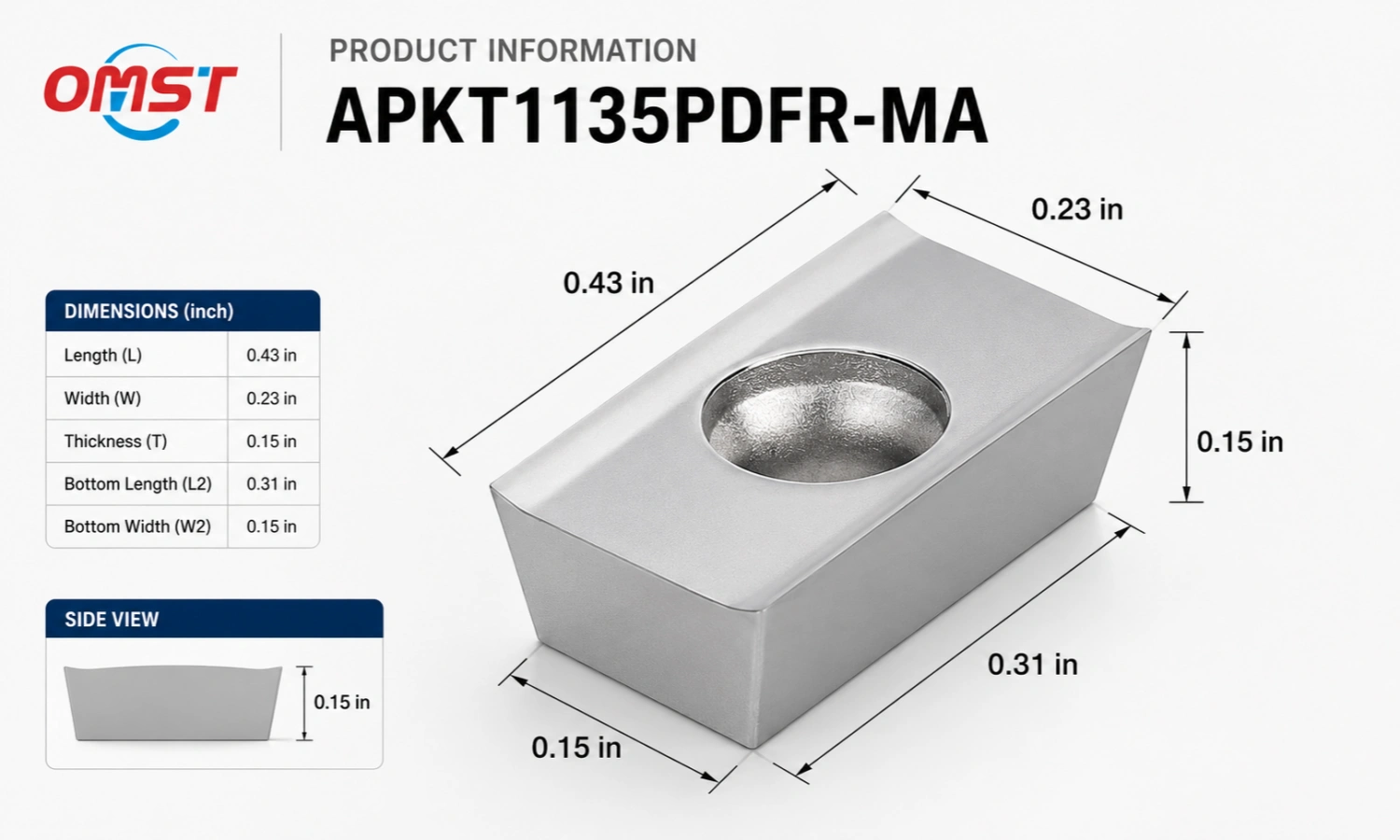

APKT1135 Insert Dimensions and Specifications

Dimensions are an important part of APKT1135 insert identification, especially when the customer needs to replace an existing insert or confirm a cutter-body match.

しかし, a single dimension should not be used as the only basis for replacement selection.

Factory Reference Dimensions

Confirmed product information includes an approximately 11 mm length reference for the current APKT1135 products.

This value is useful for initial identification, but it does not represent a complete dimensional definition for every APKT1135 configuration. Final dimensions should be checked against the complete designation or the existing insert and cutter body.

Corner Radius and Complete Designation

The current APKT1135 product range includes confirmed representative corner-radius options of:

• R0.2
• R0.4
• R0.8

These radii are not interchangeable by default.

The required corner radius depends on the complete APKT1135 designation and the actual application. Buyers should therefore confirm the full insert code instead of ordering only by the APKT1135 prefix.

If the marking is incomplete, clear photos of the insert, カッター本体, or insert pocket can help with identification.

APKT1135 Inserts for Aluminum and Non-Ferrous Materials

The confirmed APKT1135 product range includes representative configurations that can be reviewed for:

• アルミニウム
• Aluminum alloy
• 銅
• Other non-ferrous materials

APKT1135PDFR-MA and APKT1135PDFR-MAZ are representative configurations within this product range.

The final insert should still be confirmed according to the complete designation, 学年, カッター本体, および加工要件. OMIST does not treat every APKT1135 configuration as automatically suitable for the same material.

This is particularly important because APKT1135 also appears in the wider market under configurations intended for different materials. したがって, material selection should follow the complete insert specification rather than the APKT1135 model number alone.

For a broader range of carbide insert types, 見る フライスインサート.

Cutter Body and Replacement Matching

APKT1135 buyers often need to replace an existing insert or confirm whether a new insert matches an existing cutter body.

The APKT1135 model name alone is not enough to guarantee compatibility. Cutter-body design, insert-pocket geometry, complete insert marking, and the required configuration should be reviewed together.

Cutter Body Matching Review

For cutter-body matching, OMIST can review information such as:

• Complete insert marking
• Existing insert photo
• Cutter-body model
• Insert-pocket photo
• Cutter-body drawing, 利用可能な場合

The purpose of this review is to reduce the risk of selecting an insert based only on the APKT1135 prefix.

When the Existing APKT1135 Designation Is Different

APKT1135 inserts can appear under different complete designations in different supplier and cutter systems.

If the marking on your existing insert differs from the OMIST PDFR references, do not assume that the inserts are automatically interchangeable.

Send the existing insert code, available photos, and cutter-body information for review. OMIST can compare the available information and evaluate a suitable replacement option.

Drawing-Based Non-Standard Insert Evaluation

OMIST can evaluate non-standard insert requirements based on customer drawings, existing samples, 寸法, and application information.

For a non-standard request, the factory reviews manufacturing feasibility before confirming the final specification.

The purpose of this service is to evaluate the actual requirement rather than force a non-standard application into a fixed catalogue specification.

How to Request an APKT1135 Insert Quote

When You Have the Complete Insert Code

If you already know the complete APKT1135 insert designation, send the full code together with the required quantity.

例えば:

APKT1135PDFR-MA + 量

The complete designation allows us to review the product configuration before quotation.

When the Model or Matching Requirement Needs Review

If the complete model is unavailable, send the clearest information you have.

Useful information can include the existing insert marking, insert photo, cutter-body model, insert-pocket photo, or drawing.

OMIST will review the available information before confirming the suitable APKT1135 configuration.

APKT1135 Inserts FAQ

Are all APKT1135 inserts interchangeable?

いいえ. APKT1135 identifies the main insert model, but complete designations, コーナー半径, grades, and cutter-body requirements can differ. Replacement inserts should be checked against the complete code and actual cutter body.

What are the reference dimensions of an APKT1135 insert?

Current confirmed product information includes an approximately 11 mm length reference. This is a reference value for the documented products rather than a complete dimensional definition for every APKT1135 configuration.

Which corner radii are available for APKT1135 inserts?

Confirmed representative corner-radius options include R0.2, R0.4, and R0.8. The correct radius should be confirmed from the complete designation and machining requirement.

Which APKT1135 configurations are available for aluminum and non-ferrous materials?

Representative confirmed configurations include APKT1135PDFR-MA そして APKT1135PDFR-MAZ. They can be reviewed for aluminum, アルミニウム合金, 銅, and other non-ferrous applications according to the complete designation, 学年, および加工要件.

What should I provide for APKT1135 replacement matching?

If the complete insert code is available, send the code and quantity. If the model is unclear, send the existing insert marking, insert photo, cutter-body model, insert-pocket photo, or drawing for matching review.

Request a Quote for APKT1135 Inserts

Need APKT1135 inserts for a replacement or new milling application? OMIST can review the complete designation, cutter-body information, existing insert, or drawing before confirming the product for quotation.

Please email us 又は contact us on WhatsApp with your requirement.
