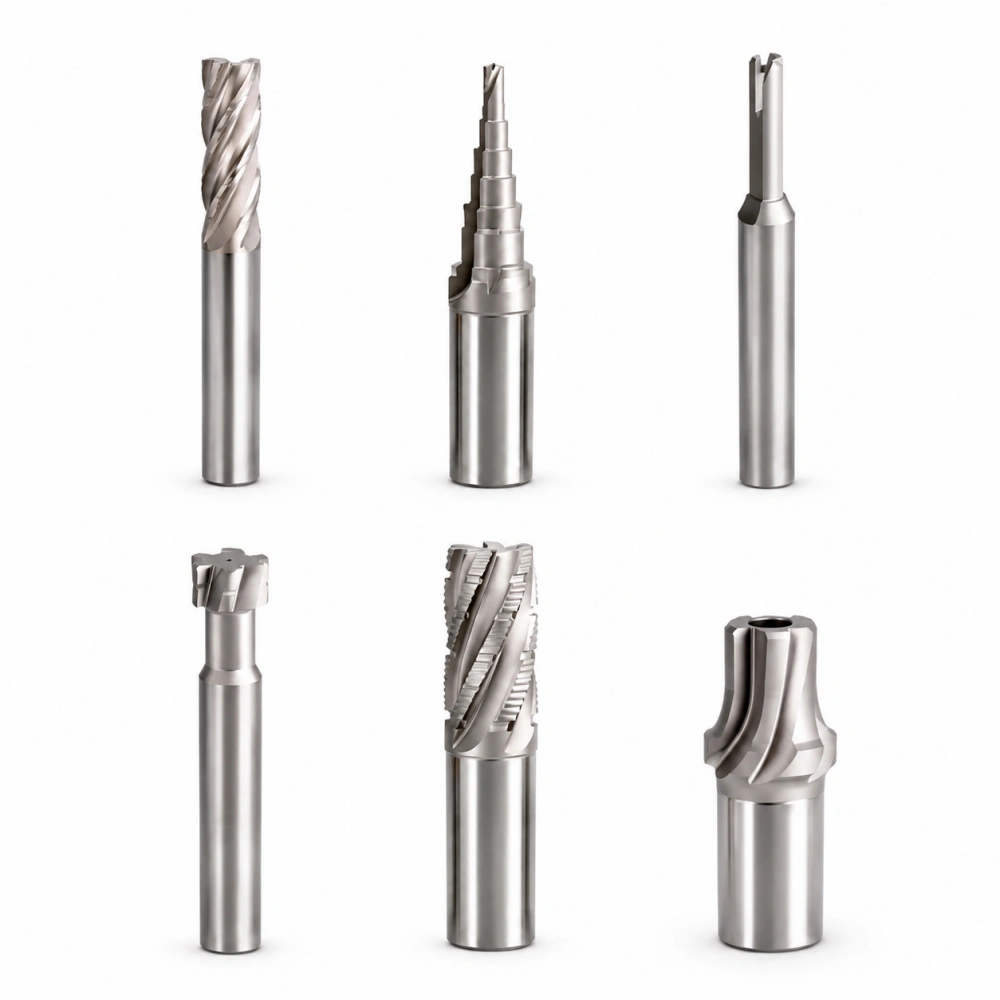

Custom Milling Cutters for CNC Machining

Custom milling cutters are used when a standard catalog cutter cannot match the required dimensions, cutter body, mounting method, or CNC milling requirement. The correct solution depends on how the cutter will be mounted, what feature it needs to machine, and the cutting conditions of the actual application.

Depending on the project, we can evaluate solid, brazed, HSS, or indexable cutter constructions rather than forcing different milling requirements into one standard tool design.

Custom Milling Cutter Specification Options

Because non-standard milling cutters vary significantly by application, we confirm the main specifications project by project.

We confirm specific dimensions, mounting details, and cutter geometry according to the actual project rather than fixed catalog limits.

Applications and Selection

Non-Standard Cutter Dimensions and Structures

A standard milling cutter may not suit an application when the required cutter diameter, cutting width, body dimensions, mounting arrangement, or overall structure is outside normal catalog options.

In these cases, we can evaluate a custom milling cutter according to the required operation and cutter configuration. We confirm the final dimensions and structure after reviewing the available drawing and machining conditions.

For standard milling cutter families and existing product options, see our Milling Cutters.

Side, Slot and Groove Milling

Side milling, slotting, and grooving applications may require different cutter widths, diameters, body styles, or mounting arrangements.

Depending on the project, possible structures may include custom side milling cutters, slot cutters, disc cutters, and other special milling cutters designed around the required operation.

For existing side milling solutions, see our Side Milling Cutter.

Face and Shoulder Milling

Face and shoulder milling applications can involve requirements for non-standard cutter diameter, cutter body dimensions, mounting structure, or cutting arrangement.

We can evaluate a custom face milling cutter or related cutter body when a standard configuration does not suit the machining setup.

The appropriate structure depends on the workpiece, machine setup, cutter size, and cutting requirement.

For existing face milling products, see our Face Milling Cutter.

Arbor-Mounted, Shell and Special Cutter Bodies

Some milling applications require a cutter body that mounts on an arbor or uses a shell-type construction rather than a conventional shank tool.

For these projects, mounting bore dimensions, cutter width, body structure, cutting arrangement, and other connection requirements can be evaluated according to the drawing. Custom milling cutter bodies and indexable arrangements are confirmed according to the actual machining requirement.

Solid, Brazed and Indexable Cutter Selection

Different milling operations may require different tool constructions.

Solid carbide or HSS may suit some shank-type and smaller cutter designs, while we can evaluate brazed or indexable structures for other cutter sizes and body configurations.

The selection depends on the cutter dimensions, workpiece material, milling operation, and required cutting conditions.

Key Features

Application-Based Cutter Structure

We evaluate the cutter structure according to the actual milling operation rather than selecting it only from a standard catalog shape.

This allows the cutter body, mounting method, cutting width, and construction to be considered together for the specific application.

Non-Standard Dimensions and Construction

Custom CNC milling cutters can be evaluated when the required diameter, cutting width, mounting dimensions, cutter body, or construction differs from standard products.

The final combination is confirmed according to the drawing and machining setup.

Material and Tool Construction Selected by Application

Tool material and construction depend on the cutter size, milling operation, workpiece material, and cutting conditions.

Solid carbide, HSS, carbide-tipped / brazed, and indexable constructions can therefore be considered according to the individual project.

Custom Manufacturing

Information Needed for Evaluation

To evaluate a custom milling cutter, please send the information you currently have, such as a drawing, key dimensions, workpiece material, milling operation, mounting requirements, or other relevant machining details; we will confirm any additional information needed after reviewing the project.

A complete tool drawing is not required for the initial evaluation. If you only have a part drawing, key dimensions, or machining requirement, you can send those first.

For other types of non-standard tooling, see our Custom Cutting Tools capability page.

From Requirement to Custom Milling Cutter

1. Requirement Review

We review the available drawing, cutter dimensions, milling operation, workpiece material, and mounting requirements to understand the application.

2. Cutter Specification Confirmation

We evaluate the cutter structure, main dimensions, tool material, mounting arrangement, and cutting geometry according to the project.

3. Manufacturability & Quotation

Once the requirement is sufficiently clear, we confirm manufacturability and prepare the quotation according to the final cutter specification and quantity.

4. Production

After the specification and order details are confirmed, the cutter is manufactured according to the agreed requirements.

Frequently Asked Questions

What is a custom milling cutter?

A custom milling cutter is a non-standard cutter developed for a specific milling requirement when standard catalog dimensions, cutter structures, mounting arrangements, or constructions are not suitable.

The requirement may involve a special cutter diameter, cutting width, body structure, mounting method, or milling operation.

When should a custom milling cutter be considered?

A custom milling cutter may be worth evaluating when a standard cutter cannot meet the required dimensions, mounting arrangement, cutter body configuration, or machining setup.

The decision should be based on the complete milling application rather than one dimension alone.

What is the difference between a custom milling cutter and a custom end mill?

A custom milling cutter can include broader cutter structures such as disc, side & face, shell, arbor-mounted, or special cutter bodies.

A custom end mill remains based on an end mill structure and focuses more on end-mill-specific dimensions and geometry. For these requirements, see our Custom End Mills.

What is the difference between a custom milling cutter and a custom form tool?

A custom milling cutter is primarily selected around the milling operation, cutter structure, dimensions, mounting method, or cutter body.

A custom form tool is primarily driven by a specific part profile, contour, or combination of form features. For profile-driven requirements, see our Custom Form Tools.

What information is needed to evaluate a custom milling cutter?

You can start with a tool drawing, part drawing, key cutter dimensions, workpiece material, milling operation, mounting requirement, and quantity.

If some information is not yet available, send the details you already have first. We will confirm what additional information is needed after reviewing the project.

Send Your Milling Cutter Drawing or Machining Requirement

If a standard milling cutter does not fit your machining setup, send us the information you already have.

You can email us your tool drawing, part drawing, cutter dimensions, workpiece material, milling operation, mounting requirement, and quantity for review. We will evaluate the project before confirming the custom milling cutter specification and manufacturability.

You can also contact us via WhatsApp to discuss the requirement directly.
