หัวกัดที่มีความแม่นยํา,เครื่องมือตัดสําหรับเครื่องจักรกลซีเอ็นซีทุกวัสดุ

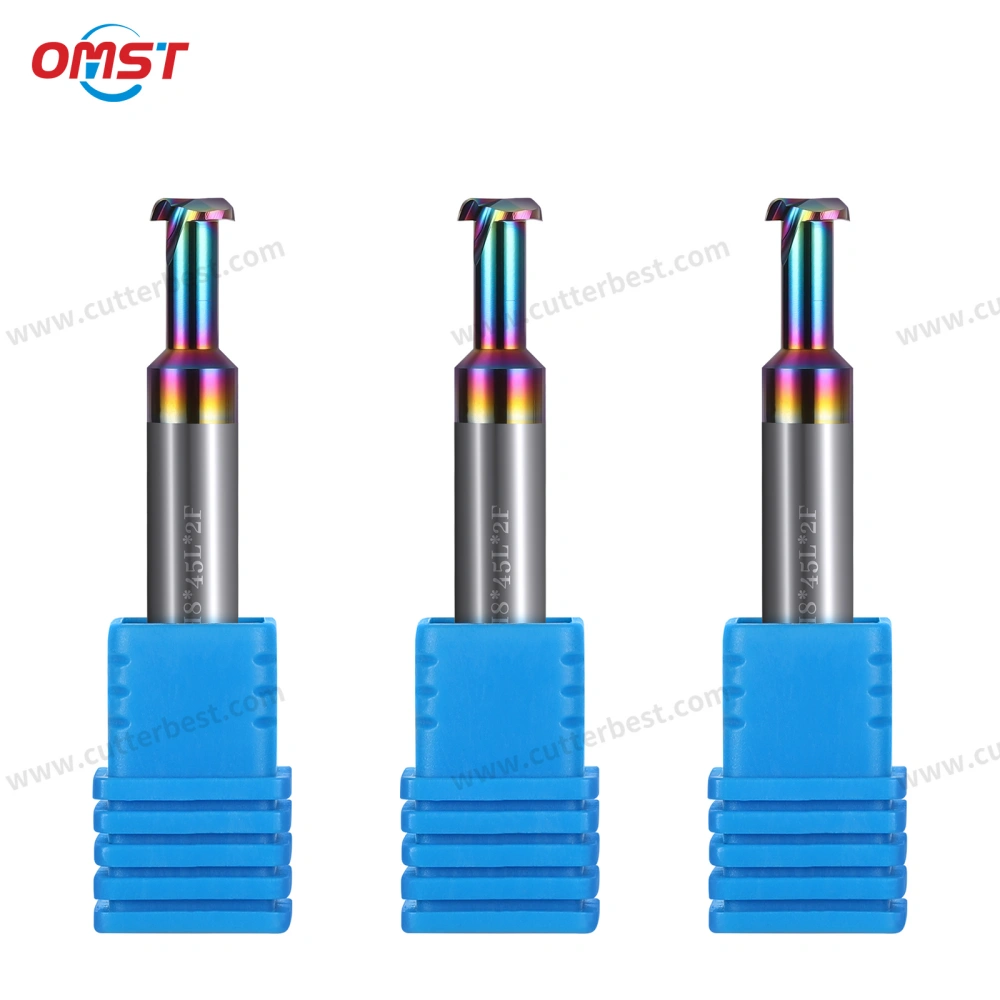

Our custom solid carbide T slot cutter is designed for precision T-slot and undercut milling on CNC machining centers and milling machines. The product shown is a coated 2-flute sample marked D6-R0.6-1.5H-D3.5-8H-45L-2F.
We can customize the corner radius, T-head thickness, neck diameter, neck length, shank diameter, ความยาวโดยรวม, การออกแบบขลุ่ย, and coating according to your drawing and required clearance profile.
- Solid tungsten carbide construction
- Two-flute design for the sample shown
- Custom dimensions based on drawings
- Coating and OEM options available
- Suitable for sample and batch orders
These cutters can be designed for steel, สแตนเลส, อลูมิเนียม, เหล็กหล่อ, ทองแดง, and other materials after the cutter geometry and coating are matched to the machining conditions.
Send us your slot drawing, วัสดุชิ้นงาน, required tolerance, และปริมาณการสั่งซื้อ. Our team will review the application and provide a suitable cutter recommendation and quotation.
What Is a T Slot Cutter?
A T slot cutter is a form milling tool used to machine T-shaped slots and undercut grooves. Its cutting head is wider than the neck, so the tool can remove material below a previously machined pilot slot.
CNC shops commonly use this cutter for machine tables, fixture plates, mold bases, workholding systems, and precision mechanical components.
For the machining process, การใช้งาน, and cutter types, อ่านของเรา what is a T slot milling cutter แนะนำ.
Key Features of Our T Slot Cutters
โครงสร้างโซลิดคาร์ไบด์
The sample product uses solid tungsten carbide for tool rigidity, dimensional stability, and wear resistance. ดังนั้น, it is suitable for precision CNC T-slot and undercut milling.
The final cutter geometry should be selected according to the slot profile, วัสดุชิ้นงาน, สภาพเครื่อง, and required tolerance.
Custom Dimensions Based on Drawings
T-slot and undercut profiles vary from one project to another. ดังนั้น, we can customize the corner radius, T-head thickness, neck diameter, neck length, shank diameter, ความยาวโดยรวม, and flute design according to your drawing.
The sample shown is marked D6-R0.6-1.5H-D3.5-8H-45L-2F. In this model, R0.6 refers to the corner radius, while the 1.5 mm dimension refers to the T-head thickness used to form the required clearance area.
ตัวเลือกการเคลือบสำหรับวัสดุที่แตกต่างกัน
The sample cutter has a coated cutting section. Other coating options can be selected according to the workpiece material, cutting temperature, tool life target, and machining conditions.
ตัวอย่างเช่น, heat-resistant coatings may suit steel machining, while low-friction coatings may work better for aluminum and other non-ferrous materials.
Two-Flute Design for T-Slot and Undercut Milling
The sample model uses a two-flute cutting design. This structure provides chip space around the small T-shaped head and supports chip removal during narrow-slot and undercut machining.
อย่างไรก็ตาม, accurate results also require suitable cutting parameters, stable tool holding, sufficient neck clearance, and firm workpiece clamping.
OEM and Distributor Support
OMIST supports drawing-based production, laser marking, private-label packaging, sample orders, and batch production for distributors, workshops, and industrial customers.
ข้อมูลจำเพาะทางเทคนิค
| ชื่อสินค้า: | Custom Solid Carbide T Slot Cutter |
|---|---|
| Sample Model Shown: | D6-R0.6-1.5H-D3.5-8H-45L-2F |
| ประเภทเครื่องมือ: | เครื่องตัด T-Slot / Undercut Milling Cutter |
| วัสดุเครื่องมือ: | Solid Tungsten Carbide |
| รัศมีมุม: | R0.6 mm for the sample shown |
| T-Head Thickness: | 1.5 mm for the sample shown |
| Neck Diameter: | D3.5 mm for the sample shown |
| Neck Length: | 8 mm for the sample shown |
| ความยาวโดยรวม: | 45 mm for the sample shown |
| ฟัน: | 2 ฟัน |
| การเคลือบ: | Coated finish shown / Customized |
| โปรแกรม ประยุกต์: | T-Slot Milling, Undercut Grooves, and Fixture Slot Machining |
| บริการที่กำหนดเอง: | ขนาด, การเคลือบ, Laser Marking, and Packaging |
| เส้นผ่านศูนย์กลางก้าน | Customized according to the drawing and tool holder |
Information Required for a Custom T Slot Cutter Quote
To confirm the cutter geometry and machining feasibility, please provide your slot drawing or the main dimensions below.
- รัศมีมุม
- T-head thickness
- Neck diameter
- Neck length
- เส้นผ่านศูนย์กลางก้าน
- ความยาวโดยรวม
- Slot profile and clearance requirements
- Workpiece material and hardness
- Machine type
- Required tolerance
- Coating request
- ปริมาณการสั่งซื้อ
The T-head thickness determines the thickness of the cutting head and helps form the required clearance area in the undercut profile.
For non-standard slot profiles, please send us the drawing before ordering. We will review the dimensions, วัสดุ, cutter clearance, and machining conditions before preparing the quotation.
Applications of T Slot Cutters
Custom solid carbide T slot cutters are used for small T-shaped slots, undercut grooves, and special clearance profiles that a standard end mill cannot complete directly.
การใช้งานทั่วไปได้แก่:
- Machine table and fixture plate T-slots
- Mold base undercut grooves
- Workholding and clamping systems
- Automation fixture components
- Precision mechanical parts
- Custom narrow-slot profiles
- Steel and stainless steel components
- Aluminum and non-ferrous parts with a suitable coating
In most applications, an end mill first creates the pilot slot. The T slot cutter then machines the wider lower section and the required clearance profile.
How to Choose the Right T Slot Cutter
The correct cutter depends mainly on the slot geometry, วัสดุชิ้นงาน, สภาพเครื่อง, and required tolerance.
Confirm the Slot Geometry
Check the corner radius, T-head thickness, ความลึกของช่อง, neck clearance, and shank size before ordering. These dimensions determine whether the cutter can enter the pilot slot and machine the undercut without interference.
Match the Material and Coating
Steel and stainless steel usually require good tool rigidity and heat resistance. ในทางตรงกันข้าม, aluminum and copper require lower friction and better chip evacuation.
ดังนั้น, the cutter geometry and coating should match the actual workpiece material and cutting conditions.
Check Machine Rigidity and Tool Overhang
A long neck or excessive tool overhang may increase vibration. Use the shortest practical reach, stable tool holding, and firm workpiece clamping whenever possible.
For custom slots, send us your drawing so that we can check the cutting head, T-head thickness, neck clearance, and machine setup.
T Slot Cutter vs Slot Milling Cutter
A slot milling cutter creates straight slots and side grooves. ในทางตรงกันข้าม, a T slot cutter machines the wider undercut section below a pilot slot.
เครื่องตัดสล็อต T: T-shaped slots, บั่นทอน, and fixture grooves
Slot Milling Cutter: Straight slots and general groove cutting
ดอกเอ็นมิล: Pilot slots, กระเป๋า, โปรไฟล์, and shoulders
A standard end mill or slot milling cutter is suitable when the part only needs a straight groove. อย่างไรก็ตาม, a T slot cutter is required when the lower section or clearance profile must be wider than the slot opening.
Why Choose OMIST T Slot Cutters?
OMIST supplies solid carbide cutting tools and drawing-based custom cutters for CNC machining, การผลิตแม่พิมพ์, fixture production, and industrial metalworking.
We can review your slot drawing, วัสดุชิ้นงาน, ประเภทเครื่อง, and tolerance before production. นอกจากนี้, we support custom dimensions, การเลือกการเคลือบ, laser marking, private-label packaging, sample orders, and batch production.
For distributors and OEM customers, we also provide product customization and order support based on the confirmed technical requirements.
Get a Custom Solid Carbide T Slot Cutter Quote
Looking for a custom solid carbide T slot cutter for CNC T-slot milling, undercut groove machining, or special clearance profiles?
Please send us:
- Slot drawing or profile
- รัศมีมุม
- T-head thickness
- Neck diameter and neck length
- Workpiece material and hardness
- Required tolerance
- Machine type
- Coating request
- Sample or batch quantity
Our team will review the cutter dimensions, clearance requirements, and machining conditions. แล้ว, we will recommend a suitable cutter design and provide a quotation for custom production.
