مقدمة
In CNC machining centers and milling operations, ال 4 تعد مطحنة نهاية الفلوت من بين أدوات القطع الأكثر تنوعًا. Its name comes from four helical flutes (chip evacuation channels) that boost cutting efficiency across diverse applications. But what makes it indispensable? This guide explores its core functions, advantages, material compatibility, and industry uses to maximize your productivity.
Defining the 4 مطحنة نهاية الفلوت
Simply put, a 4 flute end mill is a cylindrical rotating tool engineered for efficient metalworking. Key features include:
- Four helical cutting edges along peripheral (side) and bottom surfaces
- Optimized chip evacuation for continuous operation
- Compatibility with metals, plastics, والمواد المركبة
This design excels in slotting, face milling, contour profiling, and precision part production (على سبيل المثال, molds, المكونات الميكانيكية). Crucially, it enables higher feed rates, deeper cuts, and superior finishes – directly boosting manufacturing efficiency.

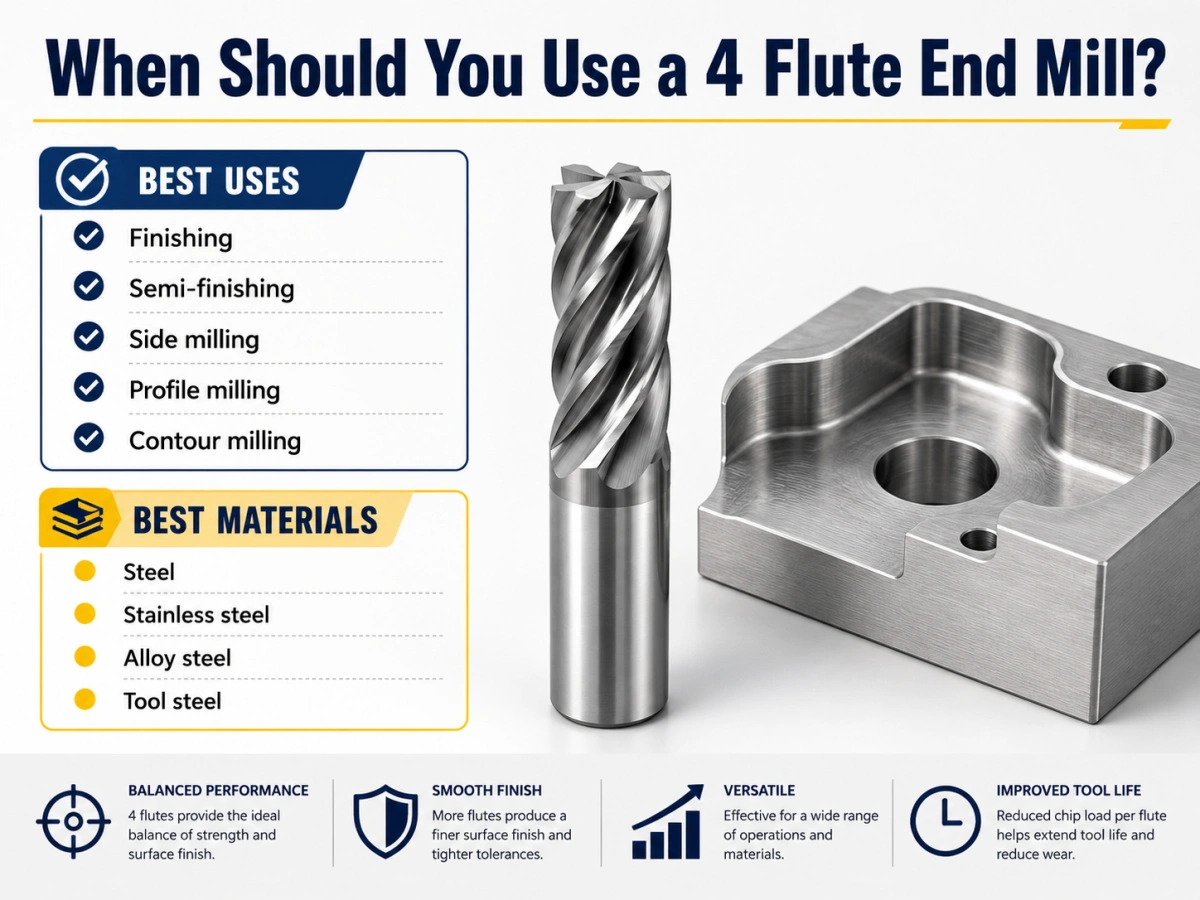

Core Applications & المزايا التقنية
1. High-Efficiency Milling Operations
Engineered for maximum material removal and precision:
- Face Milling:
Four edges simultaneously engage workpieces, enabling rapid flat surface machining (tops, bottoms, steps) with exceptional material removal rates. - Contour Milling:
Peripheral edges deliver precise vertical/inclined wall finishing for mold cavities and structural components, ensuring tight tolerances (±0.02mm). - الشق:
Ideal for shallow slots ≤1× tool diameter where flute rigidity minimizes vibration, maintaining slot-wall accuracy.
2. Precision Finishing Capabilities
Transition seamlessly from roughing to finishing:
- Achieve Ra 0.4–1.6 μm surface finishes on hardened steels (مجلس حقوق الإنسان 45+) through optimized stepovers.
- Critical for aerospace turbine blades (Ti-6Al-4V) and medical implants where reduced recutting prevents work hardening.
3. مادة & Industry Performance
| مادة | Key Advantage | Industry Application |
|---|---|---|
| Steel/Alloy | High MRR with TiAlN coatings | Automotive transmissions |
| غير القابل للصدأ | Heat-resistant geometry | Food processing equipment |
| ألمنيوم | High-RPM capability (18k+ RPM) | UAV structural parts |
| المركبه | Reduced delamination | Wind turbine blade molds |

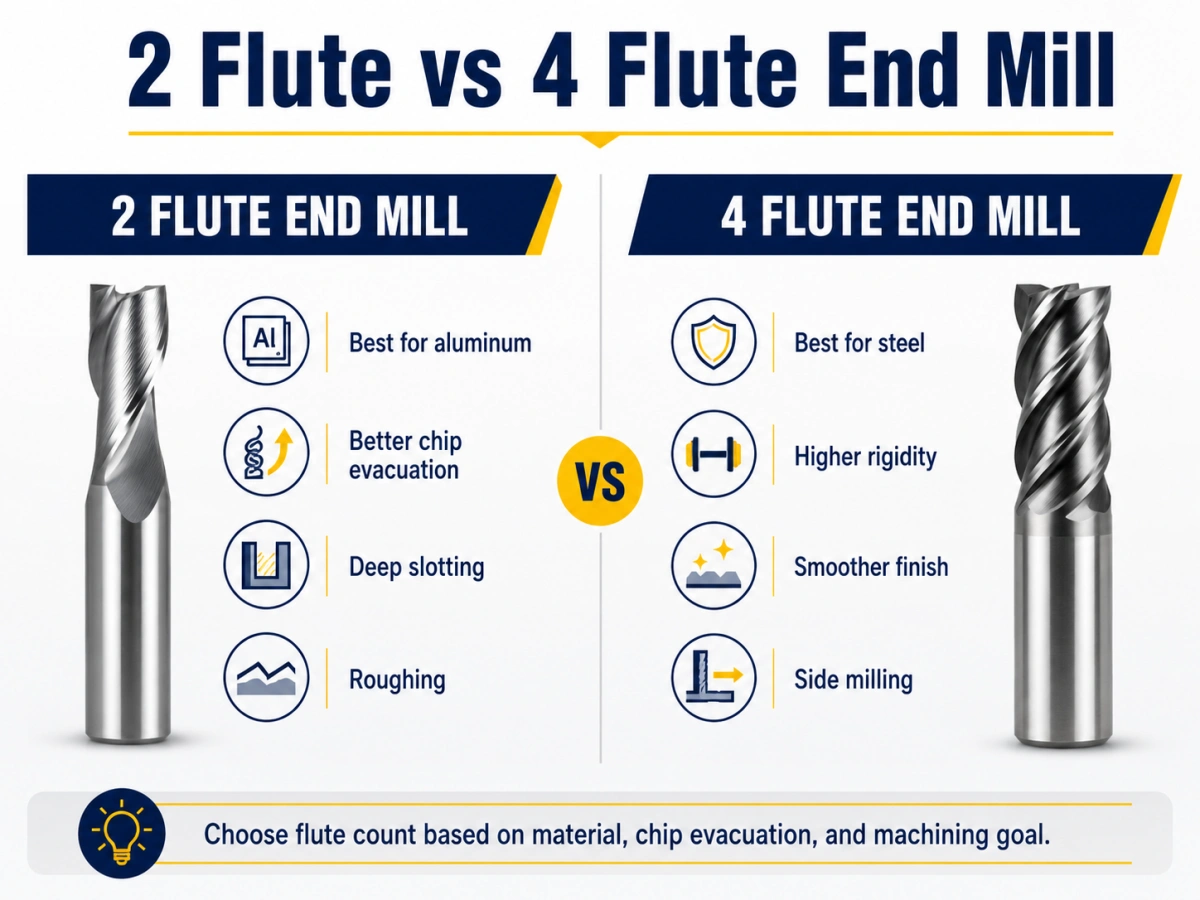

4 الفلوت مقابل. Other End Mills: دليل الاختيار
| Tool Type | أفضل ل | Limitations |
|---|---|---|
| 2 فلوت | Deep slots (>3×د), soft metals | Poor steel surface finish |
| 3 فلوت | General-purpose balance | Reduced hard-metal rigidity |
| 4 فلوت | High-speed finishing, hard materials | Requires robust machine power |

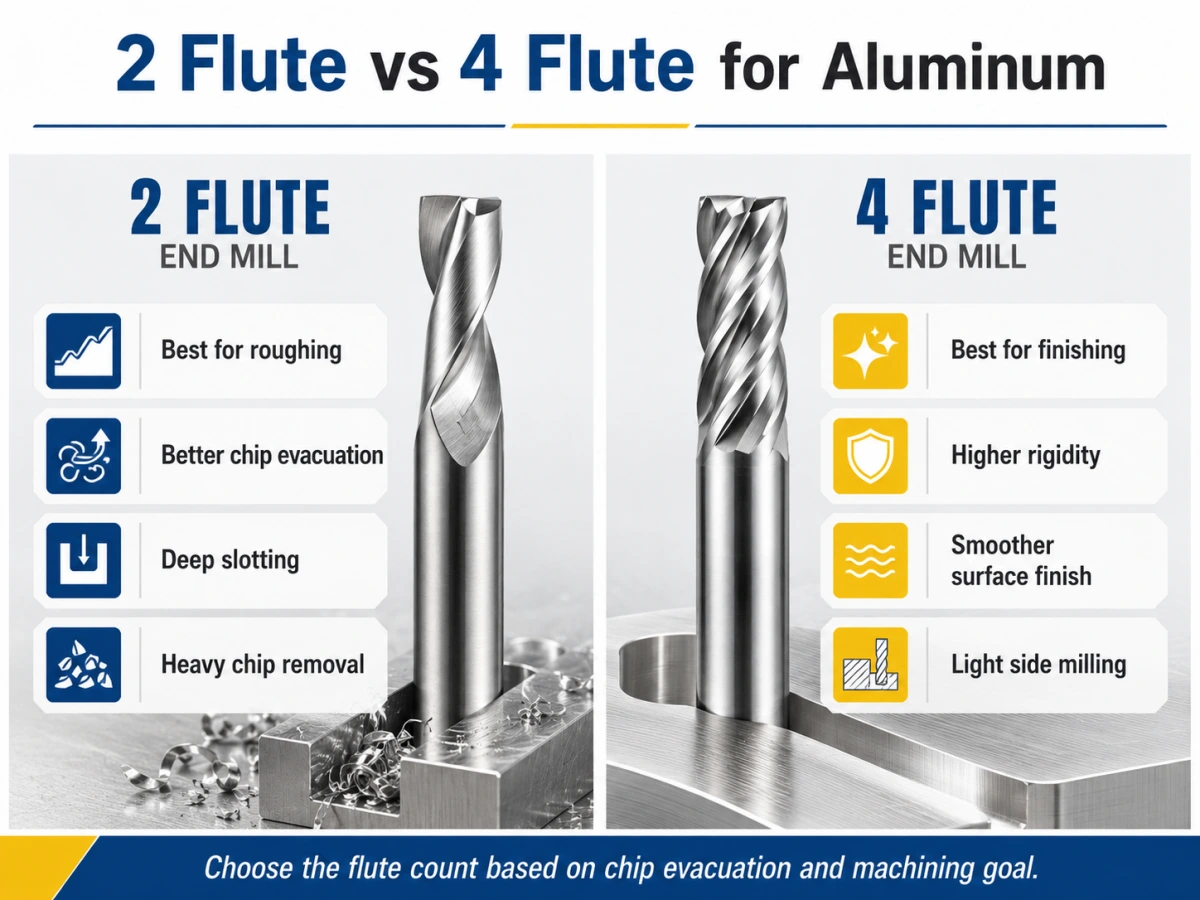

Key Insight: While 4-flute end mills dominate production environments (على سبيل المثال, 24/7 mold shops), 2-flute versions suit thin-wall aluminum enclosures in electronics manufacturing.
Optimizing 4 Flute End Mill Performance
Step 1: Coating Selection
ألمنيوم: Uncoated/ZrN → Prevents material adhesion
Stainless/Titanium: AlTiCrN → Resists 800°C+ temperatures
Carbon Steel: TiSiN-TiAlN hybrid → 3× longer tool life
Step 2: Parameter Tuning
Chip Load: 0.04–0.07 mm/tooth (15% lower than 2-flute)
Spindle Speed: Maximize within machine limits
Tool Protrusion: ≤4× diameter → Prevents chatter
Step 3: توافق الآلة
For high-RPM applications (>10,000 دورة في الدقيقة):
Use hydraulic/press-fit holders (TIR <0.005مم)
Select balanced end mills (G2.5 grade+)
Real-World Application Cases
السيارات:
V6 engine blocks: 22% faster cycle times vs. 3-flute tools
Electronics:
iPhone chassis: Ra 0.8μm with ZrN-coated tools
Energy:
Wind turbine bearings: Withstood interrupted cuts in 4340 steel
خاتمة: Dominating Precision Machining
The 4 مطحنة نهاية الفلوت delivers unmatched speed, surface quality, and versatility across materials. Its architecture enables:
✅ 30% higher feed rates than 2-flute tools
✅ 60% longer stainless steel tool life vs. 3-flute
✅ Sub-1μm finishes without dedicated passes
For peak performance: Match coatings to materials, control tool extension, and leverage high-RPM capabilities. When optimized, these tools transform productivity.
*للنصيحة: Always consult manufacturer feeds/speeds charts – underutilization wastes 40% efficiency potential.*
