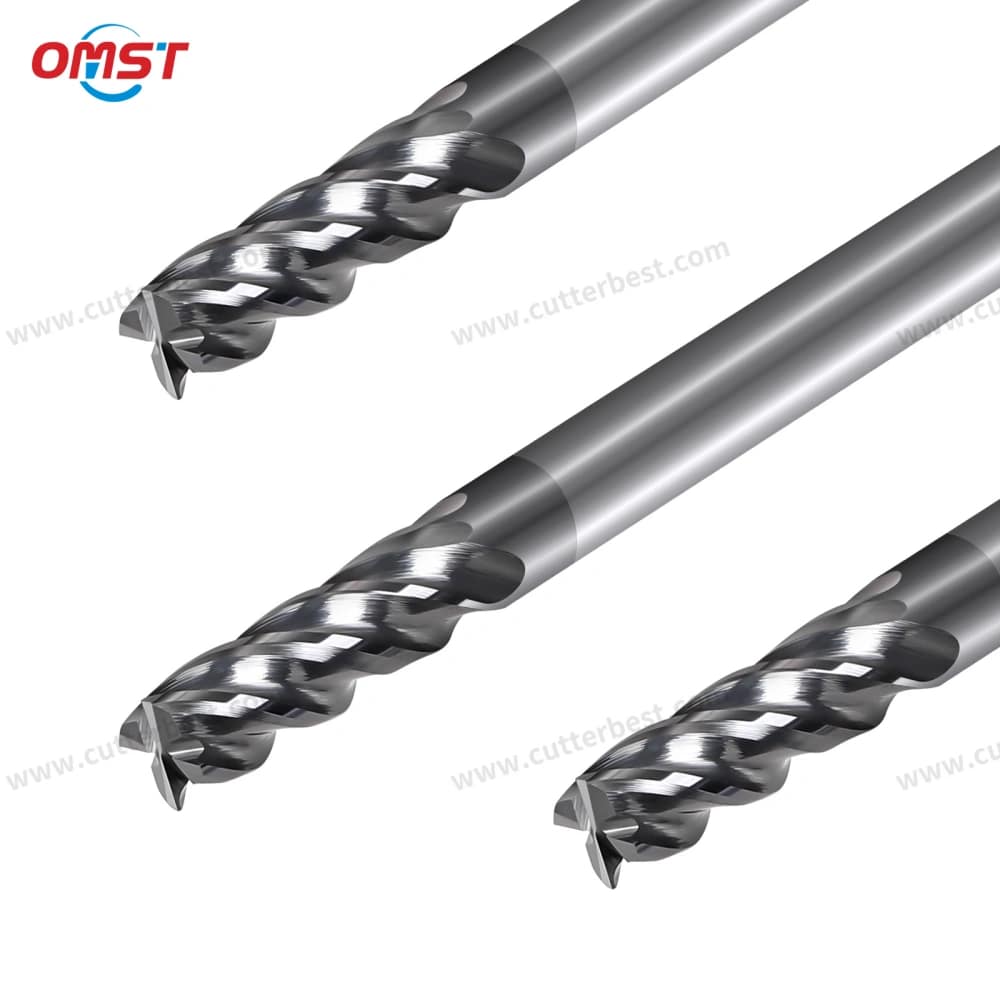

4 Flute Carbide End Mill Overview
UN 4 flute carbide end mill combines four cutting edges with a strong solid carbide core. This design provides good rigidity, resistenza all'usura, and stable cutting performance when machining steel, acciaio inossidabile, acciaio legato, e acciaio per utensili.
Its flat or square cutting end produces flat-bottom features, straight side walls, passi, slot, e spalle quadrate. Nel frattempo, the four-flute structure supports consistent surface quality during finishing and semi-finishing operations.
For a detailed explanation of its applications, Leggere cos'è un 4 fresa per flauto utilizzata per.
4 Flute Square End Mill Design
Flat and Square End Geometry
The flat cutting end creates a level bottom surface and a clear transition between the bottom and side wall. Di conseguenza, it works well for flat-bottom slots, tasche, passi, profili, e spalle quadrate.
Sharp corners, small chamfers, corner radii, and other edge preparations can be selected according to the machining application. A sharp corner creates a clear square profile, while a chamfered or radiused corner can improve cutting-edge strength.
For more flat-bottom milling options across different flute counts, rivedi il nostro fresa a punta piatta.
Center-Cutting and Helix Options
The cutting edges extend across the center of the tool. Perciò, the cutter can support vertical plunging, ramp entry, helical interpolation, ingresso laterale, and light slotting.
The suitable entry method depends on the cutting diameter, lunghezza del flauto, materiale del pezzo, rigidità della macchina, e parametri di taglio. Deep plunging or heavy slotting may require a different flute count or tool geometry.
Common helix angles range from 30° to 45°. A lower helix angle can provide a stronger cutting edge, while a higher helix angle may improve cutting smoothness and surface finish.
Variable-helix designs can also be evaluated when the application requires better vibration control.
4 Flute End Mill Material and Coating Selection
Il grado di metallo duro, rivestimento, and cutting geometry should match the workpiece material and hardness. The following table provides general selection guidance.
| Materiale del pezzo | Typical Workpiece Hardness | Recommended Coating | Common Applications |
|---|---|---|---|
| General Steel | Fino all'HRC 45 | TiN or TiAlN | Fresatura laterale, fresatura di profili, e rifinitura |
| Acciaio inossidabile | Fino all'HRC 45 | TiAlN or AlTiN | Fresatura di profili, semifinitura, and controlled side milling |
| Acciaio legato | Fino all'HRC 50 | TiAlN or AlTiN | Finissaggio, fresatura di contorni, and general CNC machining |
| Acciaio per utensili / Pre-Hardened Steel | Fino all'HRC 55 | AlTiN or TiSiN | Mold components, profili, e finiture di precisione |
| Acciaio temprato / Die Steel | Fino all'HRC 65 | AlTiN or TiSiN | Light finishing with application-specific geometry |
These values are general recommendations rather than fixed machining limits. Final tool selection also depends on cutting depth, coolant conditions, rigidità della macchina, tenuta dell'utensile, and required tool life.
Stainless steel can generate heat and work hardening. Perciò, stable tool holding and controlled overhang are important.
Hardened steel may require a special carbide grade and cutting-edge preparation. Please confirm the exact workpiece hardness during the quotation process.
Opzioni di specifica
We supply common metric sizes and can also evaluate inch-size and custom requirements.
| Specificazione | Available Range or Option |
|---|---|
| Diametro di taglio | 1–20 mm |
| Diametro del gambo | 3–20 mm |
| Lunghezza del taglio | 3–50 mm |
| Lunghezza totale | 38–200 mm |
| Angolo dell'elica | 30°–45° or custom |
| End Style | Sharp corner, chamfer, or corner radius |
| Metric Sizes | Disponibile |
| Inch Sizes | Disponibile |
| Taglio centrale | Disponibile |
| Custom Dimensions | Available according to requirements or drawings |
Common shank diameters include 4 millimetro, 6 millimetro, 8 millimetro, 10 millimetro, 12 millimetro, 16 millimetro, E 20 millimetro. Common overall lengths include 50 millimetro, 60 millimetro, 75 millimetro, E 100 millimetro.
Actual availability depends on the complete combination of cutting diameter, lunghezza del flauto, diametro del gambo, rivestimento, e geometria. Common sizes may support faster delivery, while special combinations may require custom production.
Long and Special-Size Options
We can provide extended flute lengths, extra-long overall lengths, long-reach or reduced-neck designs, special shank sizes, custom helix angles, and metric or inch dimensions.
Geometria a taglio centrale, corner chamfers, corner radii, rivestimenti, and other non-standard features can also be produced according to your drawing or machining requirements.
A longer tool may have lower rigidity. Perciò, the cutting depth, portata, and machining operation should be considered when selecting an extended-length end mill.
Recommended Machining Applications
The strong four-flute core and square-end geometry suit side milling, fresatura di profili, fresatura di contorni, finitura, semifinitura, square-shoulder machining, and light slotting.
Its center-cutting design also supports plunging, rampante, and helical entry under suitable machining conditions.
Four flutes provide good rigidity and surface stability. Tuttavia, they offer less space for chip evacuation than a two-flute design. Perciò, fessure profonde, alluminio, and other chip-intensive operations may require a lower flute count.
To compare chip evacuation, cutting rigidity, and flute selection, Leggere 2 flauto contro 4 fresa a candela a flauto.
Aluminum machining considerations are explained in Sono 4 frese per flauto adatte per l'alluminio.
For finishing-focused flute selection, Leggere 4 flauto contro 6 fresa a candela a flauto.
UN 6 fresa in metallo duro con scanalatura may suit lighter finishing cuts that require more cutting edges.
Heavy material removal is better handled with dedicated frese per sgrossatura.
Cutting Performance and Quality
Solid carbide provides high hardness, resistenza all'usura, and cutting-edge stability. Nel frattempo, the four-flute design creates a strong core for stable machining of steel and stainless steel.
This combination can improve cutting rigidity, qualità della superficie, consistenza dimensionale, and tool life under suitable machining conditions.
Tuttavia, final performance also depends on the tool geometry, rivestimento, titolare, metodo del refrigerante, condizione della macchina, e parametri di taglio.
Dimensional and Runout Inspection
We inspect key dimensions, bordi taglienti, and runout before shipment to help maintain consistent product quality.
Custom Manufacturing and OEM Supply
We supply standard and custom 4 flute carbide end mills for distributors, fornitori di attrezzature, CNC machining workshops, e acquirenti industriali.
Custom options include cutting and shank diameters, flute and overall lengths, neck and reach dimensions, angoli dell'elica, center-cutting geometry, corner treatments, gradi di metallo duro, rivestimenti, tolleranze, marcatura laser, and OEM packaging.
We can also produce non-standard tools according to drawings or reference samples. MOQ, lead time, and pricing depend on the specification, rivestimento, quantità, e requisiti di imballaggio.
Domande frequenti
What materials can a 4 flute carbide end mill machine?
It can machine general steel, acciaio inossidabile, acciaio legato, acciaio per utensili, acciaio pretemprato, and selected hardened steels.
The suitable carbide grade, rivestimento, and geometry depend on the workpiece material and hardness.
Is this 4 flute square end mill center cutting?
Sì. Its center-cutting geometry allows the cutting edges to extend across the tool center.
Perciò, it can support plunging, rampante, and helical entry under suitable machining conditions.
What coating should I choose for steel or stainless steel?
TiN or TiAlN can suit general steel. TiAlN and AlTiN are common options for stainless steel and alloy steel, while AlTiN or TiSiN may suit harder tool steels.
The final selection should also consider machining speed, refrigerante, profondità di taglio, and tool life requirements.
Can you produce long or custom 4 frese per flauto?
Sì. We can evaluate extended flute lengths, extra-long overall lengths, reduced-neck designs, special shanks, custom helix angles, rivestimenti, and drawing-based tools.
What information is required for a quotation?
Please provide the available dimensions, materiale del pezzo, durezza, operazione di lavorazione, coating preference, e quantità.
A drawing, modello di riferimento, or product photo will help when the specification is incomplete or non-standard.
Send Your 4 Flute End Mill Requirement
Need a standard or custom 4 flute carbide end mill for steel, acciaio inossidabile, acciaio legato, acciaio per utensili, or hardened steel?
Send us your available dimensions, materiale del pezzo, durezza, operazione di lavorazione, coating preference, e quantità. You can also send a drawing, modello di riferimento, or product photo if the specification is incomplete.
We will review your application and help confirm a suitable square-end design, center-cutting geometry, rivestimento, and size option.
Email your requirement directly to sales@cutterbest.com.
