Bull Nose End Mill Specification Options
A bull nose end mill has a flat cutting bottom with a defined corner radius at the outside cutting edge. Tooling catalogs also commonly list this geometry as a fresa per raggio angolare.
General Dimensions

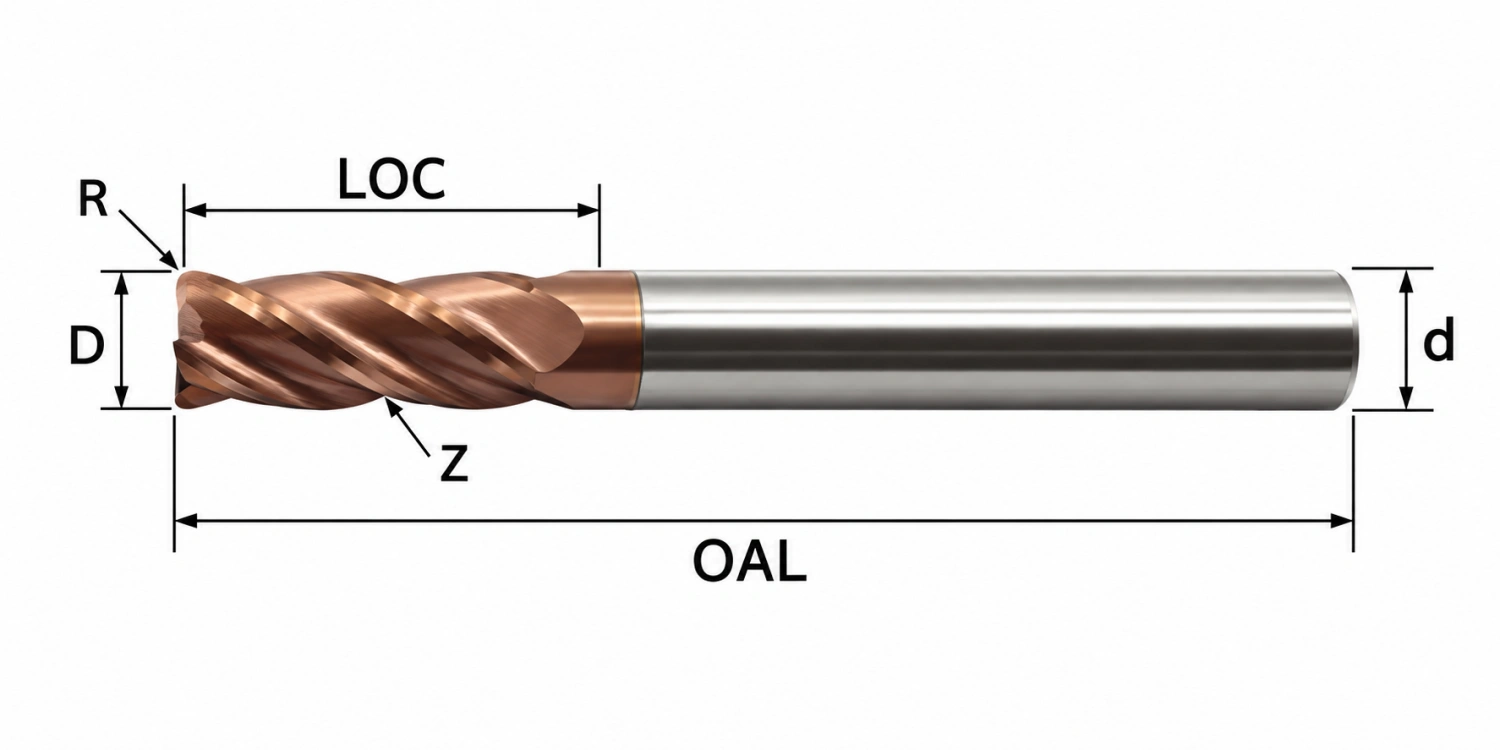

Use the following dimensions to specify the tool:
| Symbol | Dimensione |
|---|---|
| D | Diametro taglierina |
| R | Raggio d'angolo |
| LOC | Lunghezza del taglio |
| D | Diametro del gambo |
| OAL | Lunghezza totale |
| Z | Number of Flutes |
Check these dimensions together when selecting a standard tool or confirming a non-standard design.
Per utensili non standard, send a drawing when available.
3-Flute Aluminum Series
OMIST offers a standard 3-flute series for aluminum and aluminum-alloy machining.
The confirmed series covers cutter diameters of approximately Ø1–Ø20mm, with corner radii from R0.2 to R4 across the series. LOC, diametro del gambo, and OAL vary by cutter diameter and tool design.
Tuttavia, not every diameter is available with every radius or length combination. OMIST confirms flute finish, surface treatment, and cutting geometry according to the actual machining requirement.
4-Flute Standard Series
The confirmed 4-flute series covers cutter diameters of approximately Ø1–Ø20mm.
Corner radii represented across the series include:
R0.2 / R0.3 / R0.5 / R1 / R2
Not every radius is available with every cutter diameter. The table below shows representative confirmed configurations rather than a complete model list.
| D (millimetro) | R (millimetro) | LOC (millimetro) | Shank d (millimetro) | OAL (millimetro) | Flauti |
|---|---|---|---|---|---|
| 1 | 0.2 | 3 | 4 | 50 | 4F |
| 4 | 0.5 | 10 | 4 | 50 | 4F |
| 6 | 1 | 18 | 6 | 75 | 4F |
| 8 | 1 | 24 | 8 | 75 | 4F |
| 10 | 1 | 30 | 10 | 100 | 4F |
| 12 | 1 | 36 | 12 | 100 | 4F |
| 14 | 2 | 35 | 14 | 100 | 4F |
| 16 | 1 | 40 | 16 | 100 | 4F |
| 20 | 1 | 40 | 20 | 100 | 4F |
Other D, R, LOC, gambo, and OAL combinations depend on the required tool geometry and machining application.
Opzioni standard e personalizzate
OMIST offers standard 3F and 4F serie.
For applications outside the standard range, we can manufacture non-standard sizes and geometries. 2F, 5F, 6F, extended-length tools, and other flute configurations are available for custom requirements.
Custom options may include diameter, raggio d'angolo, LOC, OAL, dimensione del gambo, conteggio dei flauti, elica, rivestimento o trattamento superficiale, geometria di taglio, center-cutting design, e requisiti di tolleranza.
Inoltre, selected 150 mm OAL configurations are available according to cutter diameter, portata, e geometria.
We confirm final manufacturability after reviewing the required dimensions and application.
Candidature e selezione
The 3-flute standard series is mainly intended for aluminum and aluminum-alloy machining.
The 4-flute series provides the main standard range for other machining requirements. Per acciaio, acciaio inossidabile, acciaio per stampi, or hardened-steel applications, OMIST reviews material hardness, dimensioni dell'utensile, operazione di lavorazione, portata, and cutting conditions before confirming the final configuration.
We also select coating or surface treatment according to the actual application rather than using one fixed specification for the whole product family.
Le applicazioni tipiche includono:
- Contour milling
- Fresatura di profili
- Semifinitura
- Finissaggio
- Lavorazione di stampi e matrici
- Cavity machining
- Pocket machining where a corner radius is acceptable
For applications that require a sharp cutting corner, Vedere Fresa a punta tonda vs fresa a testa piatta.
For the difference between a flat-bottom radiused cutter and a fully rounded cutting end, Vedere Bull Nose vs Ball Nose End Mill.
Corner rounding form cutters are a different tool type used to produce an external workpiece radius. See Fresa per raggio d'angolo e fresa per arrotondamento d'angolo.
Caratteristiche principali
- Flat Bottom with Corner Radius: Combines a flat cutting end with a defined corner radius.
- Standard 3F and 4F Series: Covers multiple metric diameter, raggio, and length combinations.
- Application-Matched Configuration: Tool geometry and surface treatment depend on the workpiece and machining conditions.
- Produzione personalizzata: Dimensioni non standard, configurazioni di flauto, and cutting geometry can be produced from customer requirements or drawings.
Custom Bull Nose End Mill Manufacturing
OMIST supports standard and custom solid carbide bull nose end mills for machining companies, distributori, e requisiti OEM.
Per utensili non standard, we review the required dimensions, geometria, center-cutting requirement, and dimensional or radius tolerance against the drawing and machining application.
If a standard size does not fit the part, send the required dimensions, disegno, campione, or reference image for manufacturability review.
For quotation, please provide the main tool dimensions, materiale del pezzo, operazione di lavorazione, e quantità. A drawing is preferred for non-standard requirements, but we can also make an initial review from the available dimensions and machining information.
We confirm MOQ, achievable tolerance, and lead time after reviewing the specification and quantity.
Domande frequenti
Una fresa a punta toro è uguale a una fresa a raggio angolare?
For the flat-bottom, radiused-corner geometry covered on this page, “bull nose end mill” is a common market name, while tooling catalogs often use “corner radius end mill.” Confirm the exact tool by its dimensions and geometry.
What flute counts are available?
The standard ranges include a 3-flute aluminum series and a 4-flute series. OMIST can also produce 2F, 5F, 6F, and other flute configurations for custom requirements.
What standard sizes and corner radii are available?
The 3-flute aluminum series covers approximately Ø1–Ø20mm, con R0.2–R4 across the series.
The confirmed 4-flute range also covers approximately Ø1–Ø20mm, con R0.2, R0.3, R0.5, R1, and R2 represented across the series.
Actual diameter, raggio, and length combinations vary by tool size and design.
Can custom bull nose end mills be manufactured from a drawing?
Sì. OMIST can review non-standard dimensions and geometry from a drawing, dimensioni richieste, campione, or machining information.
How should I request a quotation?
Send the main tool dimensions, materiale del pezzo, operazione di lavorazione, e quantità. For a non-standard tool, include a drawing or reference image when available.
Request a Quote
Looking for a standard or custom bull nose end mill?
Send your drawing or required dimensions by E-mail or contact us on Contatti for specification confirmation and quotation.
