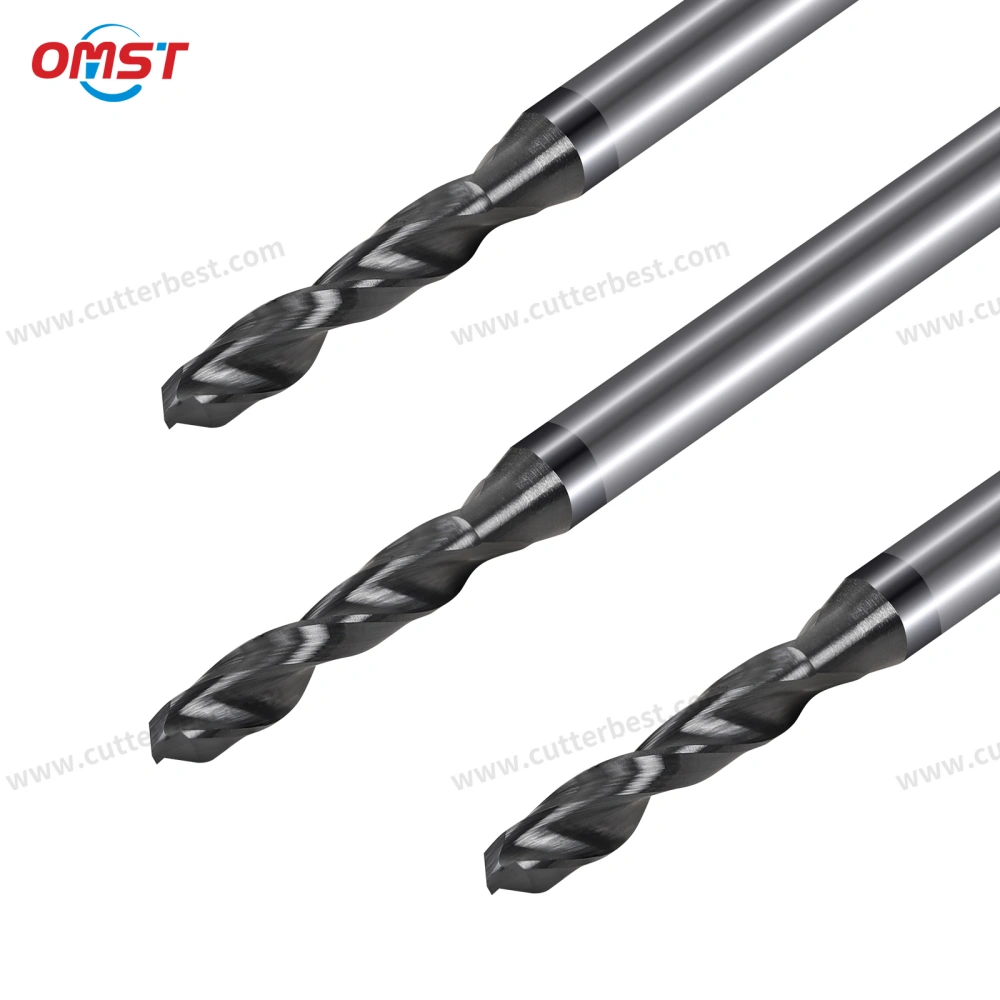

Frese integrali di finitura in metallo duro per lavorazione CNC

Finishing End Mill Solutions

A finishing end mill is selected for the finishing stage, but it is not limited to one fixed cutting profile or flute count. Depending on the final surface, the suitable tool may be a flat end mill, fresa a punta sferica, fresa a candela a testa tonda, or custom-profile cutter.

Inoltre, the workpiece material affects the carbide grade, cutting-edge design, configurazione del flauto, and coating choice. Customers can send an existing tool model for matching or provide a drawing, material information, dimensioni richieste, and machining conditions for tool selection.

Quick Finishing End Mill Selection

Use these directions as a practical starting point:

• Choose a flat end mill for flat bottoms, straight side walls, passi, slot, e spalle quadrate.
• Choose a ball nose end mill for curved surfaces, 3Contorni D, complex profiles, e cavità dello stampo.
• Choose a bull nose end mill when the part requires a defined radius between the bottom and side wall.
• For abrasive graphite, consider a diamond-coated carbide tool when cutting-edge wear affects dimensional consistency.
• Per alluminio, prioritize a sharp cutting edge, smooth flute surfaces, spazio sufficiente per il chip, and effective chip removal.
• For steel finishing, prioritize tool rigidity, forza del bordo, e resistenza all'usura.
• Per acciaio inossidabile, avoid worn or weak cutting edges because work hardening can increase the cutting load.
• For titanium, keep the cutting setup stable and the tool overhang as short as possible to help control heat and deflection.
• For deep cavities or restricted areas, use the shortest neck and overall length that can reach the required surface.

These directions help narrow the product range. Tuttavia, the final dimensions, conteggio dei flauti, grado di carburo, and coating should match the drawing and actual machining conditions.

Finishing End Mill Types We Supply

Frese a estremità piatta

Flat end mills have a flat cutting end and sharp outer corners. They suit flat-bottom features, pocket bottoms, pareti diritte, passi, slot, e spalle quadrate.

Choose a flat profile when the part requires a level bottom or a clear wall-to-bottom transition. Review our flat end mills for flat-surface finishing.

Frese a candela a testa sferica

Ball nose end mills have a fully rounded cutting end. They suit curved surfaces, 3Contorni D, cavità dello stampo, and continuous surface transitions.

Choose the ball diameter according to the curvature and feature size of the part. Nel frattempo, use only the neck and overall length required to reach the cutting area. Review our ball nose end mills for curved-surface finishing.

Frese a punta di toro

Bull nose end mills, also called corner radius end mills, combine a flat cutting area with rounded outer corners. They suit bottom-to-wall transitions, mold profiles, and parts that require a defined corner radius.

Match the tool radius to the part drawing. An unsuitable radius may cause interference, overcutting, or remaining material in the corner. Review our bull nose end mills for corner transitions.

Custom Profile End Mills

Standard tools do not fit every component. Special features may require a non-standard diameter, lunghezza del flauto, raggio d'angolo, raggio della palla, neck design, conteggio dei flauti, or cutting profile.

Customers can submit an existing tool model, disegno, tool photo, or physical sample for review. Esplora il nostro custom end mills based on drawings or samples.

Finishing End Mills for Different Materials

Graphite Finishing End Mills

La grafite è abrasiva. Perciò, cutting-edge wear can affect detail accuracy and dimensional consistency. Thin walls, sharp electrode edges, and deep features may also require careful selection of the end profile and neck design.

Use a flat profile for level electrode surfaces, a ball nose profile for curved contours, and a bull nose profile for defined corner transitions. When abrasive wear is the main concern, a diamond-coated finishing end mill may be a suitable option.

Review our diamond coated end mills for graphite finishing.

For further application information, Leggere what diamond coated end mills are used for.

Aluminum Finishing End Mills

Aluminum and other non-ferrous materials may create built-up edges, material adhesion, ritaglio del truciolo, and fine scratches. Di conseguenza, aluminum finishing tools usually emphasize sharp cutting edges, smooth flute surfaces, and sufficient chip space.

Start with a lower flute count when chip evacuation is difficult. Tuttavia, specially designed higher-flute tools may suit stable side-finishing operations with controlled chip flow.

Uncoated tools can provide a sharp cutting edge, while DLC or other application-specific coatings may help when material adhesion and tool wear are recurring problems. Inoltre, suitable coolant or air blast helps remove chips before they damage the finished surface.

Finishing End Mills for Steel

Steel finishing usually requires a balance of tool rigidity, forza del bordo, resistenza all'usura, and stable engagement. Perciò, select the flute count and coating according to the steel grade, durezza, diametro della fresa, and machining setup.

For long-reach applications, avoid unnecessary overall length because excessive tool overhang can increase deflection and visible tool marks.

Finishing End Mills for Stainless Steel

Stainless steel can generate cutting heat and work hardening. Perciò, maintain a stable cutting setup and avoid using worn or damaged cutting edges for the final pass.

The tool should provide enough edge strength while maintaining suitable chip control. Rivestimento, conteggio dei flauti, diametro della fresa, and tool overhang should match the exact stainless steel grade and machining operation.

Titanium Finishing End Mills

Titanium concentrates heat near the cutting edge and can reduce tool life if the setup lacks stability. Use a rigid toolholding system, keep the tool overhang short, and select a coating suitable for the application.

The final tool design should also consider the engagement method, part rigidity, feature depth, and chip-removal conditions.

Finishing End Mills for Mold and Hardened Materials

Mold and hardened-material finishing may include curved cavities, aree ristrette, deep features, and small details. Depending on the surface, suitable options may include flat, naso a palla, naso di toro, reduced-neck, or long-neck end mills.

Use the shortest tool that can reach the machining area. Before confirming the product, provide the material grade, durezza, profondità della cavità, profilo richiesto, and part drawing.

Common Signs That the Finishing Tool Needs Review

The finishing tool or setup may need adjustment when the part shows:

• Visible tool marks or chatter lines
• Rapid cutting-edge wear
• Graphite edge chipping
• Aluminum adhesion or fine scratches
• Unstable dimensions during continuous machining
• Remaining material in corners or transitions
• Insufficient reach or excessive tool deflection

These problems may relate to the end profile, conteggio dei flauti, condizione all'avanguardia, rivestimento, sporgenza dell'utensile, esaurire, evacuazione truciolo, or workholding stability.

Primo, check the tool condition, titolare, esaurire, sporgenza, and chip-removal conditions. If the problem continues, send the current tool information, disegno della parte, materiale, and machining setup for a more focused review.

Opzioni di specifica

Exact dimensions, coating combinations, and production feasibility depend on the tool structure, materiale, e applicazione.

How to Choose a Finishing End Mill

Choose by Surface Geometry

Primo, identify the final surface that the cutter must produce.

Choose a flat end mill for flat bottoms, pareti diritte, passi, e spalle quadrate. For curved surfaces, cavità dello stampo, e profili 3D, a ball nose end mill is usually more suitable. When the part requires a defined radius between the bottom and side wall, consider a bull nose end mill.

Scegli in base al materiale del pezzo

Prossimo, confirm the material grade and hardness.

Graphite requires wear-resistant tool selection. Aluminum requires sharp edges and effective chip removal. Steel requires a balance of rigidity and wear resistance. Stainless steel needs stable cutting and control of work hardening. Titanium requires heat control, rivestimento adatto, and limited tool overhang.

Mold steel and hardened materials require separate evaluation based on hardness, profile complexity, profondità della cavità, e stabilità della macchina.

Choose the Flute Count

Flute count affects chip space, rigidità dell'utensile, and the number of cutting edges in contact with the workpiece.

Use fewer flutes when the operation needs more chip space. Al contrario, consider more flutes when the machining process is stable and additional cutting edges support the finishing operation.

Tuttavia, do not choose the flute count alone. Diametro dell'utensile, materiale, cutting engagement, evacuazione truciolo, and machine stability also affect the result.

For common four-flute products, rivedi il nostro 4 opzioni di frese per scanalature.

Higher-flute configurations are available through our 6 opzioni di frese per scanalature.

A detailed comparison is available in our 2 flauto contro 4 flauto contro 6 guida della fresa per flauto.

Confirm Dimensions and Machining Conditions

Prima di richiedere un preventivo, confirm the main tool dimensions, materiale del pezzo, configurazione della macchina, e la quantità richiesta. Se disponibile, also provide the current tool model and machining problem. We will request any additional information needed for final tool selection.

A short and rigid tool usually provides a stable starting point. Tuttavia, deep cavities and restricted areas may require reduced-neck, long-neck, or extended-length designs.

Roughing and Finishing Tool Selection

Separate roughing and finishing tools are generally more suitable when the part has demanding surface requirements, complex contours, difficult materials, uneven remaining stock, or noticeable wear on the roughing tool.

In simpler and stable operations, one cutter may perform more than one machining stage after the cutting conditions change. Tuttavia, the cutting edges must remain suitable for the final surface.

For dedicated material-removal products, rivedi il nostro roughing end mills for CNC machining.

Standard and Custom Finishing End Mills

Standard Tool Matching

Customers can send an existing tool model, specification sheet, product photo, or supplier reference. We will compare the end profile, dimensioni, conteggio dei flauti, rivestimento, and intended material before preparing a quotation.

Custom Tool Options

Dimensioni personalizzate, raggi, conta il flauto, neck designs, rivestimenti, and special profiles can be reviewed according to drawings, existing tool models, or samples.

Informazioni necessarie per un preventivo

To request a quotation, please send your tool model, disegno, or main specifications together with the workpiece material and required quantity. We will ask for additional machining information if needed.

Instead of using one fixed cutter for every finishing application, we match the product to the material, surface geometry, disegno, e condizioni di lavorazione.

Why Choose Finishing End Mills

Con 16 anni di esperienza nella produzione di utensili da taglio, OMIST supplies standard and custom solid carbide end mills for different materials and CNC finishing applications. Instead of using one fixed cutter for every finishing operation, we match the product to the material, surface geometry, disegno, e condizioni di lavorazione.

Finishing End Mill FAQ

Is a finishing end mill one fixed type of cutter?

NO. Finishing describes the machining stage rather than one fixed cutter shape. Piatto, naso a palla, naso di toro, and custom-profile end mills can all perform finishing operations.

Which end mill should I use for a flat surface?

Choose a flat end mill for flat bottoms, pareti diritte, passi, e spalle quadrate. If the bottom and wall require a defined corner radius, consider a bull nose end mill instead.

Which end mill should I use for a curved surface?

Choose a ball nose end mill for curved surfaces, cavità dello stampo, e contorni 3D. Match the ball diameter and tool length to the curvature and depth of the feature.

How many flutes should a finishing end mill have?

Use fewer flutes when the operation needs more chip space. Consider more flutes when the process is stable and additional cutting edges support the finishing operation. Materiale, diametro, fidanzamento, and machine conditions still affect the final choice.

Can the same end mill perform roughing and finishing?

It may work in simple and stable operations with moderate surface requirements. Tuttavia, separate tools are usually more suitable when roughing causes significant cutting-edge wear or the final surface has strict requirements.

Can you manufacture custom finishing end mills?

Sì. We can review custom diameters, lunghezze, stinchi, raggi, conta il flauto, neck designs, rivestimenti, and special profiles according to drawings, existing models, or samples.

Quali informazioni ti servono per un preventivo?

Please provide the tool model or drawing, materiale del pezzo, durezza, dimensioni richieste, profilo finale, rivestimento, condizioni della macchina, current problem, e quantità.
