Carbide ball nose end mills have fully rounded cutting ends that follow curved surfaces and complex CNC toolpaths. This geometry makes them suitable for 3D contouring, 금형 캐비티 마무리, 다이 가공, sculpted profiles, and precision surface finishing.
CutterBest manufactures standard and custom carbide cutters for CNC machining shops, mold manufacturers, industrial users, and cutting tool distributors. Customers can select different diameters, 플루트 카운트, cutting lengths, neck lengths, carbide grades, and coatings according to the workpiece material and machining conditions.
볼 노즈 엔드밀이란??
A ball nose end mill is a rotary milling tool with a hemispherical cutting end. 플랫 엔드밀과 달리, it does not produce a fully flat-bottom cutting profile. 대신에, the rounded end moves smoothly across curved surfaces and helps create gradual transitions between different contours.
Machinists commonly use this tool after rough machining to finish molds, 죽는다, 충치, 반경, and three-dimensional parts. The correct cutter geometry and toolpath can also reduce visible tool marks and lower the amount of secondary polishing required.
For flat-bottom slots, 주머니, 단계, and square shoulders, please view our 플랫 엔드밀 제품.
For a side-by-side comparison of cutting geometry, machining results, and suitable applications, 우리의 글을 읽어보세요 ball nose end mill vs flat end mill guide.
주요 특징
Full-Radius Cutting End
The rounded cutting end follows curved and freeform surfaces more smoothly than a flat-bottom cutter. 그러므로, it is well suited to complex profiles, 금형 구멍, 반경, and detailed 3D finishing.
표준 풀 볼엔드 디자인의 경우, 노즈 반경은 일반적으로 절삭 직경의 절반입니다.. Custom cutting diameters, 플루트 길이, neck lengths, shank sizes, and overall lengths can be evaluated according to drawings or machining requirements.
Solid Carbide Construction
We manufacture these cutters from tungsten carbide to provide rigidity, 내마모성, and stable performance during CNC milling.
The appropriate carbide grade depends on the workpiece material, 경도, 공구 직경, 절단 깊이, 및 가공 조건. 그러므로, customers should provide the material and hardness information when requesting a quotation.

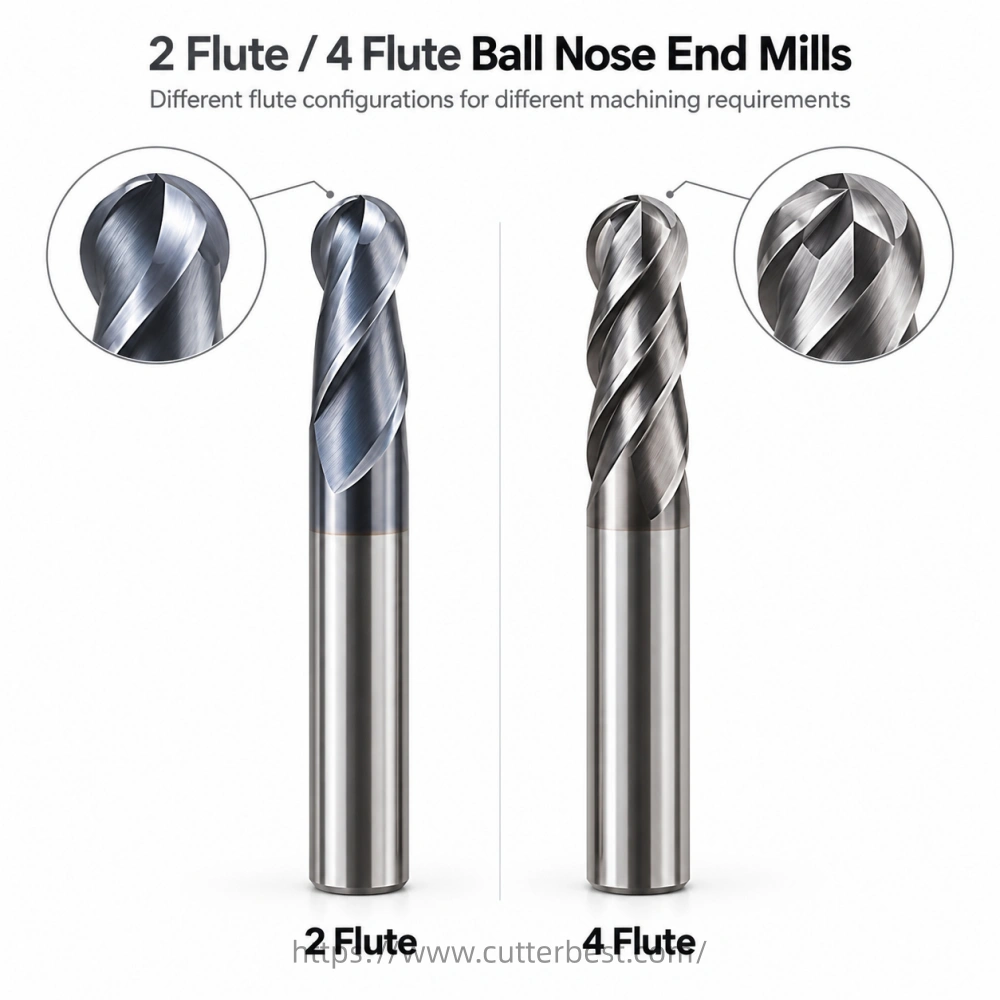

Multiple Flute Options
We can manufacture cutters with 1–6 flutes. 하지만, 2-flute and 4-flute designs are the most common.
A 2-flute design usually provides more chip space and suits aluminum, 구리, 석묵, and other applications that require efficient chip evacuation. 대조적으로, a 4-flute design provides more cutting edges and often suits steel, mold materials, 그리고 마무리 작업.
Other flute counts can be evaluated according to the cutter diameter, 공작물 재료, surface finish target, and CNC machining conditions.
코팅 옵션
Different workpiece materials require different edge treatments and coatings. Available options include:
- TiAlN
- 금
- 알크런
- 티신
- 주석
- DLC
- 나노블루
- Nano coating
- Uncoated carbide
- Customized coatings
For aluminum and other non-ferrous materials, sharp cutting edges and polished flutes may be more important than a conventional coating. 철강용, 스테인레스 스틸, and hardened materials, a suitable heat-resistant coating can improve wear resistance and tool life.
표준 및 맞춤 크기
The standard cutting diameter range is 1–20mm. 게다가, we can evaluate smaller or larger diameters according to the cutter structure, 플루트 수, 가공 깊이, 및 주문 수량.
Customers can also request custom flute length, 전체 길이, 생크 직경, 목 길이, long-reach geometry, 초경 등급, 코팅, and dimensional tolerances.
Ball Nose End Mill Applications
These cutters are commonly used for CNC finishing operations that involve curved, three-dimensional, or freeform surfaces.
일반적인 응용 분야는 다음과 같습니다.:
- 3D 윤곽 밀링
- 금형 캐비티 마무리
- 다이 및 몰드 가공
- 곡면 마무리
- 반경 및 프로파일 가공
- 조각된 표면 가공
- Automotive mold production
- Aerospace component finishing
- Medical and precision part machining
- 흑연 전극 가공
- 구리 전극 가공
- CNC engraving and detailed finishing
직경이 작을수록 좁은 공동과 미세한 세부 사항에 도달할 수 있습니다.. 그 동안에, a larger diameter can improve machining efficiency on wider curved surfaces. The final selection should consider the part shape, programmed step-over, required surface finish, 및 기계 강성.
For a more detailed explanation of machining applications, 읽다 볼 노즈 엔드밀은 어떤 용도로 사용되나요?.
Specification Options
| 목 | 사용 가능한 옵션 |
| 제품명 | 볼 노즈 엔드밀 / Ball Nose Cutter |
| Cutter Material | Solid Tungsten Carbide |
| 절단 직경 | Standard 1–20mm; smaller and larger diameters can be evaluated |
| Cutting End | Full-radius ball end |
| 플루트 카운트 | 1–6 플루트; 2-flute and 4-flute designs are the most common |
| 플루트 길이 | 표준 또는 맞춤형 |
| 전체 길이 | 표준 또는 맞춤형 |
| 생크 직경 | Straight shank or customized |
| Neck Design | Standard neck, relieved neck, or long-reach design |
| Workpiece Hardness | Standard designs up to HRC65; selected designs may support HRC68–70 |
| 코팅 | TiAlN, 금, 알크런, 티신, 주석, DLC, Nano, 코팅되지 않은, 또는 맞춤형 |
| 공작물 재료 | 강철, 스테인레스 스틸, 알류미늄, 구리, 석묵, 주철, 금형강, 및 합금 |
| 애플리케이션 | 3D 컨투어링, 금형 마무리, 캐비티 가공, 곡면, 및 정밀 프로파일 |
| 맞춤 서비스 | 지름, 길이, shank, neck, 플루트 수, 초경 등급, 코팅, 용인, and special geometry |
| Order Type | Sample orders, 일괄 생산, OEM, ODM, and distributor orders |
Ball Nose End Mills for Different Materials
알루미늄 및 비철 재료
When machining aluminum, 구리, and similar materials, efficient chip evacuation helps reduce chip accumulation and built-up edges.
날카로운 절삭날, larger flute space, 광택이 나는 플루트, and suitable coatings can improve the surface finish. A 2-flute or 3-flute design may suit many non-ferrous applications, depending on the cutter diameter and machining method.
강철 및 스테인리스강
Steel and stainless steel require stable cutting edges, suitable carbide grades, and appropriate coatings.
Tool length and machine rigidity are also important because excessive overhang may cause vibration and reduce surface quality.
TiAlN, 금, 알크런, or another suitable coating can be selected according to the material, 경도, 절단 온도, and coolant conditions.
Mold Steel and Hardened Materials
For mold steel and hardened materials, the cutter must provide sufficient edge strength, 내열성, and wear resistance.
Standard cutter designs can support materials up to approximately HRC65. Selected carbide grades, 가장자리 준비, and coatings may support HRC68–70.
하지만, feasibility depends on:
- Exact workpiece material
- 커터 직경
- Machining allowance
- 절단 깊이
- 기계 강성
- Toolpath
- Cutting parameters
Please provide complete machining information before ordering tools for high-hardness materials.
흑연 및 구리 전극
Graphite machining requires good wear resistance and stable cutter geometry. 대조적으로, copper electrode machining usually requires sharp cutting edges and a smooth flute surface.
We can recommend suitable carbide grades, 코팅, and flute designs according to the electrode material, required surface finish, 및 생산 수량.
Are Ball Nose End Mills and Ball Mill Cutters the Same?
In CNC cutting tool applications, “ball nose end mill” and “ball mill cutter” usually refer to the same type of cutter with a fully rounded cutting end.
“Ball nose end mill” is the more formal and widely accepted name used in professional cutting tool catalogs. “Ball mill cutter” is a shorter term used by some buyers when searching for a milling cutter with a ball-shaped end.
Both terms normally describe a tool used for 3D contour milling, 금형 캐비티 마무리, 곡면 가공, and complex profile finishing.
하지만, a ball mill cutter should not be confused with a ball mill machine used for grinding powders or bulk materials.
For more information about this alternative product name, 우리의 글을 읽어보세요 ball mill cutter guide.
볼 노즈 엔드밀 선택 방법
Select the Cutting Diameter
The cutting diameter should match the workpiece radius, cavity width, 세부 크기, 및 사용 가능한 가공 공간.
A smaller diameter suits fine details, 좁은 지역, and small radii. A larger diameter can improve machining efficiency on wider curved surfaces.
Confirm the Flute Length and Overall Length
Choose a flute length and overall length that reach the required machining depth without adding unnecessary overhang.
A cutter that is too long may vibrate and produce visible surface marks. 깊은 충치용, a relieved neck or long-reach design may provide better access than an excessively long flute.
플루트 디자인을 재료에 맞추세요
The flute count, helix, cutting-edge preparation, and chip space should match the workpiece material and operation.
예를 들어, aluminum normally requires efficient chip evacuation and sharp cutting edges. Steel and hardened materials generally require stronger edges, 안정된 기하학, and a suitable coating.
Choose a Suitable Coating
The coating should match the material hardness, 절단 온도, 냉각수 상태, and machining method.
An unsuitable coating or edge treatment may increase chip adhesion, shorten tool life, or reduce surface quality.
기계 및 공구 홀더 안정성 확인
기계 강성, tool-holder condition, tool runout, and cutter overhang directly affect the final surface finish.
그러므로, use the shortest practical tool length and confirm that the machine and holder can support the required finishing operation.
For more selection information, 읽다 볼 노즈 엔드밀 선택 방법.
If the finishing operation may require a flat, 공 코, 황소 코, or material-specific cutter, compare the available options in our finishing end mill solutions for CNC machining.
Custom Ball Nose End Mill Manufacturing
Standard cutters may not suit every mold, 공동, 반지름, or special CNC component. 그러므로,CutterBest supports custom ball nose end mill production according to drawings, 샘플, 크기 목록, 및 가공 요구 사항.
사용자 정의 옵션에는 다음이 포함됩니다.:
- Non-standard cutting diameters
- Custom flute lengths
- Custom overall lengths
- Custom shank diameters
- Relieved-neck and long-reach designs
- 1–6 flute configurations
- Special carbide grades
- Coated or uncoated cutting edges
- Custom dimensional tolerances
- OEM 레이저 마킹
- Neutral or private-label packaging
Please provide:
- 공작물 재료
- Workpiece hardness
- 절단 직경
- 플루트 길이
- 전체 길이
- 생크 직경
- 플루트 수
- 코팅 요구 사항
- 수량
- Required tolerance
A clear drawing is recommended for non-standard tools.
FAQ
볼 노즈 엔드밀은 어떤 용도로 사용되나요??
Machinists use it for 3D contour milling, 곡면 마무리, 금형 구멍, 죽는다, 반경, sculpted profiles, 정밀 CNC 마무리. Its rounded cutting end follows complex surfaces more smoothly than a flat-bottom cutter.
Is a ball nose end mill the same as a ball mill cutter?
In CNC cutting tool applications, the two names usually describe the same rounded-end milling tool. 하지만, “ball nose end mill” is the more formal product name used in professional tool catalogs.
Can a ball nose end mill machine a flat-bottom pocket?
It can machine curved cavity bottoms, 그러나 완전히 평평한 바닥 프로파일을 효율적으로 생성하지는 않습니다.. A flat end mill is usually more suitable for flat-bottom pockets, 슬롯, 단계, 그리고 어깨.
Which flute count should I choose?
Two-flute and four-flute designs are the most common.
A 2-flute cutter provides more chip space, while a 4-flute cutter provides more cutting edges and may improve finishing stability. Other flute counts can be evaluated according to the cutter diameter, 공작물 재료, 및 가공 조건.
Can you manufacture cutters for HRC68–70 materials?
Selected carbide grades, 코팅, and cutter designs may support materials in the HRC68–70 range.
하지만, feasibility depends on the exact workpiece material, 커터 직경, machining allowance, toolpath, 기계 강성, and cutting parameters.
Can you customize the cutter dimensions?
예. 절단 직경을 맞춤 설정할 수 있습니다., 플루트 길이, 전체 길이, 생크 직경, 목 길이, 플루트 수, 코팅, 초경 등급, and tolerance according to drawings or machining requirements.
What information do you need for a quotation?
Please provide the cutting diameter, 플루트 길이, 전체 길이, 생크 직경, 플루트 수, 코팅, 공작물 재료, 경도, 수량, and delivery location.
For non-standard tools, please also send a drawing or sample.
볼 노즈 엔드밀 요구 사항 보내기
Need standard or custom carbide ball nose end mills for mold machining, 곡면, or 3D contour finishing?
Send us your size list, 그림, 공작물 재료, 경도, 코팅 요구 사항, 수량. 우리 팀은 신청서를 검토하고 적합한 도구 제안 및 견적을 제공할 것입니다..
