Solid Carbide Corner Rounding End Mill

Corner Rounding End Mill for Precision Edge Radiusing

A corner rounding end mill is a form milling cutter designed to machine a rounded profile along the external edge of a workpiece. Its concave cutting edge removes the sharp corner and produces a convex radius that matches the required part drawing.

일반 엔드밀과 달리, this tool forms the complete radius profile with its cutting geometry. 결과적으로, it can improve radius consistency and reduce the need for repeated contouring passes.

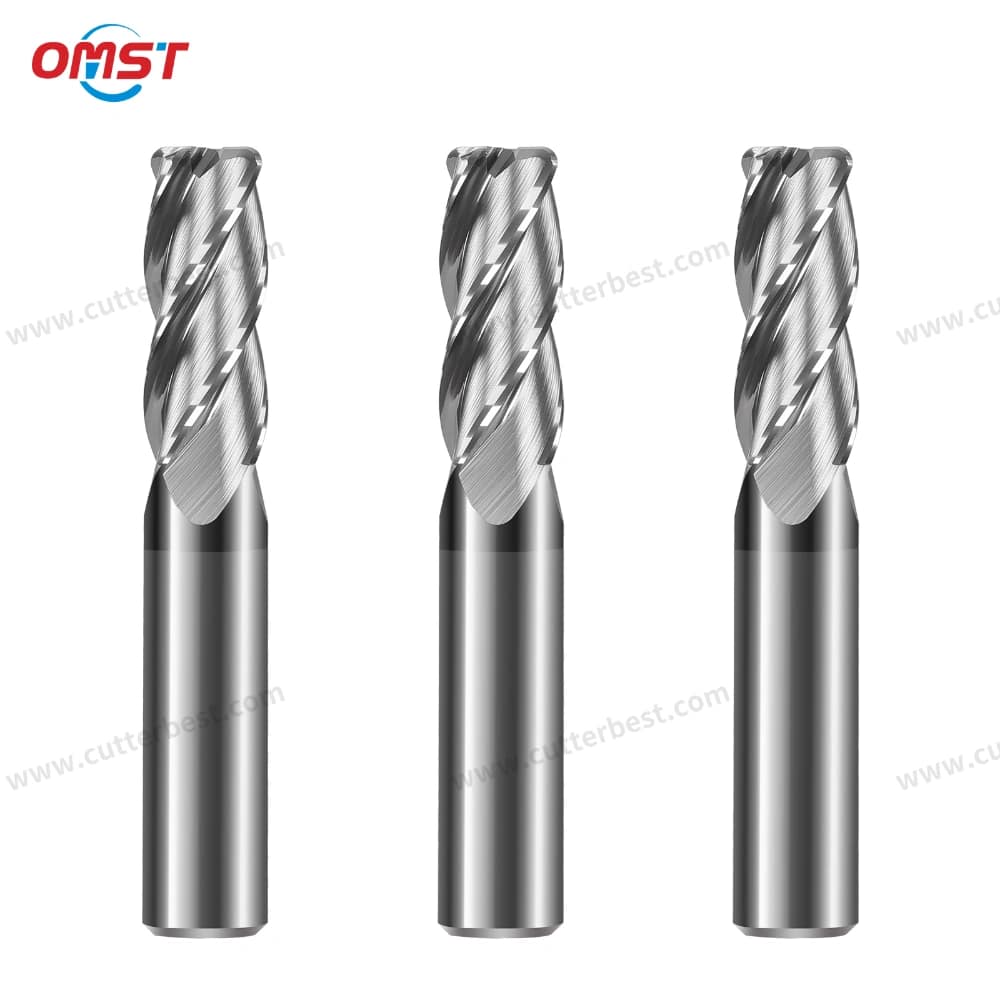

The product images show a D8 R2.5 carbide radius cutter as a reference design. 하지만, the final tool dimensions and geometry depend on the required radius, 가공 위치, 공작물 재료, 도구 정리, and machine conditions.

What Is a Corner Rounding End Mill Used For?

Machining Rounded External Edges

The primary application is to convert sharp external edges into smooth rounded edges. Manufacturers often specify these radii to improve part safety, appearance, assembly performance, or resistance to edge damage.

The cutter can machine straight edges, plate edges, step edges, and accessible part profiles. 하지만, tool access and workpiece clearance must be checked before selecting the cutter dimensions.

Creating a Consistent Radius Profile

The cutting edge contains the required concave radius. 그러므로, the tool can create a repeatable convex radius when the machine position, 런아웃, and cutting parameters remain stable.

A formed cutter can also simplify programming because the operator does not need to generate the complete radius with many small contouring passes.

Edge Finishing and Burr Reduction

A corner rounding cutter can remove sharp corners and reduce burrs while producing the required radius profile. 하지만, it is not only a deburring tool. The selected radius must match the part drawing and functional requirements.

For straight bevels rather than rounded edges, a chamfer cutter is usually the more suitable choice.

Key Features of Our Radius Form Cutters

Concave Radius Cutting Profile

The concave cutting geometry forms a rounded profile on the workpiece edge. Different radius sizes can be supplied according to the part design, available machining space, and required edge shape.

The D8 R2.5 product shown in the images represents one possible configuration. Other dimensions can be produced after reviewing the customer’s drawing or specification.

Solid Carbide Construction

Solid carbide provides good rigidity, 내마모성, and dimensional stability for CNC machining. It is suitable for producing small and medium-sized radius cutters where accuracy and cutting stability are important.

The carbide grade should match the workpiece material and machining conditions. 그러므로, we select the tool substrate according to the application rather than using one carbide grade for every material.

Flute Geometry for Different Applications

Corner rounding end mills may use two, three, four, or multiple flutes. The suitable flute number depends on the cutter size, 공작물 재료, 칩 공간, required surface finish, 및 가공 안정성.

예를 들어, fewer flutes generally provide more chip space. 대조적으로, additional cutting edges may support smoother cutting and a better surface finish under suitable conditions.

Application-Specific Coating Options

코팅은 공작물 재료와 일치해야 합니다., 절단 속도, 냉각수 상태, and required tool life. Coated and uncoated options are available for different machining applications.

Tools for steel, 스테인레스 스틸, 알류미늄, 구리, 주철, and mold materials may require different cutting geometries and surface treatments. 그러므로, please provide the workpiece material when requesting a quotation.

Standard and Custom Dimensions

We can manufacture corner rounding cutters with different radius sizes, cutter diameters, shank diameters, cutting lengths, overall lengths, 플루트 카운트, and coatings.

For special machining positions, we can also evaluate extended-reach designs, reduced-neck structures, and other customized geometries based on the drawing.

Specification Options

Corner rounding end mill model numbers and dimension sequences vary among manufacturers. 그러므로, customers should confirm the actual dimensions instead of relying only on the model name.

Understanding Tool Dimensions

반지름

The radius is the most important specification. It refers to the radius of the concave cutting profile and usually corresponds to the convex radius produced on the workpiece edge.

예를 들어, an R2.5 cutter is intended to produce an approximately 2.5 mm rounded profile when the cutter geometry and machine position match the application.

Cutter or Head Diameter

The cutter or head diameter refers to the maximum diameter of the cutting section. It affects tool clearance, cutting strength, and access to the workpiece edge.

Because manufacturers may use different model formats, a dimension such as D8 should be confirmed before ordering. It may refer to the cutter diameter, 생크 직경, or another tool dimension.

생크 직경

The shank diameter must match the collet, hydraulic chuck, shrink-fit holder, or other tool-holding system. A suitable shank also helps control runout and cutting vibration.

Overall Length and Cutting Length

The overall length determines the tool reach, while the cutting or head length affects the available cutting area. Longer tools provide more access, but they may also require reduced cutting parameters to control deflection.

플루트 카운트

The flute number influences chip evacuation, 절단 안정성, 사료 공급 능력, 및 표면 마무리. 그러므로, it should be selected together with the workpiece material and cutter diameter.

How to Select the Right Radius Cutter

Select the Required Radius

첫 번째, check the radius marked on the part drawing. The cutter radius should match the required finished edge profile.

Do not choose the cutter only by its outside diameter. 반경, head geometry, and machining position must work together.

Check Tool Clearance

다음, check whether the cutter can reach the required edge without hitting a nearby wall, 어깨, fixture, or part feature.

For confined positions, please provide a 2D or 3D drawing. We can then evaluate the cutter diameter, 목 정리, and required tool length.

Confirm the Workpiece Material

The workpiece material affects the carbide grade, 플루트 기하학, 코팅, 절단 속도, 이송 속도, 냉각수 전략.

Please tell us whether you are machining carbon steel, 합금강, 스테인레스 스틸, 알류미늄, 구리, 주철, hardened mold material, or another material.

Select the Flute and Coating Combination

A cutter with fewer flutes may provide more chip space, while a multi-flute design may improve cutting continuity and surface finish. 하지만, the final selection also depends on machine rigidity and cutting conditions.

Similarly, one coating does not suit every material. We recommend the coating after reviewing the workpiece material and machining requirements.

Provide a Drawing for Custom Tools

For non-standard radii, restricted machining spaces, or special profiles, please provide the following information:

• Required radius
• 커터 또는 헤드 직경
• 생크 직경
• 전체 길이
• 절단 길이
• 플루트 수
• 공작물 재료
• Workpiece hardness, if known
• Machine type
• 수량
• 2D 또는 3D 도면

일반적인 응용 분야

Corner rounding end mills are commonly used for edge profiling and radius machining on:

• Mold and die components
• Precision machine parts
• Automotive components
• 항공우주 부품
• Fixtures and tooling
• Mechanical housings
• Plates and structural parts
• General CNC-machined components

The final tool design should match the part profile and machining position. 그러므로, an application review is especially important for deep steps, 좁은 지역, and interrupted cutting.

Workpiece Material Options

We can recommend cutter geometry and coating options for:

• 탄소강
• Alloy steel
• 스테인레스 스틸
• Aluminum alloys
• Copper and copper alloys
• Cast iron
• 금형강
• Other machinable materials

The suitable hardness range depends on the carbide grade, cutting geometry, 코팅, 기계 강성, 및 절단 조건. 이러한 이유로, we confirm the application before recommending a tool for hardened materials.

Corner Rounding End Mill vs Corner Radius End Mill

A corner rounding end mill has a concave cutting profile. It machines a rounded convex edge on the workpiece and functions as a radius form cutter.

대조적으로, a corner radius end mill remains a flat-bottom end mill with a small radius at the tool tip. It performs slotting, 사이드 밀링, 포켓 밀링, and roughing while the corner radius strengthens the cutting edge.

강화된 공구 코너를 사용한 평면 바닥 밀링용, 우리의 보기 불 노즈 엔드밀.

The two tools may both include the word “radius,” but their geometry and machining purposes are different.

Radius Form Cutter vs Tapered End Mill

A corner rounding cutter forms a curved radius on an edge. A tapered end mill has a gradually changing cutting diameter and is mainly used for angled walls, 구배면, 깊은 충치, 및 금형 가공.

For draft angles or tapered sidewalls, 우리의 보기 테이퍼 커터.

그러므로, a cutter should not be classified as a tapered end mill only because part of its head appears narrower than the shank.

Custom Radius Cutter Manufacturing

Standard cutters may not fit every radius, part profile, or machining position. 그러므로, we provide custom tool evaluation based on the customer’s drawing and actual machining requirements.

Custom options may include:

• Special radius sizes
• Metric or inch dimensions
• Modified cutter diameter
• Custom shank diameter
• Short or extended tool length
• Reduced neck or special clearance
• Different flute configurations
• Application-specific carbide grades
• Coated or uncoated cutting edges
• Neutral or customized packaging

We can also evaluate related carbide milling solutions for customers who need several cutter types for one machining project. 우리의 보기 초경 밀링 커터 options for additional tool categories.

Send Your Radius Cutter Requirement

Please send the required radius, 커터 직경, 생크 직경, 전체 길이, 플루트 번호, 공작물 재료, 수량, and part drawing.

We will review the machining position and recommend a suitable standard or custom corner rounding cutter.

Request a Corner Rounding End Mill Quote
