정밀 밀링 커터,모든 재료를 가공하는 CNC용 절삭 공구

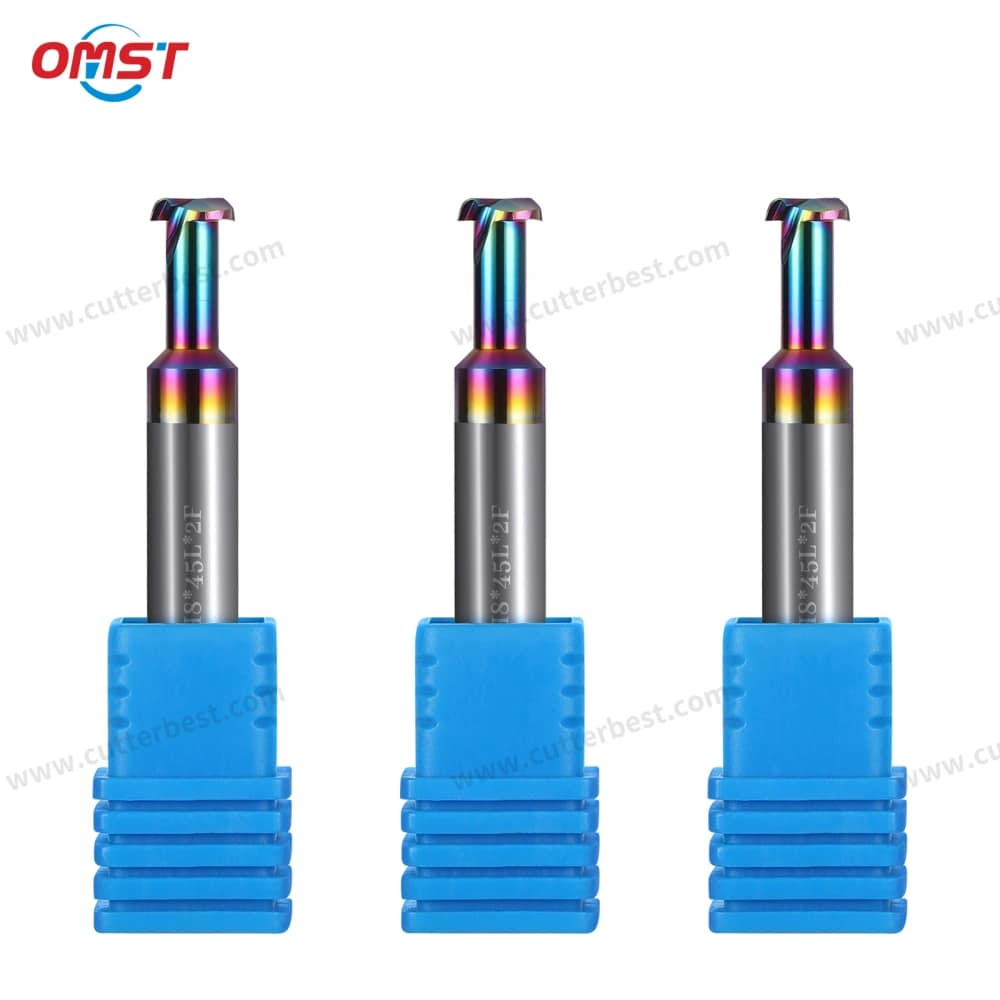

Our custom solid carbide T slot cutter is designed for precision T-slot and undercut milling on CNC machining centers and milling machines. The product shown is a coated 2-flute sample marked D6-R0.6-1.5H-D3.5-8H-45L-2F.
We can customize the corner radius, T-head thickness, neck diameter, 목 길이, 생크 직경, 전체 길이, 플루트 디자인, and coating according to your drawing and required clearance profile.
- Solid tungsten carbide construction
- Two-flute design for the sample shown
- Custom dimensions based on drawings
- Coating and OEM options available
- Suitable for sample and batch orders
These cutters can be designed for steel, 스테인레스 스틸, 알류미늄, 주철, 구리, and other materials after the cutter geometry and coating are matched to the machining conditions.
Send us your slot drawing, 공작물 재료, required tolerance, 및 주문 수량. Our team will review the application and provide a suitable cutter recommendation and quotation.
What Is a T Slot Cutter?
A T slot cutter is a form milling tool used to machine T-shaped slots and undercut grooves. Its cutting head is wider than the neck, so the tool can remove material below a previously machined pilot slot.
CNC shops commonly use this cutter for machine tables, 고정판, 몰드 베이스, workholding systems, and precision mechanical components.
For the machining process, 애플리케이션, and cutter types, 우리의 글을 읽어보세요 what is a T slot milling cutter 가이드.
Key Features of Our T Slot Cutters
Solid Carbide Construction
The sample product uses solid tungsten carbide for tool rigidity, dimensional stability, and wear resistance. 그러므로, it is suitable for precision CNC T-slot and undercut milling.
The final cutter geometry should be selected according to the slot profile, 공작물 재료, 기계 상태, and required tolerance.
Custom Dimensions Based on Drawings
T-slot and undercut profiles vary from one project to another. 그러므로, we can customize the corner radius, T-head thickness, neck diameter, 목 길이, 생크 직경, 전체 길이, and flute design according to your drawing.
The sample shown is marked D6-R0.6-1.5H-D3.5-8H-45L-2F. In this model, R0.6 refers to the corner radius, while the 1.5 mm dimension refers to the T-head thickness used to form the required clearance area.
Coating Options for Different Materials
The sample cutter has a coated cutting section. Other coating options can be selected according to the workpiece material, 절단 온도, tool life target, 및 가공 조건.
예를 들어, heat-resistant coatings may suit steel machining, while low-friction coatings may work better for aluminum and other non-ferrous materials.
Two-Flute Design for T-Slot and Undercut Milling
The sample model uses a two-flute cutting design. This structure provides chip space around the small T-shaped head and supports chip removal during narrow-slot and undercut machining.
하지만, accurate results also require suitable cutting parameters, stable tool holding, sufficient neck clearance, and firm workpiece clamping.
OEM and Distributor Support
OMIST supports drawing-based production, 레이저 마킹, private-label packaging, sample orders, and batch production for distributors, workshops, and industrial customers.
기술 사양
| 제품명: | Custom Solid Carbide T Slot Cutter |
|---|---|
| Sample Model Shown: | D6-R0.6-1.5H-D3.5-8H-45L-2F |
| 도구 유형: | T-슬롯 커터 / Undercut Milling Cutter |
| 도구 재료: | Solid Tungsten Carbide |
| 코너 반경: | R0.6 mm for the sample shown |
| T-Head Thickness: | 1.5 mm for the sample shown |
| Neck Diameter: | D3.5 mm for the sample shown |
| 목 길이: | 8 mm for the sample shown |
| 전체 길이: | 45 mm for the sample shown |
| 플루트: | 2 플루트 |
| 코팅: | Coated finish shown / Customized |
| 응용: | T-Slot Milling, Undercut Grooves, and Fixture Slot Machining |
| 맞춤 서비스: | 치수, 코팅, 레이저 마킹, 및 포장 |
| 생크 직경 | Customized according to the drawing and tool holder |
Information Required for a Custom T Slot Cutter Quote
To confirm the cutter geometry and machining feasibility, please provide your slot drawing or the main dimensions below.
- 코너 반경
- T-head thickness
- Neck diameter
- 목 길이
- 생크 직경
- 전체 길이
- Slot profile and clearance requirements
- 공작물 재질 및 경도
- Machine type
- Required tolerance
- Coating request
- 주문 수량
The T-head thickness determines the thickness of the cutting head and helps form the required clearance area in the undercut profile.
For non-standard slot profiles, please send us the drawing before ordering. We will review the dimensions, 재료, cutter clearance, and machining conditions before preparing the quotation.
Applications of T Slot Cutters
Custom solid carbide T slot cutters are used for small T-shaped slots, undercut grooves, and special clearance profiles that a standard end mill cannot complete directly.
일반적인 응용 분야는 다음과 같습니다.:
- Machine table and fixture plate T-slots
- Mold base undercut grooves
- Workholding and clamping systems
- Automation fixture components
- 정밀 기계 부품
- Custom narrow-slot profiles
- Steel and stainless steel components
- Aluminum and non-ferrous parts with a suitable coating
In most applications, an end mill first creates the pilot slot. The T slot cutter then machines the wider lower section and the required clearance profile.
How to Choose the Right T Slot Cutter
The correct cutter depends mainly on the slot geometry, 공작물 재료, 기계 상태, and required tolerance.
Confirm the Slot Geometry
Check the corner radius, T-head thickness, 슬롯 깊이, 목 정리, and shank size before ordering. These dimensions determine whether the cutter can enter the pilot slot and machine the undercut without interference.
Match the Material and Coating
Steel and stainless steel usually require good tool rigidity and heat resistance. 대조적으로, aluminum and copper require lower friction and better chip evacuation.
그러므로, the cutter geometry and coating should match the actual workpiece material and cutting conditions.
Check Machine Rigidity and Tool Overhang
A long neck or excessive tool overhang may increase vibration. Use the shortest practical reach, stable tool holding, and firm workpiece clamping whenever possible.
For custom slots, send us your drawing so that we can check the cutting head, T-head thickness, 목 정리, and machine setup.
T Slot Cutter vs Slot Milling Cutter
A slot milling cutter creates straight slots and side grooves. 대조적으로, a T slot cutter machines the wider undercut section below a pilot slot.
T 슬롯 커터: T-shaped slots, 언더컷, and fixture grooves
Slot Milling Cutter: Straight slots and general groove cutting
엔드밀: Pilot slots, 주머니, 프로필, 그리고 어깨
A standard end mill or slot milling cutter is suitable when the part only needs a straight groove. 하지만, a T slot cutter is required when the lower section or clearance profile must be wider than the slot opening.
Why Choose OMIST T Slot Cutters?
OMIST supplies solid carbide cutting tools and drawing-based custom cutters for CNC machining, 금형 제조, fixture production, and industrial metalworking.
We can review your slot drawing, 공작물 재료, 기계 유형, and tolerance before production. 게다가, we support custom dimensions, 코팅 선택, 레이저 마킹, private-label packaging, sample orders, and batch production.
For distributors and OEM customers, we also provide product customization and order support based on the confirmed technical requirements.
Get a Custom Solid Carbide T Slot Cutter Quote
Looking for a custom solid carbide T slot cutter for CNC T-slot milling, undercut groove machining, or special clearance profiles?
우리에게 보내주세요:
- Slot drawing or profile
- 코너 반경
- T-head thickness
- Neck diameter and neck length
- 공작물 재질 및 경도
- Required tolerance
- Machine type
- Coating request
- Sample or batch quantity
Our team will review the cutter dimensions, clearance requirements, 및 가공 조건. Then, we will recommend a suitable cutter design and provide a quotation for custom production.
