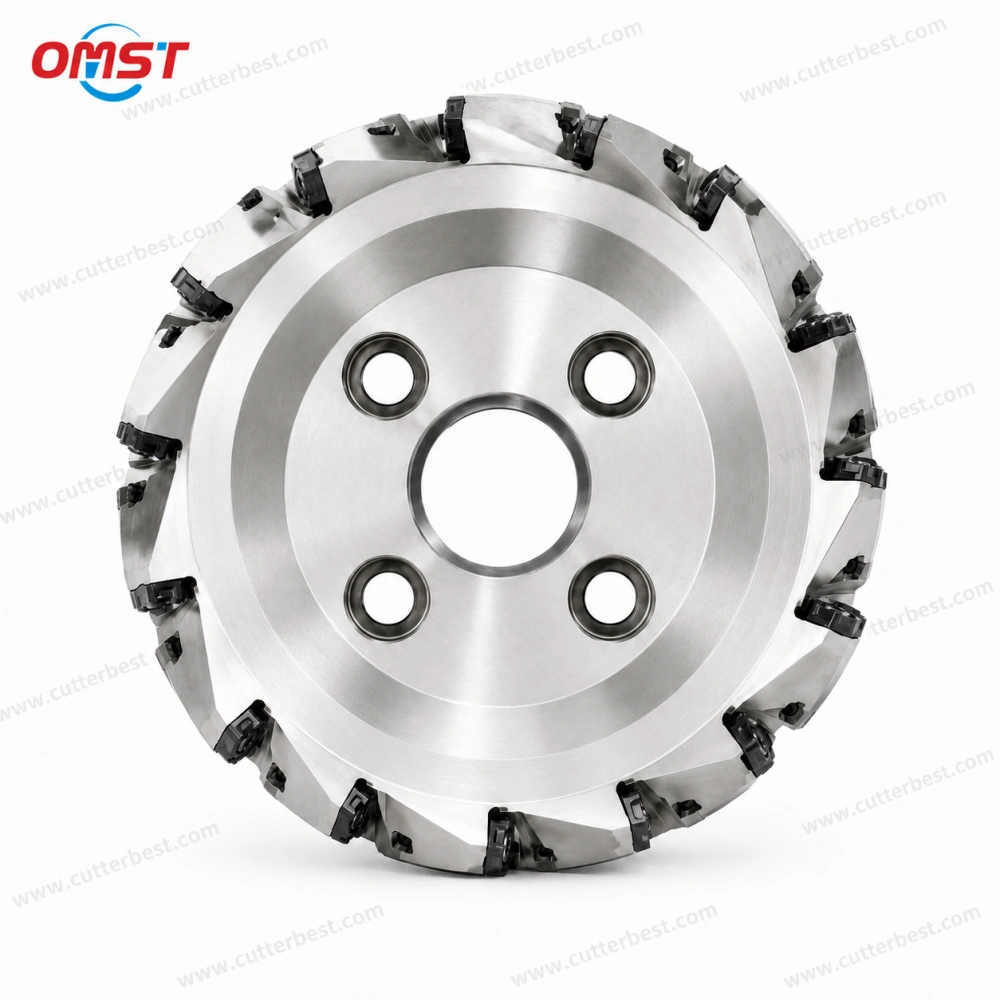

A side milling cutter is used for machining grooves, slots, shoulders, and side surfaces where the cutter needs to match the required cutting width, part geometry, and mounting conditions. Disc-type cutters are a common option when the operation requires side cutting or a defined groove width.
For indexable applications, the cutter consists of a cutter body with replaceable carbide inserts. An indexable side milling cutter or side and face milling cutter configuration can be reviewed according to the machining operation, cutter mounting, and required cutting geometry.
Because side milling cutter sizes and configurations vary widely, we normally select or customize the cutter after reviewing the machining requirement.
Specification Options
| Specification | Available Options |
|---|---|
| Cutter Diameter | Confirmed according to the machining requirement or customer drawing |
| Cutting Width | Selected according to the required groove or slot width |
| Bore / Mounting | Matched to the arbor, holder, or machine interface |
| Cutter Configuration | Indexable side milling cutter, side and face milling cutter, or custom design |
| Insert Arrangement | Determined according to the cutter structure and machining application |
| Insert Selection | Selected or confirmed during technical review where applicable |
| Marking | Custom marking available upon request |
| Packaging | Standard or custom packaging upon request |
| Drawing-Based Options | Non-standard diameter, cutting width, bore, mounting, and cutter configuration can be reviewed according to drawings or samples |
Applications and Selection
Common Applications
The required machining geometry and cutting conditions help determine the suitable side milling cutter configuration. Common applications include:
- Grooves and Slots: Machining features with a defined cutting width.
- Shoulders and Step Features: Machining side and shoulder areas where side cutting is required.
- Side Surfaces and Vertical Features: Removing material along the side of the workpiece.
Choose the Right Side Milling Cutter Configuration
An indexable side milling cutter uses a cutter body with replaceable carbide inserts. We confirm the cutter body, insert arrangement, cutting width, and mounting method according to the actual operation.
A side and face milling cutter configuration may suit operations that involve both peripheral and side cutting. We can review other configurations when the standard approach does not match the part or machining conditions.
The cutter should not be selected by product name alone. Required groove width, cutting depth, whether one or both side surfaces need to be machined, surrounding clearance, and arbor or bore restrictions can all affect the cutter body and insert arrangement.
Selection Factors
Workpiece Material
Used as one of the inputs when reviewing the insert and cutter configuration.
Required Groove or Cutting Width
Helps determine the required cutter width and cutter configuration.
Cutting Depth and Part Geometry
Used to evaluate cutter diameter, machining access, and possible interference around the cutting area.
Bore and Mounting Conditions
The cutter must match the arbor, holder, or relevant machine interface.
Drawing, Sample, or Machining Operation
Useful when the required cutter structure cannot be determined from dimensions or a product name alone.
For machining operations focused mainly on large flat surfaces, you can also view our Face Milling Cutter.
Key Features
Indexable Cutter Body Configuration
Indexable configurations use a cutter body with replaceable carbide inserts. The cutter body and insert arrangement can be selected according to the confirmed machining requirement instead of relying on one fixed cutter model.
Cutting Width and Mounting Options
Cutting width, cutter diameter, bore, and mounting details can be reviewed according to the required groove or part geometry. This is useful when standard dimensions or mounting arrangements do not match the application.
Drawing-Based Custom Manufacturing
For non-standard requirements, cutter dimensions and configurations can be produced according to a confirmed drawing, sample, or machining requirement. We review the technical details before confirming the final specification and quotation.
OEM Support
Custom marking, labeling, and packaging can be discussed for OEM, distributor, or repeat-order requirements. These options are confirmed together with the final order specification.
Custom Manufacturing
Drawing-Based Production
For non-standard side milling cutters, we can produce the cutter according to a confirmed drawing, sample, or machining requirement. We confirm the final cutter structure and dimensions before production.
Technical Review
Before quotation, we review the application and identify any technical details that still need to be confirmed. This helps determine whether an existing cutter configuration can be recommended or a custom design is required.
Custom Dimensions and OEM
Non-standard cutter dimensions, mounting details, insert arrangements, marking, and packaging can be reviewed according to the project.
For a broader range of standard and custom milling tools, you can also view our CNC Milling Cutters.
Custom Manufacturing Process
- Send the machining requirement, drawing, or sample.
- We review the technical details and clarify any missing information.
- Confirm the cutter specification and quotation.
- Proceed with production and inspection after confirmation.
FAQ
Can the cutting width and bore size be customized?
Yes. Cutting width, cutter diameter, bore, and mounting details can be reviewed according to the machining requirement or customer drawing. The final specification is confirmed before production.
Can you recommend a side milling cutter from a drawing or sample?
Yes. A drawing or sample is often the best starting point when the required cutter structure is not known. We can review the application and identify the technical details that need to be confirmed.
Do you supply indexable side milling cutters with replaceable carbide inserts?
Yes. Disc-type indexable cutter body configurations with replaceable carbide inserts are one of the main structures covered on this page. The final cutter and insert arrangement are confirmed according to the application.
What is the relationship between a side milling cutter and a side and face milling cutter?
A side and face milling cutter is a related cutter configuration used for operations involving peripheral and side cutting. The required configuration should be selected according to the groove, shoulder, side surface, mounting conditions, and part geometry.
Need a Side Milling Cutter Recommendation?
Send your drawing, sample, or machining requirements to sales@cutterbest.com, together with any available technical details.
We will review your application, confirm any missing information, and recommend a suitable cutter configuration or prepare a quotation for a custom design.
