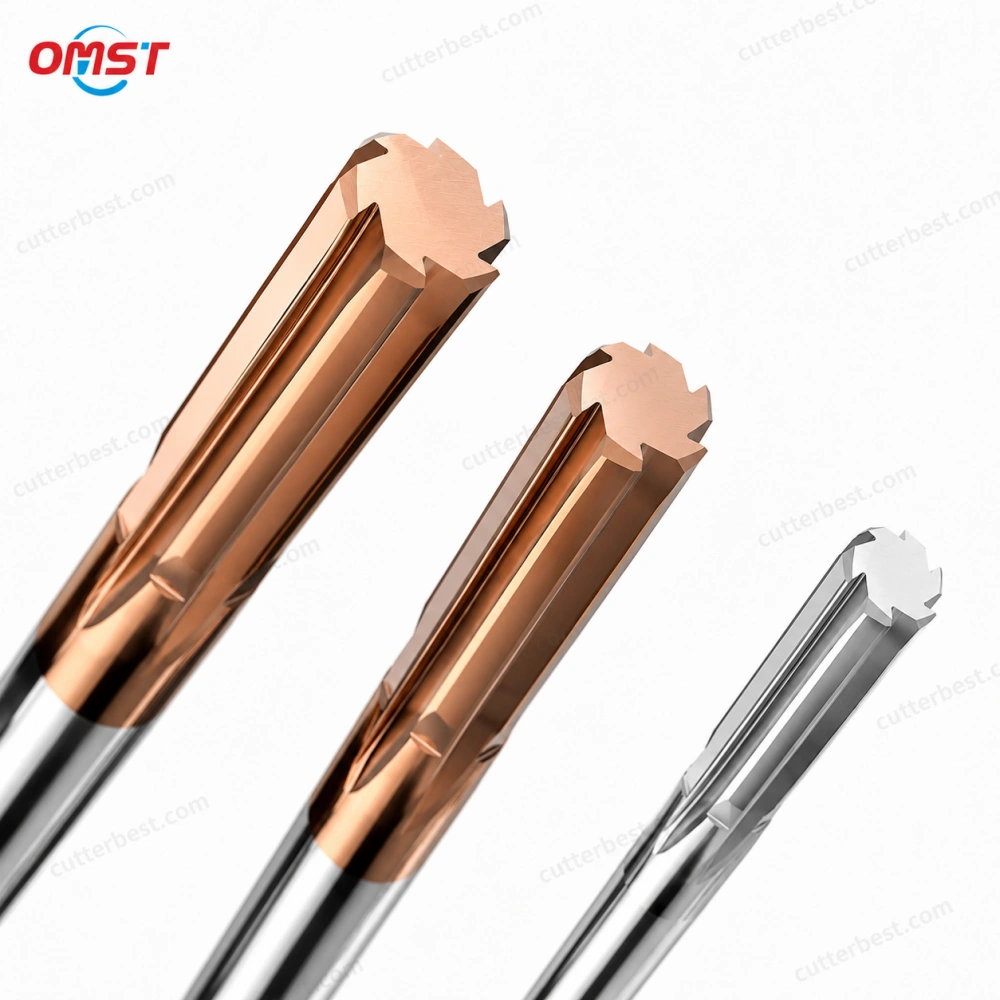

A straight flute reamer is used for the final sizing and finishing of a pre-machined hole. OMIST manufactures these tools from solid carbide for machine and CNC reaming applications.
The tools feature a straight flute and straight shank design in common 4-flute and 6-flute configurations. Standard metric sizes cover a broad reference range, and H7 precision is available. Black, bronze, and custom coating options are also available according to application requirements.
Customers can select a common reference size or submit a non-standard requirement for evaluation. For custom tools, a drawing or dimensioned sketch is preferred because dimensions and configurations may vary between applications. For the broader carbide reamer product range, see our Solid Carbide Reamer collection. If your application requires a spiral flute configuration, you can also review our Spiral Flute Reamer options.
Straight Flute Reamer Specification Options
The following table lists common metric reference sizes for OMIST straight flute carbide reamers. These dimensions support standard product selection. However, they do not define our complete manufacturing range.
| Cutting Diameter | Flute Length | Flute Count | Overall Length |
|---|---|---|---|
| Ø1 mm | 15 mm | 4F | 50 mm |
| Ø1.5 mm | 15 mm | 4F | 50 mm |
| Ø2 mm | 15 mm | 4F | 50 mm |
| Ø2.5 mm | 20 mm | 4F | 50 mm |
| Ø3 mm | 20 mm | 4F | 50 mm |
| Ø3.5 mm | 25 mm | 4F | 50 mm |
| Ø4 mm | 25 mm | 4F | 50 mm |
| Ø4.5 mm | 25 mm | 4F | 50 mm |
| Ø5 mm | 30 mm | 4F | 60 mm |
| Ø5.5 mm | 30 mm | 4F | 60 mm |
| Ø6 mm | 30 mm | 6F | 60 mm |
| Ø7 mm | 30 mm | 6F | 60 mm |
| Ø8 mm | 35 mm | 6F | 70 mm |
| Ø9 mm | 40 mm | 6F | 80 mm |
| Ø10 mm | 40 mm | 6F | 80 mm |
| Ø11 mm | 40 mm | 6F | 80 mm |
| Ø12 mm | 40 mm | 6F | 80 mm |
| Ø13 mm | 60 mm | 6F | 100 mm |
| Ø14 mm | 60 mm | 6F | 100 mm |
| Ø15 mm | 60 mm | 6F | 100 mm |
| Ø16 mm | 60 mm | 6F | 100 mm |
| Ø18 mm | 60 mm | 6F | 100 mm |
| Ø20 mm | 60 mm | 6F | 100 mm |
Note: These are common reference sizes for standard selection. In addition, we can evaluate other cutting diameters, flute lengths, overall lengths, and tool configurations according to the customer’s drawing, workpiece material, and machining requirements.
Applications and Selection
Mold Steel and Hardened Steel
OMIST supplies solid carbide straight flute reamers for mold steel and hardened steel. For applicable steel workpieces, we offer configurations for workpiece hardness of HRC55–65. In addition, we can evaluate custom requirements according to the actual material and machining conditions.
Customers can choose black, bronze, or custom coating options. Therefore, when requesting a reamer for hardened material, please provide the workpiece material, hardness, and required tool specification.
Aluminum, Copper and Plastics
OMIST also supplies solid carbide straight flute reamers for aluminum, copper, and plastics. Because tool requirements can vary with the workpiece and hole specification, please provide this information when requesting a standard or custom tool.
Machine and CNC Reaming
These straight flute reamers support machine use on CNC machines, machining centers, and precision machining or engraving equipment. They perform the final sizing and finishing of pre-machined holes according to the required reaming specification.
If you are comparing straight and spiral flute configurations, see our straight flute vs spiral flute reamer guide for selection considerations such as hole type, chip direction, and interrupted features.
For more hole-finishing tool options, browse our Reamers category.
Key Features
Solid Carbide Construction
OMIST manufactures the tool entirely from solid carbide for machine reaming applications.
Straight Flute Configuration
The cutting section uses a straight flute geometry for the final sizing and finishing of pre-machined holes.
H7 Precision
H7 precision is available for this straight flute reamer range.
Standard Sizes & Custom Manufacturing
Common metric reference sizes cover Ø1–Ø20 mm. For non-standard requirements, we can evaluate other dimensions and configurations from customer drawings or dimensioned sketches.
Custom Manufacturing
OMIST can quote standard straight flute reamers according to the required size, quantity, and workpiece material.
For a custom straight flute reamer, we recommend providing a tool drawing or dimensioned sketch whenever possible. For example, non-standard requirements may involve different cutting diameters, flute lengths, overall lengths, coating options, or other dimensional combinations.
If a complete drawing is not available, provide the main dimensions, workpiece material, workpiece hardness where applicable, machining requirements, quantity, and required coating option. We can then review the information and confirm any additional details needed for quotation.
FAQ
What is a straight flute reamer used for?
A straight flute reamer performs the final sizing and finishing of a pre-machined hole. In addition, this product supports machine and CNC reaming applications.
What standard straight flute reamer sizes are available?
Our common metric reference sizes cover cutting diameters from Ø1 mm to Ø20 mm, with 4-flute and 6-flute configurations. However, we can also evaluate other dimensions for custom requirements.
Can you manufacture custom straight flute reamers from a drawing?
Yes. OMIST can evaluate custom straight flute reamers from a tool drawing or dimensioned sketch. The drawing helps us confirm the required dimensions and product configuration before production.
What information should I provide for a straight flute reamer quotation?
For standard tools, please provide the required size, quantity, and workpiece material. For custom tools, send a drawing or dimensioned sketch when available. We will then review the information and confirm any additional details required for quotation.
Request a Quote for Straight Flute Reamers
For standard straight flute reamers, please send the required size, quantity, and workpiece material. For non-standard products, we recommend sending a tool drawing or dimensioned sketch whenever possible.
To request a quotation or confirm tool specifications, Email us or contact us through WhatsApp. Alternatively, if a complete drawing is not available, send the available dimensions and machining requirements for review.
