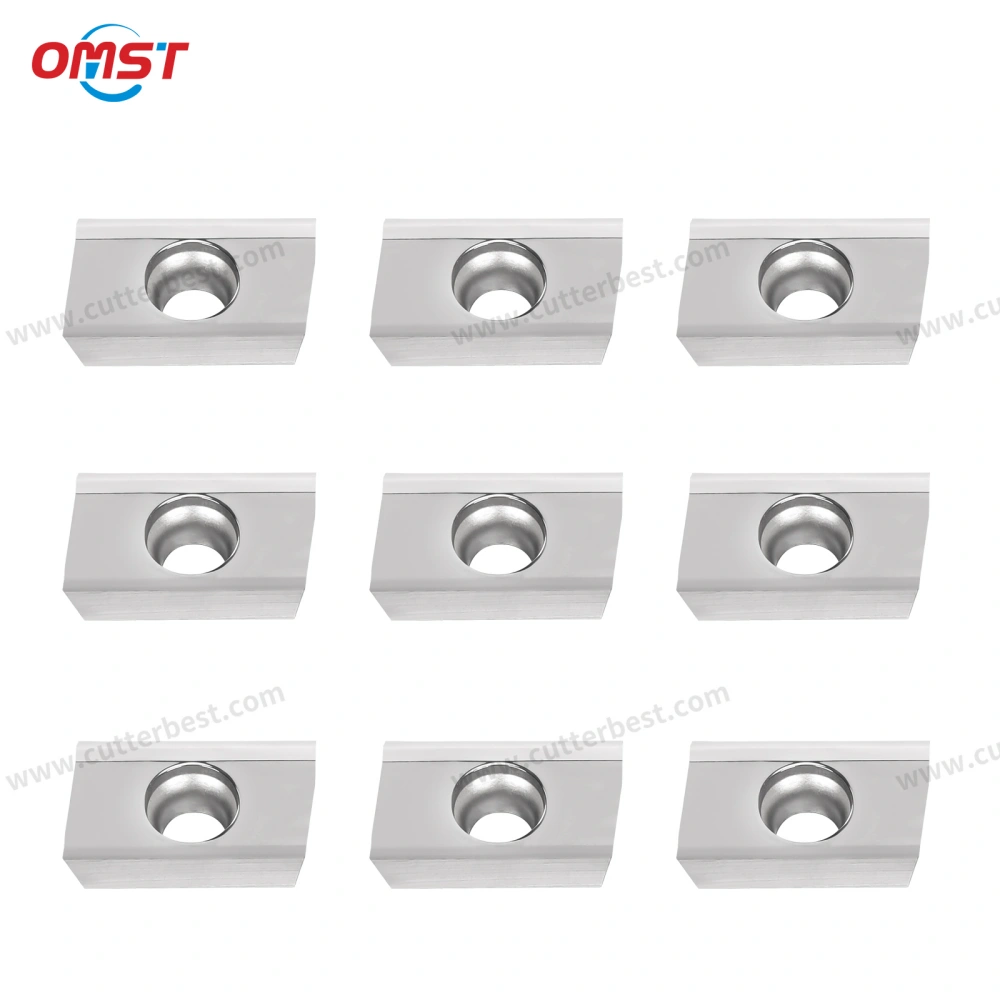

APKT1604 Carbide Milling Inserts

APKT1604 Insert Product Range

APKT1604 is not limited to one complete insert code. Different PDFR configurations are available for different purchasing and machining requirements.

For OMIST products, the confirmed APKT1604 range includes representative PDFR configurations for aluminum and other non-ferrous applications. Buyers should use the complete insert designation whenever possible because the APKT1604 prefix alone does not define every geometry or corner radius.

Representative APKT1604 PDFR Configurations

Confirmed representative products include:

• APKT1604PDFR-MA
• APKT1604PDFR-MA3
• APKT1604PDFR-G2

APKT1604PDFR-MA H01 also appears in confirmed product information as a specific product reference.

These examples do not represent every possible APKT1604 configuration. OMIST reviews the complete designation and application before confirming the appropriate product for quotation.

For other sizes and configurations in the same insert family, видеть APKT Вставки.

APKT1604 Insert Dimensions and Specifications

Dimensions are useful for initial APKT1604 insert identification, but they should not replace the complete designation when checking a replacement.

Factory Reference Dimensions

Confirmed OMIST product information shows the following body dimensions for the referenced APKT1604 configurations:

These values are factory reference dimensions for the confirmed configurations shown in the current product information. The complete dimensions should still be checked against the specific designation when matching an existing insert.

Corner Radius and Complete Designation

The confirmed APKT1604 products do not all use one identical corner radius.

Current factory references include:

• R0.8 on confirmed MA3 and G2 configurations
• Р0.2 on a confirmed MA configuration

Поэтому, buyers should not identify an APKT1604 replacement by the basic model prefix alone. The complete designation, угловой радиус, and cutter-body information should be reviewed together.

If the insert marking is incomplete, a clear photo, cutter-body marking, insert-pocket photo, or drawing can help with identification.

APKT1604 Inserts for Aluminum and Non-Ferrous Materials

The confirmed OMIST APKT1604 product range includes configurations for:

• Алюминий
• Aluminum alloy
• Die-cast aluminum
• Медь
• Other non-ferrous materials

Representative APKT1604PDFR-MA, MA3, and G2 products are available within this application range.

The exact configuration should be selected according to the workpiece material, complete insert designation, корпус фрезы, and actual machining requirement. OMIST does not treat every APKT1604 configuration as automatically suitable for the same material.

If you need a broader selection of carbide insert types, видеть Фрезерные вставки. https://www.cutterbest.com/product/milling-inserts/

Cutter Body and Replacement Matching

APKT1604 buyers often need to confirm whether a replacement insert matches an existing milling cutter. The cutter series name alone is not enough to guarantee interchangeability, so OMIST reviews the available cutter and insert information before confirming a match.

400Р / BAP400R and Aluminum Milling Cutter References

Confirmed and relevant cutter-matching references include:

• 400R series
• BAP400R
• AP-160 series
• TAP series
• KM12 series

AP-160 and TAP references are associated with aluminum milling applications, while KM12 is also used in aluminum finishing cutter systems.

These names are matching references rather than universal compatibility statements. The actual cutter body, вставить карман, existing insert marking, and required configuration should be checked before ordering.

When the Existing APKT1604 Designation Is Different

APKT1604 inserts can appear under different complete designations in the international market.

Например, buyers may encounter markings that include PDFR or other designation forms such as PDTR, ПДЕР, or PDR. These markings should not be assumed to be interchangeable based only on the APKT1604 prefix.

If your existing designation differs from the OMIST PDFR references, send the complete insert marking together with the available cutter-body or insert-pocket information. OMIST can review the requirement and evaluate a suitable replacement option.

Drawing-Based Non-Standard Insert Evaluation

OMIST can evaluate non-standard insert requirements according to customer drawings, existing samples, размеры, and application information.

For a non-standard request, the factory first reviews manufacturing feasibility and the required specification. The final configuration is confirmed according to the actual drawing and machining requirement rather than a fixed catalogue assumption.

How to Request an APKT1604 Insert Quote

When You Have the Complete Insert Code

If you already know the complete insert designation, send the full code and required quantity.

Например:

APKT1604PDFR-MA3 + Количество

OMIST will review the designation and order requirement before preparing the quotation.

When the Model or Matching Requirement Needs Review

If the full insert code is unavailable, send the clearest information you have, such as the existing insert marking, cutter-body marking, insert photo, insert-pocket photo, or drawing.

For replacement orders, the cutter and insert information helps us check the required configuration before quotation.

APKT1604 Inserts FAQ

Are all APKT1604 inserts interchangeable?

Нет. APKT1604 identifies the main insert size and product family, but complete designations, угловые радиусы, and cutter matching can differ. A replacement should be checked against the full insert code, размеры, вставить карман, and cutter body.

What are the reference dimensions of an APKT1604 insert?

Confirmed OMIST product information shows reference body dimensions of 16.3 × 9.2 × 4.5 миллиметр for the configurations currently documented. These are reference values rather than a statement that every APKT1604 designation from every supplier has identical dimensions.

Which APKT1604 configurations are available for aluminum and non-ferrous materials?

Confirmed representative OMIST configurations include APKT1604PDFR-MA, APKT1604PDFR-MA3, and APKT1604PDFR-G2. The current product information covers aluminum, медь, алюминиевые сплавы, die-cast aluminum, и другие цветные материалы. The final configuration should be confirmed from the complete requirement.

Which cutter bodies can be reviewed for APKT1604 inserts?

400Р, BAP400R, AP-160, TAP, and KM12 are relevant cutter references for matching review. Compatibility is not assumed from the series name alone; the actual cutter body and insert pocket should be checked.

What should I provide for APKT1604 replacement matching?

If the complete insert code is available, send the code and quantity. If the model is unclear, a cutter-body marking, existing insert photo, insert-pocket photo, or drawing can help us review the replacement requirement.

Request a Quote for APKT1604 Inserts

Looking for APKT1604 inserts for a new cutter setup or replacement requirement? OMIST can review the complete designation, cutter information, or drawing and confirm the suitable product for quotation.

Please напишите нам или contact us on WhatsApp with your requirement.
