Концевые фрезы для нержавеющей стали

Our current factory range includes several configurations if you need an end mill for stainless steel, including flat, сферический нос, and corner radius designs. These tools use solid carbide / tungsten carbide substrates with nano coating and cover both standard specifications and drawing-based custom requirements.

Параметры спецификации

Representative Standard Ranges

Custom Sizes Available on Request

These are representative standard specifications, not the complete manufacturing range or a statement of stock availability. If your required size falls outside these examples, we can review the cutting diameter, длина канавки, диаметр хвостовика, общая длина, радиус шара, or corner radius according to your dimensions or drawing.

Применение и выбор

The cutter geometry should match the feature being machined. Поэтому, our current stainless steel end mill specifications cover three main configurations.

4-Flute Flat End Mills for Stainless Steel

The 4-flute flat configuration uses a solid carbide substrate with nano coating and suits machining features that require a flat cutting end.

Типичные области применения включают в себя:

• Flat surface milling
• Боковое фрезерование
• Shoulder machining
• Flat-bottom machining
• Профилирование

Representative factory specifications include cutting diameters from approximately 1 мм до 20 миллиметр, with multiple flute-length and overall-length combinations.

For the complete product range and additional specifications, см. наш Плоская концевая фреза.

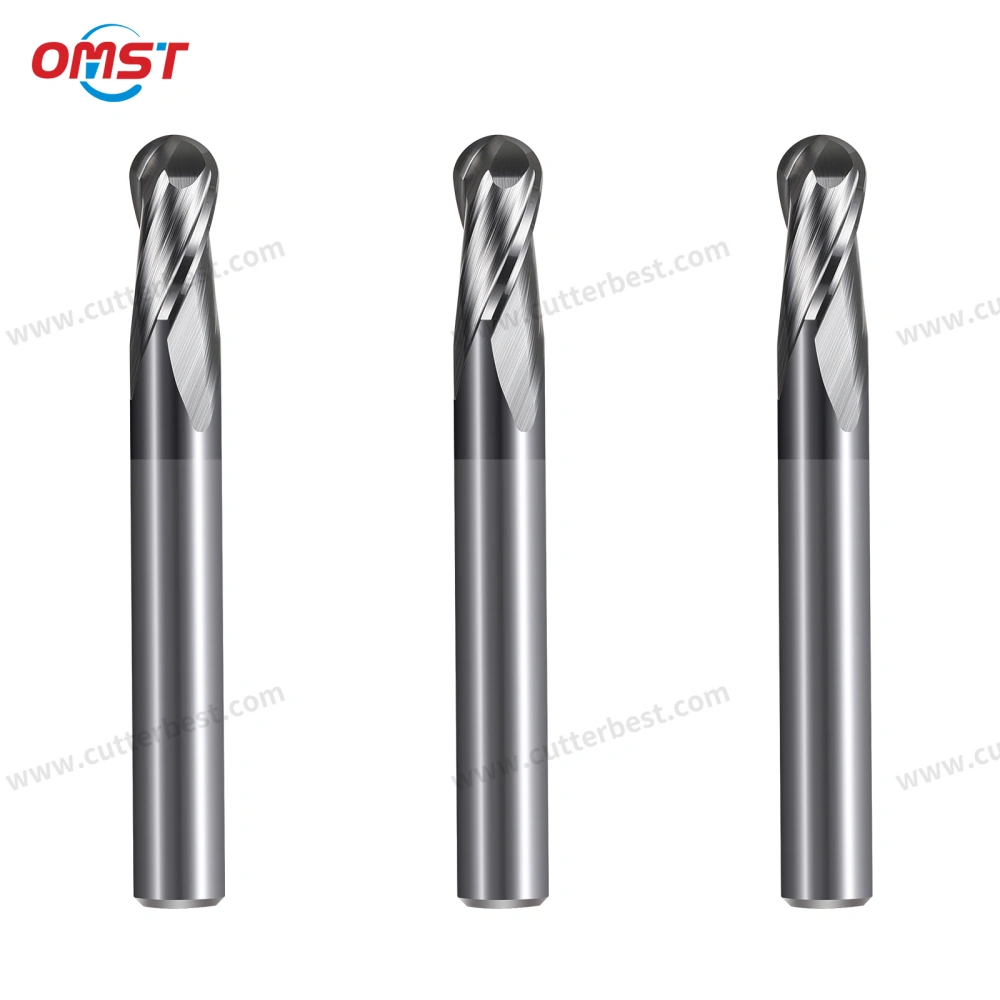

2-Flute Ball Nose End Mills for Stainless Steel

The 2-flute ball nose configuration uses a rounded cutting end for curved or three-dimensional workpiece features.

Типичные области применения включают в себя:

• Обработка изогнутых поверхностей
• 3D контуринг
• Mold and cavity surfaces
• Profile finishing
• Complex surface machining

Representative standard specifications include ball radii from approximately R0.5 to R10 and overall lengths from approximately 50 мм до 150 миллиметр.

For the complete product range, см. наш Концевые фрезы со сферическим концом.

4-Flute Corner Radius End Mills for Stainless Steel

The 4-flute corner radius configuration combines a flat cutting end with an R-radius at the cutter corner.

Например, this geometry can suit workpiece features that require a specified corner radius.

Типичные области применения включают в себя:

• R-corner machining
• Pocket features with corner radii
• Side and bottom machining
• Обработка профиля

Representative specifications include cutting diameters from approximately 1 мм до 12 миллиметр, with standard radius examples such as R0.2, 0,5 рэнда, and R1.

For additional radius-type product options, см. наш Концевая фреза с бычьим носом.

For more detailed guidance on cutter type, счет флейты, покрытие, и геометрия, читать Best End Mill for Stainless Steel.

Ключевые особенности

Твердосплавная конструкция

The standard stainless steel end mills shown on this page use a твердый сплав / подложка из карбида вольфрама.

Solid carbide provides a rigid tool body for CNC milling and supports the flat, сферический нос, and corner radius geometries in the current range.

Кроме того, you can view our broader carbide tooling range on the Твердосплавная концевая фреза страница.

Nano-Coated Cutting Edges

The current factory specifications use нано покрытие for these stainless steel end mill configurations.

Factory product information describes the tools as sharp, износостойкий, and durable. If your application requires a specific coating system, include that requirement in your inquiry so we can review it together with the workpiece material and tool specification.

Multiple End Geometries

The current standard range includes:

• Flat end geometry
• Ball nose geometry
• Corner radius geometry

These geometries cover flat, curved, and radius-type workpiece features while keeping each cutter type clearly separated by application.

Standard and Custom Dimensions

Standard specifications include multiple combinations of cutting diameter, длина канавки, диаметр хвостовика, общая длина, радиус шара, and corner radius.

Однако, the representative ranges shown above do not define the full manufacturing range. If you need another size, send us the required dimensions or drawing for review.

Custom End Mills for Stainless Steel

Standard specifications cover many common applications. For non-standard requirements, our factory can review tool dimensions and geometry according to the machining application, customer specifications, or drawings.

Пользовательские параметры

Key dimensions, radius features, длины, and other drawing-defined details can vary by application. Поэтому, we confirm the final specification according to the actual requirement before production.

What to Provide for Tool Evaluation

For quotation or technical review, please send the материал заготовки, требования к механической обработке, key tool dimensions, and a drawing if available. If you currently have a machining problem, you may also include it for reference.

Часто задаваемые вопросы

What types of end mills do you offer for stainless steel?

The current standard range includes 4-flute flat end mills, 2-концевые фрезы с флейтой и сферическим концом, and 4-flute corner radius end mills. The appropriate cutter type depends on the workpiece feature and machining operation.

Are your stainless steel end mills made from solid carbide?

Да. The standard products shown on this page use a solid carbide / tungsten carbide substrate with nano coating.

What standard flute configurations are available?

The currently confirmed standard configurations are:

• Flat End Mill — 4 Флейты
• Ball Nose End Mill — 2 Флейты
• Corner Radius End Mill — 4 Флейты

These configurations match the current factory standard specifications. If you need another tool design, we can review the requirement separately.

Can you manufacture non-standard sizes or custom radii?

Да. We can review non-standard dimensions, custom radii, and drawing-based geometries according to the application and customer requirements.

Can these end mills also machine other steel materials?

Да. Current factory product information lists нержавеющая сталь, high-hardness steel, and general steel в зависимости от применимых материалов заготовки. Однако, the final tool selection should still match the actual material and machining requirement.

Какую информацию я должен предоставить для предложения?

Пожалуйста, пришлите материал заготовки, операция механической обработки, key tool dimensions, and a drawing if available. For custom applications, you can also provide the current machining problem or required result so we can review the tool requirement more accurately.

Request an End Mill for Your Stainless Steel Application

Send us your материал заготовки, операция механической обработки, необходимые размеры, и рисунок, если есть. Our factory can review whether a standard 4-flute flat end mill, 2-flute ball nose end mill, 4-flute corner radius end mill, or custom solid carbide tool suits your application.

For non-standard requirements, simply provide the key dimensions and any relevant workpiece or tool drawings. We can confirm any additional information after reviewing your application.

Email your requirements or drawings to sales@cutterbest.com, or contact us directly on WhatsApp for a quick discussion about your application.
