A 90 degree chamfer mill is designed for CNC chamfering, deburring, edge breaking, and related edge-finishing operations. Its solid carbide construction supports machining where a defined chamfer or finished edge is required.
OMIST supplies this 90° series in both 2-flute and 3-flute configurations, with versions available for steel and aluminum applications. Customers can select from multiple regular sizes or request non-standard dimensions according to a drawing.
For other chamfer angles and related products, view our Chamfer Mills and Chamfer Milling Cutters.
Specification Options
The following options help customers confirm the main dimensions and configuration before ordering.
| Item | Available Options |
|---|---|
| Cutter Diameter | Multiple sizes or custom |
| Shank Diameter | Multiple sizes or custom |
| Overall Length | Multiple lengths or custom |
| Flute Configuration | 2 Flutes / 3 Flutes |
| Workpiece Series | Steel / Aluminum |
| Custom Dimensions | Available according to drawing |

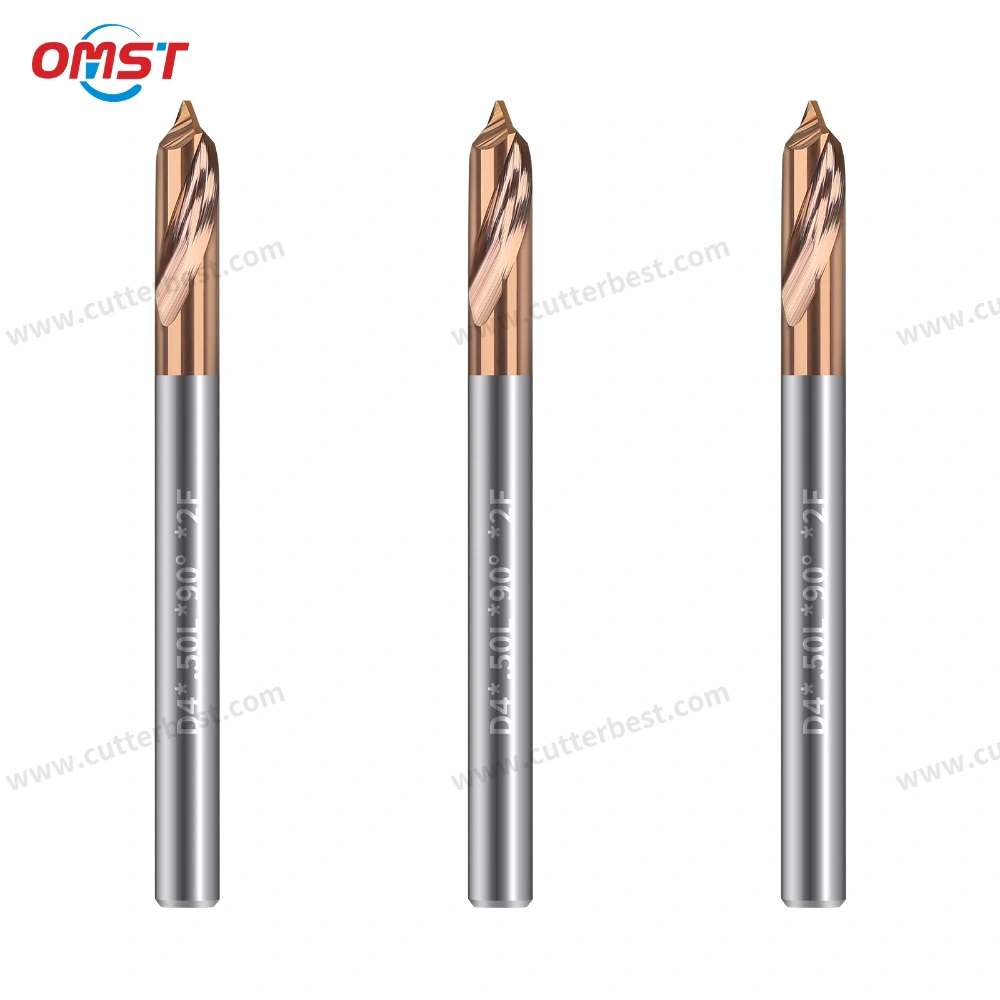

| Example Regular Product | D4 × 50L × 90° × 2F |
The example above represents one actual product specification and does not define the complete size range. For non-standard requirements, please provide the required dimensions or a drawing for confirmation.
Applications and Selection
CNC Chamfering, Deburring and Edge Breaking
This 90 degree chamfer cutter can be used for CNC edge chamfering, deburring, edge breaking, and related edge-finishing operations when the workpiece geometry and tool access are suitable.
For parts with specific chamfer dimensions or geometry requirements, provide the workpiece drawing before ordering. This allows the cutter size and configuration to be checked against the actual machining requirement.
Selecting the Right Size and Tool Option
Tool selection depends on the required chamfer feature, workpiece material, available machining space, and machine conditions. OMIST offers both 2-flute and 3-flute configurations, while the appropriate option should be confirmed according to the actual application rather than selected by flute count alone.
When requesting a recommendation, provide the required cutter size, workpiece material, drawing, and machining requirement.
For a general explanation of chamfer cutter applications, see What Is a Chamfer Milling Cutter Used For?
If you are comparing different chamfer angles, see our 60 vs 90 vs 120 Degree Chamfer Mills comparison guide.
Key Features
Solid Carbide Construction
The cutter uses a solid carbide body for CNC chamfering and edge-finishing operations.
2-Flute and 3-Flute Options
OMIST manufactures both 2-flute and 3-flute 90 degree chamfer mills. Customers can provide their workpiece and machining requirements so the factory can confirm a suitable configuration.
Steel and Aluminum Versions
Versions for steel and aluminum applications are available. Please state the workpiece material when requesting a quotation so the appropriate product version can be confirmed.
Custom 90 Degree Chamfer Mill Manufacturing
OMIST supports non-standard 90 degree chamfer mills for applications that cannot use a regular size. Custom production can follow customer drawings, samples, or dimensional requirements.
Custom Tools Made from Customer Drawings
Customers can specify the cutter diameter, shank diameter, overall length, flute number, and other required dimensions. The factory reviews the drawing or requested specification before confirming production.
This option is suitable when the required dimensions differ from the regular product range or the workpiece requires a specific tool configuration.
Information Needed for a Quote
To prepare an accurate quotation, please provide:
- Cutter diameter
- Shank diameter
- Overall length
- Flute number: 2 or 3
- Workpiece material
- Required quantity
- Drawing or sample, if available
If some dimensions are not yet confirmed, you can send the available drawing or application information first for review.
FAQ
What is a 90 degree chamfer mill used for?
A 90 degree chamfer mill is used for CNC chamfering, deburring, edge breaking, and related edge-finishing operations. The exact application depends on the workpiece geometry and required chamfer feature.
Are 2-flute and 3-flute 90 degree chamfer mills available?
Yes. OMIST supplies both 2-flute and 3-flute solid carbide versions. Please provide the workpiece material and machining requirement so the suitable configuration can be confirmed.
Do you offer 90 degree chamfer mills for steel and aluminum?
Yes. Versions for steel and aluminum applications are available. Please specify the workpiece material when requesting a quotation.
Can you manufacture a custom 90 degree chamfer mill from a drawing?
Yes. OMIST can manufacture non-standard 90° chamfer cutters according to customer drawings or dimensional requirements. Please send the required size, quantity, and drawing or sample for review.
Is a 45 degree chamfer mill the same as a 90 degree chamfer mill?
The terminology can vary between manufacturers. For this OMIST product series, 45° refers to the angle on each side of the cutter, while 90° refers to the total included angle. Therefore, the 45° and 90° descriptions may refer to the same tool geometry in this product series. Please confirm the angle definition on your drawing or specification before ordering.
Request a Quote for a 90 Degree Chamfer Mill
If you need a standard or custom 90 degree chamfer mill, send us the required size, workpiece material, quantity, and drawing if available.
Email sales@cutterbest.com for a quotation or specification review. We will review your requirement and confirm a suitable product configuration.
