Full Radius T Slot Cutter

Full Radius T Slot Cutter Specifications

The Full Radius T Slot Cutter series combines a solid carbide 4-flute design with common cutter diameters of approximately Ø3–Ø12 mm. Custom radius and drawing-specific dimensions can also be reviewed for non-standard profile requirements.

Standard Series Overview

The standard series uses four flutes. However, the required cutting profile determines the final radius and dimensional combination. Therefore, cutter diameter alone does not define the complete tool specification.

For applications that require a conventional flat-profile cutter instead of a radiused profile, see our T Slot Cutter product page.

Custom Radius and Drawing-Specific Dimensions

We can review custom full radius T slot cutters for non-standard slot profiles and dimensions.

A technical review may include the required radius, cutter diameter, cutting profile, neck clearance, usable reach, shank dimensions, and other geometry shown on the drawing.

For non-standard tools, please provide a workpiece drawing, cutter drawing, CAD file, or other clear technical information. We will use this information to confirm the final tool dimensions before production.

Applications and Profile Fit

Full-Radius T-Slot and Undercut Profiles

A full radius T slot cutter suits applications where the lower slot or undercut requires a radiused forming profile rather than a conventional flat profile.

This cutter is especially relevant when the tool geometry must match a defined curved or full-radius feature on the part drawing.

Before confirming the cutter, compare the required radius and surrounding geometry with the actual workpiece profile.

CNC Milling Applications

Full radius T slot cutters can machine radiused T-slots, undercuts, recessed profiles, and other drawing-specific groove features on CNC milling equipment.

The actual part geometry determines whether the cutter can produce the required profile. For this reason, confirm the profile and available machining space before selecting the tool.

Material Information for Technical Review

Please provide the workpiece material during the technical review.

Material information should be considered together with the required profile, cutter dimensions, and machining requirements. Therefore, do not select the final tool configuration from the material name alone.

Steel and aluminum applications can both be reviewed according to the actual drawing and machining requirements.

Profile and Clearance Review

The cutter must match the required radius while maintaining enough clearance around the workpiece geometry.

Important drawing information can include the finished profile, cutter access, neck clearance, required reach, and surrounding geometry.

For a general explanation of cutter dimensions, access, and T-slot machining principles, see how a T-slot milling cutter works.

Key Features

Solid Carbide Construction

This product uses a one-piece solid carbide construction.

The design provides the solid tool structure used for this full radius cutter series. It also differs from indexable T-slot systems that use replaceable inserts.

Full Radius Cutting Profile

The radiused cutting profile defines this cutter.

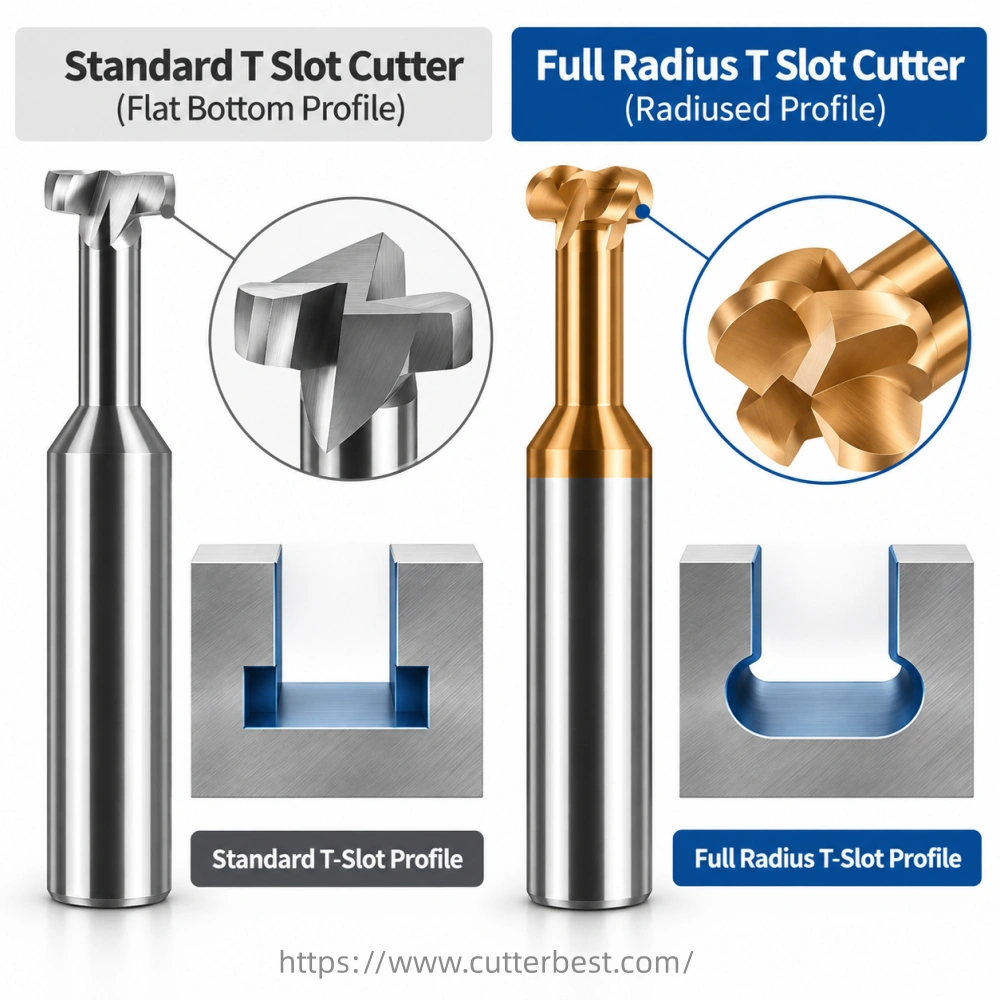

Unlike a conventional T slot cutter with a flatter cutting profile, this tool matches applications that require a full-radius or radiused lower slot profile.

As a result, the required radius forms part of the main cutter specification rather than an optional secondary detail.

Standard 4-Flute Design

The standard series uses a 4-flute design.

For standard requirements, confirm the cutter diameter and required radius first. If the workpiece has non-standard geometry, we can then review the additional dimensions from the drawing.

Custom Manufacturing

Custom Manufacturing Options

Custom full radius T slot cutters are available when the standard series does not match the required profile.
Depending on the application, a custom tool may require a special radius, non-standard cutter diameter, drawing-specific cutting profile, neck geometry, reach, shank dimensions, or other dimensional changes.

Instead of using a fixed list of combinations, we review the actual part geometry and machining requirement.

Technical Review Before Quotation

For custom production, you can provide a workpiece drawing, cutter drawing, CAD file, existing tool specification, or clear key dimensions.

Before quotation, we review the required profile, radius, major dimensions, machining application, and quantity. This helps define the final cutter specification for the requested application.

FAQ

Do you manufacture solid carbide full radius T slot cutters?

Yes. Our standard full radius T slot cutter uses solid carbide construction and a 4-flute design. We can also review custom dimensions according to the required profile or drawing.

What standard cutter diameters are available for Full Radius T Slot Cutters?

Common cutter diameters are approximately Ø3–Ø12 mm. The required radius and other dimensions depend on the actual tool geometry, so please confirm them from the relevant cutter or workpiece drawing.

Can the radius and cutter dimensions be customized?

Yes. We can evaluate custom radius and non-standard dimensions according to the required slot profile, workpiece drawing, or cutter specification.

What information should I provide for a custom cutter?

Please provide a drawing, CAD file, existing cutter specification, or clear key dimensions. Also include the workpiece material, application, and required quantity so we can review the cutter before quotation.

Send Your Full Radius T Slot Cutter Inquiry

Send your full radius T slot cutter inquiry by email, or contact us on WhatsApp.
