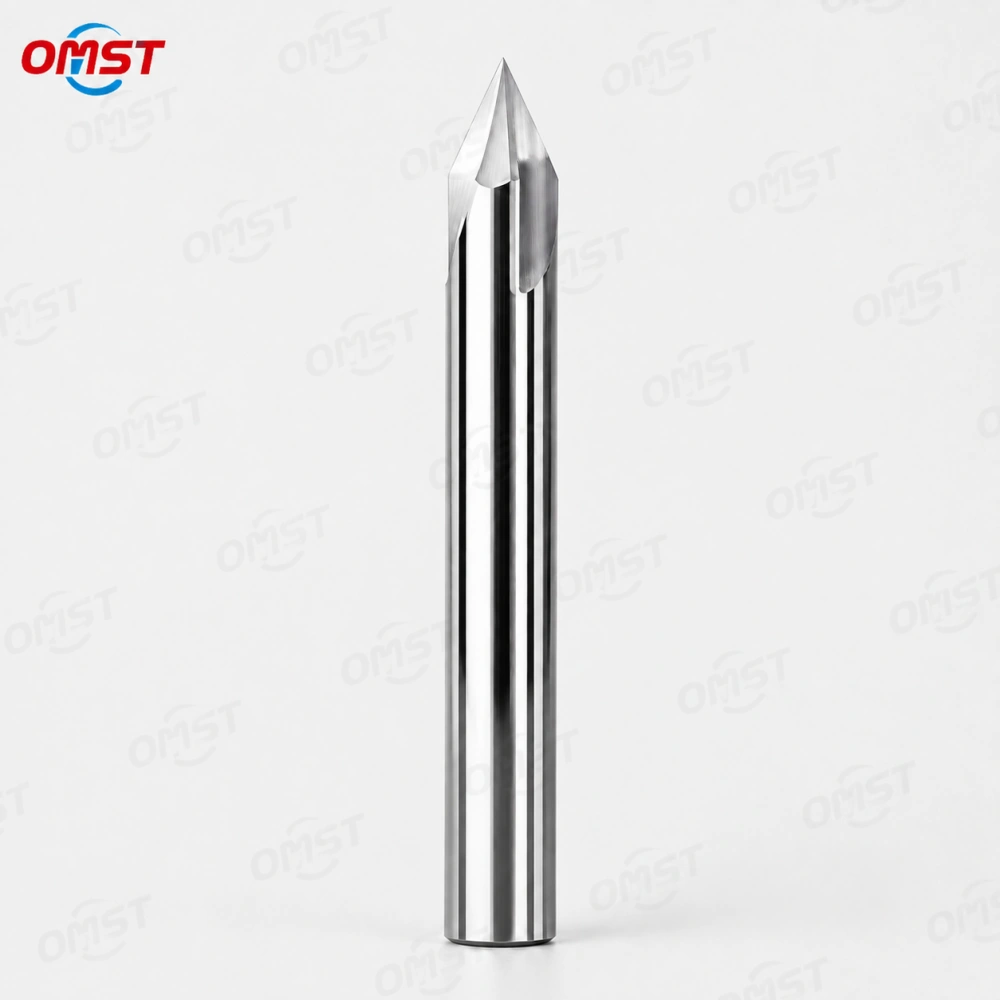

The 100 degree chamfer mill uses solid carbide construction with straight-flute, 3-flute geometry for machining requirements that specify a 100° included angle.
After confirming the angle, compare the required cutter diameter, диаметр хвостовика, and overall length with the listed specifications. If the standard combinations do not match the part or existing tool, the available dimensions or drawing can be reviewed for a non-standard cutter.
100 Degree Chamfer Mill Specification Options
The following specifications represent the currently confirmed size combinations for this product series.
| Диаметр фрезы | Диаметр хвостовика | Флейты | Общая длина |
|---|---|---|---|
| Ø4 mm | Ø4 mm | 3F | 50 миллиметр |
| Ø6 mm | Ø6 mm | 3F | 50 миллиметр |
| Ø8 mm | Ø8 mm | 3F | 60 миллиметр |
| Ø10 mm | Ø10 mm | 3F | 75 миллиметр |
| Ø12 mm | Ø12 mm | 3F | 75 миллиметр |
Custom Dimensions
If the listed combinations do not fit the requirement, provide the required cutter diameter, диаметр хвостовика, общая длина, and other available dimensional information.
For replacement tools or part-specific requirements, you can also send a tool drawing, part drawing, or dimensional sketch for review.
Применение и выбор
When to Select a 100 Градусная фасочная фреза
Выберите 100 degree chamfer cutter when the part drawing or machining requirement specifies a 100° included angle.
Typical operations include:
- Снятие фасок
- Удаление заусенцев
- Edge finishing
The required part geometry should determine the cutter angle. Confirm the angle first, then select the appropriate tool dimensions for the machining setup.
Check the Required Dimensions
After confirming the required angle, проверять:
- Диаметр фрезы
- Диаметр хвостовика
- Габаритная длина
- Доступное пространство для обработки
The selected tool should fit both the required part feature and the machine setup.
If the listed size combinations do not fit, use the required dimensions rather than selecting the nearest standard size without confirmation.
Материалы заготовки
The confirmed product family covers:
- Пресс-форма из стали
- Закалённая сталь
- Алюминий
- Медь
- Пластмассы
State the workpiece material in the inquiry so it can be reviewed together with the tool dimensions and machining requirement.
Standard or Non-Standard Selection
Use a listed size when the angle and main dimensions match the requirement.
Consider a non-standard tool when the required cutter diameter, диаметр хвостовика, общая длина, or angle falls outside the listed product specification.
Ключевые особенности
- Solid carbide construction
- 100° included cutter angle
- Straight-flute geometry
- 3-конфигурация флейты
- Listed cutter diameters from Ø4 to Ø12 mm
- Non-standard angle and dimensional requirements can be evaluated
Обычай 100 Производство фасочных фрез
Non-Standard Angles and Dimensions
This page focuses on the 100 градусная фасочная фреза with a 100° included angle.
For other non-standard straight-flute chamfer cutter requirements, OMIST can evaluate angles from 30° to 160° in 5° increments.
The requested angle and dimensions are reviewed before the final tool specification is confirmed.
Custom Tools from Drawings or Dimensions
Custom evaluation can support replacement tools, existing machining setups, and new part requirements when a listed size does not match.
For a replacement tool, provide the existing tool drawing or measured dimensions where possible.
For a new part, provide the available part drawing, габаритный эскиз, or required tool dimensions for specification review.
Информация, необходимая для предложения
Пожалуйста, предоставьте:
- Требуемый угол
- Диаметр фрезы
- Диаметр хвостовика
- Габаритная длина
- Материал заготовки
- Требуемое количество
- Drawing or dimensional sketch, если доступно
- Other application information relevant to the required tool
If some dimensions are not yet confirmed, send the available information first for review.
Вопросы и ответы
Does 100° refer to the included angle of this chamfer mill?
Да. Confirm the angle reference on the drawing or specification before ordering.
How do I choose the correct size?
First confirm the required angle. Then compare the cutter diameter, диаметр хвостовика, and overall length with the listed specifications and available machining space.
If no listed combination matches, send the required dimensions for evaluation.
Can I request another chamfer angle or a non-standard size?
Да. Non-standard straight-flute chamfer cutter angles from 30° to 160° in 5° increments, as well as non-standard dimensions, can be evaluated.
Do I need a drawing before requesting a quotation?
Нет. You can start with the required angle and available dimensions. A tool drawing, part drawing, or dimensional sketch is helpful when the cutter must match an existing tool or specific part feature.
Сопутствующие товары
If your application requires another included cutter angle, вы также можете просмотреть наш 30 Градусная фасочная фреза, 60 Градусная фасочная фреза, 90 Градусная фасочная фреза, 120 Градусная фасочная фреза, и 150 Градусная фасочная фреза product options.
For more chamfer cutter options, browse the complete фасочные фрезы range.
Запросить цену на 100 Градусная фасочная фреза
For a listed or non-standard 100 градусная фасочная фреза requirement, send the available specification or drawing to sales@cutterbest.com for review and quotation.
