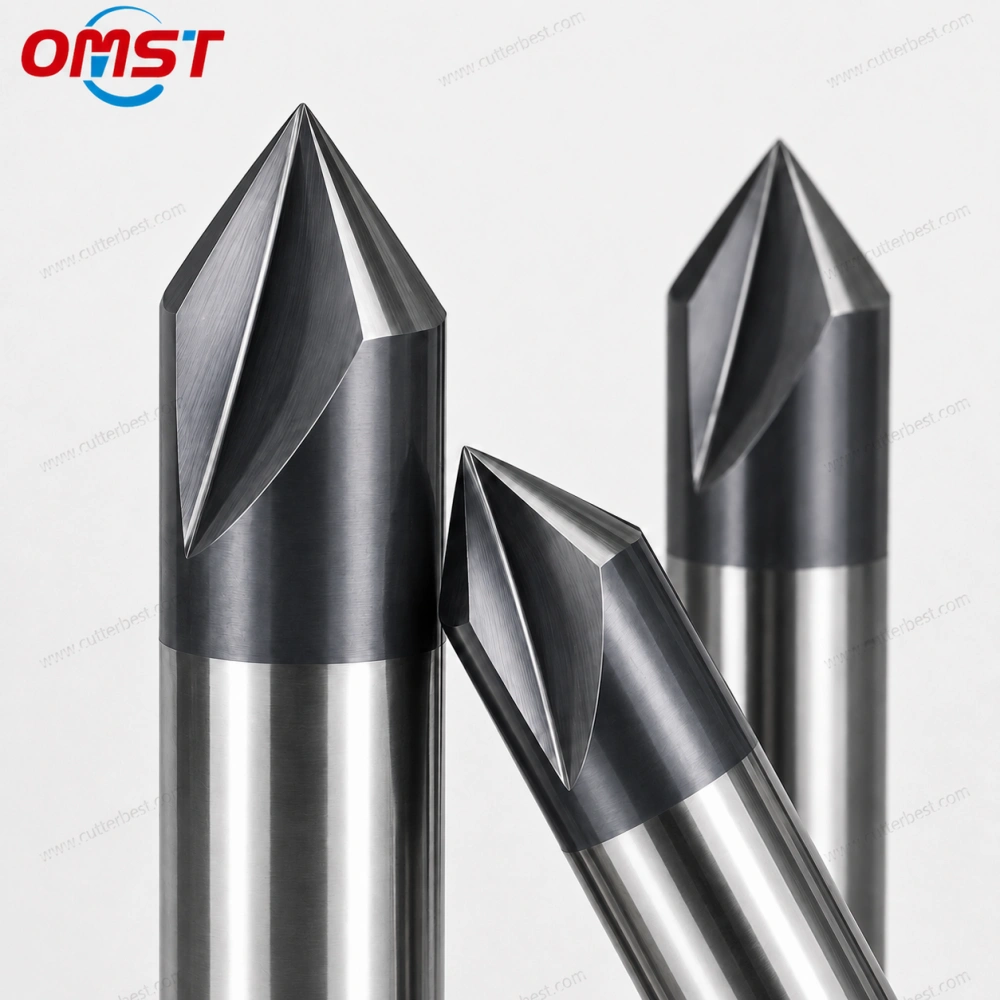

150 Фреза для снятия фасок – 3-зубая цельнотвердосплавная фреза

The 150 degree chamfer mill is a solid carbide, straight-flute, 3-flute cutter for machining requirements where a 150° chamfer angle is specified.

A 150° chamfer tool should be selected according to more than cutter diameter alone. Перед заказом, check the required angle, диаметр фрезы, диаметр хвостовика, общая длина, available machining space, and part geometry together.

For requirements outside the listed specifications, OMIST can review the required dimensions from a tool drawing, part drawing, габаритный эскиз, or other available application information.

150 Degree Chamfer Mill Specification Options

The following dimensions represent the currently confirmed product combinations for this 3-flute straight-flute series.

Custom Dimensions

If the listed dimensions do not match the requirement, provide the required cutter diameter, диаметр хвостовика, общая длина, and other available dimensional information.

You can also submit a tool drawing, part drawing, or dimensional sketch when the cutter must match an existing tool or a specific part feature.

Применение и выбор

When to Use a 150 Градусная фасочная фреза

Choose this product when the part drawing or confirmed machining requirement specifies a 150° chamfer angle.

Typical operations include chamfering, удаление заусенцев, and edge finishing where the 150° cutter geometry matches the required part feature.

Поэтому, use the drawing or machining requirement to determine the required angle rather than selecting an angle only because a particular cutter size is available.

Confirm the 150° Requirement Before Ordering

Start by confirming the required angle on the part drawing or machining specification.

After you confirm the 150° requirement, check whether the cutter diameter, диаметр хвостовика, and overall length fit the available machining space and toolholding setup.

If the listed dimensions do not match the part geometry, send the available dimensions or drawing for evaluation rather than selecting the nearest size without confirmation.

Материалы заготовки

The confirmed factory information covers:

• Пресс-форма из стали
• Закалённая сталь
• Алюминий
• Медь
• Пластмассы

Please state the workpiece material when requesting a quotation so it can be reviewed together with the tool dimensions and machining requirement.

Select a Listed Size or Request a Non-Standard Tool

If a listed size matches the requirement, use the specification table to confirm the main dimensions before ordering.

Consider a non-standard tool when the listed combinations do not match the required angle, диаметр фрезы, диаметр хвостовика, общая длина, or available machining space.

Ключевые особенности

• Solid carbide construction
• Straight-flute geometry
• 3-конфигурация флейты
• Listed cutter diameters from Ø4 to Ø12 mm
• Matching shank diameters for the listed sizes
• Non-standard angle and dimension requests can be evaluated

Обычай 150 Производство фасочных фрез

Non-Standard Angle and Dimension Requests

For non-standard straight-flute chamfer cutter requirements, OMIST can evaluate angles from 30° to 160° in 5° increments.

OMIST confirms the final angle and dimensional specification according to the customer requirement before production.

This page remains focused on the 150 градусная фасочная фреза. If another angle is required, state the exact angle and dimensions in the inquiry for separate evaluation.

Custom Tools from Drawings or Dimensions

Custom evaluation is useful for replacement tools, existing machining setups, or new parts when the listed dimensions do not match the required chamfer geometry.

For a replacement tool, provide the existing tool drawing or measured dimensions where possible. For a new project, provide a part drawing, габаритный эскиз, or required tool dimensions so OMIST can review the specification.

OMIST reviews the supplied information before confirming the final tool specification.

Информация, необходимая для предложения

Пожалуйста, предоставьте:

• Требуемый угол
• Диаметр фрезы
• Диаметр хвостовика
• Габаритная длина
• Материал заготовки
• Требуемое количество
• Drawing or dimensional sketch, если доступно
• Special machining requirements, if applicable

If some dimensions are not yet confirmed, send the available information first for review.

Вопросы и ответы

Can I request another chamfer angle or non-standard size?

Да. Non-standard angle and dimensional requirements can be evaluated according to the requested specification. The final tool specification is confirmed after review.

Do I need a drawing before requesting a quotation?

Нет. A drawing is helpful but is not required for the first inquiry. You can send the required angle and available dimensional information first, then provide a drawing or dimensional sketch if available.

What information should I provide for a 150 degree chamfer mill quotation?

Provide the required angle, диаметр фрезы, диаметр хвостовика, общая длина, материал заготовки, и количество. A drawing or dimensional sketch is helpful for non-standard requirements.

Can this 150 degree chamfer mill be made to replace an existing tool?

A replacement requirement can be evaluated from the existing tool drawing, габаритный эскиз, or measured dimensions. OMIST reviews the supplied information before confirming the replacement tool specification.

Сопутствующие товары

If another included cutter angle is required, вы также можете просмотреть наш 30 Градусная фасочная фреза, 60 Градусная фасочная фреза, 90 Градусная фасочная фреза, 100 Градусная фасочная фреза, и 120 Градусная фасочная фреза product options.

For more available chamfer cutter options, browse the complete фасочные фрезы range.

Запросить цену на 150 Градусная фасочная фреза

For a listed or non-standard 150 degree chamfer mill requirement, send the available specification or drawing to sales@cutterbest.com for review and quotation.
