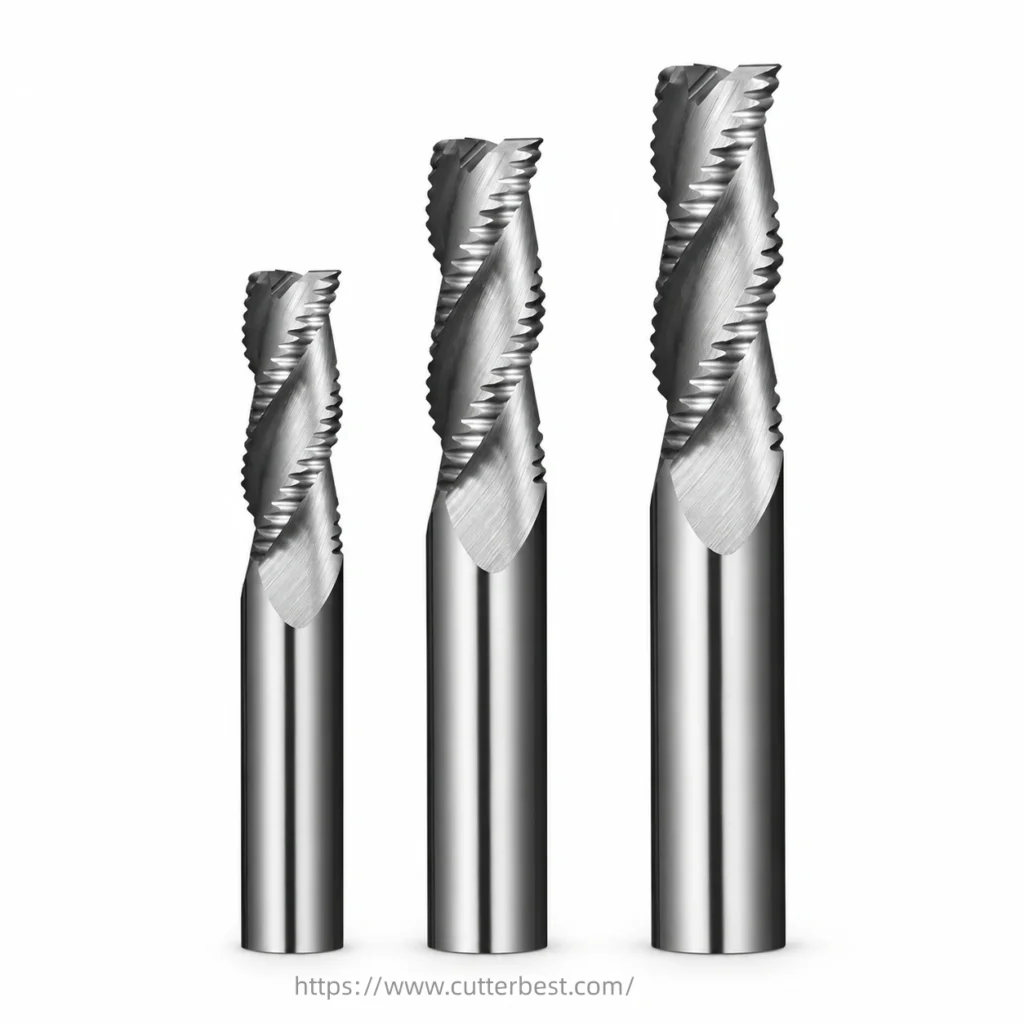

Roughing End Mill for Aluminum

Our aluminum roughing end mill range uses serrated cutting edges for machining allowance removal. The waves along each edge divide the chip into smaller sections, helping manage chips under suitable roughing conditions.

These cutters are also described as serrated roughers or wave-edge roughing end mills. Buyers may use names such as corncob rougher or hog mill, although the exact edge profile can vary. When matching a replacement, check the actual geometry as well as the product name.

A smooth-edge aluminum end mill can also perform roughing. The distinction here is the cutting-edge structure and its effect on chip formation and the machined surface.

For more background, см. наш roughing end mill uses guide.

Aluminum Roughing End Mill Specification Options

Select the tool series first, then match its dimensions and geometry. HSS and solid carbide specifications are reviewed separately.

The following examples show representative dimensions from the three-flute M2-AL HSS series. They apply to that series only.

All dimensions are in millimeters.

For other requirements, provide the main dimensions or an existing tool model. Where relevant, include the required reach, end or corner shape, serration profile, и способ входа.

Размеры, счет флейты, обработка поверхности, and geometry are matched as a complete configuration. The available series do not imply that every combination is supplied.

Приложений & Выбор

Aluminum Workpieces & Roughing Operations

Start with the aluminum grade, форма объекта, припуск на механическую обработку, and cutting engagement. Карман, полость, and side roughing can place different demands on the cutter and chip evacuation.

Distinguish full-width slotting from partial radial engagement. A cutter suitable for side roughing should not automatically be selected for a deep full-width slot.

HSS or Solid Carbide

Material selection should account for the available spindle speed, стабильность настройки, сокращение помолвки, и производственные требования. For replacement tools, the existing material, размеры, and machining results provide a useful starting point.

An HSS roughing end mill for aluminum and a solid carbide version require separate parameter selection. Confirm the material grade and any coating for the chosen series rather than transferring assumptions between them.

Three or Four Flutes

Choose flute count together with the flute geometry, диаметр фрезы, обручение, and coolant access. Three flutes or four flutes alone do not establish suitability for a particular operation.

Flute count is the number of cutting flutes around the tool. Serration pitch is the spacing of the waves along an edge. Chip space also depends on the flute cross-section and core geometry; it cannot be determined from serration pitch alone.

Достигать, Вход & Требования к поверхности

For deep features, check tool reach, нависать, holder clearance, и удаление стружки. Cutting length and overall length do not by themselves establish usable machining depth.

Vertical plunging, нарастание, винтовой вход, and adaptive toolpaths require a suitable model and cutting conditions. Peripheral serrations do not establish entry capability.

Wave-edge roughing can leave visible machining marks. Decide whether to leave finishing allowance according to the final surface and dimensional requirements. For a separate aluminum milling option, см. наш 3 Концевая фреза из твердого сплава канавок.

For steel workpieces, refer to our roughing end mill for steel.

Ключевые особенности

Serrated Roughing Geometry

Wave-shaped cutting edges divide the chip during stock removal.

Separate Material Series

HSS and solid carbide options allow tool matching by material, модель, и приложение.

Model-Based Configuration

Three-flute and four-flute series are matched with the required dimensions and cutting geometry.

Стандартное соответствие инструмента & Custom Review

For standard tool matching, send the existing model, tool markings, or main dimensions. A clear tool photo can also help identify the serration profile and end geometry.

Для нестандартных требований, send a drawing for review. We assess the complete configuration before confirming specifications and supply.

Часто задаваемые вопросы

What is an aluminum roughing end mill used for?

It removes machining allowance from aluminum workpieces during roughing. The selected model and cutting strategy must suit the feature, обручение, и настройка машины.

How does a serrated rougher differ from a smooth-edge aluminum end mill?

A serrated rougher has waves along its cutting edges that divide the chip. A smooth-edge cutter has a continuous edge. Both can perform roughing, but their cutting behavior and resulting surface differ.

Should I choose HSS or solid carbide?

Consider the machine, operating speed, стабильность настройки, and job requirements. Share your current tool details and application if you need help identifying a suitable series.

Should I choose three or four flutes?

Match the flute count with the complete cutter geometry and cutting conditions. There is no single flute count that is best for every aluminum roughing operation.

Какую информацию я должен отправить для получения предложения??

Send a tool model, рисунок, or main specifications, together with the workpiece material and quantity. Provide what you already have; we will clarify any missing details as needed.

Send Your Aluminum Roughing End Mill Inquiry

Send your aluminum roughing end mill inquiry by email, или свяжитесь с нами по WhatsApp. Include a model, рисунок, or main specifications, plus the workpiece material and quantity.
