What is an End Mill Cutter?

1. Definition and Key Features of End Mills
1.1 What is an End Mill?
An end mill is a multi-flute rotary cutter with cutting edges on both its end face and sides, allowing simultaneous axial and radial cutting. This enables it to perform not only drilling operations like drill bits but also complex machining of planes, cavities, slopes, and curved surfaces.

1.2 Core Advantages

• 3D Cutting Capability: Performs both radial and axial cutting for complex contours
• High Material Removal: 3-5× more efficient than drill bits (2-8 flutes)
• Precision Machining: Optimized helix angle (30°-45°) reduces cutting resistance (Ra0.4μm achievable)
• Wide Applicability: Diameter range from 0.1mm (micro-machining) to 50mm (heavy-duty)

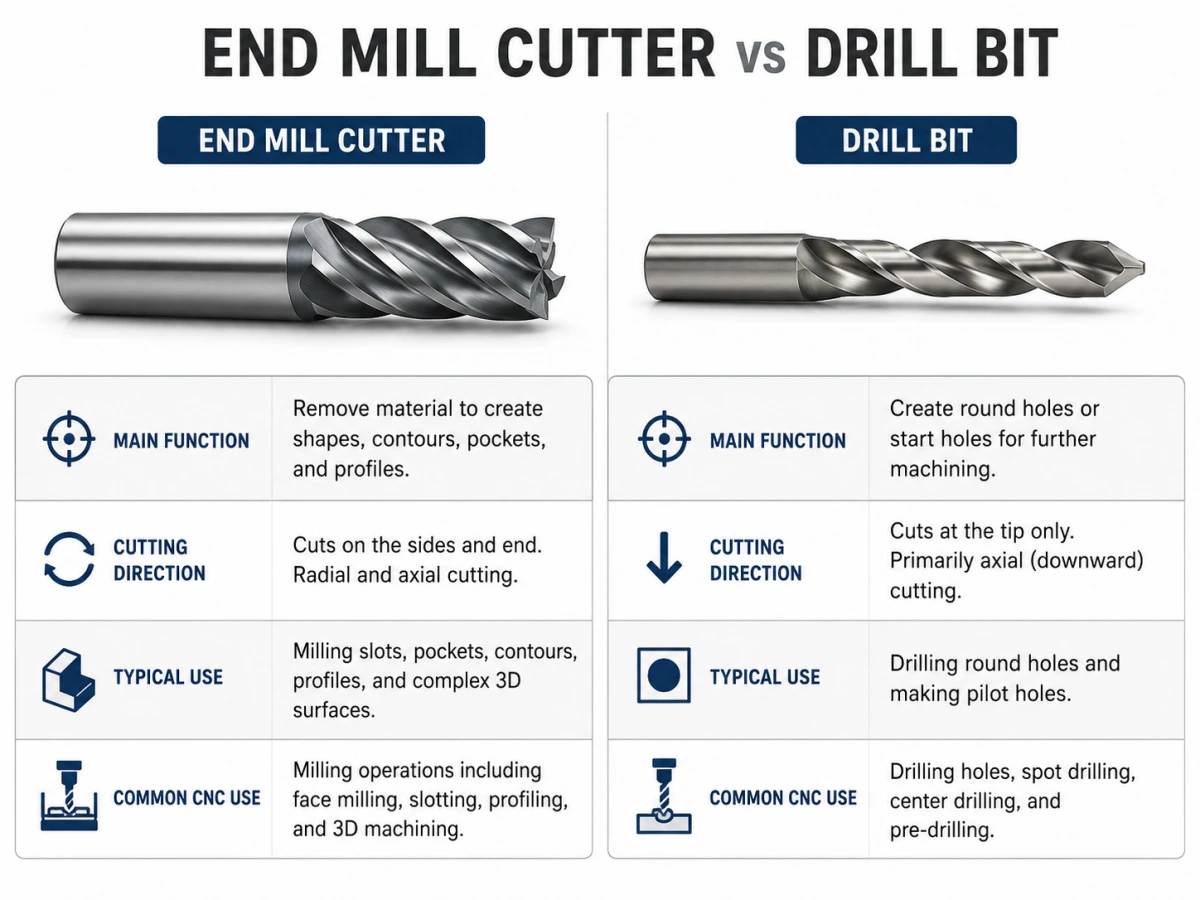

2. Key Differences Between End Mills and Drill Bits
2.1 Cutting Method

• End Mills: Radial + axial cutting (slots/contours/3D surfaces)
• Drill Bits: Only axial feed (hole drilling)

2.2 Flute Design

• End Mills: 2-8 helical flutes for chip evacuation
• Drill Bits: Typically 2 straight flutes (10°-20° helix)

2.3 Accuracy

• End Mills: ±0.005mm repeatability
• Drill Bits: ±0.02mm accuracy

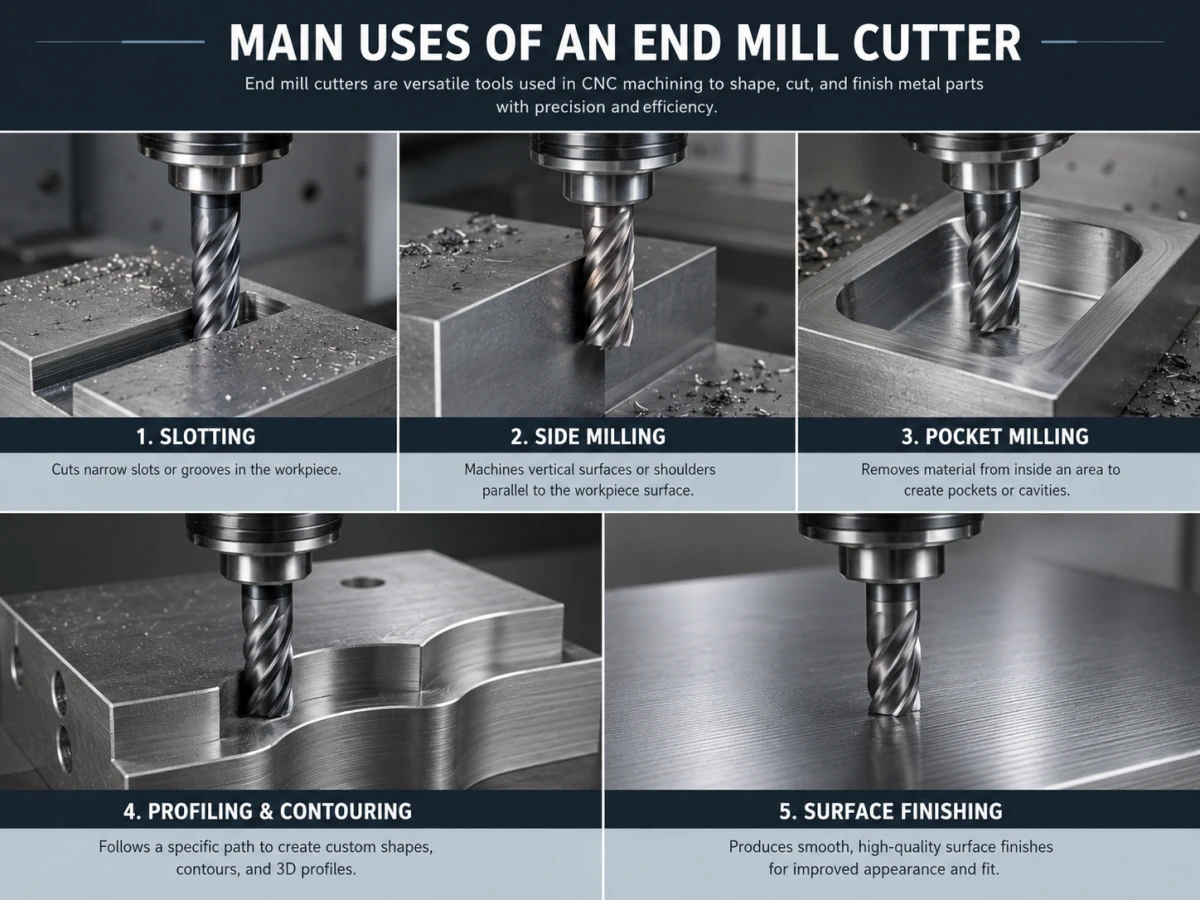

2.4 Applications

• End Mills: Mold cavities, impeller blades, precision slots
• Drill Bits: Bolt holes, locating holes

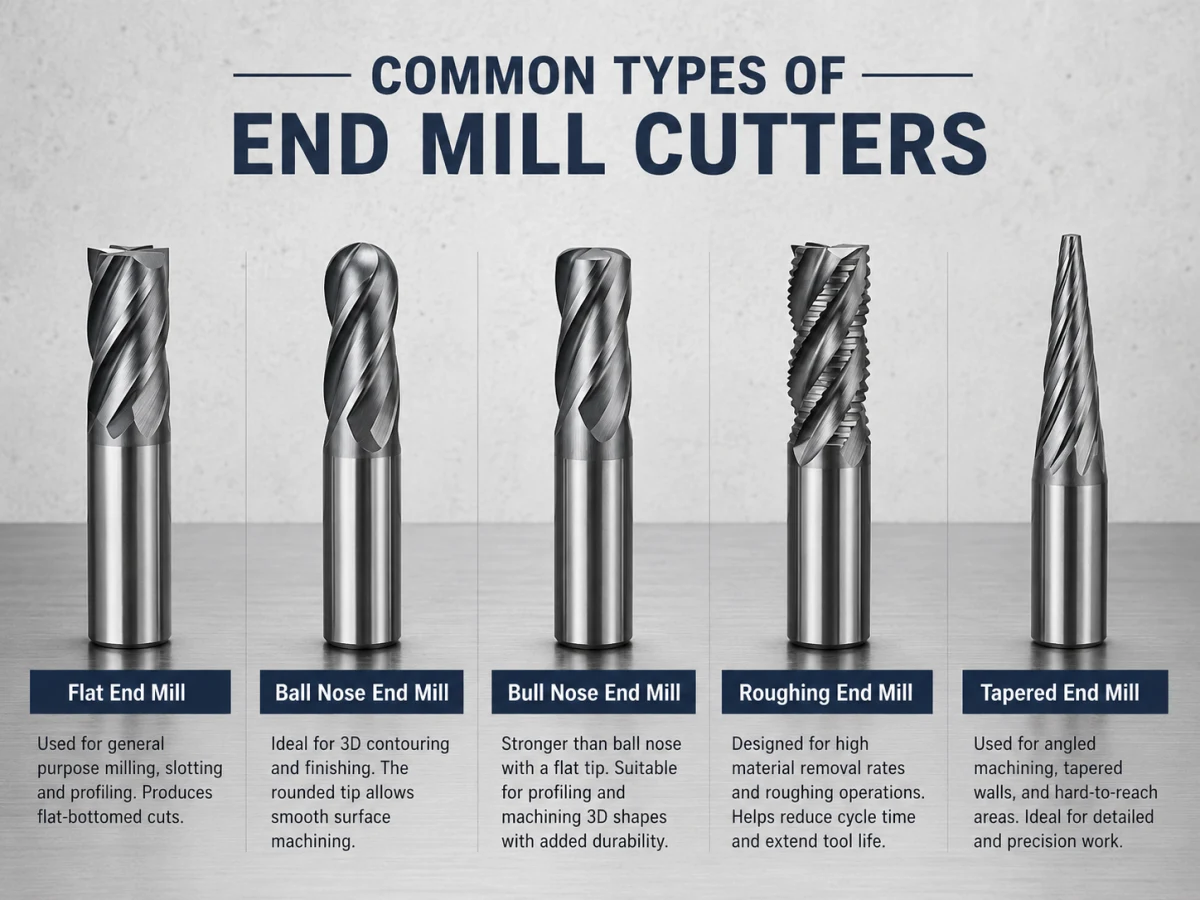

3. Main Types and Applications
3.1 Flat End Mill

• Features: 90° square end
• Best For: Face milling, square shoulders
• Avoid: Curved surfaces

3.2 Ball Nose End Mill

• Features: Spherical tip
• Best For: 3D contour finishing
• Avoid: Roughing

3.3 Corner Radius End Mill

• Features: R0.2-2mm edge radius
• Best For: Stress reduction in corners
• Avoid: Sharp internal corners

3.4 Roughing End Mill

• Features: Serrated teeth
• Best For: Heavy stock removal (5×D depth)
• Avoid: Finishing

3.5 Aluminum End Mill

• Features: High flute volume + polished edges
• Best For: Non-ferrous metals
• Avoid: Hardened steels (>45HRC)

4. Selection Guidelines

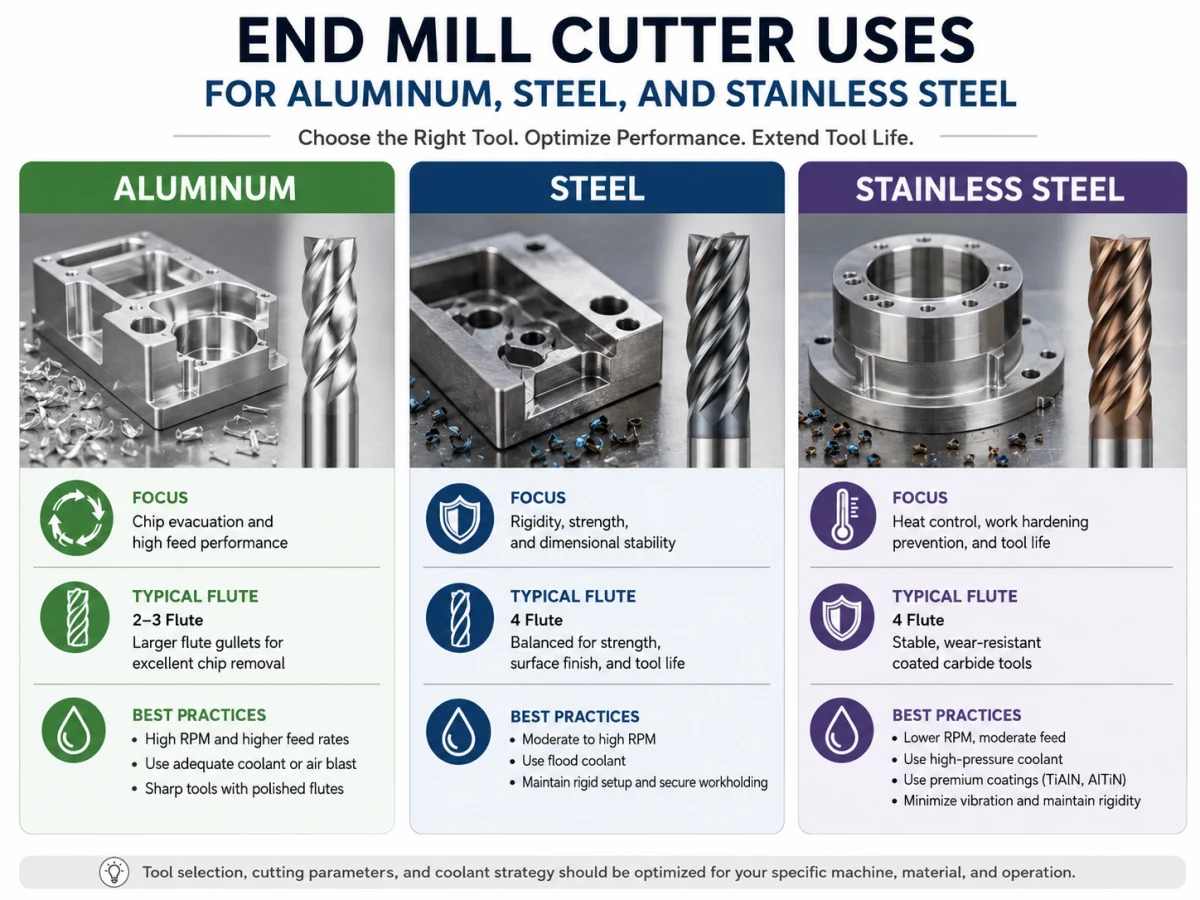

4.1 Material Matching

4.2 Machining Phase Optimization

• Roughing: High feed (0.2-0.4mm/z), deep cuts (3-5×D)

• Finishing: Low feed (0.05-0.1mm/z), shallow cuts (0.1-0.3×D)

4.3 Machine Compatibility

• High-speed CNC: Small carbide tools (Ø3-10mm)

• Conventional mills: HSS tools (Ø10-25mm)

5 Tips to Extend Tool Life

1. Pre-cut Inspection: Check for edge defects (<0.02mm runout)

2. Coolant Strategy:

   • Aluminum: MQL

   • Stainless: 8-12% emulsion

   • Titanium: >70bar oil

3. Proper Regrinding: Maintain original helix angle (±0.5°)

4. Chip Monitoring: Watch for discoloration/chip shape changes

5. Storage: 20±2°C with VCI paper

6. Future Trends

• Miniaturization: <Ø0.1mm for medical devices
• Smart Tools: IoT-enabled wear sensors
• Advanced Coatings: Nano-composite coatings

Conclusion
End mills are indispensable for precision machining. Key takeaways:
✅ Match tool geometry to material
✅ Optimize parameters for each machining phase
✅ Implement proper maintenance routines
✅ Stay updated on smart manufacturing trends

By mastering these principles, you’ll maximize machining efficiency and tool longevity.
