How Does an End Mill Cutter Work?

Introduction

How does an end mill cutter work in CNC milling? It removes material with rotating cutting edges while feed motion moves the tool through the workpiece. Flutes carry chips away from the cutting zone, so cutting stability, surface finish, and tool life depend on rotation speed, feed rate, cutter geometry, and chip evacuation.

This guide explains how the end milling process works, how the cutter removes material, how chips leave the cutting zone, and what affects cutting stability, surface finish, and tool life.

If you are new to this tool, you can first read our basic milling tool guide.

What Is an End Mill Cutter in CNC Milling?

An end mill cutter is a rotary cutting tool used on CNC machines and milling machines. Unlike a standard drill bit, it can cut vertically and laterally. Therefore, it can create slots, pockets, contours, side walls, and finished surfaces.

Most tools have cutting edges on the end and along the sides. As a result, they can remove material in different directions depending on the toolpath and machining operation.

End Mill Cutter Diagram and Main Parts

Flutes

Flutes are the grooves along the cutter body. They help remove chips during cutting and directly affect chip evacuation, rigidity, and cutting performance.

Cutting Edges

The cutting edges shear material from the workpiece. Their sharpness and geometry affect cutting efficiency, surface finish, and tool life.

Shank

The shank is the part clamped into the spindle or holder. A stable shank setup is important for machining accuracy and vibration control.

Helix Angle

The helix angle influences chip flow and cutting smoothness. In many cases, it also affects heat control and machining stability.

Tool Tip Geometry

Different tip shapes support different machining tasks. Flat end mills work well for slotting and side milling, while ball nose tools are suitable for contouring and 3D surfaces.

If you want to compare different tool shapes, read our tool type comparison guide.

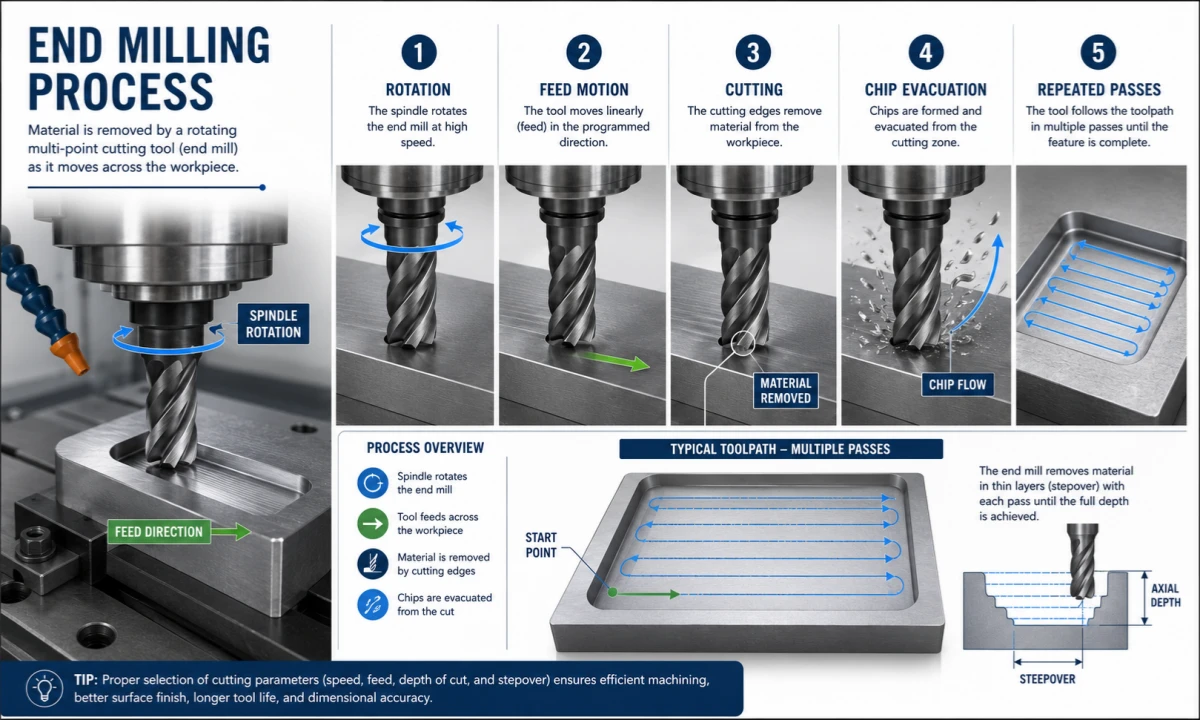

How Does an End Mill Cutter Work in CNC Milling?

1. Rotation Creates the Cutting Action

First, the cutter rotates at high speed in the spindle. This rotation brings the cutting edges into contact with the workpiece and creates the cutting action.

2. Feed Motion Moves the Tool Through the Material

At the same time, the tool or the workpiece moves in a controlled direction. This movement is called feed motion. It determines how the cutter travels through the material and how much material is removed in each pass.

3. Cutting Edges Shear Off Material

As the rotating cutter enters the material, the cutting edges shear off small sections of the workpiece. These removed sections become chips.

4. Flutes Carry the Chips Away

Next, the flutes help carry chips away from the cutting zone. Good chip evacuation is important because trapped chips can increase heat, damage the cutter, and reduce surface quality.

5. Repeated Passes Create the Final Shape

Finally, the CNC machine creates the final shape by controlling the toolpath, depth of cut, feed rate, and spindle speed. With repeated passes, the cutter can produce slots, pockets, contours, side walls, and finished surfaces.

For readers asking “how does an end mill cutter work,” the table below explains the basic cutting steps in a simple CNC milling operation.

End Milling Process Table

This table explains the basic logic behind the end milling process in a simple way.

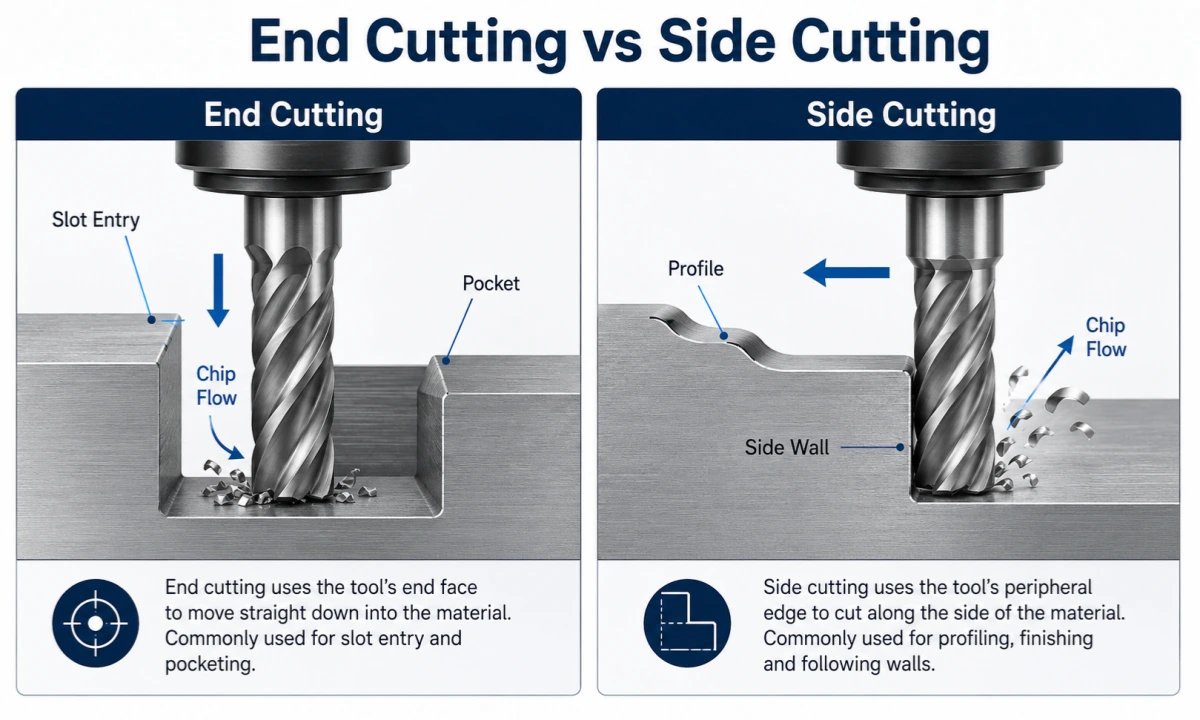

End Cutting vs Side Cutting

An end mill cutter can remove material from the end and side of the tool. This is one reason it is more flexible than a standard drill bit.

End Cutting

End cutting happens when the tool tip removes material from the bottom of a slot, pocket, or shallow entry area. Center-cutting end mills can handle some plunging or pocket entry operations, but they are still different from drill bits.

Side Cutting

Side cutting happens when the side cutting edges remove material from the wall or profile of a workpiece. This cutting action is common in side milling, shoulder milling, profiling, and contour milling.

For this reason, tool geometry, flute count, feed rate, and clamping stability all affect how well the cutter performs in different operations.

Common End Milling Operations

Slotting

The cutter removes material in a straight path to create grooves or narrow slots.

Side Milling

The side cutting edges machine vertical walls or side surfaces.

Pocket Milling

The cutter removes material from a closed internal area inside the workpiece.

Contouring

The tool follows curved or shaped paths to create profiles and complex surfaces.

Surface Finishing

A finishing pass improves surface quality and dimensional accuracy.

These operations explain why machine shops use these tools in mold making, machine parts, automotive components, aerospace parts, and general metalworking.

What Affects How Well an End Mill Cutter Works?

Tool Material

Solid carbide tools usually provide better rigidity, wear resistance, and more stable cutting performance in CNC machining.

For dedicated carbide tools, you can also visit our solid carbide milling tools page.

Flute Count

Flute count affects chip evacuation and rigidity. In many cases, machinists choose fewer flutes for aluminum and more flutes for steel or harder materials.

For a deeper comparison, read our flute count comparison guide.

Coating

The right coating can improve wear resistance, heat resistance, and tool life, especially in demanding cutting conditions.

Feed Rate and Speed

Feed rate and spindle speed must match the workpiece material and tool design. Otherwise, the cutter may overheat, wear too quickly, or leave a poor surface finish.

Workpiece Material

Aluminum, steel, and stainless steel behave differently during machining. Therefore, machinists should adjust cutter geometry, coating, feed rate, and spindle speed according to the material.

How to Use an End Mill Cutter More Effectively

Match the Tool to the Material

Choose the tool geometry, flute count, and coating according to the workpiece material.

Use Stable Clamping

A stable holder and proper setup help reduce vibration and improve cutting accuracy.

Keep Chip Evacuation Clear

Good chip evacuation helps prevent heat buildup and unstable cutting.

Use Suitable Cutting Parameters

Speed, feed, axial depth, and radial engagement should match the cutter and the machining task.

Monitor Tool Wear

A worn cutter can reduce accuracy, surface quality, and machining efficiency. Therefore, regular tool inspection is important.

If you need standard or OEM tooling solutions, you can also visit our product page for CNC milling tools.

End Milling Operation Diagram and Chip Flow

A clear end milling operation diagram should show spindle rotation, feed direction, cutting edges, chip flow, and the workpiece contact area. These points help readers understand how the cutter removes material and why cutting stability depends on both tool movement and chip evacuation.

In a typical operation, the spindle rotates the tool, the feed motion moves the cutter through the material, and the flutes carry chips away from the cutting zone. If chips stay near the cutting edge, heat and vibration may increase, which can reduce surface quality and tool life.

This visual explanation is useful for readers who search for end milling cutter diagrams, end milling operation diagrams, or end milling process examples.

Common Mistakes When Using an End Mill Cutter

Using the Wrong Flute Count

Poor flute selection can reduce chip evacuation or cutting stability.

Ignoring Feed and Speed Settings

Incorrect cutting parameters can lead to overheating, edge damage, and short tool life.

Choosing the Wrong Tool Type

A flat end mill, ball nose end mill, and roughing end mill work for different operations, so one tool should not replace every cutter type.

Poor Chip Evacuation

When chips stay in the cutting zone, surface finish and tool life may both suffer.

Using One Setup for Every Material

The same cutting conditions do not work equally well for aluminum, steel, and stainless steel.

FAQ

How does an end mill cutter work?

An end mill cutter works by combining spindle rotation and feed motion. The cutting edges shear material from the workpiece, and the flutes remove chips from the cutting zone.

What is end milling?

End milling is a machining process in which a rotating end mill cutter removes material to create slots, pockets, side walls, contours, and finished surfaces.

What is the difference between an end mill and a drill bit?

A drill bit mainly makes holes, while an end mill can cut vertically and laterally for a wider range of milling operations.

What are end mills used for?

End mills are used for slotting, side milling, profiling, pocket milling, contouring, and surface finishing.

Can one end mill cutter be used for both aluminum and steel?

Not always. Tool geometry, flute count, coating, and cutting parameters often need to change depending on the material.

Why is chip evacuation important in end milling?

Chip evacuation helps control heat, reduce tool damage, and improve cutting stability and surface quality.

Conclusion

Understanding how an end mill cutter works helps improve machining efficiency and tool performance. The end milling process depends on spindle rotation, feed motion, cutting edge geometry, and chip evacuation.

When machinists match cutter type, flute count, coating, and cutting parameters correctly, end milling can produce accurate parts, better surface finish, and more stable machining results. That is why proper tool selection and machining setup are both essential.
