Milling Cutter Types and Uses: How to Choose the Right Cutter

Milling cutter types vary by shape, cutting edge design, flute count, coating, tool structure, and machining purpose. Each cutter type works for a different CNC milling operation, such as slotting, facing, profiling, 3D contouring, roughing, finishing, thread machining, or abrasive material machining.

Choosing the right milling cutter type is important for tool life, surface finish, chip removal, cutting stability, and machining cost. For example, machinists commonly use an end mill cutter for slotting and profiling, while they choose a ball nose end mill for curved surfaces and mold cavities.

Therefore, this guide explains common types of milling cutters, their uses, tool structures, and selection tips for different CNC machining applications.

What Are Milling Cutter Types?

Milling cutter types refer to different cutter designs used for different machining tasks. Some cutters remove material quickly. Some create flat surfaces. Others machine slots, threads, curved surfaces, or special profiles.

In CNC machining, the cutter type should match the operation, workpiece material, machine rigidity, and surface requirement. A wrong cutter type may cause poor surface finish, vibration, chip clogging, short tool life, or unstable machining.

For a general introduction, you can also read our milling cutter guide.

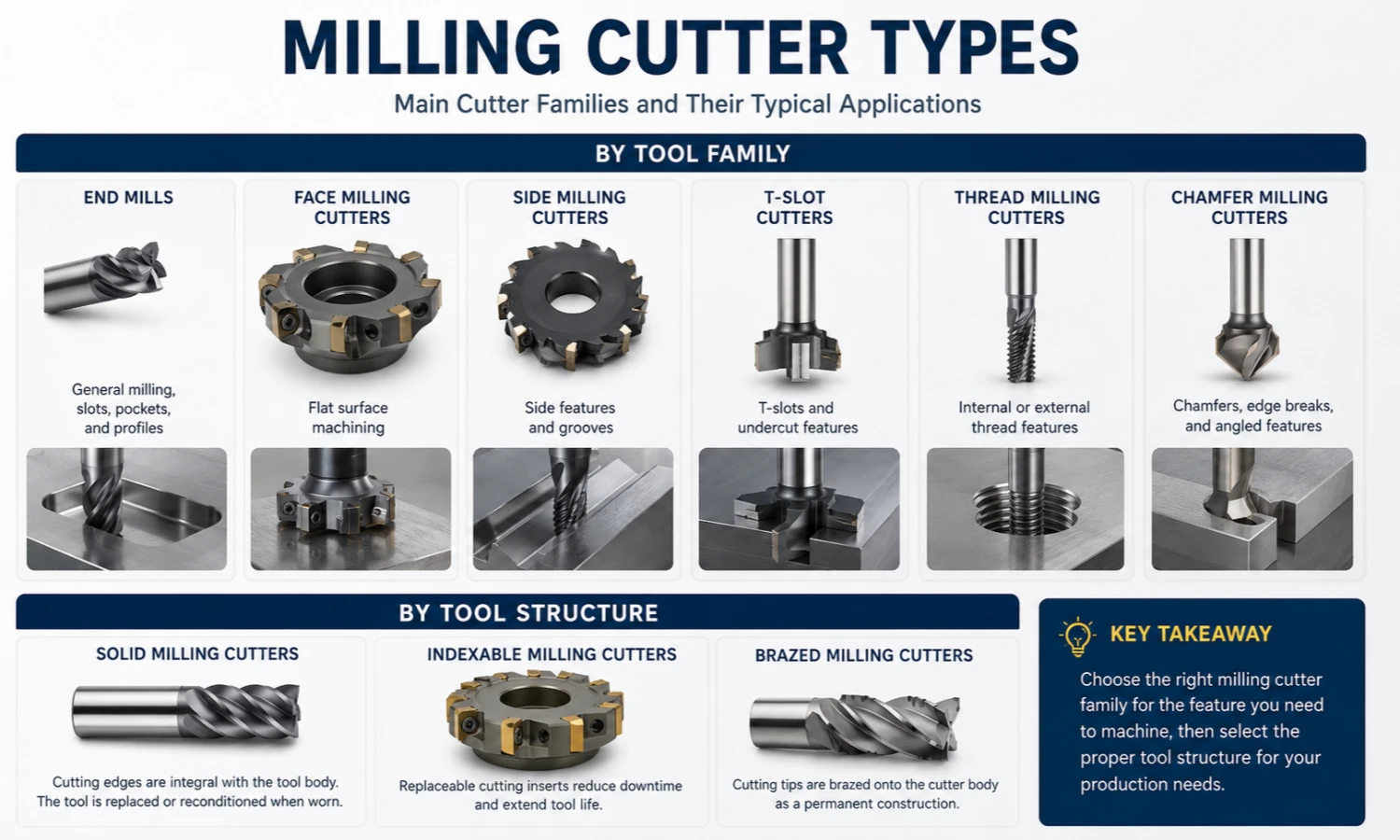

Milling Cutter Types by Tool Structure

Milling cutters can also be classified by tool structure. This is useful for buyers who need to compare cost, precision, replacement method, and production scale.

Solid Milling Cutters

Manufacturers make solid milling cutters from one complete tool body. Common materials include HSS and solid carbide. Machinists often choose them for precision machining, small-batch production, mold parts, and applications that require good rigidity.

Solid carbide cutters are especially common in CNC machining because they offer better hardness, wear resistance, and cutting stability than many general HSS tools. However, the tool should still match the workpiece material, coating, flute count, and cutting parameters.

Indexable Milling Cutters

Indexable milling cutters use a reusable cutter body with replaceable carbide inserts. When the cutting edge wears, the operator can index or replace the insert instead of replacing the whole cutter body.

Factories often use this type for face milling, shoulder milling, heavy roughing, and batch production. It can help reduce tool replacement cost in suitable applications, especially when machining larger parts or removing more material.

Brazed Milling Cutters

Brazed milling cutters use carbide tips brazed onto a steel body. Machinists often use them for general machining and some roughing applications.

Compared with solid carbide tools, brazed cutters can be more economical in some jobs. However, they are not always the best choice for high-speed machining, high-heat cutting, or applications that require frequent tool replacement.

Common Milling Cutter Types and Uses

The table below shows common milling cutter types and their main uses. It is useful for buyers, engineers, and machinists who want to compare different cutter options before choosing a tool.

For a broader range of tool options, see CNC milling cutters.

Main Types of Milling Cutters

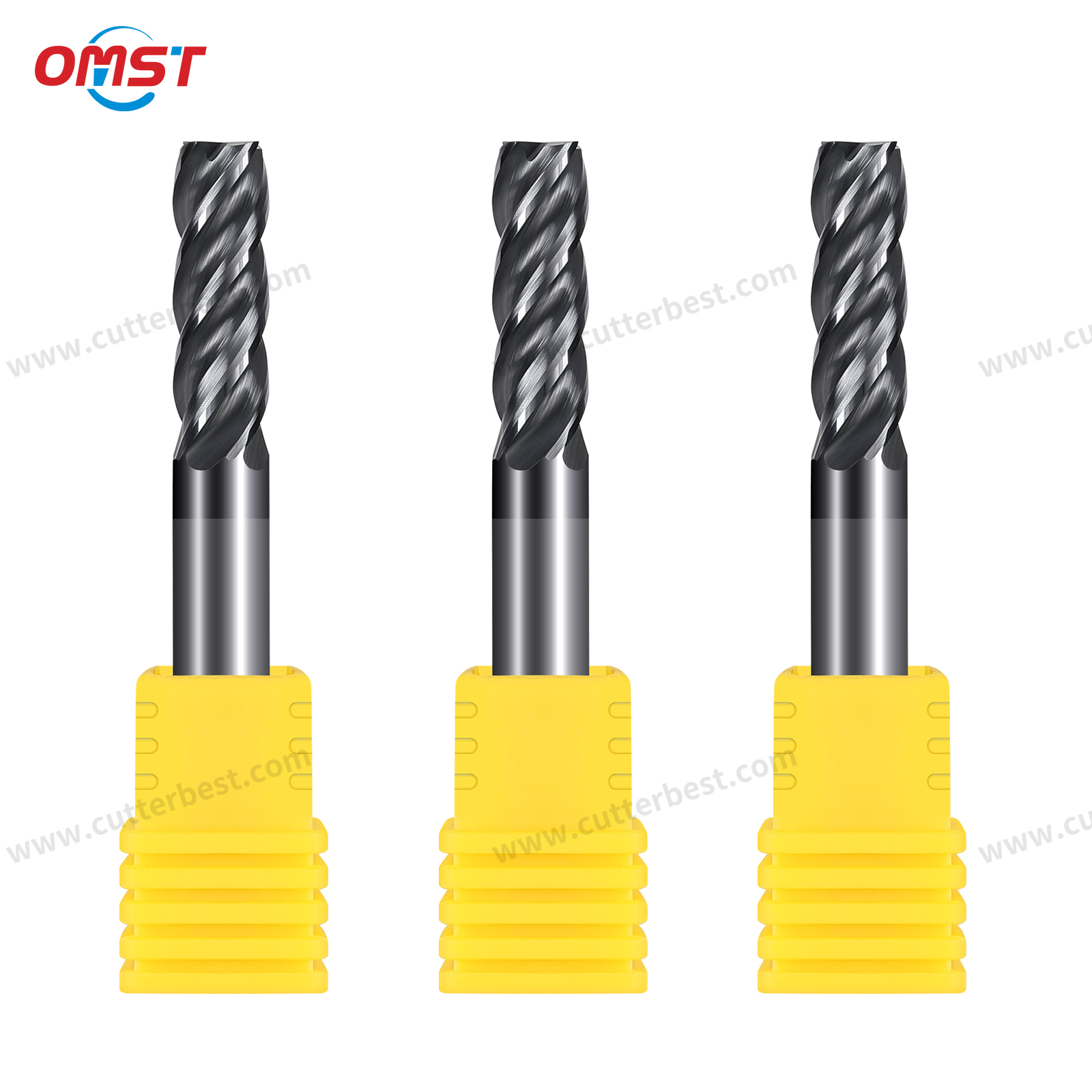

End Mill Cutter

An end mill cutter is one of the most common milling cutter types. It can cut from the side and the end of the tool, so it is suitable for slotting, profiling, pocket milling, contouring, and shoulder milling.

End mills come in different flute counts, coatings, lengths, and carbide grades. For example, 2 flute end mills are often used for aluminum because they provide more chip space. In contrast, 4 flute end mills are often used for steel because they offer better rigidity and cutting stability.

For general CNC milling, view our end mill cutter.

Ball Nose End Mill

A ball nose end mill has a round cutting tip. This cutter type is used for 3D contouring, curved surfaces, mold cavities, die machining, and precision finishing.

Compared with a flat end mill, a ball nose cutter can follow curved tool paths more smoothly. However, it is not the best choice for sharp inside corners because the cutting tip is round.

For mold machining and curved surfaces, choose ball nose end mills.

Bull Nose End Mill

A bull nose end mill is also called a corner radius end mill. It has a small radius on the cutting corner. This design improves corner strength and reduces chipping during machining.

Bull nose end mills are useful for semi-finishing, rough finishing, and machining materials such as steel and stainless steel. They are a good choice when a sharp square corner is not required, but stronger tool corners are needed.

For semi-finishing and stronger corners, see bull nose end mill.

T-Slot Cutter

A T-slot cutter machines T-shaped slots and undercuts. These slots are common in machine tables, fixtures, molds, and clamping systems.

Usually, an end mill first opens a straight slot. Then, the T-slot cutter creates the wider undercut shape. This process helps reduce tool load and improves machining stability.

For T-slot and undercut machining, use a T-slot cutter.

Side Milling Cutter

A side milling cutter cuts grooves, slots, and side surfaces. It removes material from the side of the workpiece and works well for wider grooves or vertical side cutting.

This cutter type is often used in general machinery, fixture parts, mold components, and metalworking applications. However, the setup must be stable because side cutting can create higher cutting forces.

For groove and side surface machining, see side milling cutter.

Face Milling Cutter

A face milling cutter is used to machine flat surfaces. It is often used for large surfaces, machine bases, mold plates, fixture plates, and metal blocks.

Compared with a small end mill, a face milling cutter can cover a wider cutting area. Therefore, it is suitable when the workpiece needs a clean, flat, and consistent surface before the next machining step.

For large flat surface machining, see face milling cutter.

Thread Milling Cutter

A thread milling cutter machines internal or external threads on CNC machines. It can be useful when the part needs accurate threads, different thread sizes, or better control than traditional tapping.

Thread milling also helps reduce the risk of tap breakage in some difficult materials. However, it requires proper CNC programming and a stable machining setup.

For precision thread machining, see thread milling cutter.

Roughing End Mill

A roughing end mill is designed for fast material removal. It usually has a special cutting edge design that breaks chips into smaller pieces and reduces cutting pressure.

This cutter type is often used before finishing. It removes extra material quickly and prepares the part for a smoother final surface. However, roughing end mills are not usually used when the final surface finish is the main requirement.

For fast stock removal before finishing, choose roughing end mills.

Diamond-Coated End Mill

Diamond-coated end mills are used for graphite, CFRP, composites, and other abrasive materials. These materials can wear normal cutting edges quickly, so coating selection is very important.

Diamond coating can improve wear resistance and help extend tool life in graphite machining. However, the tool should still match the workpiece material, cutting parameters, and machine condition.

For graphite and abrasive materials, choose diamond-coated end mills.

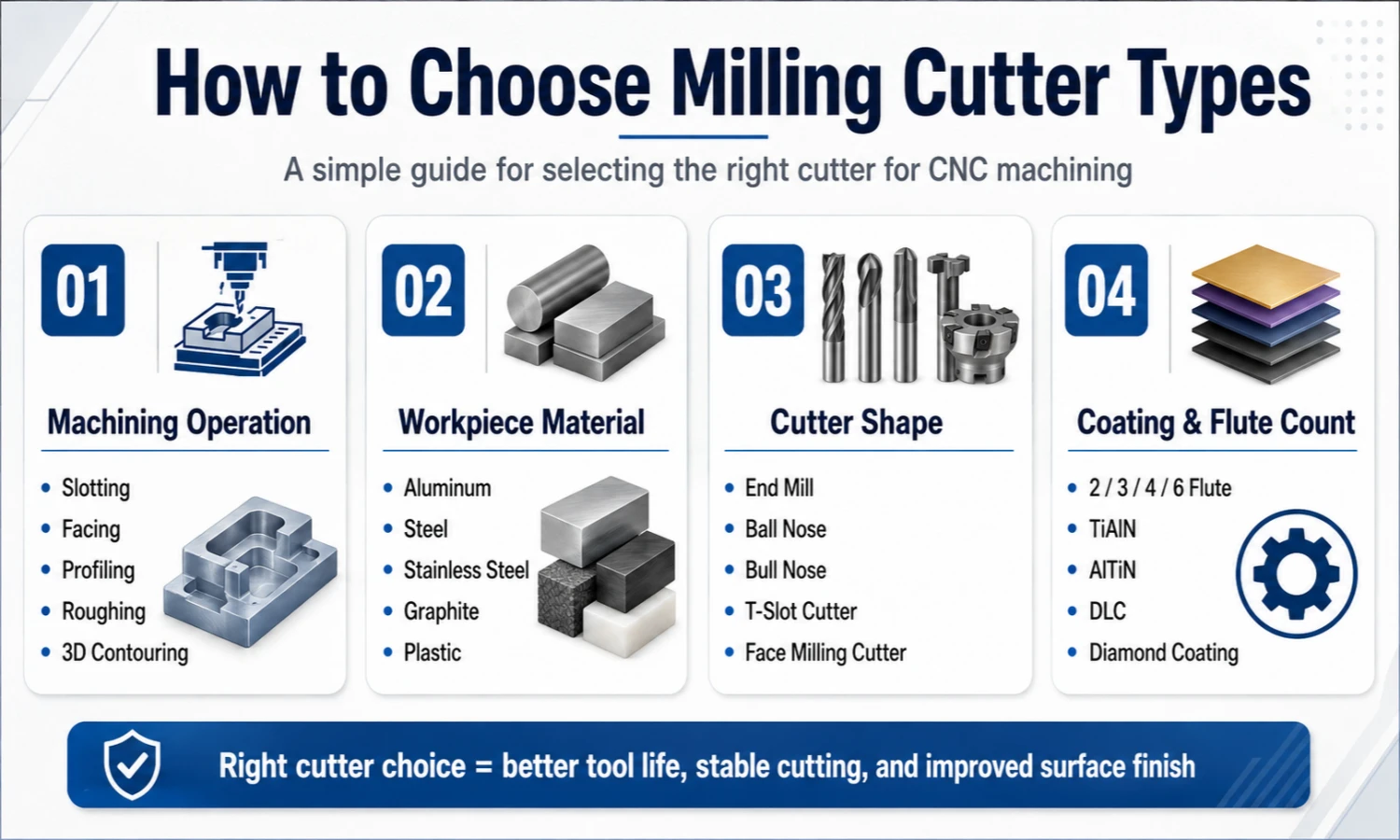

How to Choose Milling Cutter Types by Operation

Different machining operations need different cutter types. Therefore, you should choose the cutter based on the cutting task first.

Cutter Type for Slotting

End mill cutters are usually the most common choice for slotting. In aluminum machining, a 2 flute end mill often works well because it provides more chip space.

When cutting steel slots, machinists may choose a 2 flute or 4 flute tool depending on slot depth, coolant, and machine rigidity.

Cutter Type for Steel Machining

Steel needs stronger cutting edges and better tool rigidity. For this reason, a 4 flute end mill is often used for general steel milling, profiling, and side milling.

In addition, coated carbide tools can improve heat resistance and tool life.

Cutter Type for Finishing

Finishing requires stable cutting and better surface quality. Therefore, many machinists choose 4 flute or 6 flute end mill tools when chip evacuation is not a major problem.

A higher flute count can improve surface finish, but the tool must match the machine rigidity and cutting parameters.

How to Choose Milling Cutter Types by Material

Workpiece material also affects cutter selection. A cutter type that works well for aluminum may not work well for stainless steel or graphite.

When choosing a cutter type, do not only compare price. Instead, check the workpiece material, cutting depth, tool length, coating, flute count, and surface finish requirement.

For high-performance carbide tools, see carbide end mill cutter.

Milling Cutter Types Selection Checklist

Before choosing a milling cutter type, check these points:

In short, the best milling cutter type depends on both the material and the machining operation. A suitable cutter can reduce tool wear, improve surface finish, and make CNC milling more stable.

FAQ About Milling Cutter Types

What are the main types of milling cutters?

Common milling cutter types include end mill cutters, ball nose end mills, bull nose end mills, T-slot cutters, side milling cutters, face milling cutters, thread milling cutters, roughing end mills, and diamond-coated end mills.

They can also be classified by tool structure, such as solid milling cutters, indexable milling cutters, and brazed milling cutters.

What is the most common milling cutter type?

The end mill cutter is one of the most common milling cutter types. It is widely used for slotting, profiling, pocket milling, shoulder milling, and general CNC machining.

For general milling applications, see end mill cutter.

Which milling cutter type is used for slots?

End mill cutters are commonly used for straight slots. For T-shaped slots, a T-slot cutter is used after the first straight slot is opened.

For special slot machining, see T-slot cutter.

Which milling cutter type is used for curved surfaces?

Ball nose end mills are used for curved surfaces, mold cavities, 3D contouring, and die machining. Their round tip can follow complex tool paths and create smooth curved surfaces.

For 3D surface machining, choose ball nose end mills.

Which milling cutter type is used for flat surfaces?

Face milling cutters are often used for large flat surfaces. End mills can also machine smaller flat areas when more flexible tool movement is needed.

What is the difference between solid and indexable milling cutters?

Solid milling cutters are made from one complete tool body and are often used for precision machining, small-batch production, and smaller tool sizes.

Indexable milling cutters use a reusable cutter body with replaceable inserts. They are often used for larger tools, face milling, roughing, and batch production.

How do I choose the right milling cutter type?

First, confirm the machining operation. Then, check the workpiece material, required surface finish, cutting depth, machine rigidity, coating, flute count, tool structure, and tool size.

If the job involves abrasive materials such as graphite, diamond-coated tools may be a better choice. If the job requires large flat surface machining, a face milling cutter may be more suitable. For general slotting and profiling, an end mill cutter is often the first option.

Conclusion

Milling cutter types include end mill cutters, ball nose end mills, bull nose end mills, T-slot cutters, side milling cutters, face milling cutters, thread milling cutters, roughing end mills, and diamond-coated end mills. They can also be classified by tool structure, such as solid, indexable, and brazed milling cutters.

Each cutter type has a different function, so the right choice depends on the machining operation, workpiece material, machine condition, surface requirement, and production quantity.

For general CNC milling, many factories start with an end mill cutter because it is suitable for slotting, profiling, and pocket milling. For abrasive materials such as graphite and CFRP, diamond-coated end mills are usually a better choice because they offer better wear resistance.

If you are not sure which milling cutter type is suitable for your application, send us your workpiece material, machining operation, tool size, coating requirement, and drawing. We can help you choose a suitable milling cutter or provide a custom tool solution.
