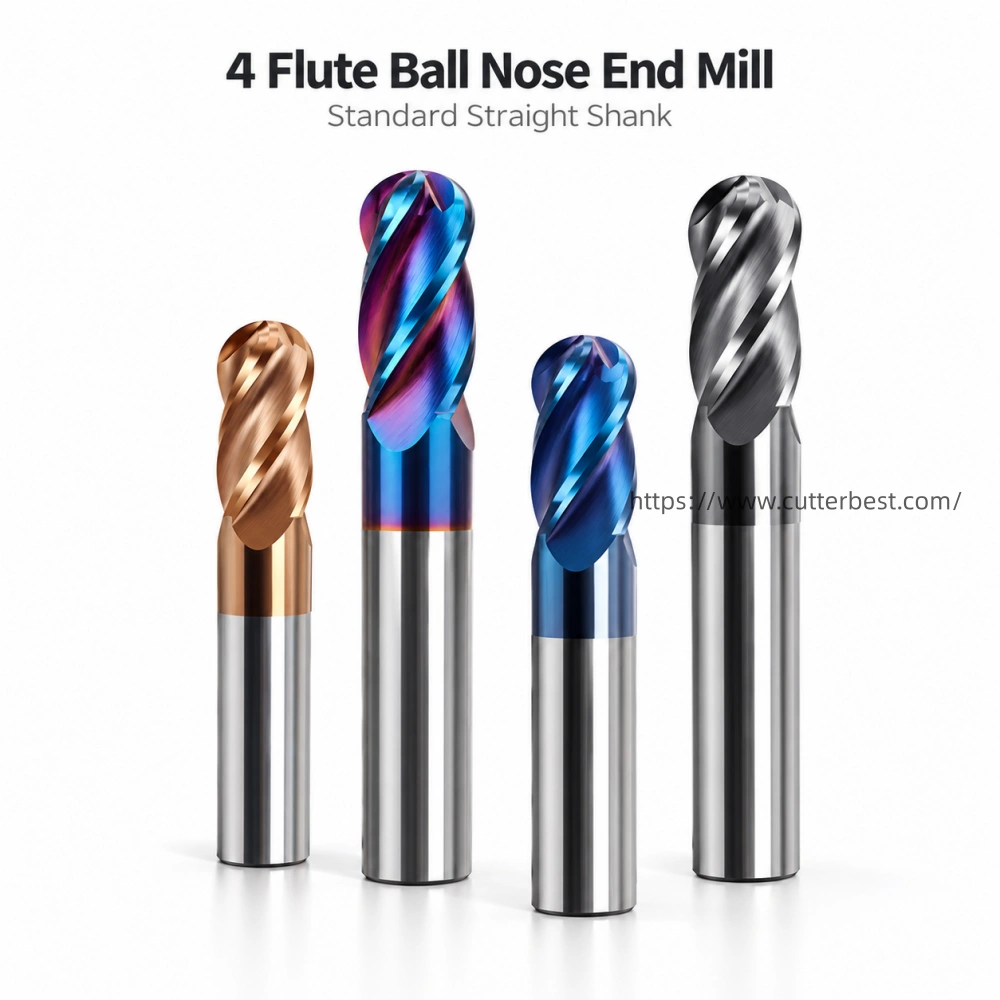

The 4 flute ball nose end mill from CutterBest features a solid carbide construction, standard straight shank, and full ball-end profile. This product family covers CNC contouring, mold and cavity finishing, curved-surface machining, profile finishing, and other applications that require a rounded cutting geometry. In addition, buyers may also use the term 4 flute ball end mill
The standard range includes multiple combinations of ball radius, cutting diameter, flute length, shank diameter, and overall length. Representative metric sizes extend from R0.5 to R10 and Ø1 to Ø20 mm. However, CutterBest confirms the carbide grade, coating, and cutter configuration according to the actual workpiece material, hardness, required dimensions, and machining conditions.
For the broader product family, including other flute counts and ball-end configurations, see Carbide Ball Nose End Mills.
4 Flute Ball Nose End Mill Specifications
The table below shows representative standard options for the standard straight-shank 4 flute ball nose end mill series. These values provide purchasing references rather than complete manufacturing limits.
| Specification | Representative Standard Options |
|---|---|
| Product Type | 4 Flute Ball Nose End Mill |
| Tool Material | Solid Carbide / Tungsten Carbide |
| End Geometry | Full Ball End |
| Tool Structure | Standard Straight Shank |
| Flutes | 4 |
| Ball Radius | R0.5–R10 |
| Cutting Diameter | Ø1–Ø20 mm |
| Flute Length | 2–40 mm |
| Shank Diameter | Ø3–Ø20 mm |
| Overall Length | 50 / 60 / 75 / 80 / 100 / 150 mm |
| Coating | Uncoated or application-specific coating options |
| Custom Options | Drawing- and application-based dimensions and configurations |
All dimensional values are in millimeters unless otherwise specified.
However, the dimensions above do not define complete manufacturing limits. CutterBest reviews non-standard dimensions and tool configurations according to the drawing, workpiece material, hardness, and machining requirements.
Applications & Selection
3D Contouring and Mold Finishing
The full ball-end profile allows the cutting edge to follow curved and three-dimensional surfaces where a square-end cutter cannot reproduce the same geometry. Therefore, this cutter geometry suits 3D contour milling, mold and cavity finishing, curved-surface machining, and profile finishing.
For broader application guidance on ball-end tools, see What Is a Ball Nose End Mill Used For?
Workpiece Material, Hardness and Coating Selection
Choose the cutter configuration according to the actual workpiece rather than flute count alone. Factory product references include different application grades for general, hardened, and higher-hardness machining, including HRC55, HRC60, and HRC70 classifications. However, these HRC values refer to workpiece hardness or application grade, not the hardness of the cutter body.
| Workpiece Material / Condition | Selection Consideration |
|---|---|
| General Steel | Select carbide grade and coating according to steel grade and machining conditions |
| Stainless Steel | Confirm configuration according to material grade, hardness, and cutting conditions |
| Mold Steel | Match tool configuration to material condition and finishing requirement |
| Hardened / Quenched Steel | Select a suitable higher-hardness application configuration according to actual HRC |
| Cast Iron / Alloy Steel | Confirm carbide grade and coating according to the workpiece and operation |
| Titanium / Heat-Resistant Alloy | Review carbide grade, coating, cutter geometry, and machining conditions for the specific application |
AlTiN is one confirmed coating option within the available product configurations. However, CutterBest does not use one fixed coating for the entire 4 flute ball nose end mill family. Instead, the final coating choice depends on the workpiece material, hardness, tool size, and machining conditions.
Standard or Custom Size Selection
Representative metric sizes cover many common machining requirements. However, the standard table does not represent a complete production limit. If the required radius, cutting diameter, flute length, shank diameter, or overall length falls outside the listed combinations, CutterBest can review the dimensions according to the application or drawing.
For broader selection guidance across the Ball Nose product family, see How to Choose a Ball Nose End Mill.
Key Features
Four-Flute Full Ball-End Geometry
The cutter combines four cutting flutes with a full ball-end profile. This structure distinguishes the 4 flute ball nose end mill from an ordinary square-end four-flute cutter. Because the end profile remains rounded, the cutter can follow contours, cavities, and curved surfaces.
Solid Carbide and Straight-Shank Construction
CutterBest uses solid carbide / tungsten carbide for this standard straight-shank product series. The standard range includes multiple cutter and shank diameters while keeping the same basic product structure.
If an application requires a relieved neck or extended-reach structure, use the separate Long Reach Ball Nose End Mill series.
Application-Specific Coating Options
CutterBest treats coating as part of the overall cutter configuration rather than as one fixed specification for every 4 flute ball end mill. Depending on the workpiece material, hardness, cutter dimensions, and machining requirements, available configurations may include uncoated or application-specific coating options.
In addition, if a customer specifies a coating or particular application condition, CutterBest reviews that requirement together with the tool dimensions before production.
Custom Manufacturing
Custom Dimensions and Tool Configuration
In addition to representative standard metric sizes, CutterBest can review custom 4 flute ball nose end mills according to customer drawings, existing tool references, or application requirements.
For example, custom requirements may involve ball radius, cutting diameter, flute length, shank diameter, overall length, coating, tolerance requirements, and other drawing-defined details. CutterBest can also discuss OEM marking and private-label requirements together with the order specification.
However, tapered ball-end tools use a different geometry rather than a custom variation of this standard straight-shank series. See Tapered Ball Nose End Mill.
Information for RFQ
For technical review and quotation, please provide the available tool and application information, including ball radius or cutting diameter, flute length, shank diameter, overall length, workpiece material, workpiece hardness or application grade, required quantity, coating preference if specified, and a drawing or existing tool reference for non-standard requirements.
If some details are not yet confirmed, send the available dimensions and machining information first. CutterBest can then review the remaining specifications before quotation or production confirmation.
Frequently Asked Questions
Is a 4 flute ball nose end mill the same as a 4 flute ball end mill?
Yes. In industrial cutting-tool terminology, 4 flute ball nose end mill and 4 flute ball end mill commonly describe the same rounded-end cutter type. CutterBest uses “ball nose end mill” as the primary product naming convention.
What representative standard sizes are available for 4 flute ball nose end mills?
Representative metric sizes cover ball radii from R0.5 to R10 and cutting diameters from Ø1 to Ø20 mm. See the specification table above for flute length, shank diameter, and overall length options. Non-standard sizes can also be reviewed according to drawings or application requirements.
How are workpiece hardness and coating options selected?
The customer should provide the workpiece material, hardness or application grade, and machining requirement where available. CutterBest then evaluates the cutter configuration, carbide grade, and coating according to those conditions. However, HRC55, HRC60, and HRC70 references describe workpiece-hardness or application levels rather than the hardness of the cutter itself.
Can CutterBest manufacture custom 4 flute ball nose end mills?
Yes. CutterBest can review non-standard dimensions and tool configurations according to the drawing, existing tool reference, workpiece material, and machining requirements. After review, CutterBest confirms the final dimensions, coating, tolerance requirements, and other agreed specifications before production.
