So, what is a ball nose end mill used for? Machinists mainly use this rounded-end CNC cutter for 3D contour milling, mold cavity finishing, curved surface machining, freeform profiles, and precision finishing.
Unlike a flat end mill, a ball nose tool has a fully rounded cutting tip. Therefore, it can follow slopes, radii, cavities, and complex three-dimensional surfaces more smoothly. This geometry also helps create gradual transitions and a more consistent finish on curved parts.
For standard and custom diameters, flute counts, coatings, and carbide grades, view our carbide ball nose end mills.
What Is a Ball Nose End Mill?
A ball nose end mill is a rotary milling cutter with a hemispherical cutting end. For a standard full ball-end design, the nose radius is normally half of the cutting diameter.
For example, a cutter with a 6mm cutting diameter normally has a 3mm ball radius. Because the cutting edge curves around the tip, different points of the edge contact the workpiece as the tool follows a CNC path.
This geometry works well for curved surfaces. However, it does not efficiently create flat-bottom pockets, square shoulders, or straight slot bottoms.
Some buyers also use the name ball mill cutter for the same general rounded-end CNC tool.

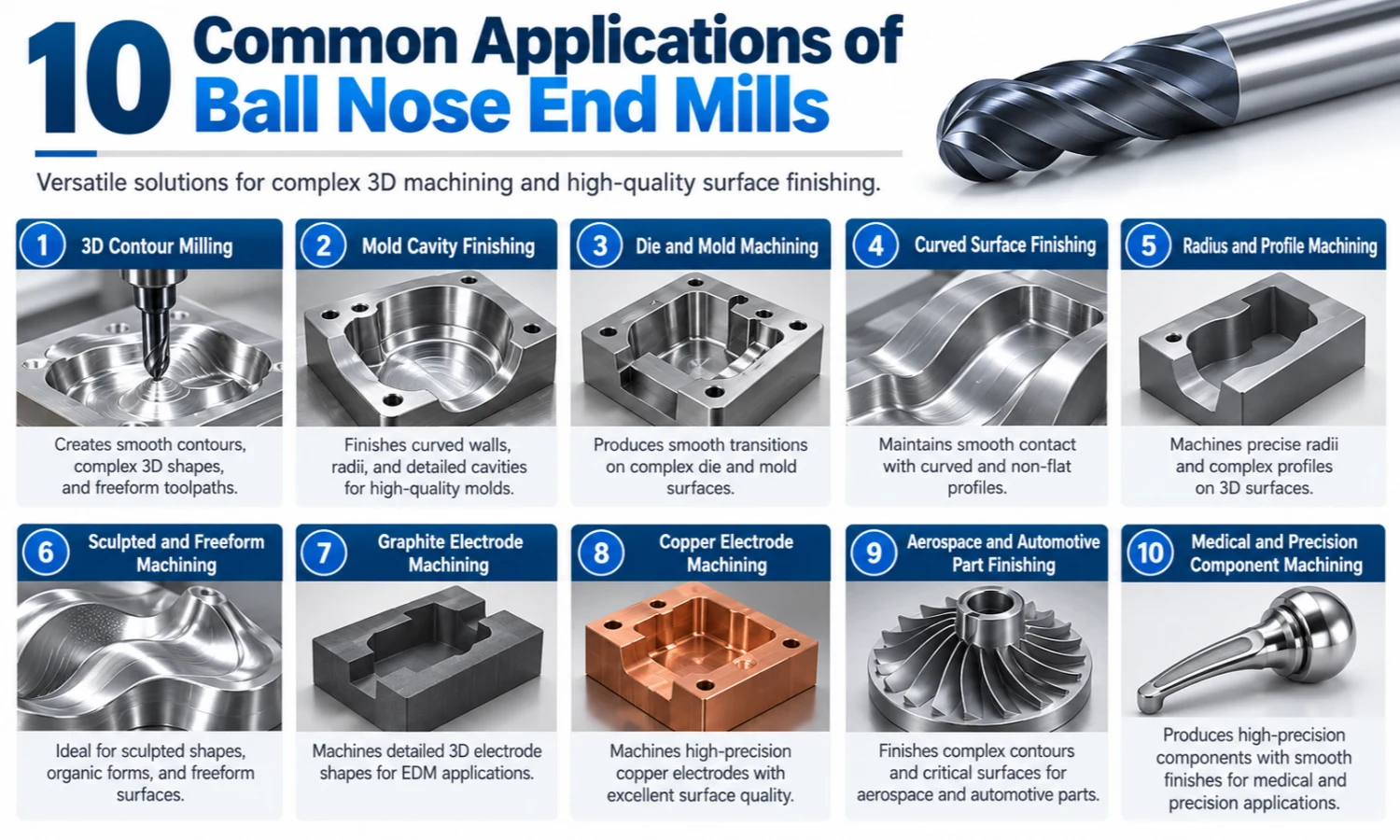

Common CNC Applications of a Ball Nose End Mill
Ball nose end mills are most useful when the workpiece has curved geometry, blended transitions, or complex three-dimensional surfaces.

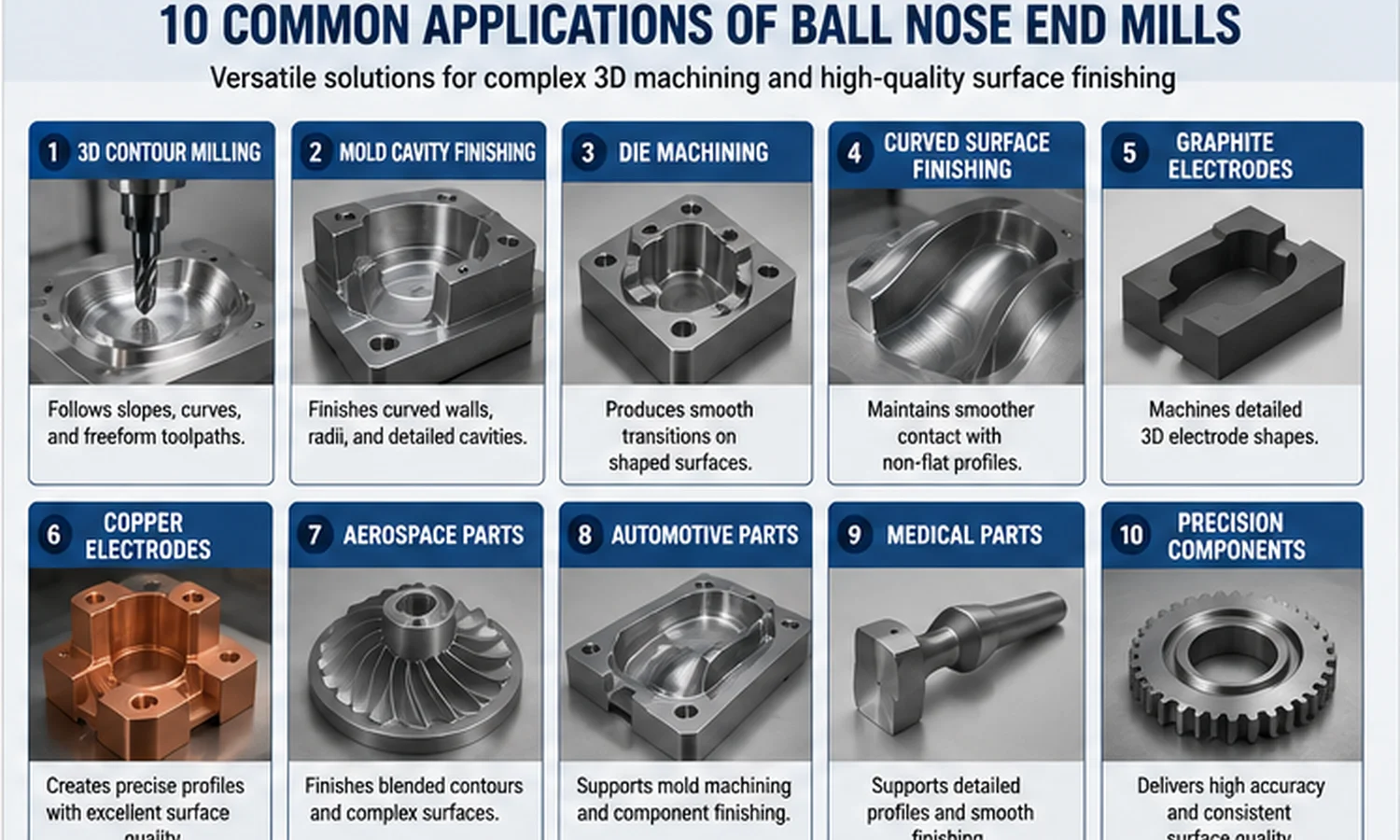

Ten common applications include:
- 3D contour milling
- Mold cavity finishing
- Die and mold machining
- Curved surface finishing
- Radius and profile machining
- Sculpted and freeform machining
- Graphite electrode machining
- Copper electrode machining
- Aerospace and automotive part finishing
- Medical and precision component machining
The table below summarizes the main applications.
| CNC Application | Why Use a Ball Nose End Mill? |
| 3D Contour Milling | Follows slopes, curves, and freeform CNC toolpaths |
| Mold Cavity Finishing | Finishes curved walls, radii, and detailed cavities |
| Die Machining | Produces smooth transitions on shaped surfaces |
| Curved Surface Finishing | Maintains smoother contact with non-flat profiles |
| Graphite Electrodes | Machines detailed 3D electrode shapes |
| Aerospace and Automotive Parts | Finishes blended contours and complex surfaces |
| Medical and Precision Parts | Supports detailed profiles and controlled finishing |
A smaller diameter can reach narrow cavities and fine details. Meanwhile, a larger diameter can improve machining efficiency on broader surfaces.
The final cutter selection should match the part geometry, required finish, cavity depth, machine rigidity, and programmed toolpath.

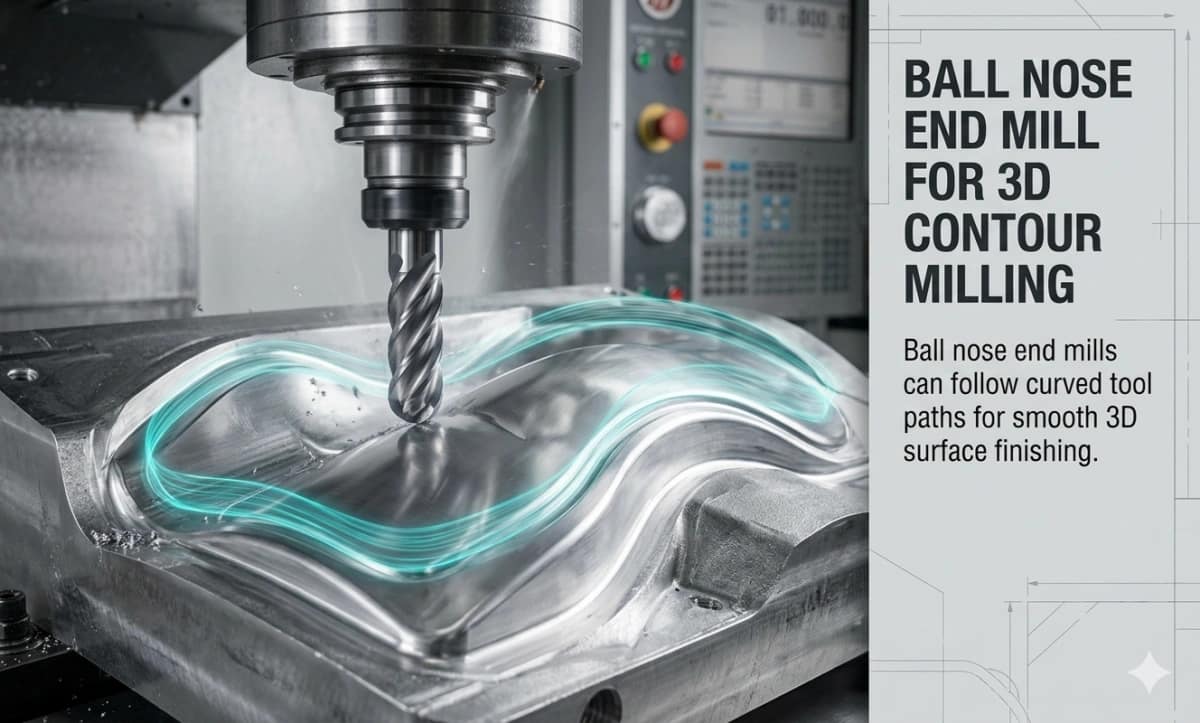

Ball Nose End Mill for 3D Contour Milling
One of the most common uses of a ball nose end mill is 3D contour milling.
During 3D contouring, the cutting tool must follow slopes, curves, and freeform surfaces. A flat end mill may create uneven contact or visible marks on these areas. By contrast, the rounded cutting end follows the changing surface angle more naturally.
Typical 3D contour applications include:
- Mold cavities
- Curved product surfaces
- Sculpted shapes
- Complex CNC profiles
- Prototype parts
- Freeform components
After roughing removes most of the material, the ball nose cutter can complete semi-finishing or final finishing passes. A suitable step-over and stable toolpath help improve the surface before polishing or final treatment.
Ball Nose End Mill for Mold and Die Finishing
Mold and die components often contain cavities, radii, curved walls, and detailed profiles. Therefore, mold makers commonly use ball nose end mills during the finishing stage.
First, a flat or roughing cutter removes most of the stock. Next, the rounded-end cutter machines the remaining curved areas and blended transitions.
Common mold applications include:
- Injection molds
- Die-casting molds
- Automotive molds
- Stamping dies
- Mold inserts
- Medical molds
- Precision tooling
Tool stability is especially important during mold finishing. Excessive cutter overhang, poor holder condition, or unsuitable cutting parameters may cause vibration and visible surface marks.
Therefore, select the shortest practical tool length and keep the machine setup rigid.
Ball Nose End Mill for Curved Surface Machining
A ball nose cutter works well on rounded, sloped, and non-flat surfaces because its geometry maintains smoother contact with the workpiece.
This makes it useful for:
- Aerospace components
- Automotive parts
- Medical implants and instruments
- Decorative products
- Aluminum molds
- Precision mechanical components
- Complex prototypes
In these applications, the goal is not only to remove material. Surface quality, dimensional consistency, and smooth toolpath transitions also matter.
As a result, machinists often choose a ball nose cutter for the final machining stage rather than heavy stock removal.
Ball Nose End Mill for Graphite and Electrode Machining
Graphite and copper electrodes often contain detailed cavities, narrow radii, and complex 3D shapes. Therefore, rounded-end cutters can help machine these profiles accurately.
For graphite, wear resistance and dust control are important. The cutter may require a suitable carbide grade, coating, and sharp edge design.
For copper, sharp cutting edges and smooth flutes can help reduce material adhesion and improve the finished surface.
Before selecting the tool, provide:
- Electrode material and grade
- Drawing or 3D model
- Required surface finish
- Cutter diameter
- Machining depth
- Quantity
These details help determine the suitable geometry, carbide grade, coating, and tool length.
Ball Nose Milling Strategy for a Better Surface Finish
The cutter alone does not determine the final finish. Toolpath strategy also has a major effect.
First, use a small and consistent step-over during finishing. A smaller step-over reduces scallop height, although it also increases machining time.
Next, avoid unnecessary cutter overhang. A shorter and more rigid setup reduces vibration and helps maintain a consistent surface.
In addition, consider the effective cutting speed near the center of the ball end. The tool center has a lower cutting speed than the outer cutting edge. Therefore, an appropriate toolpath or slight tool inclination may reduce rubbing near the center.
Finally, match the feed rate, spindle speed, coating, and cutting depth to the workpiece material and machine condition. Trial cuts may be required for demanding surfaces.

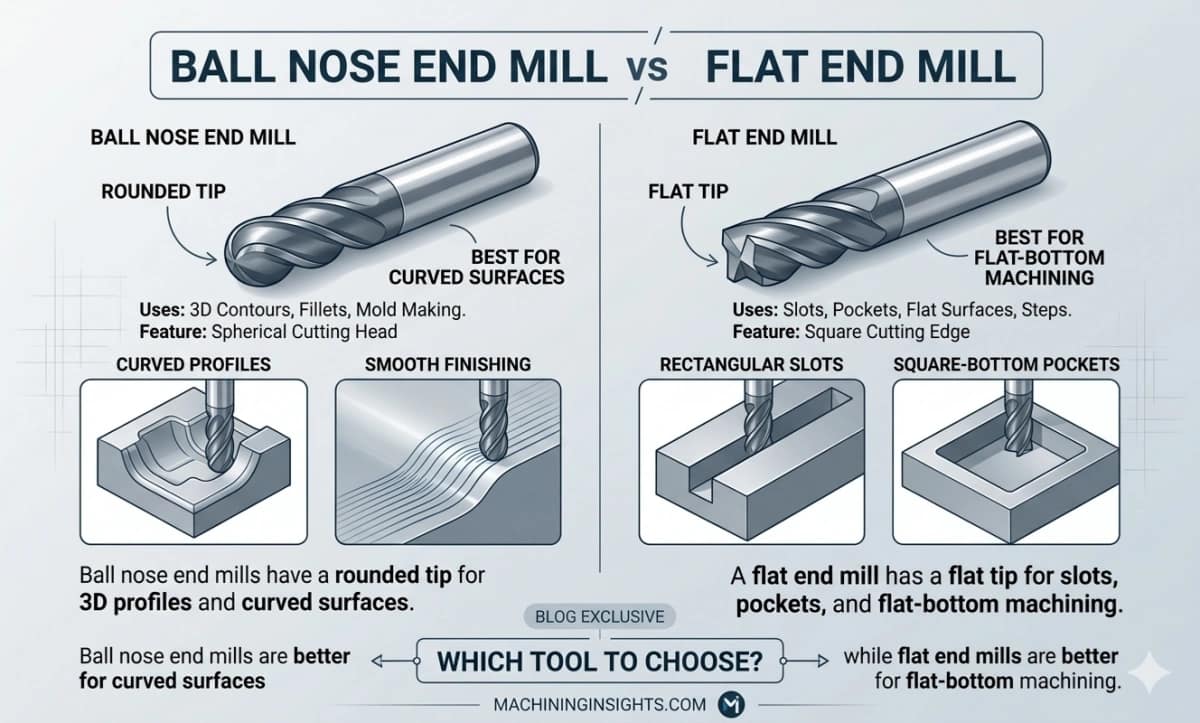

Ball Nose End Mill vs Flat End Mill

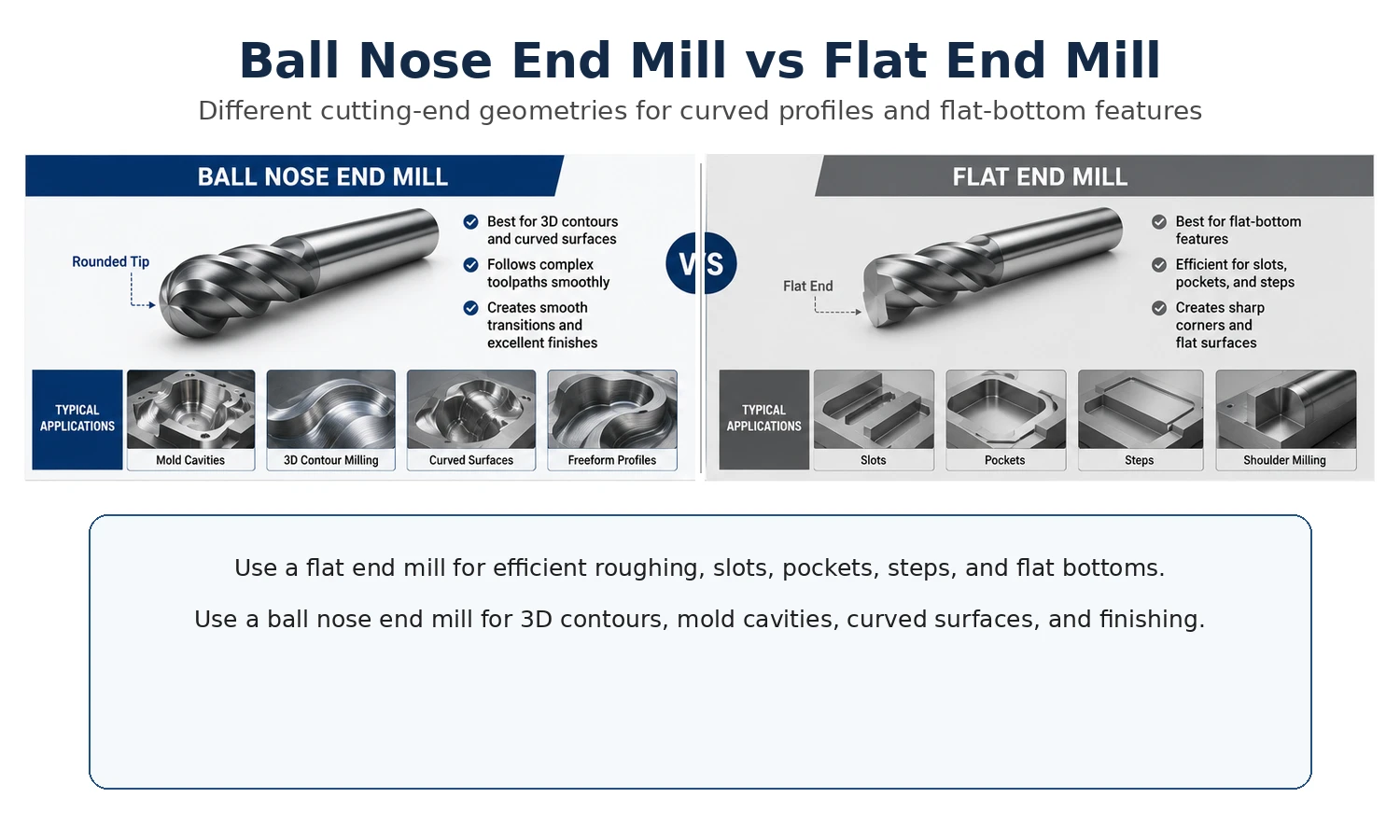

A ball nose end mill and a flat end mill have different cutting geometries and machining purposes.
The two tools are often used together. A flat end mill can remove material efficiently during roughing. After that, a ball nose cutter finishes radii, curved cavities, and complex profiles.
For flat-bottom machining, view our flat end mill product.
Ball Nose End Mill vs Bull Nose End Mill
A ball nose end mill has a fully rounded cutting tip. Therefore, it works well for smooth 3D finishing, curved profiles, and freeform surfaces.
A bull nose end mill has a flat center with rounded corners. As a result, it provides stronger corner support and works well for semi-finishing, stepped profiles, and flat areas that require a corner radius.
For a detailed comparison, read bull nose end mill vs ball nose end mill.

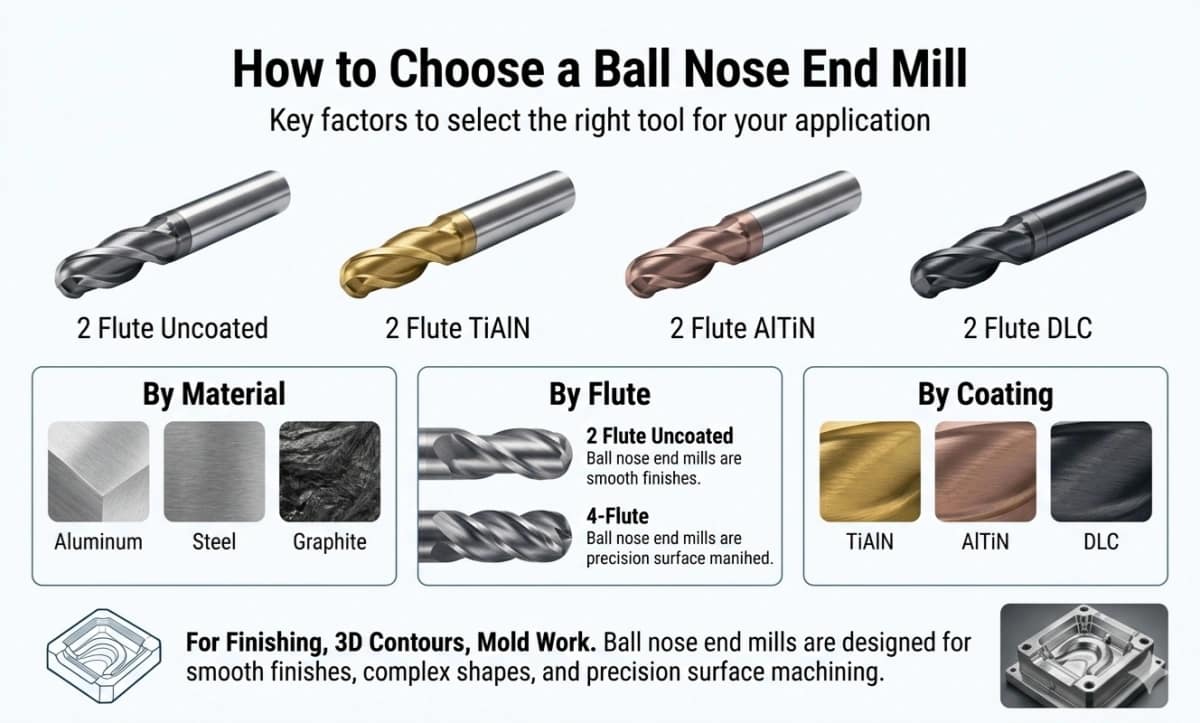

How to Choose a Ball Nose End Mill
The correct tool depends on the workpiece material, cutter diameter, machining depth, flute design, coating, and machine condition.
Workpiece Material
When machining aluminum and copper, sharp cutting edges and efficient chip evacuation can help reduce built-up edges.
Steel, stainless steel, and mold materials usually require a suitable carbide grade and heat-resistant coating to improve wear resistance and tool life.
Graphite machining has different requirements. Therefore, tool wear, coating, dust control, and edge sharpness should all be considered.
Cutter Diameter and Tool Length
Choose a diameter that matches the workpiece radius, detail size, and available machining space.
In addition, use the shortest practical flute length and overall length. Excessive overhang reduces rigidity and may cause vibration.
Flute Count
Two-flute designs provide more chip space and often suit aluminum, copper, graphite, and softer materials.
Four-flute designs provide more cutting edges and may improve stability during steel machining and finishing operations.
Coating and Machine Stability
The coating should match the workpiece material, hardness, cutting temperature, and coolant condition.
However, even the correct coating cannot compensate for excessive runout, poor holder condition, or an unstable machine setup.
For more detailed selection guidance, read how to choose a ball nose end mill.
FAQ
What are the main uses of a ball nose end mill?
It is mainly used for 3D contour milling, mold cavity finishing, curved surface machining, die finishing, graphite electrodes, freeform profiles, and precision CNC finishing.
Can a ball nose end mill cut flat surfaces?
It can machine some flat areas, but it does not efficiently create a fully flat-bottom profile. A flat end mill usually works better for flat-bottom pockets, slots, steps, and shoulders.
Is a ball nose end mill good for mold machining?
Yes. Mold makers commonly use ball nose end mills to finish curved cavities, radii, detailed profiles, and complex three-dimensional surfaces.
What materials can ball nose end mills machine?
They can machine steel, stainless steel, aluminum, copper, graphite, cast iron, mold steel, and many alloy materials. However, the carbide grade, coating, flute design, and cutting parameters should match the workpiece.
Can a ball nose end mill machine cast iron?
Yes. A carbide ball nose end mill can machine cast iron, especially on curved surfaces, molds, and 3D profiles. However, the carbide grade, coating, flute design, and cutting parameters should match the specific cast iron grade.
What is the difference between ball nose and bull nose end mills?
A ball nose end mill has a fully rounded tip for 3D finishing and curved surfaces. A bull nose end mill has a flat center with rounded corners, so it provides stronger edge support for semi-finishing and corner-radius machining.
Send Your Ball Nose End Mill Requirement
In summary, this rounded-end cutter is mainly selected for CNC applications that require smooth 3D contours, mold finishing, curved surfaces, graphite electrodes, and precision profiles.
Need a standard or custom carbide cutter for your CNC machining project?
Send your diameter, flute length, overall length, shank size, flute count, coating, workpiece material, hardness, drawing, and quantity. Our team will review the application and provide a suitable tool proposal and quotation.
