Fräser: What It Does, Typen, and Selection Guide

A milling cutter is a rotary cutting tool for milling machines and CNC machining centers. It removes material from a workpiece to create flat surfaces, Slots, pockets, profiles, holes, threads, and complex shapes.

For engineers, machinists, buyers, and distributors, choosing the right milling cutter is important. A suitable cutter can improve cutting stability, Oberflächenbeschaffenheit, Standzeit des Werkzeugs, and machining efficiency. Jedoch, different milling cutter types are designed for different materials and operations.

daher, this guide explains what a milling cutter does, common milling cutter types, typical CNC machining uses, and how to choose the right cutter for different applications.

What Is a Milling Cutter?

A milling cutter is a multi-edge cutting tool that rotates to remove material from a workpiece. Unlike a single-point turning tool, a milling cutter usually has several cutting edges. These edges cut the material repeatedly as the tool rotates.

Manufacturers use milling cutters for many machining tasks, including facing, Schlitzen, Seitenfräsen, Profilierung, Konturierung, Schruppen, and finishing. Zusätzlich, different cutter designs can support different materials, such as aluminum, Stahl, Edelstahl, Gusseisen, graphite, and engineering plastics.

For general CNC slotting, Profilierung, and pocket milling, many factories start with an Schaftfräser.

Was macht ein Fräser??

A milling cutter removes material from a workpiece during milling operations. It rotates at high speed and uses its cutting edges to cut, shape, and finish different materials.

In CNC machining, a milling cutter can do many jobs. For example, it can create flat surfaces, straight slots, side profiles, pockets, curved surfaces, T-slots, threads, and rough shapes before finishing.

The exact function depends on the cutter type. An end mill cutter is useful for slotting and profiling. A ball nose end mill is better for curved surfaces and mold cavities. A T-slot cutter creates T-shaped slots and undercuts. In der Zwischenzeit, diamond-coated end mills are often used for graphite and abrasive materials.

For a broader range of CNC cutting tools, see CNC milling cutters.

What Is a Milling Cutter Used For?

Milling cutters remove material and shape parts during CNC machining. They can create simple flat surfaces as well as complex 3D shapes.

The table below shows common milling cutter uses and suitable tool types.

For a detailed application guide, you can also read what milling cutters are used for.

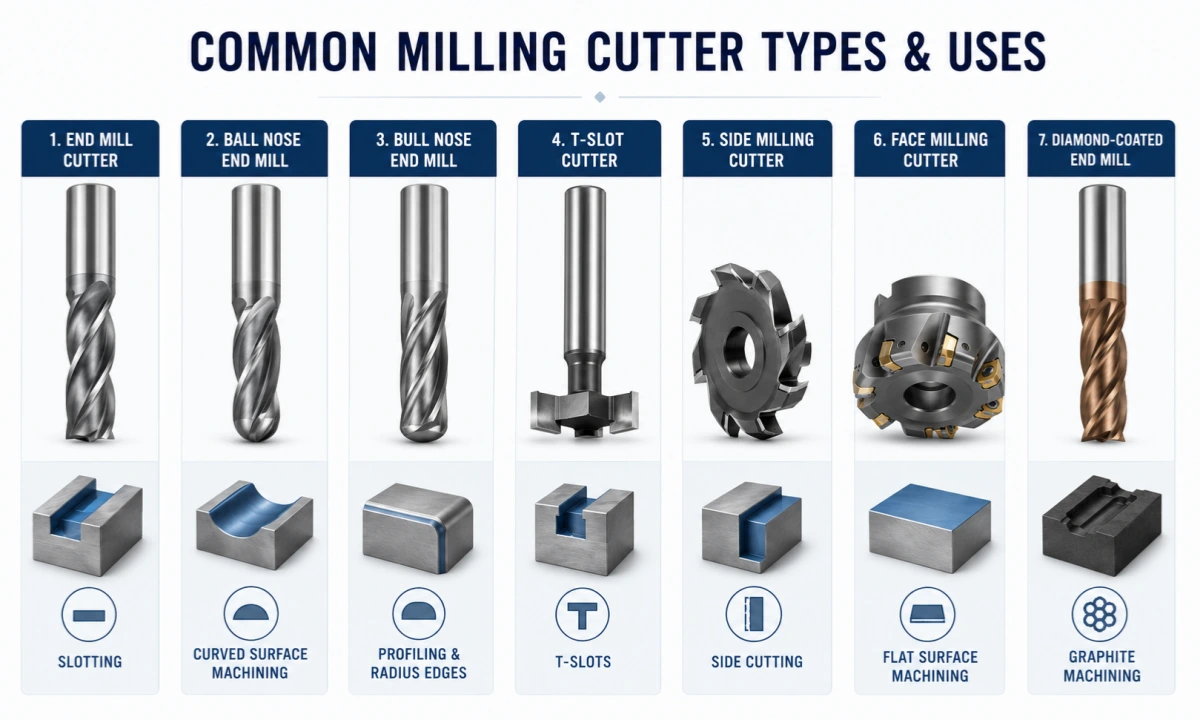

Common Types of Milling Cutters

Different milling cutter types have different shapes and functions. daher, the best choice depends on the machining operation, material, and surface requirement.

Schaftfräser-Fräser

An end mill cutter is one of the most common milling cutters. It can cut from the side and the end of the tool. Aufgrund dieses Designs, it is suitable for slotting, Profilierung, pocket milling, Schulterfräsen, und Konturierung.

End mill cutters come in different flute counts, Beschichtungen, diameters, flute lengths, and tool materials. For example, 2 flute end mills are often used for aluminum, while 4 flute end mills are commonly used for steel.

For general CNC milling, view our Schaftfräser.

CNC Milling Cutter

A CNC milling cutter works on CNC machining centers for accurate and repeatable cutting. These tools need stable geometry, good tool holding, and suitable coating to support consistent machining quality.

CNC milling cutters can include end mills, ball nose tools, bull nose tools, T-slot cutters, side milling cutters, face milling cutters, thread milling cutters, and other carbide cutting tools. In many production environments, carbide tools are preferred because they offer better wear resistance and higher cutting stability than general HSS tools.

For more CNC cutting tool options, see CNC milling cutters.

Ball Nose End Mill

A ball nose end mill has a round cutting tip. This design makes it suitable for 3D contouring, curved surfaces, mold cavities, and die machining.

Mold shops often choose ball nose tools when the part requires smooth curved surfaces. Jedoch, a ball nose end mill is not the best option for sharp inside corners.

For 3D contouring and mold machining, choose Kugelkopffräser.

Bull-Nase-Schaftfräser

A bull nose end mill is also called a corner radius end mill. It has a small radius on the cutting corner. This radius improves corner strength and helps reduce chipping during machining.

Infolge, bull nose end mills work well for semi-finishing, rough finishing, and machining materials such as steel and stainless steel.

For stronger corner cutting and semi-finishing, see Bull-Nase-Schaftfräser.

T-Nutenfräser

A T-slot cutter creates T-shaped slots and undercuts. These slots are common in machine tables, fixtures, Formen, and clamping systems.

Usually, the first straight slot is made with an end mill. Then, the T-slot cutter creates the wider undercut shape. This process helps reduce tool load and improves machining stability.

For T-slot and undercut machining, use a T-slot cutter.

Seitlicher Fräser

A side milling cutter cuts grooves, Slots, and side surfaces. It removes material from the side of a workpiece and is useful for wider grooves or side cutting operations.

In general machinery and mold part production, side milling cutters can improve cutting efficiency when the setup is stable.

For groove and side surface machining, see side milling cutter.

Diamond-Coated Milling Cutter

Diamond-coated milling cutters are used for graphite, Verbundwerkstoffe, and other abrasive materials. These materials can wear normal cutting edges quickly, so tool coating becomes very important.

Diamond coating can improve wear resistance and help extend tool life in graphite machining. Jedoch, the tool should still match the machine condition, cutting parameters, and workpiece material.

For graphite and abrasive materials, choose diamond-coated end mills.

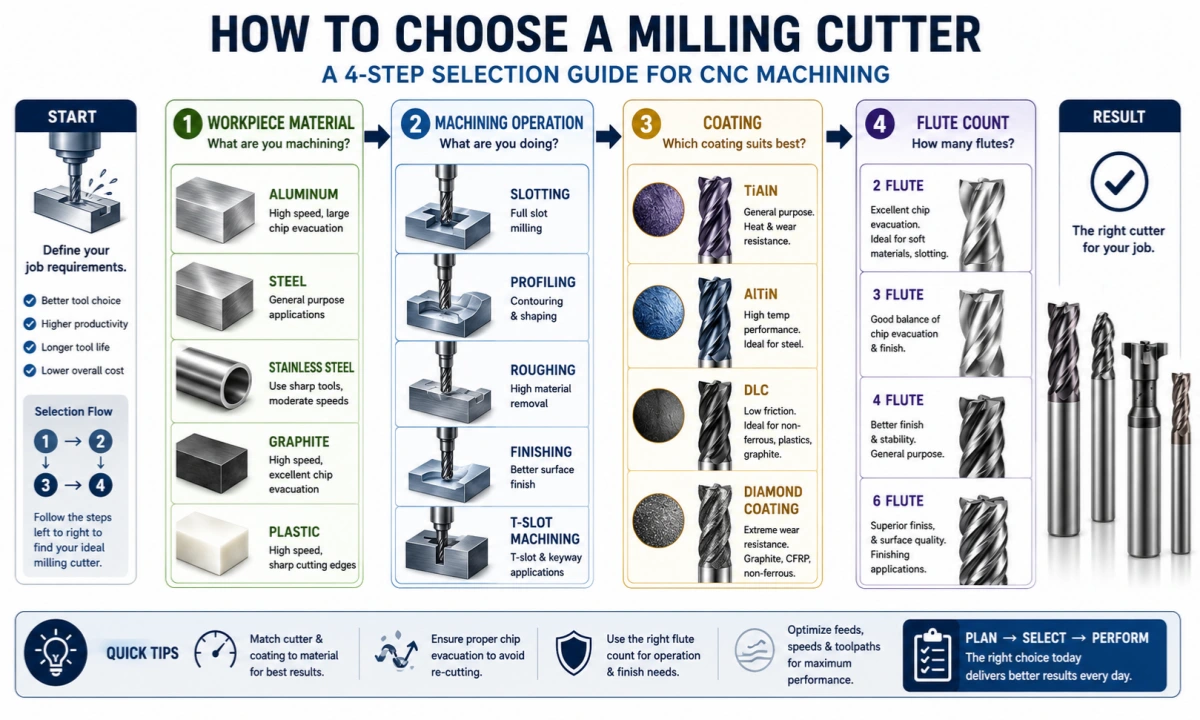

How to Choose a Milling Cutter by Material

Material is one of the first factors to check before choosing a milling cutter. A tool that works well for aluminum may not work well for stainless steel, gehärteter Stahl, or graphite.

Aluminum Applications

Aluminum is soft, but chips can stick to the cutting edge if chip removal is poor. daher, 2 flute or 3 flute end mills are often better choices.

These tools provide more flute space and help remove chips from the cutting area. Zusätzlich, sharp cutting edges and polished flutes can improve cutting stability.

For aluminum slotting and soft materials, choose 2 Nutfräser.

Steel Applications

Steel needs stronger tool rigidity and stable cutting performance. For this reason, 4 flute carbide end mills are commonly used in steel machining.

A 4 flute design provides more cutting edges and better tool strength than a 2 flute tool. Infolge, it is suitable for side milling, Profilierung, Abschluss, and general steel milling.

For steel and general CNC milling, see 4 Nutfräser.

Stainless Steel Applications

Stainless steel can generate heat and work harden during machining. daher, the cutter should have a sharp edge, suitable coating, and stable flute design.

In vielen Fällen, coated carbide milling cutters are better choices for stainless steel. Jedoch, coolant, machine rigidity, tool holding, and cutting parameters also affect the final result.

For high-performance carbide tools, see Hartmetall-Schaftfräser.

Graphite Applications

Graphite is abrasive, so tool wear is a major concern. In this case, diamond-coated end mills can improve wear resistance and help maintain cutting performance for longer.

Many mold shops use diamond-coated tools for graphite electrodes and abrasive material machining.

For graphite machining, choose diamond-coated end mills.

How to Choose a Milling Cutter by Operation

Besides material, the machining operation also affects cutter selection. daher, you should match the cutter type with the cutting task.

Slotting Applications

Slotting needs good chip evacuation because the cutter works inside a narrow groove. In aluminum machining, 2 flute or 3 flute tools usually work better because they provide more chip space.

When cutting steel slots, machinists can choose 2 flute or 4 flute tools based on slot depth, coolant, and machine rigidity.

Profiling Applications

Profiling means cutting the side of a workpiece to create contours, outside edges, or side walls. End mill cutters are often suitable for this operation because they can cut from the side and the end.

For stable profiling, choose the correct flute length and avoid using a tool that is longer than necessary.

Finishing Applications

Finishing requires stable cutting and a better surface finish. daher, many machinists choose 4 flute or 6 flute end mills when chip evacuation is not a major problem.

You can choose our 6 Nutfräser for finishing and stable side milling.

Milling Cutter Selection Checklist

Before choosing a milling cutter, check the points below. This helps reduce wrong tool selection and improves machining stability.

Zusamenfassend, the best milling cutter is not always the cheapest cutter. A suitable tool should match the material, cutting operation, machine condition, and required surface finish.

Common Mistakes When Choosing Milling Cutters

Choosing the wrong milling cutter can reduce tool life and machining quality. Below are common mistakes to avoid.

Infolge, correct cutter selection can help reduce tool wear, improve surface finish, and make machining more stable.

FAQ About Milling Cutters

What is a milling cutter?

A milling cutter is a rotary cutting tool for milling machines and CNC machining centers. It removes material from a workpiece to create surfaces, Slots, pockets, profiles, and complex shapes.

What does a milling cutter do?

A milling cutter removes material from a workpiece. It can create flat surfaces, Slots, pockets, profiles, curved surfaces, threads, and other machined shapes. Different milling cutter types are used for different CNC machining operations.

What is a milling cutter used for?

A milling cutter is used for facing, Schlitzen, Profilierung, pocket milling, Schruppen, Abschluss, 3D-Konturierung, and thread machining. Different cutter types are used for different machining tasks.

What are the main types of milling cutters?

Common milling cutter types include end mill cutters, face milling cutters, Kugelkopffräser, bull nose end mills, T-slot cutters, side milling cutters, thread milling cutters, roughing cutters, and diamond-coated cutters.

What is the difference between a milling cutter and an end mill?

A milling cutter is a general term for many rotary cutting tools used in milling. An end mill is one specific type of milling cutter. daher, all end mills are milling cutters, but not all milling cutters are end mills.

Which milling cutter is best for aluminum?

Für Aluminium, 2 flute or 3 flute end mills are usually good choices because they offer better chip evacuation. Sharp edges and polished flutes can also help reduce chip sticking.

Which milling cutter is best for steel?

For steel, 4 flute carbide end mills are commonly used because they provide better rigidity, Stabilität, and cutting strength. Coated tools can also improve wear resistance.

How do I choose the right milling cutter?

First, check the workpiece material. Then, confirm the machining operation, such as slotting, facing, Profilierung, Schruppen, or finishing. After that, choose the cutter type, flute count, Beschichtung, size, and tool material based on the cutting condition.

Abschluss

A milling cutter is an important cutting tool for CNC machining. It can be used for facing, Schlitzen, Profilierung, pocket milling, 3D-Konturierung, Halbfertigbearbeitung, Schruppen, and finishing. Jedoch, each cutter type has a different function, so the right choice depends on the material, Betrieb, machine condition, and surface requirement.

In general CNC machining, many factories start with an Schaftfräser because it supports slotting, Profilierung, and pocket milling. When machining curved surfaces or mold cavities,Kugelkopffräser are a better choice. To make T-slots and undercuts, first open the slot with an end mill, and then use a T-slot cutter to create the final shape. Zusätzlich, graphite and other abrasive materials usually need diamond-coated end mills for better wear resistance.
