Can you plunge with a 2 flute end mill?

Plunge cutting is essential in milling. Many machinists ask: Can you plunge with a 2 flute end mill?

The answer is YES – under specific conditions. This guide explains when and how to do it successfully.

You’ll learn:

• Why 2-flute end mills can plunge
• Best materials and situations for plunge cutting
• Key parameter settings (RPM, feed rate, depth)
• How they compare to multi-flute tools
• Pro techniques to prevent tool breakage

1. Why 2-Flute End Mills Can Plunge Cut
Their structure enables axial cutting:

• Large chip gullets: 50% wider than 4-flute tools, reducing chip clogging in deep slots.
• Reduced cutting resistance: 25-30% lower axial force during plunge milling.
• Enhanced heat dissipation: Wider flutes prevent heat buildup.

⚠️ Critical limitations:

• Lower rigidity: Requires 30-50% reduced feed rates
• Avoid hard materials: HRC>30 steels (e.g., tool steels, titanium) need multi-flute end mills.

2. Best Uses for Plunge Cutting with a 2-Flute End Mill
✅ Recommended scenarios:

• Soft metals: Aluminum, brass, copper
• Non-metallics: Plastics, composites
• Roughing operations: High chip-load jobs
• Shallow slots: Max depth = 50% tool diameter

❌ Avoid when:

• Surface finish > Ra 1.6 μm is needed
• Machining hardened steels (e.g., H13, D2)
• Depth > 3× tool diameter

3. Optimizing Plunge Cutting Parameters
Follow these guidelines for your 2 flute end mill:

Soft Materials (Aluminum, Brass):

• RPM: 10,000-15,000 (Decrease as diameter increases)
• Feed Rate (mm/tooth): 0.1-0.2 (40-50% lower than side milling)
• DOC (Depth of Cut): ≤1.5×D

Coolant: Air blast or MQL

• Harder Materials (Steel):

RPM: 3,000-6,000

• Feed Rate (mm/tooth): 0.05-0.1
• DOC: ≤0.5×D (Use peck cycle for depth >2×D)
• Coolant: Flood coolant (Mandatory)

4. 2-Flute vs. 4-Flute: Plunge Cutting Compared

• Chip Evacuation: ★★★★★ (2-Flute – Ideal for slots) | ★★★☆☆ (4-Flute – Prone to clogging)

• Axial Rigidity: ★★★☆☆ (2-Flute) | ★★★★★ (4-Flute)

• Surface Finish: ★★★☆☆ (2-Flute – Ra 1.6-3.2 μm) | ★★★★★ (4-Flute – Ra 0.8-1.6 μm)

• Material Suitability: Aluminum/plastics (2-Flute) | Steel/stainless/titanium (4-Flute)

5. Pro Techniques for Success
A. Tool Selection:

• ✔️ Center-cutting design (Essential!)

• ✔️ 30°-45° helix angle

• ✔️ TiAlN coating for ferrous metals

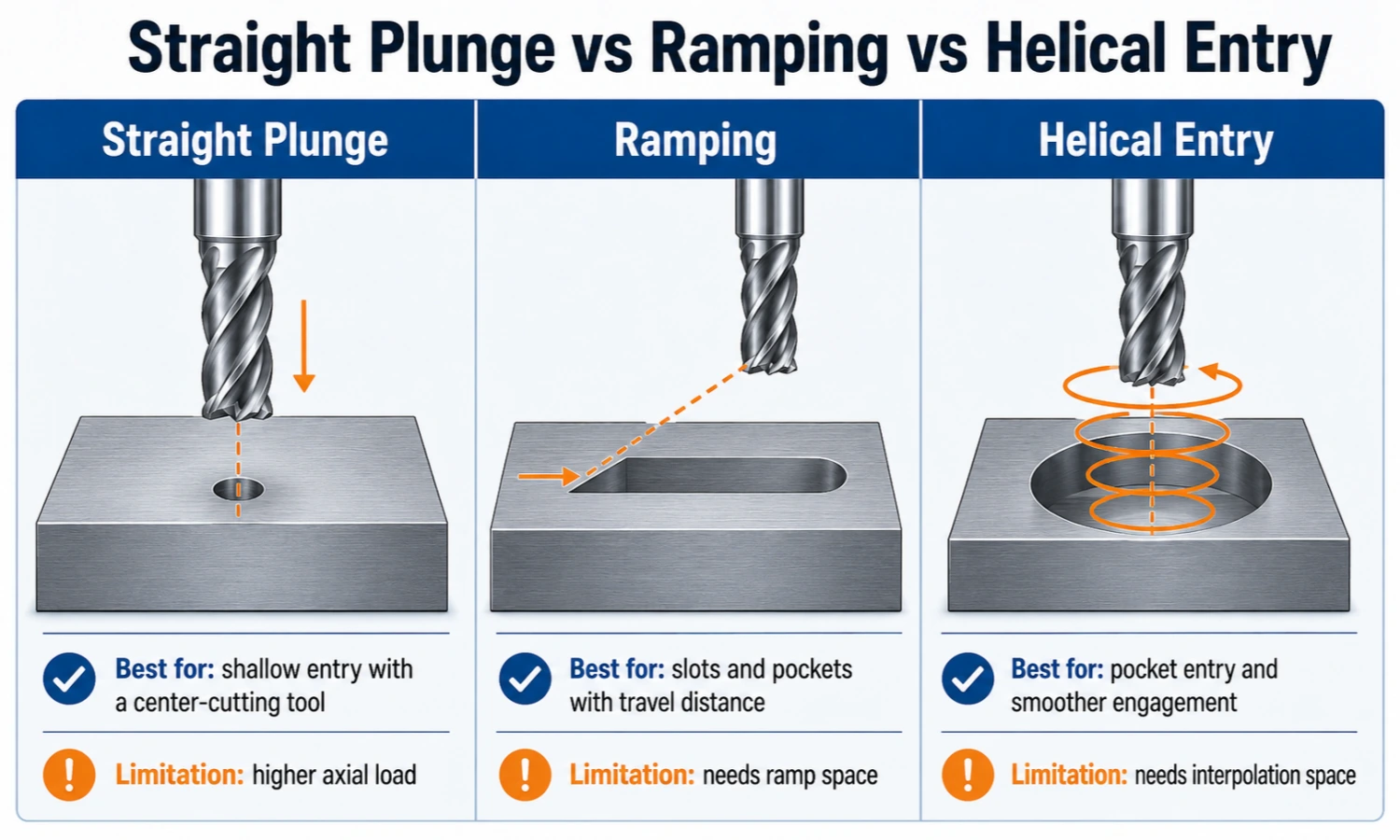

B. Advanced Methods:

• Helical ramping (5-10° angle)

• Trochoidal milling for hard materials

• Peck cycle (retract every 2×D depth)

C. Prevent Failure:

• Vibration: Reduce tool overhang by 40%

• Chip Welding: Increase coolant pressure >1000 psi

• Edge Chipping: Verify hardness < HRC 30

6. Expert FAQ

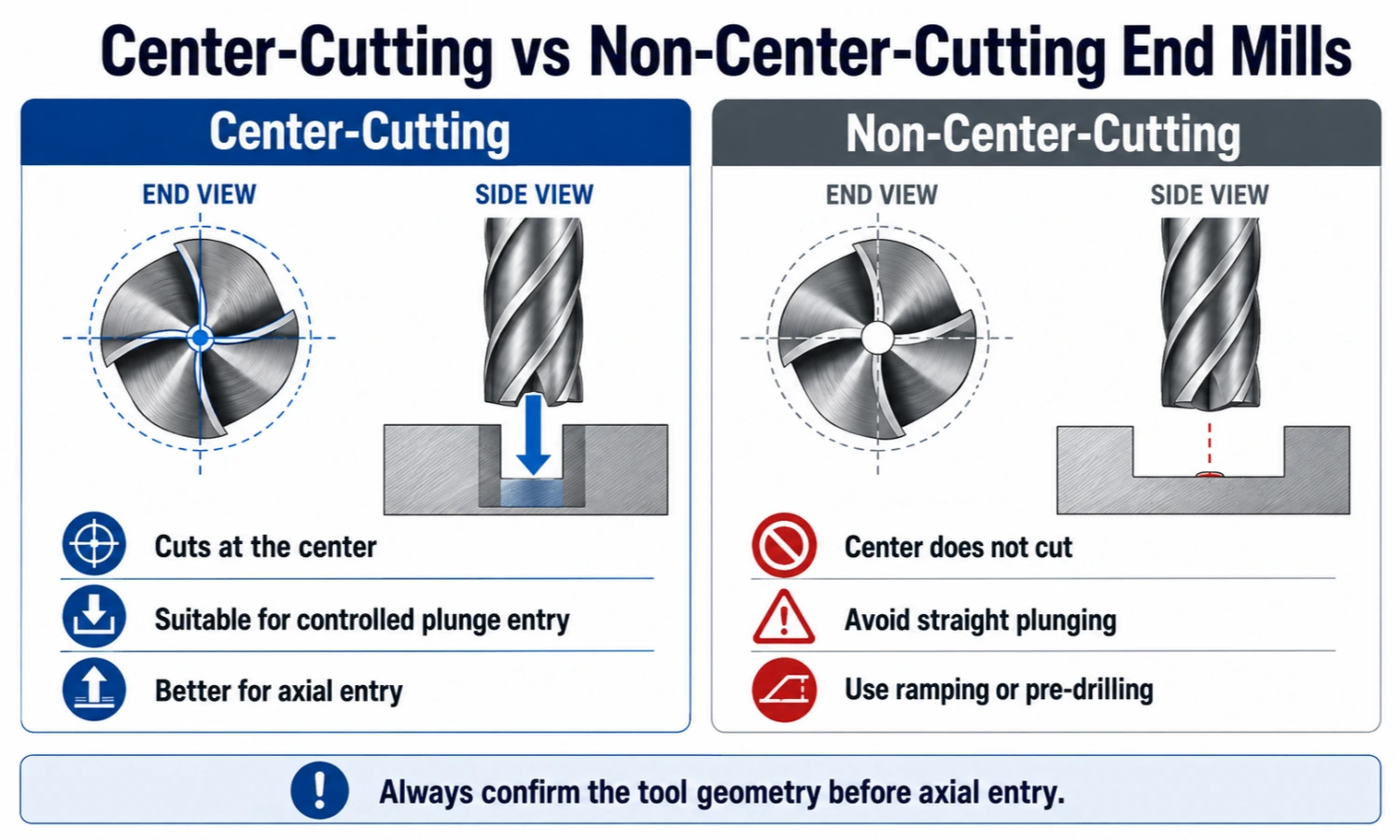

• Q: How do I identify center-cutting end mills?

  • A: Look for an X-shaped ground tip or “CENTERCUT” laser marking.

• Q: Best plunge parameters for aluminum with a 2 flute end mill?

  • A: 12,000 RPM | 0.15 mm/tooth feed | 1×D DOC with air blast.

• Q: What if plunge cutting fails?

  • A: Pre-drill a pilot hole (80% tool diameter), use a drill-mill combo, or switch to a 4-flute end mill with reduced feed.

Conclusion: Safe Plunge Cutting Protocol
Use your 2 flute end mill for plunge cutting effectively when:

1. Material hardness ≤ HRC 30

2. Center-cutting geometry is confirmed

3. Feed rate is reduced 40-50% vs. side milling

4. DOC ≤ 50% tool diameter

5. Coolant pressure ≥ 500 psi

Pro Tip: Always perform test cuts in scrap material first. Record optimal parameters for each tool-material pair.
