Introduction
A carbide end mill cutter is one of the most widely used tools in modern CNC machining. It is valued for its rigidity, wear resistance, and stable cutting performance in demanding applications.
Compared with many general-purpose cutting tools, carbide end mills are often selected when higher cutting efficiency, better dimensional accuracy, and more consistent tool life are required. As a result, they are widely used in aluminum machining, steel machining, stainless steel machining, mold making, and many other precision manufacturing applications.
In this guide, we explain what carbide end mills are used for, which materials they can machine, how they compare with HSS tools, and how to choose the right cutter for different CNC milling applications.
If you are new to this tool, you can first read what is an end mill cutter.

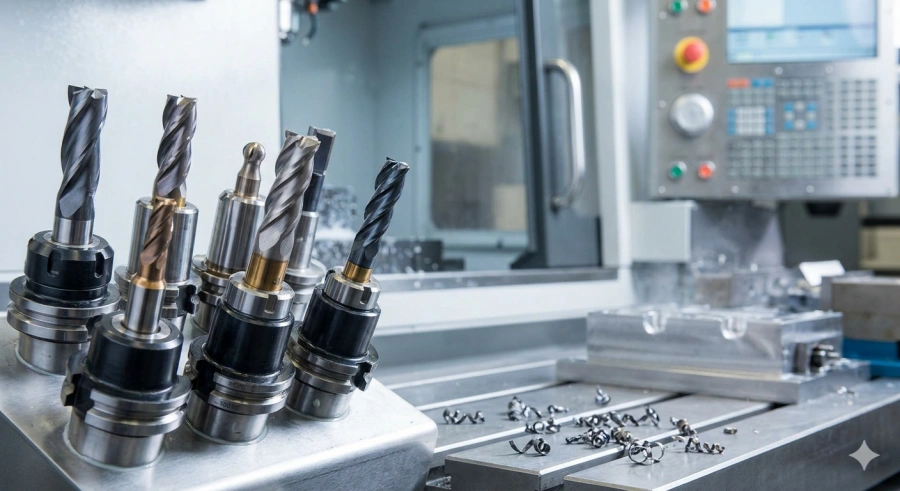

What Is a Carbide End Mill Cutter?
A carbide end mill cutter is a rotary cutting tool made mainly from carbide material, usually tungsten carbide. It is designed for CNC milling operations such as slotting, side milling, pocket milling, contouring, and surface finishing.
Unlike simpler cutting tools, a carbide end mill cutter usually has cutting edges on the tip and along the sides. This allows it to remove material in different directions and handle a wide range of machining tasks.
Because carbide offers higher rigidity and better wear resistance than many traditional tool materials, carbide end mills are often preferred for higher-speed machining and more demanding cutting conditions.
For more practical applications, you can also read what is an end mill cutter used for.
Why Choose a Carbide End Mill Cutter?
Better Rigidity
Carbide tools are generally more rigid than HSS tools. This helps improve cutting stability, especially in applications that require accuracy and repeatability.
Better Wear Resistance
Carbide end mills usually offer better wear resistance in demanding cutting conditions. Therefore, they are often selected for longer production runs and harder materials.
Higher Cutting Efficiency
In many applications, carbide tools support higher cutting speeds and more stable machining performance, which can improve production efficiency.
Better Performance on Harder Materials
Carbide end mills are commonly used for steel, stainless steel, cast iron, and other materials that place higher demands on the tool.
More Stable Surface Quality
Because of their rigidity and cutting consistency, carbide tools are often better suited for applications where dimensional accuracy and surface finish are important.
Carbide End Mill vs HSS End Mill
| Feature | Carbide End Mill | HSS End Mill |
|---|---|---|
| Rigidity | Higher | Lower |
| Wear Resistance | Better | More limited |
| Cutting Speed | Usually higher | Usually lower |
| Heat Resistance | Better in demanding conditions | More limited |
| Typical Use | CNC machining, steel, stainless steel, higher-speed work | General-purpose and lighter-duty machining |
This comparison does not mean carbide is always the only option. However, in many CNC machining applications, carbide is preferred when users need higher performance and more stable cutting results.

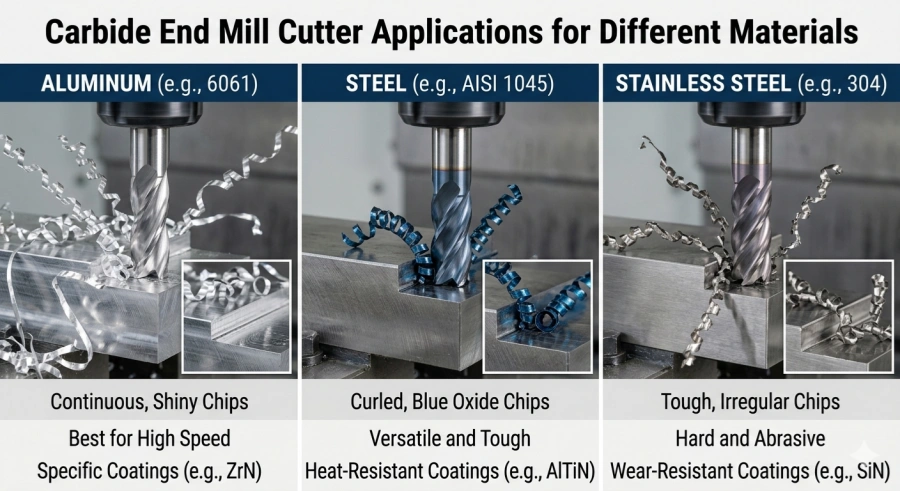

Common Applications of Carbide End Mill Cutters
Aluminum Machining
Carbide end mill cutters are widely used in aluminum machining because they can provide efficient cutting and clean chip evacuation when the correct geometry is selected.
Steel Machining
For carbon steel and alloy steel, carbide end mills are often preferred because they offer better rigidity and wear resistance under stable cutting conditions.
Stainless Steel Machining
Stainless steel is more demanding because of heat generation and work hardening. Therefore, carbide tools are often selected for more stable and reliable cutting performance.
Mold and Die Work
Carbide end mills are commonly used in mold making and die production for contouring, cavity machining, and finishing operations.
Precision CNC Parts
They are also used in automotive components, aerospace parts, electronics housings, and other precision machining applications where accuracy is important.
If you want to understand how cutting actually happens during machining, you can also read how does an end mill cutter work.
Which Materials Can Carbide End Mill Cutters Machine?
| Workpiece Material | Why Carbide Is Commonly Used |
|---|---|
| Aluminum | Good cutting efficiency and clean chip evacuation with the right geometry |
| Carbon Steel | Better rigidity and wear resistance |
| Stainless Steel | More stable cutting performance and better heat resistance |
| Cast Iron | Good wear resistance in abrasive cutting conditions |
| Alloy Materials | Suitable for demanding machining tasks with the correct geometry and coating |
Although carbide tools are highly versatile, the best results still depend on matching flute count, geometry, coating, and cutting parameters to the actual material.
How to Choose the Right Carbide End Mill Cutter
1. Check the Workpiece Material
The first step is to confirm whether you are machining aluminum, steel, stainless steel, cast iron, or another material. Different materials require different cutter geometries and coatings.
2. Check the Machining Operation
Slotting, side milling, pocket milling, contouring, roughing, and finishing often require different tool designs.
3. Check Flute Count
Flute count affects chip evacuation and rigidity. In many cases, fewer flutes are preferred for aluminum, while more flutes are often used for steel and harder materials.
If you want a deeper comparison, read 2 flute vs 4 flute end mill.
4. Check Coating and Geometry
The right coating and tip geometry can improve wear resistance, heat control, and machining quality.
5. Check Standard or Custom Requirements
Some projects can use standard carbide end mills, while others require custom diameter, flute length, overall length, coating, or special geometry.
If you want to compare different geometries, you can also read types of end mill cutters.
For a detailed material-based selection guide, read our how to choose a carbide end mill cutter guide.
Practical Buying Considerations for Carbide End Mill Cutters
Before placing an order, it is helpful to confirm these points:
- workpiece material
- cutter diameter
- flute count
- flute length
- overall length
- coating type
- tolerance requirement
- roughing or finishing purpose
- OEM or custom tooling requirement
These details help ensure the selected carbide end mill cutter is suitable for the actual machining task.
If you need standard or OEM carbide tooling solutions, you can also visit our custom carbide end mill cutter product page.
Common Mistakes When Choosing a Carbide End Mill Cutter
Choosing by Material Name Only
Some buyers only check whether the tool is “carbide,” but ignore flute count, geometry, coating, and actual application.
Using One Tool for Every Material
A carbide end mill suitable for aluminum may not be the best option for stainless steel or harder materials.
Ignoring Cutting Parameters
Even a high-quality carbide tool may not perform well if speed, feed, and cutting depth are not matched correctly.
Focusing Only on Tool Life
Tool life is important, but machining quality, stability, and application fit are equally important.
Overlooking Custom Requirements
In some machining projects, a standard tool is enough. In others, custom tooling is the better choice.
FAQ
What is a carbide end mill cutter?
A carbide end mill cutter is a rotary cutting tool made mainly from carbide material. It is used for CNC milling operations such as slotting, side milling, contouring, pocket milling, and surface finishing.
What are carbide end mills used for?
Carbide end mills are used for machining aluminum, steel, stainless steel, cast iron, and other materials in CNC milling applications that require stability, accuracy, and wear resistance.
What is the difference between carbide and HSS end mills?
In general, carbide end mills offer higher rigidity, better wear resistance, and higher cutting speed potential, while HSS tools are more commonly used for lighter-duty or general-purpose work.
Which materials can carbide end mill cutters machine?
They are commonly used for aluminum, carbon steel, alloy steel, stainless steel, cast iron, and other demanding machining materials.
How do I choose the right carbide end mill cutter?
You should consider the workpiece material, machining operation, flute count, coating, cutter geometry, and whether standard or custom tooling is needed.
Conclusion
A carbide end mill cutter is one of the most important tools in modern CNC machining because it combines rigidity, wear resistance, and stable cutting performance. It is widely used in aluminum machining, steel machining, stainless steel machining, mold making, and many other precision applications.
To choose the right carbide end mill cutter, buyers should look beyond the material name alone. Cutter geometry, flute count, coating, machining operation, and actual workpiece material all need to be considered together.
When the right tool is selected for the right application, carbide end mills can help improve machining stability, surface quality, and overall production efficiency.
