Precision Milling Cutters,Cutting Tools for CNC Machining Every Material
Milling cutters are rotary cutting tools used on milling machines and CNC machining centers to remove material and create flat surfaces, slots, pockets, profiles, threads, and complex contours.
Their application depends on the machining operation, workpiece material, required feature, and surface requirement. This guide explains common milling cutter applications and the cutter families that suit different CNC milling operations.
What Are Milling Cutters Used For?
Milling cutters remove and shape material in operations such as facing, slotting, profiling, pocket milling, 3D contouring, roughing, finishing, and thread milling. Therefore, the suitable cutter depends mainly on the feature being machined and the required cutting operation.
For basic cutter definitions, see our milling cutter guide. For a broader classification of cutter families, see milling cutter types.

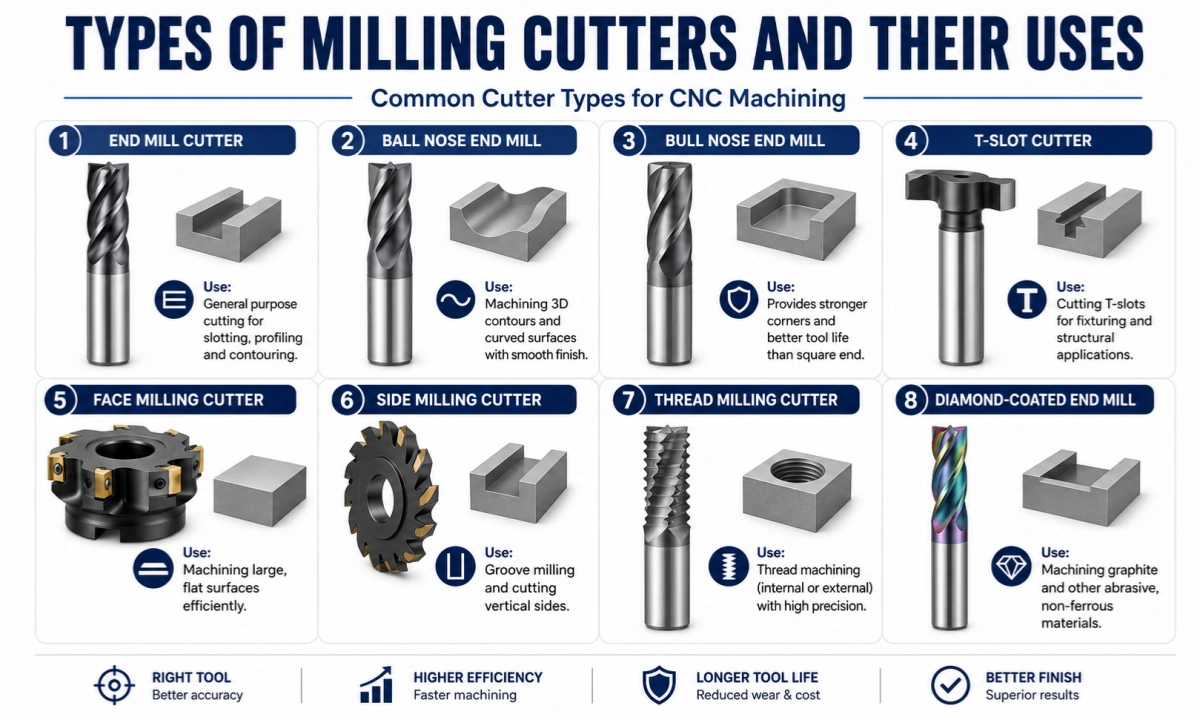

Which Milling Cutter Fits Each Application?
| Application | Typical Cutter | Typical Use |
|---|---|---|
| Facing | Face milling cutter or end mill | Flat and reference surfaces |
| Slotting and Grooving | End mill or T-slot cutter | Slots, keyways and T-slots |
| Profiling and Pocketing | End mill cutter | Contours, shoulders and pockets |
| 3D Contouring | Ball nose end mill | Mold cavities and curved surfaces |
| Roughing and Finishing | Roughing end mill, end mill or radius tool | Stock removal and finishing |
| Thread Milling | Thread milling cutter | Internal and external threads |
Common Milling Cutter Applications
Facing Flat Surfaces
Facing removes material from the top of a workpiece to create a flat surface. Machinists commonly use this operation on mold bases, machine parts, fixture plates, blocks, and other components that require a flat reference surface.
Machinists commonly use a face milling cutter for larger flat areas, while end mills can perform facing on smaller parts or where the setup requires more flexibility.
Slotting and Groove Milling
Milling cutters produce straight slots, keyways, grooves, T-slots, and similar internal features.
End mills commonly machine straight slots. For a T-shaped slot, machinists normally open the straight slot first and then use a T-slot cutter to machine the undercut section.
Profiling, Side Milling and Pocketing
Profiling and side milling remove material along the side of a workpiece to create contours, shoulders, walls, and outside edges. Pocket milling removes material inside a defined area of the part.
An end mill cutter works well for these operations because it can machine side surfaces as well as end-cutting features. Therefore, the exact geometry and size should match the profile, pocket depth, material, and machine setup.
3D Contouring and Mold Machining
Milling cutters also machine curved surfaces, mold cavities, and complex 3D contours. Machinists commonly select ball nose end mills for these applications because the rounded cutting end can follow curved tool paths.
Typical applications include mold and die machining, graphite electrodes, curved profiles, and other components that require continuous 3D surfaces.
Roughing and Finishing
Roughing end mills can remove material efficiently, while machinists may choose standard end mills or radius tools for semi-finishing and finishing depending on the feature, workpiece material, machine rigidity, and required surface finish.
Thread Milling and Special Features
Milling cutters can also machine specialized features such as internal or external threads, chamfers, and selected undercut profiles when the cutter geometry matches the required feature. Thread milling cutters machine thread features specifically, while other special features require suitable cutter geometries based on the part shape and machining requirement.

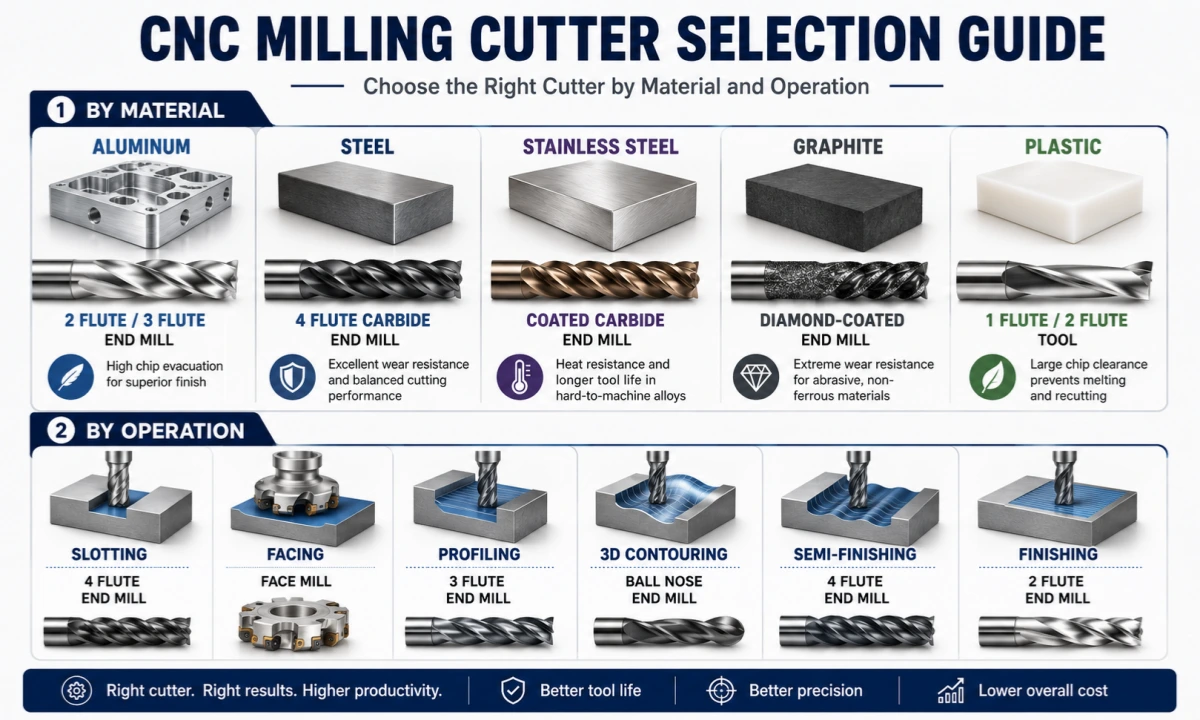

What Affects Milling Cutter Selection?
Milling cutter selection depends on more than the workpiece material. The machining operation, cutter dimensions, machine setup, required surface finish, and production conditions can all influence the suitable cutter.
Workpiece material is still important because different materials may require different cutting geometry, tool material, edge preparation, or coating. However, no single cutter or coating suits every job with the same material.
| Selection Factor | What to Consider |
|---|---|
| Machining Operation | Facing, slotting, profiling, roughing, finishing or another feature |
| Workpiece Material | Steel, stainless steel, aluminum, cast iron, graphite or other materials |
| Tool and Setup | Cutter dimensions, reach, tool holding and machine rigidity |
| Surface Requirement | Roughing, semi-finishing or finishing |
| Special Requirements | Drawing, non-standard geometry or application-specific features |
Milling Cutter Selection Checklist
Before selecting a cutter for a milling application, confirm the main machining requirements first.
| Check | What to Confirm |
|---|---|
| Workpiece | Material being machined |
| Primary Operation | Facing, slotting, profiling, roughing, finishing or another feature |
| Part Feature | Surface, slot, pocket, contour, thread or special profile |
| Machine Setup | Machine rigidity, holder and available tool reach |
| Required Finish Stage | Roughing, semi-finishing or final finishing |
| Tool Information | Existing tool model, drawing, or key dimensions, if available |
These details provide a better basis for cutter selection than choosing only by cutter name or price.
FAQ About Milling Cutter Uses
What are milling cutters mainly used for?
Milling cutters are mainly used for facing, slotting, profiling, pocket milling, 3D contouring, roughing, finishing, and thread milling on milling machines and CNC machining centers.
Which milling cutter is used for flat surfaces?
Machinists commonly use face milling cutters for larger flat surfaces. End mills can also machine smaller flat areas when the part size or machine setup makes them more practical.
Which milling cutter is used for slots and grooves?
End mills commonly machine straight slots and grooves. T-slots and other undercut features require a cutter geometry designed for the required slot shape.
Can one milling cutter be used for every machining operation?
No. Different machining operations and part features often require different cutter geometries. Workpiece material, machine setup, and finish requirements further affect the final selection.
Conclusion
