What is an End Mill Cutter?

An end mill cutter is a rotating cutting tool used in CNC milling to remove material from the end and side of a workpiece. It can machine slots, pockets, profiles, side walls, curved surfaces, and finishing features in materials such as aluminum, steel, stainless steel, copper, and plastics.

In this guide, you will learn what an end mill cutter is, how it differs from a drill bit, what it does in CNC milling, common cutter types, basic specifications, and how to choose the right tool for different machining applications.

What Is an End Mill Cutter?

An end mill cutter is a rotary cutting tool used on CNC machines and milling machines. It rotates at high speed while the tool or workpiece moves along a controlled path to remove material.

The main difference between an end mill cutter and many other tools is its cutting geometry. Most end mills have cutting edges on the end and along the sides. Therefore, they can cut vertically and laterally. This makes them suitable for slotting, side milling, profiling, pocket milling, contouring, and finishing.

Manufacturers commonly make end mill cutters from high-speed steel or solid carbide. However, many CNC machine shops choose solid carbide tools because they offer better rigidity, higher wear resistance, and more stable cutting performance.

If you need standard or custom tools for production machining, you can also visit our end mill cutter product page.

Main Parts of an End Mill Cutter

Although end mill cutters come in different shapes and designs, most tools include several basic parts. Understanding these parts helps buyers choose the right cutter for their material, machine, and machining goal.

Cutting Edges

The cutting edges are the working part of the tool. They remove material during milling and directly affect cutting performance, accuracy, and surface finish.

Flutes

Flutes are the grooves along the body of the cutter. They help remove chips from the cutting area. In addition, flute design affects rigidity, heat control, and cutting stability.

Tool Tip

The tool tip design depends on the cutter type. Some end mills have flat ends, while others have ball nose, corner radius, or tapered geometry. As a result, different tip designs are used for different machining tasks.

Shank

The shank is the part held by the tool holder or spindle. Its diameter must match the holder correctly. Otherwise, vibration, poor accuracy, or tool runout may occur.

Coating

Many end mill cutters use coatings such as TiAlN, AlTiN, TiSiN, TiN, DLC, or Nano blue coating. The right coating can improve heat resistance, reduce wear, and extend tool life.

End Mill Cutter vs Drill Bit

Many beginners confuse an end mill cutter with a drill bit. However, they are designed for different machining purposes.

A drill bit mainly cuts in the axial direction to create round holes. By contrast, an end mill cutter can cut both axially and laterally. Therefore, it can machine slots, pockets, contours, profiles, side walls, and finished surfaces.

In short, both tools remove material, but they are not interchangeable in most machining situations. A center-cutting end mill can plunge in some applications, but it is still not the same as a standard drill bit.

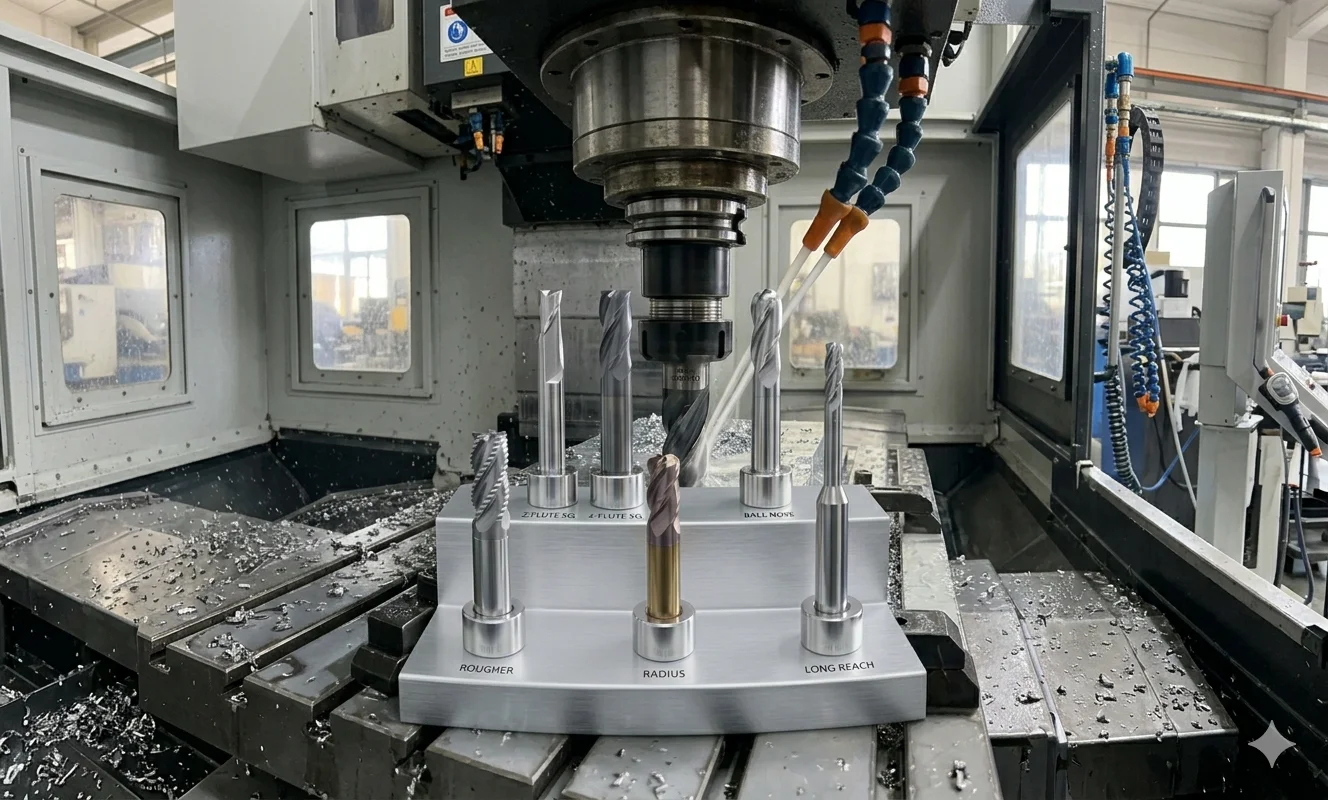

Common Types of End Mill Cutters

There are many types of end mill cutters, and each design has a specific purpose. Choosing the right type helps improve cutting efficiency, surface quality, and tool life.

Flat End Mill

A flat end mill has a flat cutting end. It is widely used for slotting, side milling, shoulder milling, and general-purpose machining.

Ball Nose End Mill

A ball nose end mill has a rounded cutting end. It is commonly used for 3D contouring, mold machining, curved surfaces, and finishing operations.

For curved surface machining and mold work, you can also view our ball nose end mills.

Bull Nose End Mill

A bull nose end mill, also called a corner radius end mill, combines a flat bottom with rounded corners. It improves edge strength and helps create smoother transitions.

For stronger corner geometry, see our bull nose end mill.

Roughing End Mill

A roughing end mill is designed for aggressive material removal. It is often used before finishing to remove large amounts of stock quickly.

For heavy stock removal, you can check our roughing end mills.

Tapered End Mill

A tapered end mill has a gradually changing diameter. It is used for angled walls, deep cavities, mold machining, and special profiles.

For mold cavities and angled machining, visit our tapered cutter.

For a more detailed comparison of tool geometries, read our end mill cutter types guide.

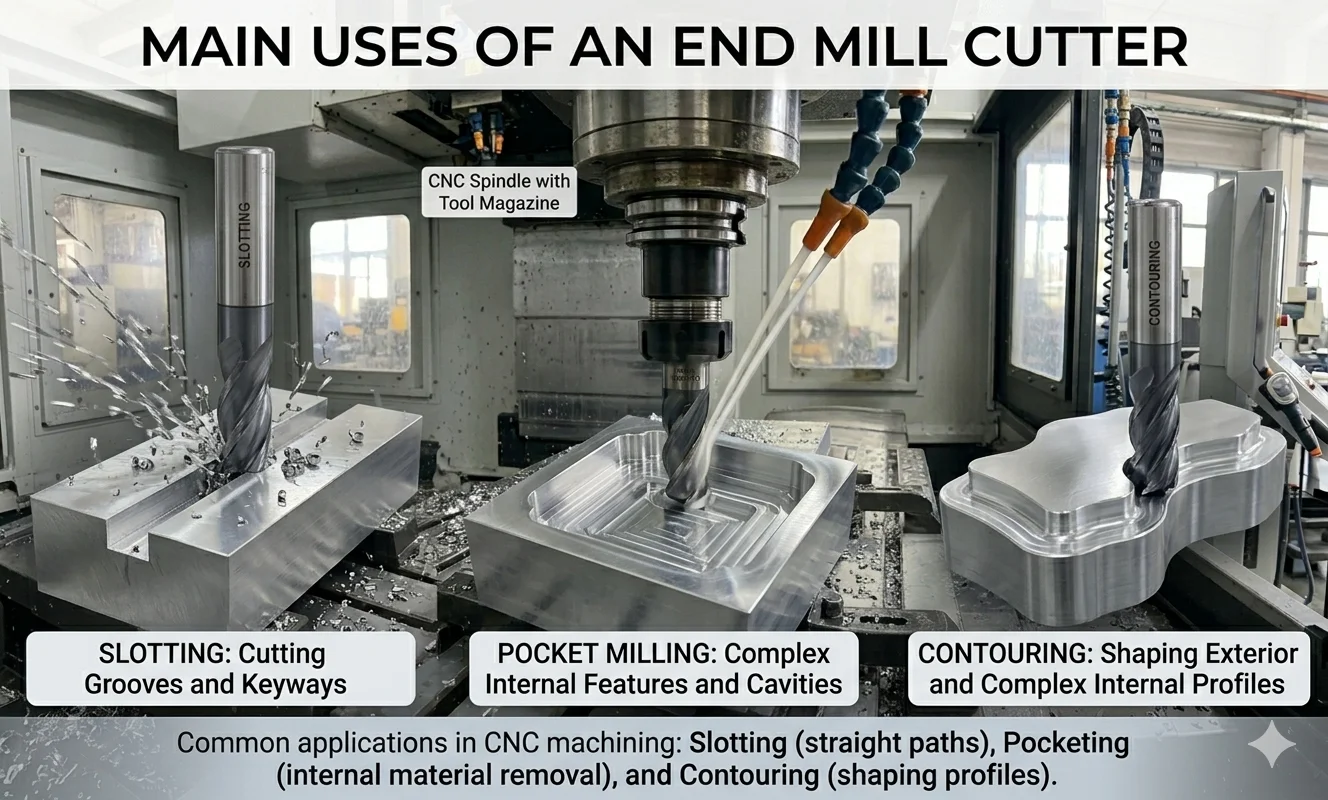

What Is an End Mill Cutter Used For?

End mill cutters are used in many CNC milling operations. Because they can cut from the end and the side, they are suitable for both simple and complex machining tasks.

Slotting

Slotting is one of the most common applications. An end mill cutter can cut straight or curved slots into a workpiece with good accuracy. These slots can create keyways, grooves, guide tracks, and assembly features.

For softer materials such as aluminum, chip evacuation is important. Therefore, machinists often select 2 flute tools when the workpiece needs better chip removal.

Side Milling

Side milling uses the side cutting edges of the tool to remove material from the vertical surface of a workpiece. This operation is useful for machining shoulders, steps, and side walls.

Machine shops commonly use side milling for precision parts, mold components, tooling parts, and general CNC production.

Profiling and Contouring

Machinists also use end mill cutters for profiling and contouring. These operations create complex shapes, curved paths, and external or internal profiles.

Machinists often select ball nose and corner radius tools for this kind of work because these tools can improve surface transitions and finishing quality.

Pocket Milling

Pocket milling removes material from a closed or recessed area inside a workpiece. This operation is common in parts that need internal cavities, weight reduction, or precise material removal within a limited area.

Good chip control, stable tool paths, and the correct cutter geometry are important for this process.

Surface Finishing

After rough machining, an end mill cutter can also be used for finishing. The goal is to improve dimensional accuracy and surface smoothness.

Finishing tools are selected according to tolerance, workpiece material, machine stability, and required surface quality.

Step Milling and Shoulder Machining

End mill cutters can machine stepped surfaces, shoulders, and multi-level features. These features often require sharp transitions, stable cutting, and accurate dimensions.

As a result, tool rigidity, flute design, and coating selection are important.

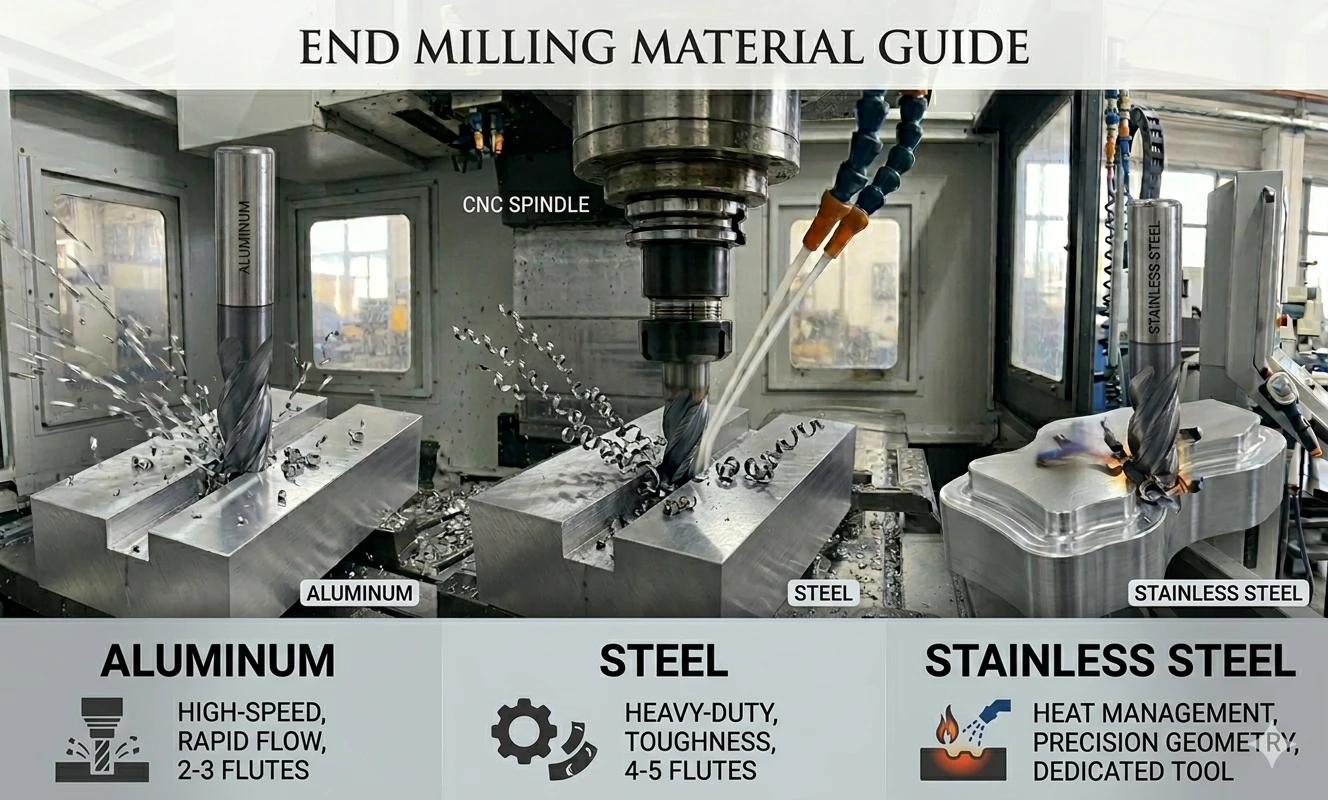

End Mill Cutter Uses for Aluminum, Steel, and Stainless Steel

Different workpiece materials require different cutter designs. Therefore, buyers should match the end mill cutter to the material and machining condition.

End Mill Cutter for Aluminum

When machining aluminum, end mill cutters are used for slotting, pocket milling, side milling, and finishing. Aluminum produces larger chips, so tools with fewer flutes and good chip evacuation are often preferred.

High-helix carbide end mills are also common for aluminum because they help improve cutting smoothness and reduce chip buildup.

For aluminum and non-ferrous materials, you can compare flute options on our 2 flute end mill and 3 flute end mill pages.

End Mill Cutter for Steel

For carbon steel and alloy steel, end mill cutters are often used for side milling, contouring, shoulder machining, and semi-finishing. Steel usually requires better rigidity and stronger wear resistance.

In many cases, 4 flute carbide end mills are selected for steel and general-purpose metal machining.

For steel machining, you can view our 4 flute end mill.

End Mill Cutter for Stainless Steel

Stainless steel is more difficult to machine because it generates heat and tends to cause tool wear. In stainless steel applications, end mill cutters are commonly used for profiling, finishing, and controlled side milling.

The right coating, flute geometry, and cutting parameters help maintain cutting stability and reduce edge wear.

How to Choose a Basic End Mill Cutter

Choosing an end mill cutter does not need to be complicated. However, buyers should check several factors before ordering.

Workpiece Material

The workpiece material is one of the most important factors. Aluminum, steel, stainless steel, copper, brass, plastics, and cast iron may require different flute designs, coatings, and cutting strategies.

Flute Count

Flute count affects chip evacuation, rigidity, and cutting efficiency. For example, machinists often use 2 flute tools for aluminum, while they commonly choose 4 flute tools for steel and general-purpose machining.

For a deeper comparison, read our 2 flute vs 4 flute end mill guide.

Tool Material

Many CNC machine shops choose solid carbide end mill cutters because they provide higher rigidity, better wear resistance, and stable performance. Some workshops still use HSS tools for lower-speed or general machining applications.

Coating

The coating should match the material and machining condition. For example, machinists often choose TiAlN and AlTiN coatings for steel, while DLC coating may suit aluminum and non-ferrous materials.

Required Finish

For roughing operations, the main goal is higher material removal. However, for finishing work, surface quality and dimensional accuracy become more important.

Basic Specifications to Check Before Buying

Before placing an order, buyers should confirm several key specifications. This helps avoid tool mismatch and improves machining stability.

Cutter Diameter

Cutter diameter affects cutting width, rigidity, and the size of the machined feature.

Flute Length

Flute length determines how deep the cutter can machine. However, a longer flute may reduce rigidity, so it should match the actual cutting depth.

Overall Length

Overall length affects tool reach and vibration control. A longer tool may be needed for deep cavities, but it should be used carefully to reduce chatter.

Shank Diameter

Shank diameter must match the holder correctly. Stable clamping helps improve accuracy and tool life.

Corner Geometry

Flat, ball nose, corner radius, and tapered geometries are used for different machining goals. Therefore, corner geometry should match the part shape and required finish.

Coating Type

The coating should be selected according to the workpiece material, cutting speed, coolant condition, and tool life requirement.

Why Solid Carbide End Mill Cutters Are Common in CNC Milling

Solid carbide end mill cutters are popular because they offer strong rigidity, high hardness, and good wear resistance. They can support higher cutting speeds and provide more stable performance than many standard tool materials.

In production machining, many shops use carbide tools for steel, stainless steel, cast iron, aluminum, and other demanding materials. In addition, the right geometry and coating can improve machining consistency.

Industrial buyers, distributors, and machine shops often prefer carbide tools because they help reduce tool changes and support more stable production.

For standard and custom carbide tools, you can visit our carbide end mill cutter pape.

When Do You Need a Custom End Mill Cutter?

A standard cutter can solve many common machining tasks.

However, you may need custom tooling when the part has a special profile, deep cavity, unusual material, strict tolerance, or non-standard size requirement.

Manufacturers can design custom end mill cutters with special diameter, flute length, overall length, corner radius, coating, shank size, and tool geometry.

For drawing-based or OEM tooling, visit our custom end mills pape.

FAQ

What is an end mill cutter?

An end mill cutter is a rotary cutting tool used for CNC milling operations such as slotting, side milling, profiling, contouring, pocket milling, and finishing.

What is an end mill cutter used for?

It is used to remove material from the end and side of a workpiece. Common applications include slots, pockets, side walls, profiles, shoulders, curved surfaces, and finished surfaces.

What is the difference between an end mill cutter and a drill bit?

A drill bit mainly cuts holes in the axial direction. An end mill cutter can cut axially and laterally, so it can perform more milling operations such as slotting, profiling, and side milling.

What are the common types of end mill cutters?

Common types include flat end mills, ball nose end mills, bull nose end mills, roughing end mills, tapered end mills, 2 flute end mills, 3 flute end mills, 4 flute end mills, and 6 flute end mills.

How do I choose a basic end mill cutter?

You should check the workpiece material, flute count, cutter diameter, flute length, overall length, shank diameter, tool material, coating, and required surface finish.

Are carbide end mill cutters better than HSS end mills?

Carbide end mill cutters usually provide better rigidity, wear resistance, and cutting stability. However, the best choice depends on the machine, workpiece material, cutting speed, and budget.

Conclusion

An end mill cutter is a versatile CNC milling tool used for slotting, side milling, pocket milling, profiling, contouring, shoulder machining, and finishing. Because it can cut from both the end and the side, it is more flexible than many basic cutting tools.

To choose the right cutter, buyers should understand the tool structure, cutter type, flute count, material, coating, diameter, flute length, and machining application. Once these factors are matched correctly, the cutter can provide better cutting efficiency, longer tool life, and more stable machining results.
