Milling Machine Tools: Names, Types, and Uses for CNC Machining

Milling machine tools are cutting tools for milling machines and CNC machining centers. They remove material from metal, plastic, graphite, and other workpieces to create slots, holes, profiles, flat surfaces, threads, and 3D shapes.

For buyers, engineers, and machinists, choosing the right milling tool is important. As a result, the correct cutter can improve surface finish, reduce tool wear, and make machining more stable.

However, different tools have different shapes and functions. Therefore, this guide explains the most common milling machine tools, their names, their uses, and how to choose the right tool for different CNC milling operations.

What Are Milling Machine Tools?

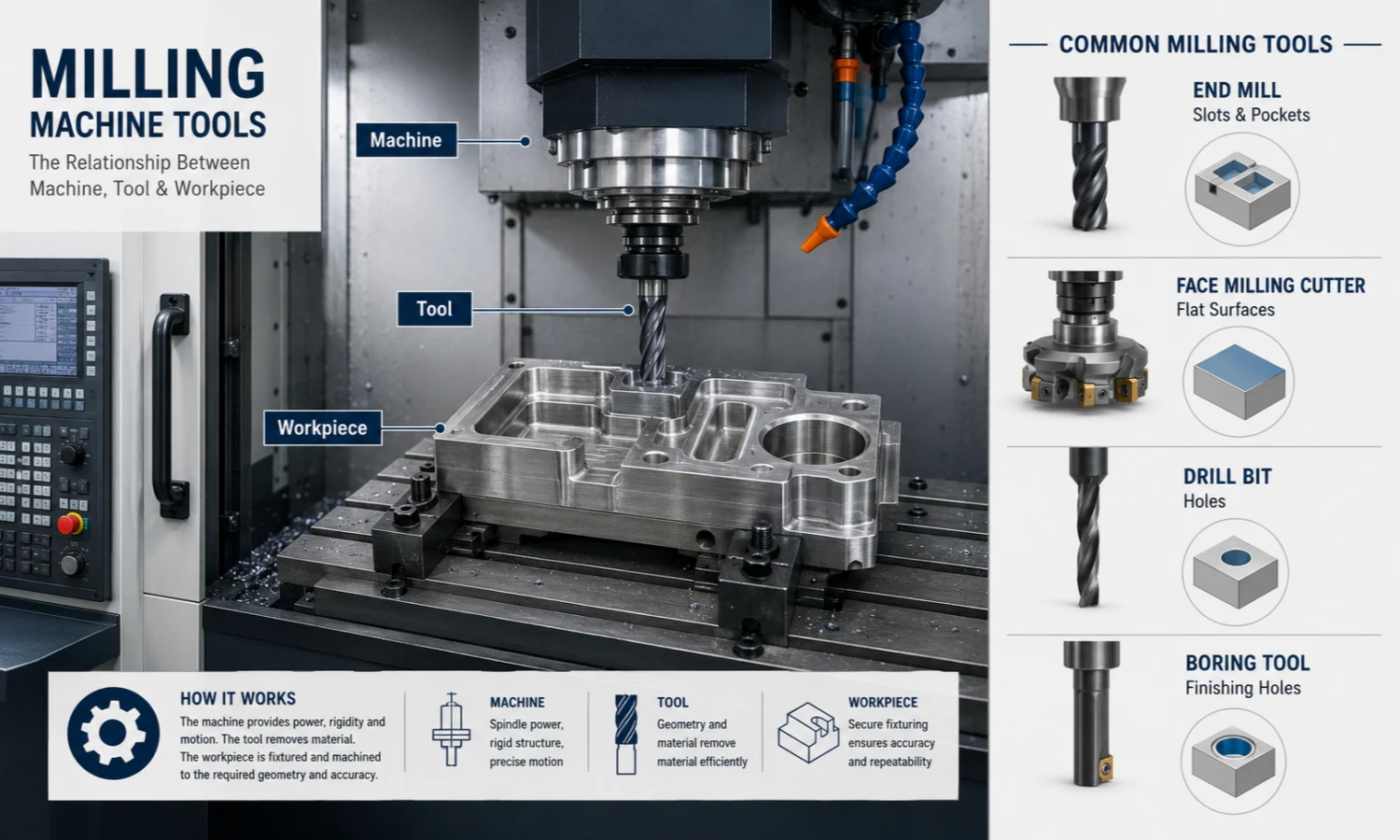

Manufacturers use milling machine tools as rotary cutting tools for milling operations. These tools usually have one or more cutting edges. When the tool rotates, the cutting edges remove material from the workpiece.

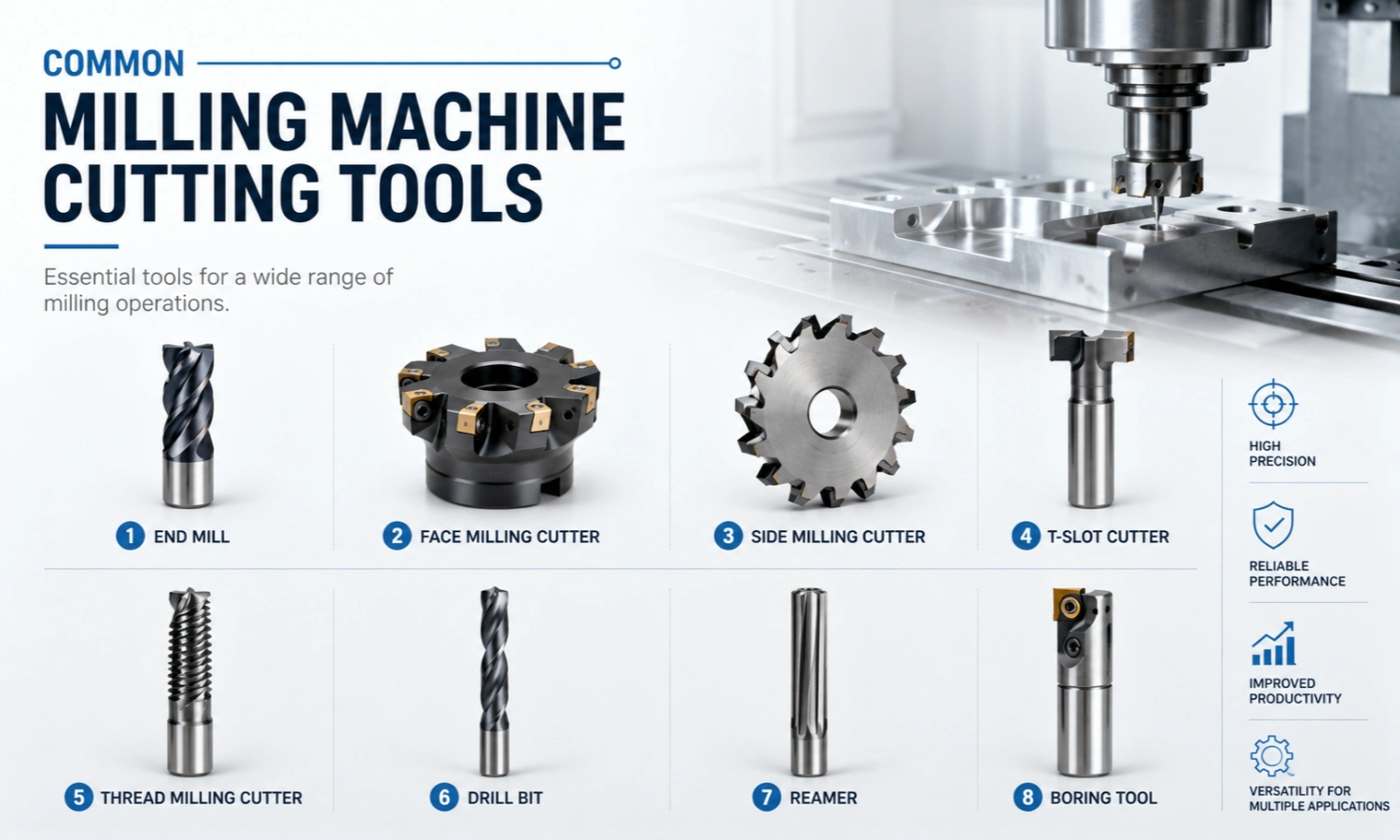

Many factories use these tools in mold making, machinery manufacturing, automotive parts, aerospace parts, electronic components, and general metalworking. Common milling tools include end mills, face mills, ball nose end mills, bull nose end mills, T-slot cutters, side milling cutters, thread milling cutters, drills, and reamers.

In simple words, milling machine tools help manufacturers cut different shapes with accuracy, stability, and repeatability.

Common Milling Machine Tools Names and Uses

The table below shows common tools used in milling machines and their main applications. This section also helps users who search for “milling machine tools list”, “milling cutter types”, and “tools used in milling machine”.

For general slotting, profiling, and shoulder milling, many factories use an end mill cutter.

You can also check CNC milling cutters.for more CNC cutting tool options

Main Types of Milling Machine Tools

End Mill Cutters

End mill cutters are among the most common milling machine tools. They can cut from the side and the end of the tool. Because of this design, they are suitable for slotting, profiling, contouring, pocket milling, and shoulder milling.

End mills are available in different flute numbers, coatings, lengths, and materials. For example, 2 flute end mills are often used for aluminum and soft materials because they offer better chip removal. In contrast, 4 flute end mills are more suitable for steel and stainless steel because they provide stronger cutting stability.

For general CNC machining, an end mill cutter for CNC milling.is usually one of the first tools to consider.

 Ball Nose End Mills

Ball nose end mills have a round cutting tip. This design makes them suitable for 3D surface machining, curved surfaces, mold cavities, and complex contours.

Mold shops often use ball nose end mills for die machining, graphite machining, and precision finishing. Compared with flat end mills, ball nose tools can produce smoother curved surfaces. However, they are not the best choice for sharp inside corners.

When machining 3D profiles and mold cavities,  ball nose end mills are a better choice.

Bull Nose End Mills

Bull nose end mills are also called corner radius end mills. They have a small radius on the cutting corner. This radius improves tool strength and reduces corner chipping.

As a result, bull nose end mills work well for semi-finishing, rough finishing, and machining materials such as steel and stainless steel. They are also a good choice when the tool needs more corner strength than a sharp flat end mill.

For stronger corner cutting and semi-finishing, see bull nose end mill.

T-Slot Cutters

T-slot cutters cut T-shaped slots in machine tables, fixtures, molds, and clamping systems. This tool usually works after a straight slot has already been made.

First, an end mill opens the slot. Then, the T-slot cutter creates the wider undercut area. Therefore, you should not use a T-slot cutter as the first tool for opening a straight slot.

For slot and undercut machining, you can use a T-slot cutter.

Side Milling Cutters

Side milling cutters cut grooves, slots, and side surfaces. They remove material from the side of the workpiece and help machine wider or deeper grooves.

In many cases, factories use these cutters for general machinery, mold parts, and metal component production. They are suitable when the cutting operation needs stable side cutting.

For groove and side surface machining, see side milling cutter.

Solid Carbide Cutting Tools

Solid carbide cutting tools are widely used in modern CNC machining. Carbide has higher hardness and better wear resistance than high-speed steel. Therefore, it supports higher cutting speeds and longer tool life.

Many manufacturers choose solid carbide tools for steel, stainless steel, cast iron, aluminum, copper, graphite, and hardened materials. In addition, coatings can improve heat resistance and wear resistance.

For high-precision CNC machining, you can choose solid carbide cutting tools.

How to Choose Milling Machine Tools by Operation

Different milling operations need different tool designs. Therefore, you should choose the tool based on the cutting task first.

For Slotting

End mills are usually the most common choice for slotting. A 2 flute end mill is useful for aluminum and other soft materials because it has more chip space. Meanwhile, a 4 flute end mill is better for steel when higher stability is needed.

For aluminum and slotting, see 2 flute end mill.

For Side Milling and Profiling

When you need side milling, choose an end mill with good rigidity and a suitable flute length. If the workpiece material is harder, coated carbide end mills can improve tool life.

For steel machining, see 4 flute end mill.

For 3D Surface Machining

For 3D surfaces, curved profiles, and mold cavities, ball nose end mills are more suitable. Their round tip can follow complex tool paths and produce smooth surfaces.

For mold and 3D surface machining, see ball nose end mills.

For T-Slot Machining

Use a T-slot cutter for T-slots and undercuts. However, do not use it for the first straight slot. First, use an end mill to make the opening. Then, use the T-slot cutter to finish the special shape.

For undercut machining, see T-slot cutter.

For Graphite and Abrasive Materials

Graphite and other abrasive materials can wear normal tools quickly. For this reason, many graphite machining shops choose diamond-coated tools because they improve wear resistance and keep the cutting edge sharper for longer.

For graphite machining, choose diamond-coated end mills.

How to Choose Milling Tools by Material

In addition, material is one of the most important factors when choosing milling machine tools. A tool that works well for aluminum may not work well for stainless steel or graphite.

Aluminum

Aluminum is soft, but it can stick to the cutting edge if chip removal is poor. For this reason, tools with fewer flutes and polished flutes are often preferred. A 2 flute or 3 flute end mill can help remove chips smoothly.

Steel

Steel needs stronger cutting edges and better tool rigidity. In many cases, 4 flute carbide end mills are suitable for steel milling. Coated tools can also improve heat resistance and tool life.

Stainless Steel

Stainless steel is more difficult to machine because it can generate heat and work harden. Therefore, you need a sharp carbide tool, stable clamping, and a suitable coating. Proper cutting parameters are also important.

Graphite

Graphite is abrasive, so tool wear is a major problem. Diamond-coated end mills are often used because they provide better wear resistance and longer tool life.

Hardened Steel

For hardened steel, tool hardness, coating, flute design, and rigidity are very important. High-performance carbide end mills or special coated tools are usually required.

Milling Machine Tools Selection Checklist

Before choosing milling machine tools, check the points below. This can help reduce wrong tool selection and improve machining efficiency.

Therefore, a correct tool choice should match the material, cutting operation, machine condition, and surface finish requirement. It is better not to choose a milling cutter only by price. In many cases, a more suitable cutter can reduce tool wear, improve surface finish, and lower the total machining cost.

FAQ About Milling Machine Tools

What are the different types of tools used in milling machines?

Common tools used in milling machines include end mills, ball nose end mills, bull nose end mills, face mills, T-slot cutters, side milling cutters, thread milling cutters, drill bits, and reamers. Each tool has a different shape and cutting purpose.

What is the most common milling machine tool?

The end mill cutter is one of the most common milling machine tools. It can be used for slotting, side milling, profiling, pocket milling, and contouring.

For general CNC milling, you can check our end mill cutter.

Which milling tool is used for slots?

End mills are commonly used for straight slots. For T-shaped slots, a T-slot cutter is needed after the first slot is opened.

For T-slot machining, see T-slot cutter.

How do I choose a milling cutter for CNC machining?

First, check the material you need to cut. Then, confirm the machining operation, such as slotting, roughing, finishing, or 3D contouring. After that, choose the correct tool type, flute number, coating, and size.

If you are not sure, you can send the material, drawing, tool size, and machining requirement to the tool supplier for advice.

Conclusion

Milling machine tools include many cutter types, such as end mills, ball nose end mills, bull nose end mills, T-slot cutters, side milling cutters, and carbide cutting tools. Each tool has a different function, so the right choice depends on the material, machining method, surface finish, and production requirement.

If you need custom milling cutters for CNC machining, Cutterbest can support different tool types, sizes, coatings, and application requirements.

For common CNC milling applications, start with our CNC milling cutters.

For general slotting and profiling, view our end mill cutter.

For graphite and abrasive materials, choose diamond-coated end mills.
