How to Choose a Carbide End Mill Cutter by Workpiece Material

Knowing how to choose a carbide end mill cutter helps reduce the risk of chip packing, premature edge wear, chatter, poor surface finish, dimensional errors, and tool breakage. For this reason, cutter diameter should never be the only selection factor.

A suitable tool should match the workpiece material, hardness, machining operation, flute count, end profile, coating, tool overhang, and chip evacuation requirement. Aluminum, steel, stainless steel, cast iron, and mold steel create different chips, cutting forces, heat, and wear conditions.

This guide provides practical recommendations for selecting a solid carbide end mill. It gives a starting direction rather than fixed cutting parameters because the final choice also depends on the cutter size, machine, holder, tool engagement, coolant, and required surface quality.

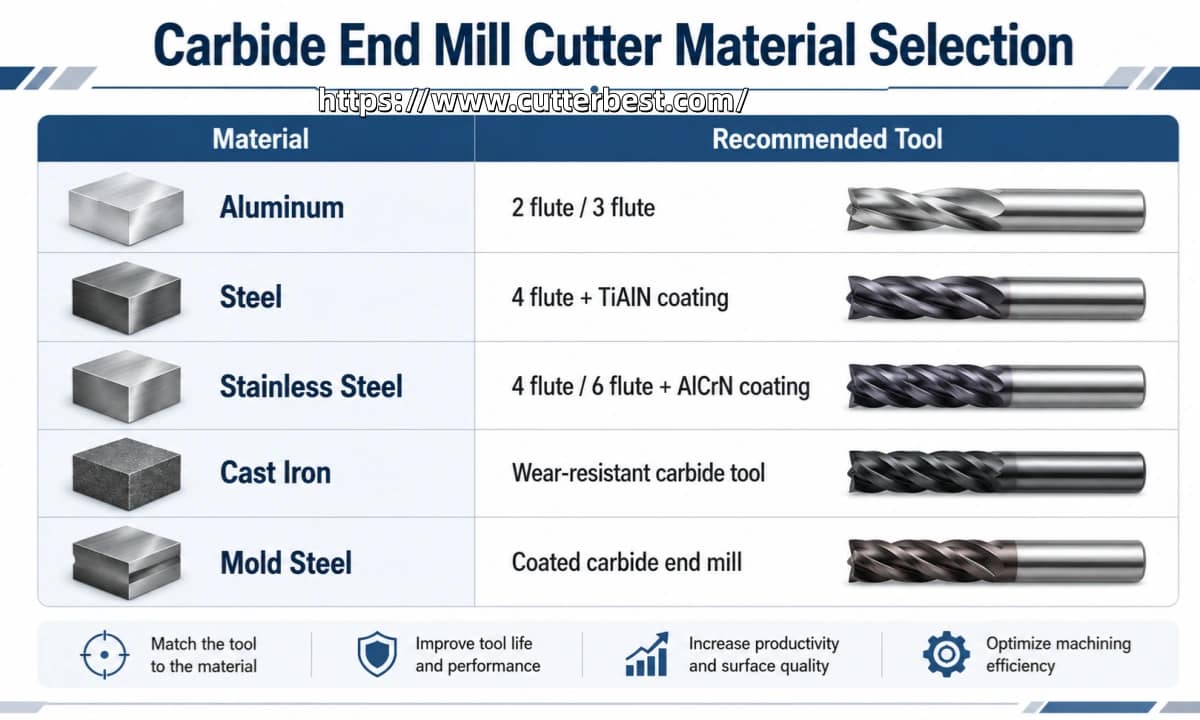

Quick Carbide End Mill Selection Table

Use this table as an initial filter. Next, confirm the machining operation, cutting depth, flute length, tool overhang, holder accuracy, and required finish.

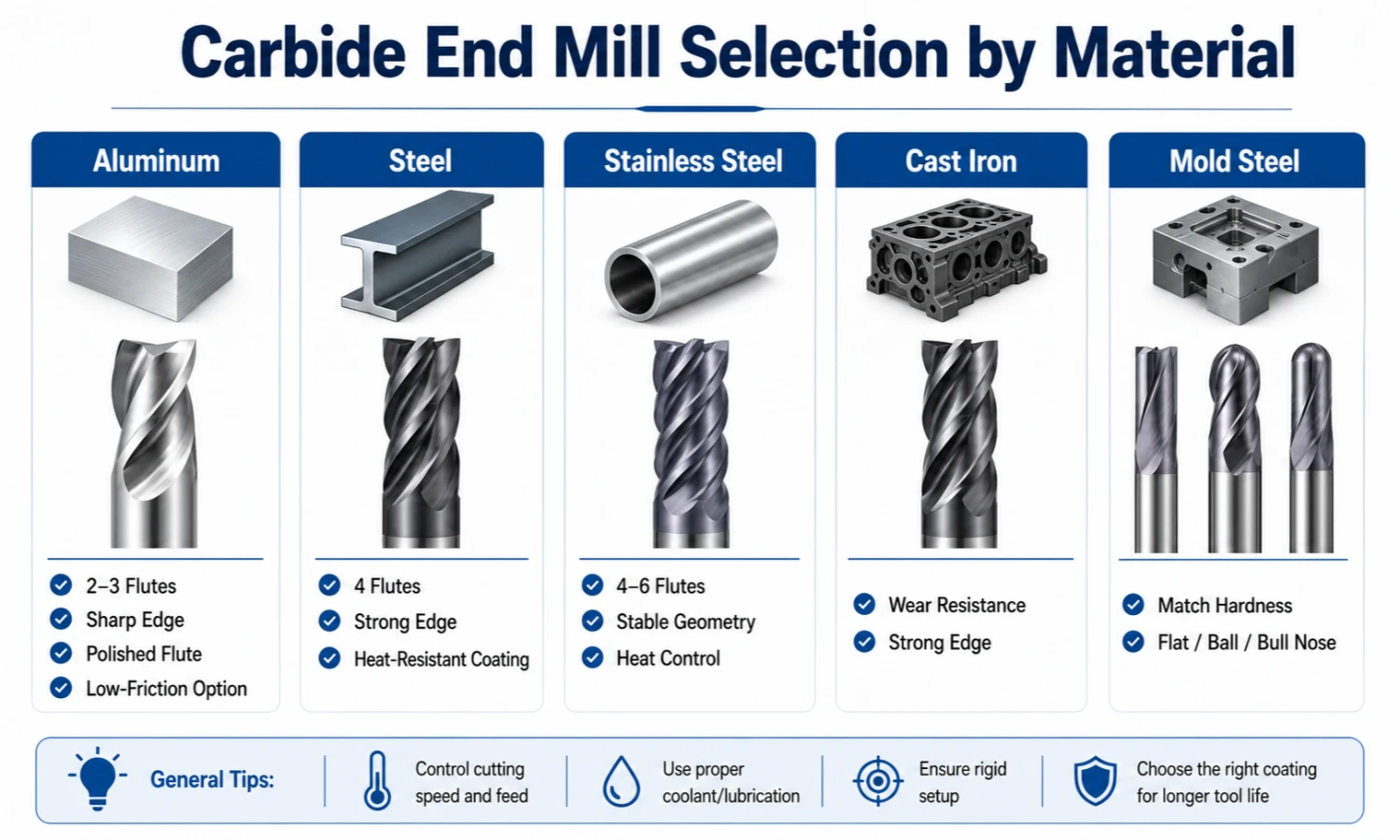

Key Factors Before Choosing a Carbide End Mill

Workpiece Material and Hardness

Material type affects chip shape, cutting force, heat, adhesion, and abrasive wear. Aluminum usually needs more chip space, while steel requires greater edge strength. Stainless steel needs stable cutting to control heat and work hardening.

Hardness also changes the selection. A tool designed for material up to HRC45 may use a different carbide grade, edge preparation, and coating from a tool intended for HRC60 or HRC65 mold steel.

Machining Operation

Slotting, side milling, roughing, finishing, and 3D contouring place different loads on the cutter.

Full-width slotting needs enough flute space to remove chips. In contrast, light side milling or finishing may benefit from more cutting edges. A mold cavity may also require a different end profile from a flat-bottom pocket.

Chip Evacuation

Poor chip evacuation can cause heat, chip re-cutting, built-up edge, vibration, and tool breakage. This issue becomes especially important in aluminum, deep pockets, and full-slot milling.

Fewer flutes generally provide more chip space. More flutes provide more cutting edges but leave less room for chips.

For a detailed explanation, read our end mill flute selection guide.

Tool Rigidity and Overhang

Long tool overhang reduces rigidity and increases deflection. Before changing the coating or cutting parameters, check whether the cutter extends farther from the holder than necessary.

Use the shortest practical tool for the required machining depth. For deep features, a long-neck design with a controlled cutting length may provide better stability than an unnecessarily long flute length.

Surface Finish and Dimensional Accuracy

Finishing requires stable geometry, controlled tool runout, a suitable end profile, and consistent cutting conditions. Tool wear, holder accuracy, vibration, and excessive overhang can all reduce surface quality.

A higher flute count may support finishing under suitable conditions. However, it should not reduce chip space so much that chips remain in the cutting area.

Choosing a Carbide End Mill for Aluminum

Aluminum is relatively soft, but it can adhere to the cutting edge. Friction and poor chip evacuation may create a built-up edge, which changes the effective cutting geometry and damages the surface finish.

Recommended Direction

For many aluminum applications, use:

• 2-flute or 3-flute geometry
• Sharp cutting edges
• Large and smooth flute space
• Polished flute surfaces
• Uncoated, DLC, or another low-friction option
• Short and stable tool overhang

Two-flute tools provide more chip space and often suit slotting, pocketing, and deeper cuts. Three-flute tools offer an additional cutting edge while retaining more chip space than many four-flute designs.

High-helix geometry may also improve chip flow and surface finish in suitable aluminum applications. However, edge strength, machine stability, tool diameter, and cutting depth still need consideration.

Coating Considerations for Aluminum

Uncoated, polished, DLC, or other low-friction surfaces are usually preferred because they help reduce material adhesion.

Some titanium-containing coatings may increase adhesion in certain aluminum applications. Therefore, do not select a coating only because it offers high heat resistance. The aluminum alloy, flute polish, cutting speed, coolant, and operation also affect performance.

Common Aluminum Problems

Built-up edge often points to high friction, a dull edge, poor chip evacuation, or unsuitable cutting conditions. Chip packing usually means the flute space or evacuation method cannot handle the chip volume.

In practice, first check the cutting edge, flute condition, tool overhang, air or coolant delivery, and whether the flute count leaves enough chip space.

Choosing a Carbide End Mill for Steel

Steel creates higher cutting forces and greater edge wear than aluminum. As a result, the tool needs a stronger core, stable cutting edges, suitable carbide grade, and heat-resistant coating.

Why Four Flutes Are a Common Starting Point

Four-flute end mills provide more cutting edges and often have a stronger core than comparable two-flute designs. This makes them a practical starting point for general steel slotting, side milling, profiling, and finishing.

However, four flutes are not the only option. Three-flute or variable-helix tools may suit roughing and high-efficiency machining, while five-flute or six-flute designs may suit controlled side milling and finishing.

Recommended Direction

For many carbon and alloy steel applications, consider:

• Four flutes as an initial selection
• Strong core and cutting edges
• Suitable corner preparation
• TiAlN, AlTiN, TiSiN, or application-based coating
• Stable holder and controlled runout
• Tool series matched to workpiece hardness

Low-carbon steel, alloy steel, and hardened steel should not automatically use the same cutter. As hardness and cutting temperature increase, carbide grade, coating, edge preparation, and tool rigidity become more important.

Common Steel Problems

Rapid flank wear may indicate an unsuitable carbide grade, coating, or cutting condition. Corner chipping can result from excessive cutting load, weak corner geometry, vibration, or interrupted cutting.

Before replacing the tool design, check the holder, runout, tool overhang, workpiece clamping, cutting depth, and whether the edge preparation matches the operation.

Choosing a Carbide End Mill for Stainless Steel

Stainless steel often combines toughness, heat generation, and work-hardening behavior. When the cutting edge rubs instead of forming a consistent chip, heat remains near the surface and the material may become harder to cut.

For this reason, stainless steel machining needs stable feed, rigid clamping, controlled runout, suitable edge strength, and reliable chip removal.

Recommended Direction

Depending on the operation, consider:

• Four flutes for many general milling operations
• Five or six flutes for suitable side milling and finishing
• Strong and stable cutting edges
• TiAlN, AlTiN, AlCrN, or another suitable coating
• Short tool overhang
• Consistent feed and chip load
• Stable coolant or air delivery

A higher flute count provides more cutting edges but reduces chip space. Six flutes may work well in stable side milling or finishing, but they are not automatically the best choice for deep slotting or heavy full-width cutting.

Variable-Helix and Unequal-Pitch Designs

Variable-helix or unequal-pitch geometry can help reduce repetitive cutting forces. As a result, these designs may reduce chatter in unstable stainless steel applications.

They do not replace a rigid setup. The machine, holder, tool overhang, workpiece clamping, and cutting strategy still control overall stability.

Stainless Steel Types

Austenitic grades such as 304 and 316 tend to generate heat and work-harden. Hardenable stainless grades may require stronger edges and a tool series matched to their hardness.

Duplex stainless steel combines strength and toughness, so it often needs careful control of chip load, heat, and tool engagement. The exact grade should therefore be confirmed before selecting the final tool.

Choosing a Carbide End Mill for Cast Iron

Cast iron is often abrasive, so wear resistance and edge stability are major selection factors. However, different cast iron grades do not produce the same cutting behavior.

Gray Cast Iron

Gray cast iron usually produces short, brittle chips and may create fine dust. A wear-resistant carbide grade, strong edge, and suitable dust control can improve process stability.

Many gray cast iron operations use dry cutting or controlled air extraction. However, the coolant strategy should match the machine, material grade, and production process.

Ductile Cast Iron

Ductile cast iron has greater toughness than gray cast iron. Its chips may be longer, so chip control can become more important.

The cutter may need a balance between wear resistance and edge toughness. A very weak edge can chip under heavier cutting loads, while an unsuitable coating may wear quickly in abrasive conditions.

Recommended Direction

For cast iron machining, focus on:

• Wear-resistant carbide grade
• Strong cutting-edge geometry
• Suitable edge preparation
• Application-based coating
• Stable machine and holder setup
• Correct dust and chip control

Do not treat every cast iron grade as a dry, powder-producing material. Confirm whether the workpiece is gray, ductile, compacted graphite, or another type.

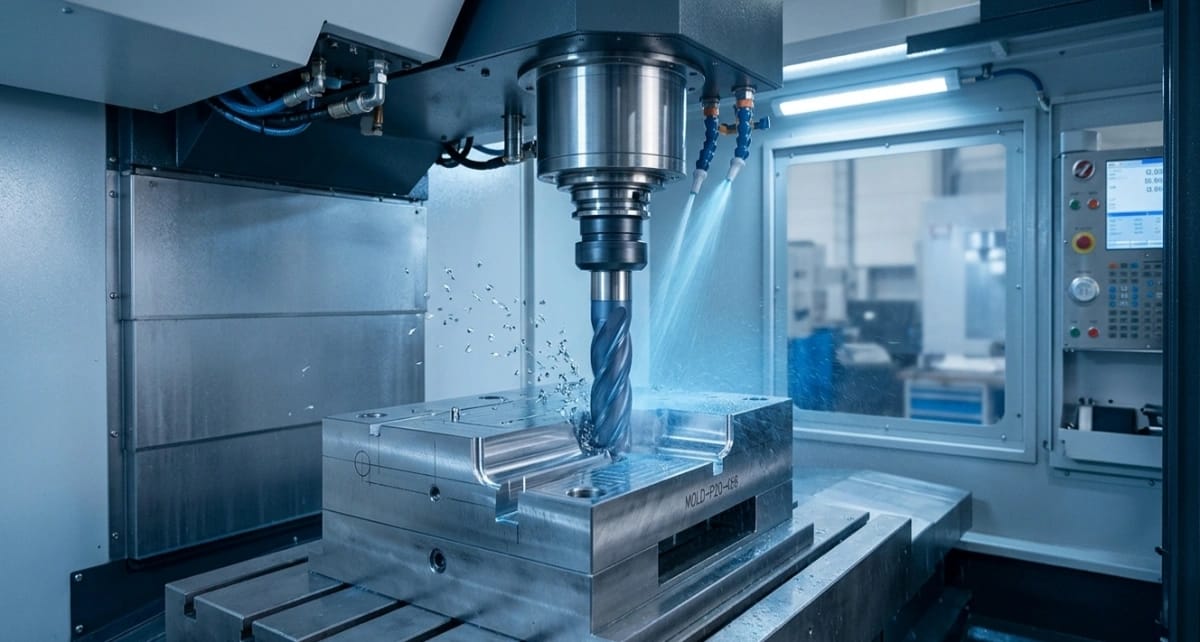

Choosing a Carbide End Mill for Mold and Tool Steel

Mold machining may include roughing, semi-finishing, cavity machining, profiling, and final finishing. Therefore, tool selection should match both the workpiece hardness and the shape being machined.

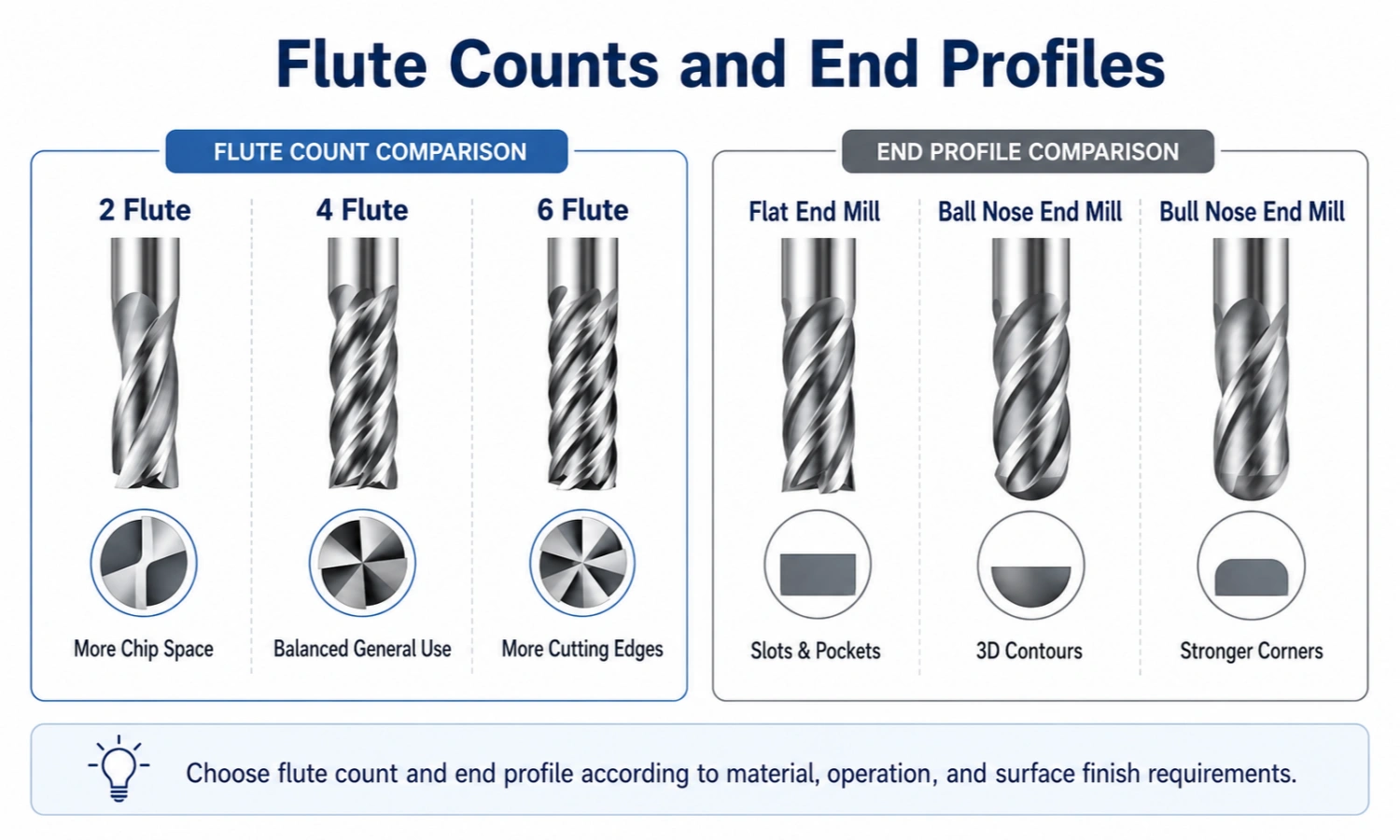

Select the End Profile by Feature Geometry

Flat end mills suit flat-bottom slots, pockets, steps, shoulders, and straight side walls.

Bull nose or corner radius end mills provide stronger outer corners than sharp square-end tools. They often suit profiling, semi-finishing, and mold machining where corner chipping is a concern.

Ball nose end mills follow curved surfaces and 3D contours. As the tool moves across a cavity, the rounded end maintains contact with complex geometry, making it useful for mold and die finishing.

For a broader comparison, read types of end mill cutters and their uses.

Match the Tool Series to Workpiece Hardness

Tool series may target materials up to HRC45, HRC55, HRC60, or HRC65. These values describe the intended workpiece hardness range, not the hardness of the carbide tool.

As hardness increases, the tool may need a finer carbide grade, stronger edge preparation, suitable coating, shorter overhang, and more stable holder setup.

Hard milling also requires careful control of runout, cutting load, tool engagement, and heat. A high-hardness tool series cannot compensate for an unstable setup.

Choosing a Carbide End Mill by Machining Operation

Roughing

Roughing creates high chip volume and cutting load. Use enough flute space to move chips away from the cutting zone, and select an edge structure that can handle the engagement.

Roughing or chipbreaker geometry divides chips into smaller sections and may reduce cutting resistance. Dynamic or trochoidal milling can also maintain a more consistent cutting load when the CAM strategy, machine, and setup support it.

Finishing

Finishing requires stable geometry, controlled tool runout, sharp and consistent edges, and a suitable end profile.

More flutes may improve feed capability and surface quality when chip evacuation remains adequate. Before changing the cutter, inspect the holder, tool condition, overhang, and workpiece clamping.

Deep Pocket Milling

Deep pockets increase the risk of chip accumulation, tool deflection, chatter, and poor coolant access.

Use the shortest practical overhang. When the feature requires additional reach, consider a long-neck design with only the necessary cutting length. This can improve rigidity compared with using an excessively long flute.

For a wider selection process that includes cutter type, size, coating, and operation, read our end mill tool selection guide.

Carbide End Mill Problem Diagnosis

This table helps identify the first points to check. A machining problem may have several causes, so changing only the coating or flute count may not solve it.

Common Selection Mistakes

Using One Cutter for Every Material

One tool cannot perform equally well in aluminum, steel, stainless steel, cast iron, and hardened mold steel. Each material creates different chips, heat, forces, and wear.

Ignoring Chip Evacuation

Poor chip evacuation increases heat and causes chip re-cutting. In deep slots and pockets, it can also lead to sudden tool failure.

Choosing the Coating by Name Only

A more expensive or higher-temperature coating is not automatically better. The coating must match the workpiece material, carbide grade, edge geometry, coolant condition, and cutting operation.

Using Excessive Tool Overhang

Long overhang reduces rigidity. Before changing speed, feed, or tool material, shorten the tool reach whenever the feature allows it.

Comparing Tool Price Only

A lower purchase price may not reduce the total machining cost. Tool life, surface quality, machine downtime, part rejection, and tool-change frequency also affect the final result.

FAQ

How do I choose a carbide end mill cutter?

Start with the workpiece material, hardness, and machining operation. Next, confirm the flute count, end profile, coating, tool dimensions, overhang, chip evacuation, and required surface finish.

Which carbide end mill is best for aluminum?

Two-flute or three-flute tools are common starting points because they provide more chip space. Sharp edges, polished flutes, and uncoated, DLC, or another low-friction option can also help reduce material buildup.

Can carbide end mills cut stainless steel?

Yes. The cutter should provide suitable rigidity, edge strength, flute space, coating, and cutting stability. Stable feed and controlled tool overhang also help reduce heat and work hardening.

What is the purpose of a variable-helix end mill?

A variable-helix or unequal-pitch design changes the timing of cutting forces. This can reduce repetitive vibration and chatter, especially during side milling and other unstable operations.

Should I use 2, 4, or 6 flutes?

Fewer flutes generally provide more chip space. More flutes provide more cutting edges and may improve rigidity or finishing performance. The correct choice depends on the material, operation, engagement, chip volume, and surface requirement.

For a detailed comparison, read 2 flute vs 4 flute vs 6 flute end mill.

When should a carbide end mill be replaced?

Inspect or replace the cutter when you notice edge chipping, abnormal noise, increased spindle load, dimensional drift, worsening surface finish, excessive burrs, or rapidly rising cutting heat.

Do not wait for complete tool failure. Replace the tool when wear begins to reduce process stability or part quality.

Need Help Selecting the Right Carbide End Mill?

The right tool depends on your workpiece material, hardness, machining operation, required dimensions, machine setup, and surface-finish requirements.

Send us your drawing, tool model, product image, sample, or available machining information. We will review your application and recommend a suitable carbide end mill solution.
