How to Choose Diamond Coated End Mills for Graphite, CFRP and GFRP

Learning how to choose diamond coated end mills is important when machining graphite, CFRP, GFRP, high-silicon aluminum, and other abrasive non-ferrous materials. The wrong flute design, tool length, end type, or cutting condition can still cause fast wear, poor surface finish, edge damage, or unstable dimensions.

This is especially true in abrasive and non-ferrous machining. These materials wear ordinary carbide tools quickly, but they do not all need the same cutter design.

For this reason, buyers and engineers should start with the workpiece material and machining operation. Then they can compare flute design, cutting diameter, tool length, end type, coating quality, tool rigidity, and custom requirements.

If you need standard or custom tools for graphite and CFRP machining, you can check our diamond coated end mills.

This guide explains how to choose a suitable diamond coated end mill for graphite electrodes, graphite molds, CFRP trimming, GFRP milling, high-silicon aluminum, and custom non-ferrous machining projects.

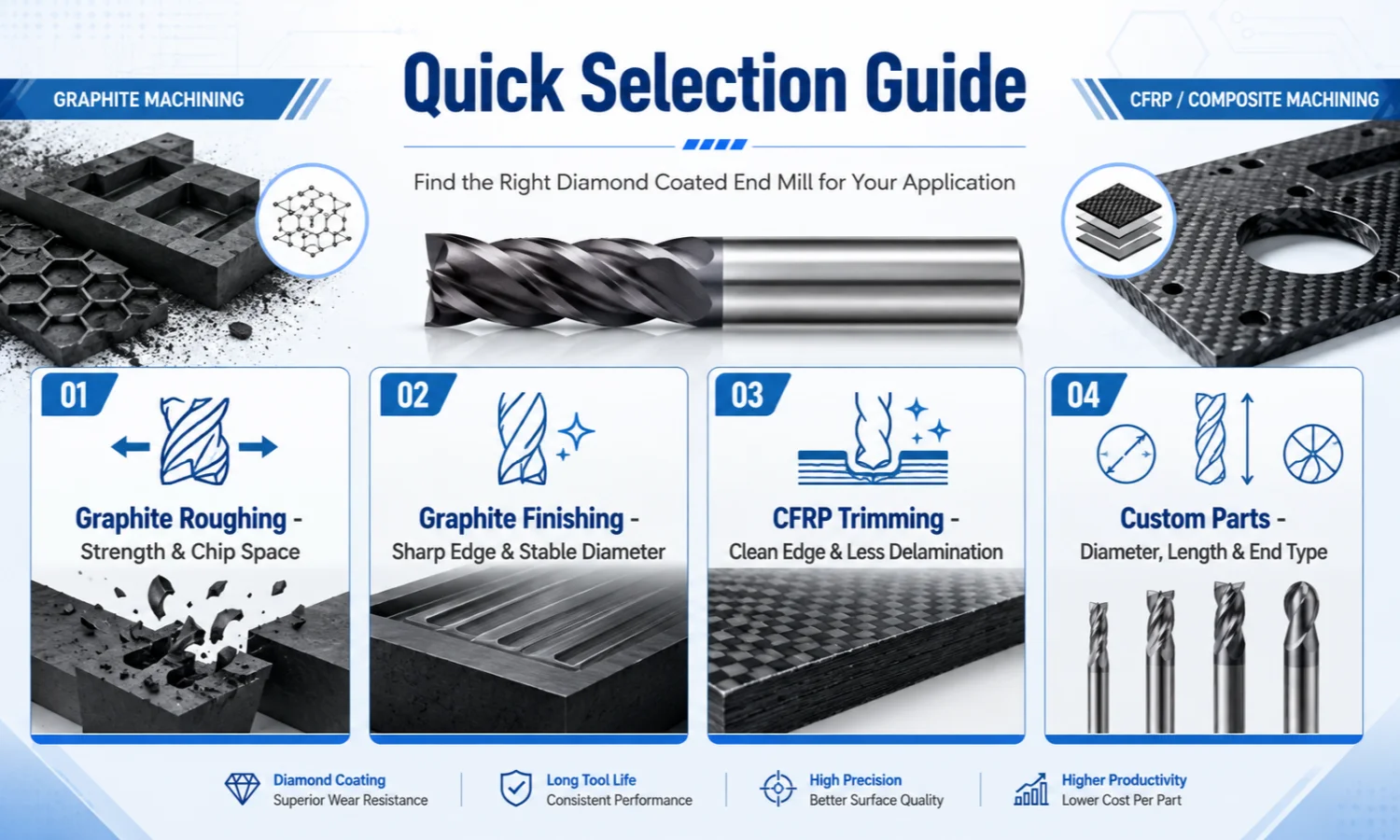

Quick Selection Guide: How to Choose Diamond Coated End Mills

Before reviewing each detail, you can use this table as a quick starting point. It does not replace test cutting, but it helps narrow down the tool direction.

Step 1: Confirm the Workpiece Material

Workpiece material is the first decision point. A diamond coated tool may perform very well in one material, but it may not be suitable for another.

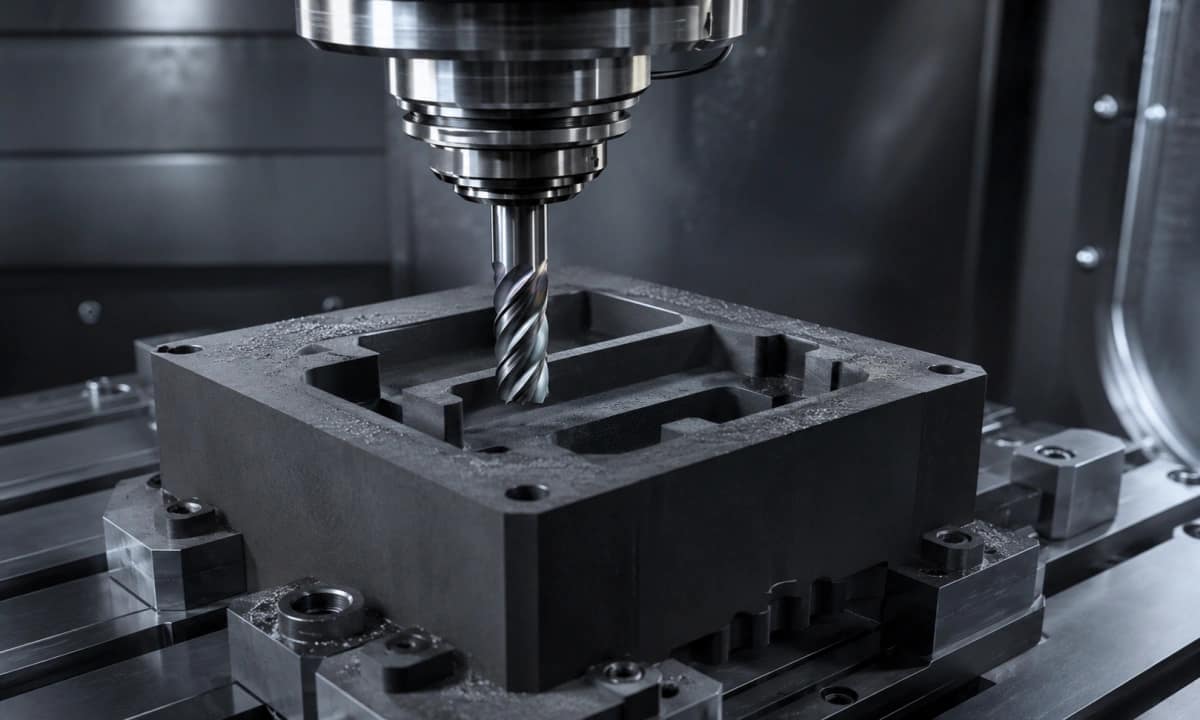

Graphite

In graphite machining, wear resistance and diameter stability are critical. Graphite is not hard like steel, but it is abrasive and dusty. As the cutting edge wears, the tool diameter may change, and this can affect electrode details, mold cavities, and fine contours.

For graphite roughing, start with a rigid tool body, stable clamping, and enough chip space. For graphite finishing, give more attention to edge sharpness, tool diameter stability, surface finish, and repeatability.

In most graphite electrode and graphite mold applications, the key question is not only “Can the tool cut graphite?” The better question is: “Can the tool keep the same cutting quality after a long cutting cycle?”

CFRP and GFRP

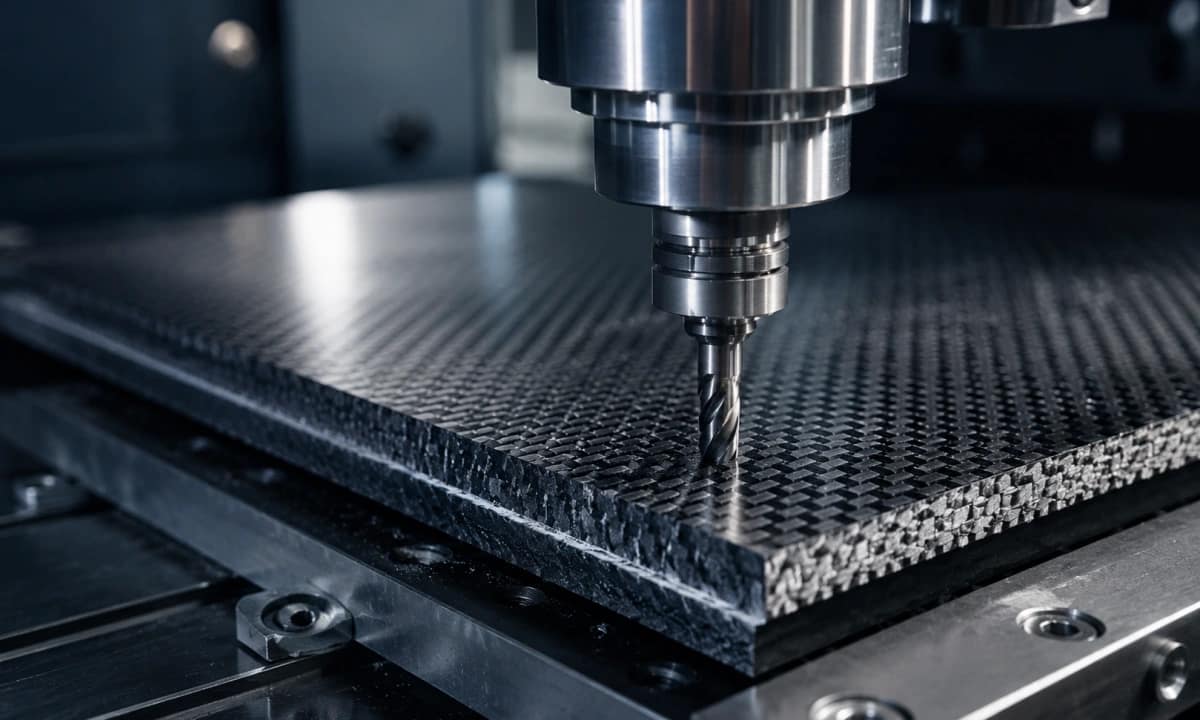

CFRP and GFRP create a different problem. The tool must cut fibers and resin cleanly. If the edge becomes dull or the geometry does not match the laminate structure, the part may show fuzzing, fiber pull-out, rough edges, or delamination.

For composite trimming, the cutter should not only resist wear. It should also support clean edge quality. Therefore, flute geometry, edge condition, machine rigidity, and dust removal all matter.

High-Silicon Aluminum

High-silicon aluminum is more abrasive than common aluminum. In this type of non-ferrous machining, diamond coated tools may help improve tool life and cutting stability.

However, the final choice still depends on silicon content, part shape, machine condition, surface finish requirements, and production volume.

Materials Not Recommended: Steel and Stainless Steel

Diamond coated end mills are usually not the first choice for steel, stainless steel, titanium, or other ferrous materials. These materials often need carbide end mills with coatings designed for heat resistance and cutting toughness.

For steel, stainless steel, and other ferrous materials, you can compare our carbide end mill cutter options here.

Step 2: Match the Tool to the Machining Operation

The same cutter may not work equally well for roughing, finishing, trimming, slotting, and contour milling. Therefore, choose the tool based on the operation, not only by diameter.

Graphite Roughing

Graphite roughing focuses on material removal and stable cutting. The tool needs enough strength and chip space. If the flute space is too limited, dust and chips may affect cutting stability.

A practical starting point is to choose the shortest tool that can safely reach the machining area. This helps improve rigidity and reduce vibration.

Graphite Finishing

Graphite finishing needs a sharper edge and stable tool diameter. In EDM electrode machining, small details, sharp corners, ribs, and cavity features can affect the final mold result.

For this reason, graphite finishing endmills should focus on edge quality, dimensional stability, and surface finish. A worn edge can reduce detail accuracy even when the tool still looks usable.

CFRP Trimming

CFRP trimming needs clean cutting rather than heavy material removal. If the edge quality is poor, the workpiece may show fuzzing, delamination, or fiber pull-out.

A suitable diamond coated end mill for CFRP should combine wear resistance with a cutting geometry that supports clean trimming. In addition, stable fixturing and dust removal are important.

Slotting and Contour Milling

Slotting and contour milling need a balance between chip evacuation, tool strength, and surface quality. If the slot is deep or the contour is thin, tool rigidity becomes more important.

In these cases, do not choose the longest flute length by default. Instead, match flute length to the actual cutting depth.

Custom Graphite or Composite Parts

Some graphite molds, composite components, deep cavities, or thin-wall parts need custom tool geometry. Standard tools may not provide enough reach, rigidity, or edge quality.

For non-standard requirements, you can review our custom end mills.

Step 3: Choose the Right Flute Design

Flute design affects chip evacuation, cutting stability, and surface finish. It also affects how the tool behaves in graphite dust or composite fibers.

Lower Flute Counts

Lower flute counts usually provide more chip space. They may work better for roughing or for operations where chip evacuation is important.

For graphite roughing, this can help maintain cutting stability. However, the best choice still depends on tool diameter, cutting depth, machine rigidity, and the required surface finish.

Higher Flute Counts

Higher flute counts may support smoother finishing in some applications. They can also help improve surface consistency when the machine setup is stable.

However, more flutes are not always better. If chip space becomes too small, the tool may rub, heat may increase, and cutting stability may decline.

Composite-Specific Geometry

For CFRP and GFRP, flute design should support clean fiber cutting. A general end mill may cut the shape, but it may leave fuzzing or rough edges if the geometry does not match the composite material.

When edge quality is critical, the tool design should be selected around trimming quality, laminate structure, and production stability.

Custom Flute Geometry

For non-standard graphite parts or composite components, custom flute geometry may provide better results than standard tools. This is especially useful for long reach tools, deep cavities, special profiles, or strict edge requirements.

The goal is not to customize every tool, but to solve reach, rigidity, edge quality, or profile problems that standard tools cannot handle.

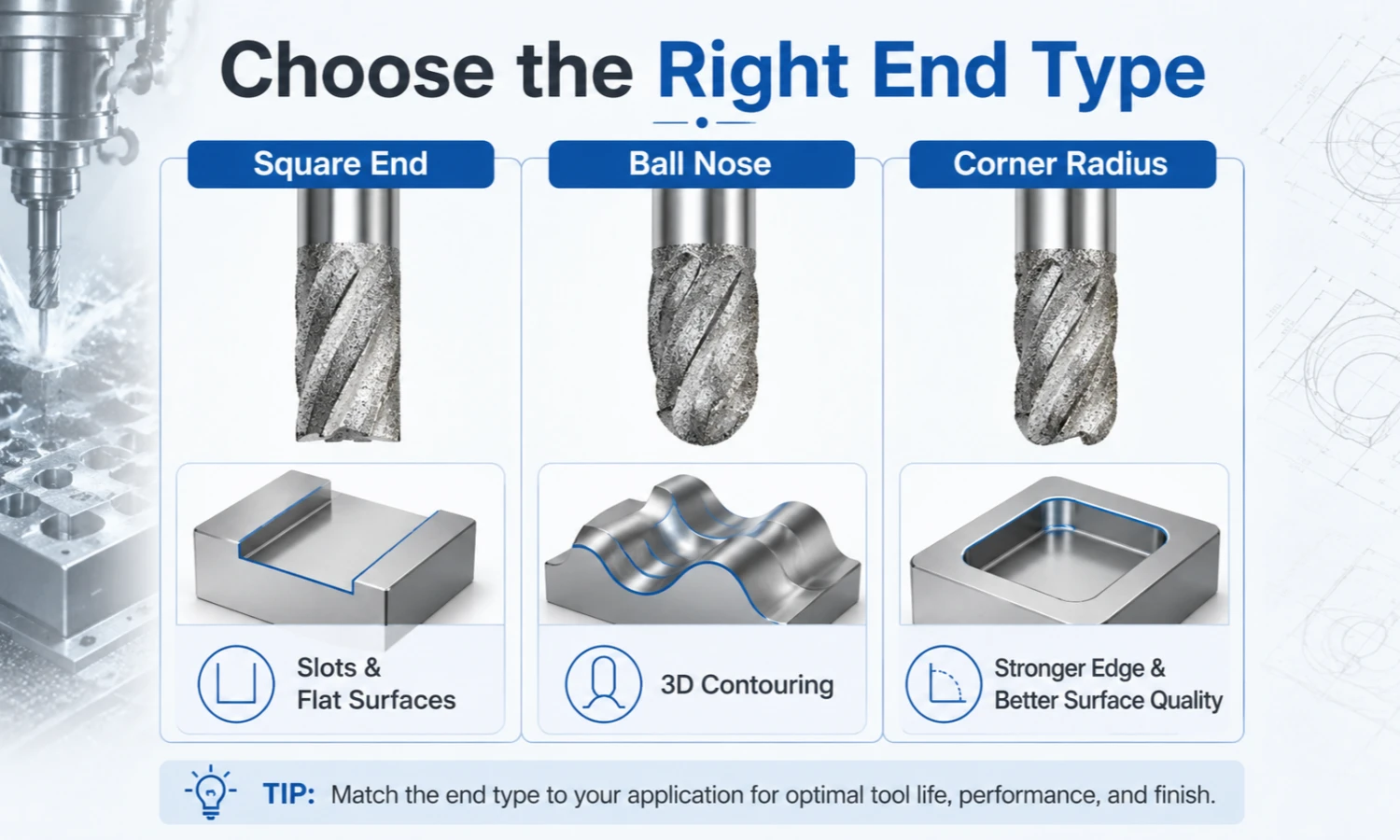

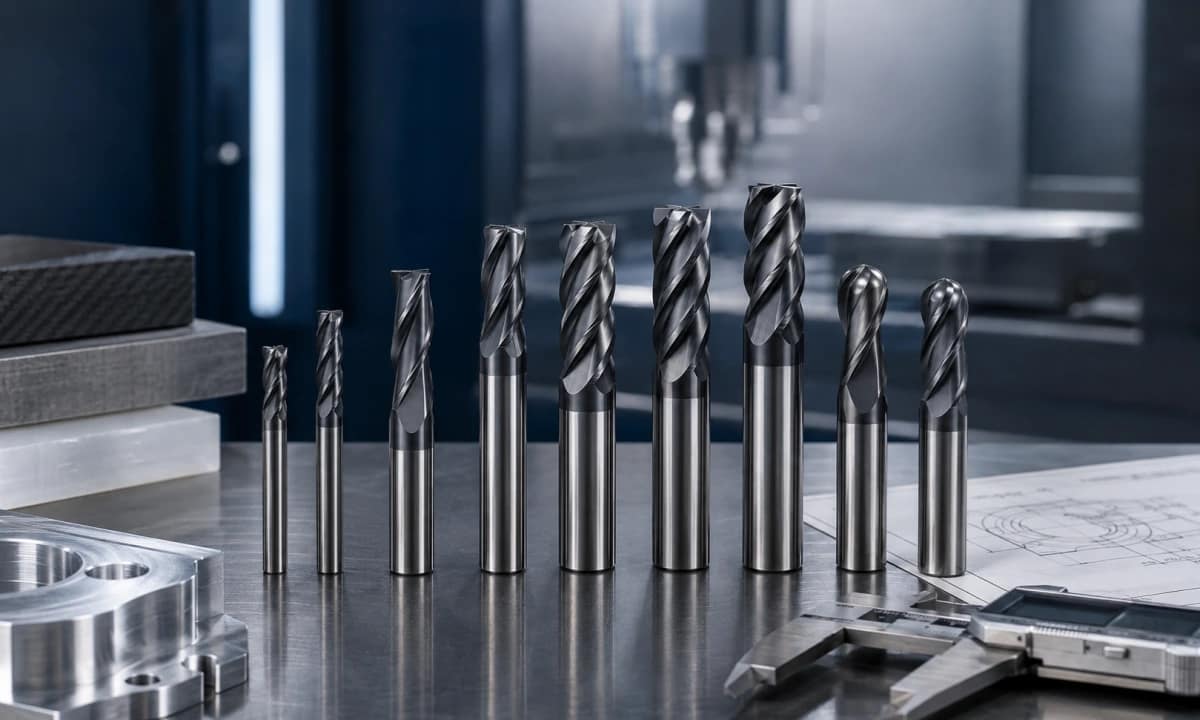

Step 4: Select the End Type

The end type should match the shape of the part and the machining purpose. Square end, ball nose, and corner radius tools solve different machining needs.

Square End

Square end tools work well for slots, flat surfaces, side milling, and general graphite or composite machining. They create flat-bottom features and straight side walls.

Choose this type when the part needs clean shoulders, flat surfaces, or standard milling features.

Ball Nose

Ball nose tools are suitable for 3D contouring, curved surfaces, and mold-related machining. They help create smoother tool paths on complex shapes.

For graphite molds, electrodes, and 3D profiles, a ball nose diamond coated end mill may be more suitable than a square end tool.

Corner Radius

Corner radius tools offer better edge strength than sharp square end tools. They may be useful when the application needs both tool strength and better surface quality.

This design can help reduce corner chipping and improve stability in some graphite and non-ferrous machining conditions.

Step 5: Check Cutting Diameter, Flute Length and Tool Length

Tool size affects machining stability. A very long tool may vibrate more easily, while a very short tool may not reach the required area.

For graphite and composite machining, this is especially important because vibration can reduce edge quality and speed up tool wear.

A common mistake is choosing a longer tool “just in case.” In practice, unnecessary length can increase vibration and reduce tool life. When the required reach is uncertain, start with the shortest tool that can safely complete the operation.

If the part has deep cavities, thin walls, or special contours, prepare a drawing or sample photo before requesting a recommendation.

Step 6: Understand Coating Quality and Tool Structure

Diamond coating matters, but coating alone does not decide tool performance. This is why choosing diamond coated end mills should include coating quality, carbide substrate, edge preparation, and tool geometry together.

Diamond Coating

Diamond coating helps improve wear resistance when machining abrasive materials. This is why many manufacturers choose diamond coated tools for graphite electrodes, CFRP trimming, GFRP milling, and high-wear non-ferrous applications.

However, tool life is not decided by coating only. Material grade, tool geometry, machine rigidity, cutting conditions, and clamping quality also affect the final result.

Carbide Substrate and Edge Preparation

A stable carbide substrate supports tool rigidity and cutting strength. Meanwhile, edge preparation affects sharpness, strength, and surface quality.

For graphite finishing and CFRP trimming, the cutting edge should stay sharp enough to maintain clean cutting. For roughing or stronger cutting loads, edge strength may become more important.

Diamond Coated vs PCD vs DLC

Different diamond-related tool solutions do not work the same way. The table below gives a simple comparison for purchasing and selection discussions.

If the application is not clear, do not choose by coating name only. First confirm the material, operation, surface requirement, and production volume.

Step 7: Check Cutting Conditions Before Machining

Even the right tool can perform poorly if the cutting condition is not suitable. Before production, review the machine setup, clamping, tool runout, dust control, and cutting strategy.

Spindle Speed and Feed Rate

Spindle speed and feed rate should match the tool diameter, material, and machining operation. If the feed is too low, the tool may rub instead of cutting. If the feed is too aggressive, the cutting edge may wear or become unstable.

Therefore, test cutting is useful before batch production, especially for custom graphite parts or composite trimming.

Depth of Cut and Tool Rigidity

Depth of cut should match tool length, workpiece shape, and machine rigidity. A long overhang can increase vibration, especially in deep cavities or thin-wall parts.

When rigidity is limited, a shorter flute length, stronger neck design, or adjusted cutting strategy may improve stability.

Dust Control, Cooling and Runout

Graphite machining creates dust, so dust control and air evacuation are important. Composite machining also needs stable cutting and clean edges.

In both cases, tool runout can affect surface finish, edge quality, and tool life. Before production, check the tool holder, clamping condition, runout, and machine stability.

This table is a starting checklist. Final parameters should be confirmed through material condition, machine capability, and test cutting.

Step 8: Avoid Using the Wrong Tool for the Material

Before choosing a diamond coated end mill, confirm whether the material is suitable for diamond coating. These tools mainly support graphite, CFRP, GFRP, high-silicon aluminum, and abrasive non-ferrous materials.

They are usually not the best choice for steel, stainless steel, titanium, or other ferrous materials. If the material is wrong, tool life, surface finish, and cutting stability may all become worse.

For a basic explanation of applications, you can also read our guide on what diamond coated end mills are used for.

Step 9: Decide Whether You Need Standard or Custom Tools

Standard tools can work for many common machining jobs. However, custom tools may fit deep cavities, fine details, special edge requirements, or non-standard dimensions better.

When Standard Tools May Work

Standard tools may be suitable when the material, cutting depth, tool size, and machining operation are common. For example, standard diamond coated end mills can support many graphite electrode, mold, and composite trimming applications.

If the part does not need special reach, special profile, or unusual dimensions, a standard size may be enough.

When Custom Tools Are Better

You may need custom diamond coated end mills if your project requires:

• Special cutting diameter
• Longer flute length
• Longer overall length
• Special neck design
• Square end, ball nose, or corner radius design
• Drawing-based tool production
• OEM or ODM requirements
• Special marking or packaging

As a practical rule, custom tools become more useful when reach, rigidity, edge quality, or part geometry cannot be solved by a standard catalog size.

For broader graphite milling applications, you can also review our diamond milling cutter for graphite machining:

What Information Should You Send for a Quotation?

To get an accurate quotation, send complete tool and machining information. This helps reduce misunderstanding and makes the recommendation more practical.

The more details you provide, the easier it is to select the right tool. For custom tools, drawings or sample photos are especially helpful.

Common Mistakes When Choosing Diamond Coated End Mills

Choosing Only by Diameter

Diameter is important, but it is not enough. Flute design, cutting length, coating, end type, and machining method also affect performance.

A tool with the correct diameter may still fail if the flute length, edge design, or coating choice does not match the application.

Using the Same Tool for Roughing and Finishing

Roughing and finishing often need different tool designs. A roughing tool should focus on strength and material removal. A finishing tool should focus on surface quality and accuracy.

Therefore, one tool may not be the best option for every process.

Ignoring Workpiece Material

Graphite, CFRP, GFRP, and high-silicon aluminum do not behave the same way. The tool should match the material instead of using one cutter for all applications.

This is especially important when switching between graphite electrode machining and CFRP trimming.

Choosing Too Much Tool Length

A longer tool may look safer because it gives more reach. However, unnecessary length can reduce rigidity and increase vibration.

For graphite and composite machining, poor rigidity can affect tool life, surface finish, and edge quality.

Not Sending Drawings for Custom Tools

For custom tools, drawings or sample photos help confirm the correct geometry. Without these details, the quotation may not be accurate.

If the part has deep cavities, thin walls, special contours, or strict surface requirements, send as much detail as possible.

FAQ

How do I choose diamond coated end mills for graphite?

Start with the machining operation, cutting diameter, flute length, end type, and required surface finish. For graphite electrodes and molds, wear resistance and dimensional stability are especially important.

Are diamond coated end mills good for CFRP?

Yes. They can support CFRP trimming and milling because the coating helps improve wear resistance. However, edge geometry, machine rigidity, and dust control also affect fuzzing, delamination, and fiber pull-out.

Can I use diamond coated end mills for steel?

We do not recommend them for steel or stainless steel. For ferrous materials, carbide end mills with suitable coatings usually work better.

What flute design is better for graphite machining?

For graphite roughing, a flute design with more chip space may help improve chip evacuation and tool stability. For graphite finishing, sharp edge quality and stable tool diameter become more important.

Should I choose square end, ball nose, or corner radius?

Choose square end tools for slots, flat surfaces, and side milling. For 3D contouring and curved surfaces, ball nose tools are usually more suitable. When you need better edge strength and stable surface quality, corner radius tools can be a better option.

What is the difference between diamond coated end mills and PCD tools?

Diamond coated end mills use a carbide substrate with diamond coating on the cutting surface. PCD tools use polycrystalline diamond cutting edges. The better option depends on material, tool size, edge requirement, production volume, and cost target.

When should I request custom diamond coated end mills?

You may need custom tools for non-standard diameters, longer flute lengths, longer overall lengths, special neck designs, special end types, deep cavities, or drawing-based production.

What information should I send before asking for a quotation?

Please send the workpiece material, machining operation, cutting diameter, flute length, overall length, end type, quantity, and drawing or sample photo if available.

Conclusion

Understanding how to choose diamond coated end mills requires more than selecting a diameter from a catalog. You should first confirm the workpiece material, then match the tool to the machining operation, flute design, end type, tool length, coating quality, and machine condition.

For graphite electrodes, graphite molds, CFRP trimming, GFRP milling, and high-silicon aluminum machining, the right tool can help improve wear resistance, cutting stability, and machining consistency.

With 16 years of cutting tool manufacturing experience, OMIST can help customers review material, tool size, and machining requirements before production.

Get Support for Diamond Coated End Mills

If you need diamond coated end mills for graphite, CFRP, GFRP, high-silicon aluminum, or other abrasive non-ferrous materials, please send us your workpiece material, tool size, drawing, machining operation, and quantity.

OMIST can help you confirm whether a standard tool or a custom diamond coated end mill is more suitable for your project.
