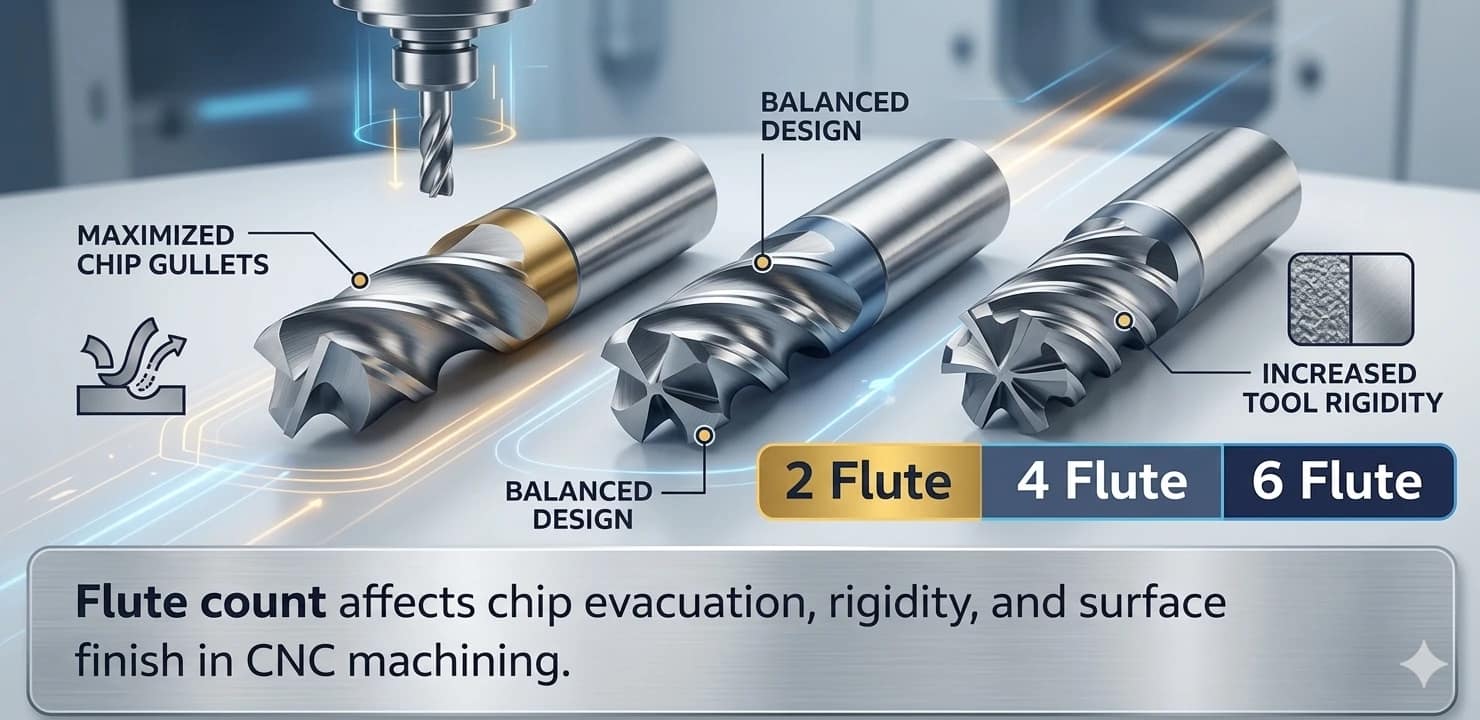

2 Flute vs 4 Flute vs 6 Flute End Mill: How to Choose

Choosing the right end mill is not only about diameter, coating, or carbide grade. In CNC machining, flute count affects chip evacuation, rigidity, cutting stability, feed performance, and surface finish. Therefore, a 2 flute, 4 flute, and 6 flute end mill can perform very differently in aluminum, steel, stainless steel, slotting, roughing, and finishing.

In simple terms, a 2 flute end mill is usually better for aluminum, soft materials, slotting, and roughing because it offers more chip space. A 4 flute end mill is a balanced general-purpose choice for steel and stainless steel. A 6 flute end mill works better for controlled side milling, semi-finishing, and finishing when rigidity and surface quality matter more than chip space.

This guide compares 2 flute vs 4 flute vs 6 flute end mills by material, cutting operation, chip evacuation, rigidity, and finish quality.

This guide gives you a practical way to compare 2 flute vs 4 flute vs 6 flute end mills by material and operation.If you need a cutting tool directly, you can also view our related product pages.

2 flute end mill product page

4 flute end mill product page

custom 6 flute end mill product page

Why Flute Count Matters in CNC Machining

Flute count affects several important cutting factors, including:

• chip evacuation
• cutting resistance
• tool rigidity
• feed potential
• surface finish

In general, fewer flutes mean more chip space. Therefore, lower flute count tools are often better when chip removal is the priority. By contrast, more flutes usually mean higher rigidity and more edge contact, which can support better finishing in harder materials.

For this reason, flute count should always match the material, operation, and machining goal.

What Is a 2 Flute End Mill Best For?

A 2 flute end mill has two cutting edges and larger flute space than higher-flute tools. Because of this design, it works well when chip evacuation is critical, especially in aluminum and other soft materials.

A 2 flute cutter is often a practical choice for:

• aluminum machining
• brass and copper
• plastics and composites
• slotting
• pocket milling
• roughing
• light plunge entry

If you want a more detailed explanation, you can also read our what is a 2 flute end mill used for guide.

What Is a 4 Flute End Mill Best For?

A 4 flute end mill has four cutting edges and offers a balanced combination of chip evacuation, rigidity, and cutting versatility. Although it has less chip space than a 2 flute tool, it often works better in steel, stainless steel, and general CNC milling.

A 4 flute cutter is commonly used for:

• steel machining
• stainless steel machining
• general-purpose CNC milling
• side milling
• semi-finishing
• finishing in many standard applications

Therefore, if your main job involves general steel cutting rather than aluminum slotting, a 4 flute tool is often a good starting point.

What Is a 6 Flute End Mill Best For?

A 6 flute end mill has six cutting edges and higher rigidity than 2 flute and 4 flute tools. Because it has less chip space, it is usually not the first choice for deep slotting or heavy roughing. However, it works well for controlled side milling, profile machining, semi-finishing, and finishing when smoother surfaces and stable cutting matter most.

A 6 flute cutter is often used for:

• semi-finishing
• finishing
• profile machining
• side milling
• harder materials
• applications that require better surface finish

In other words, a 6 flute end mill is usually chosen for more controlled cutting conditions rather than aggressive chip removal.

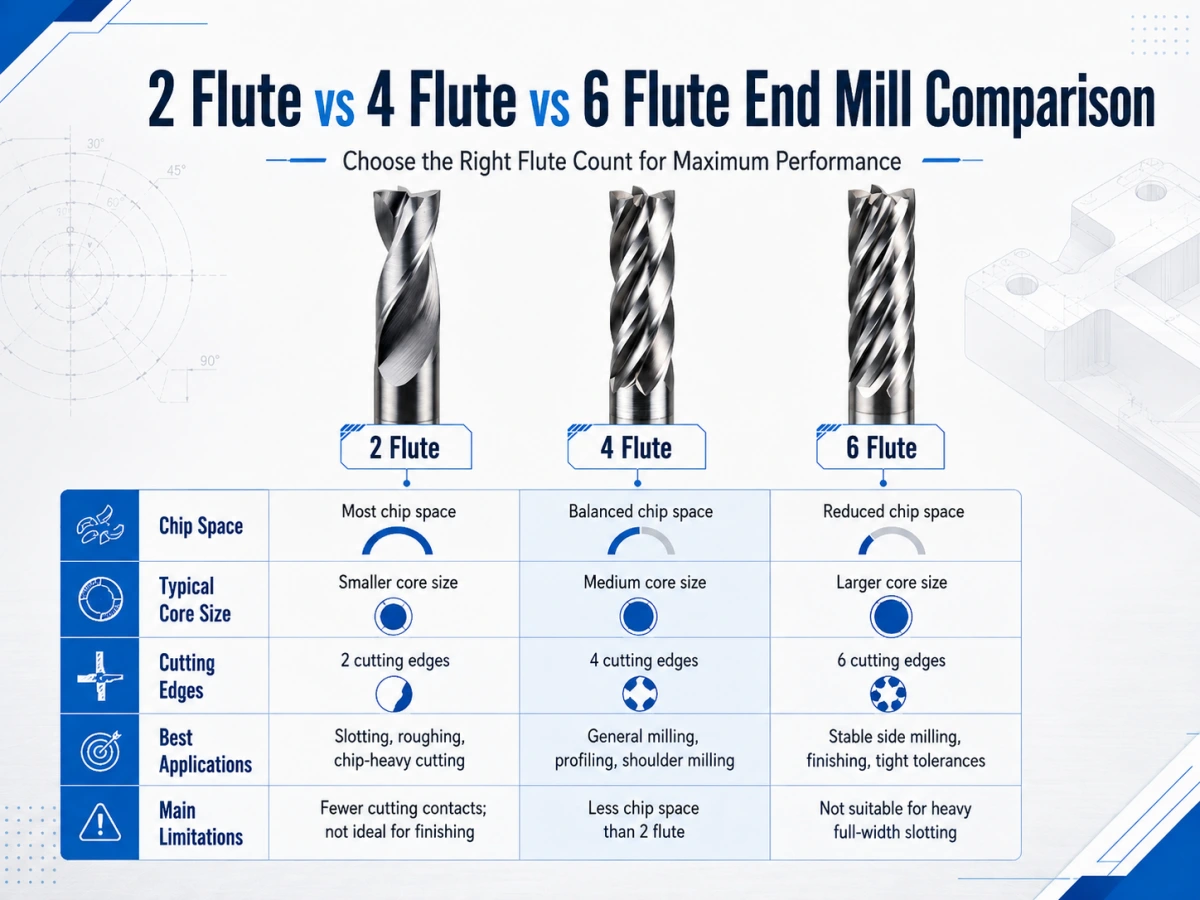

Quick Comparison Table

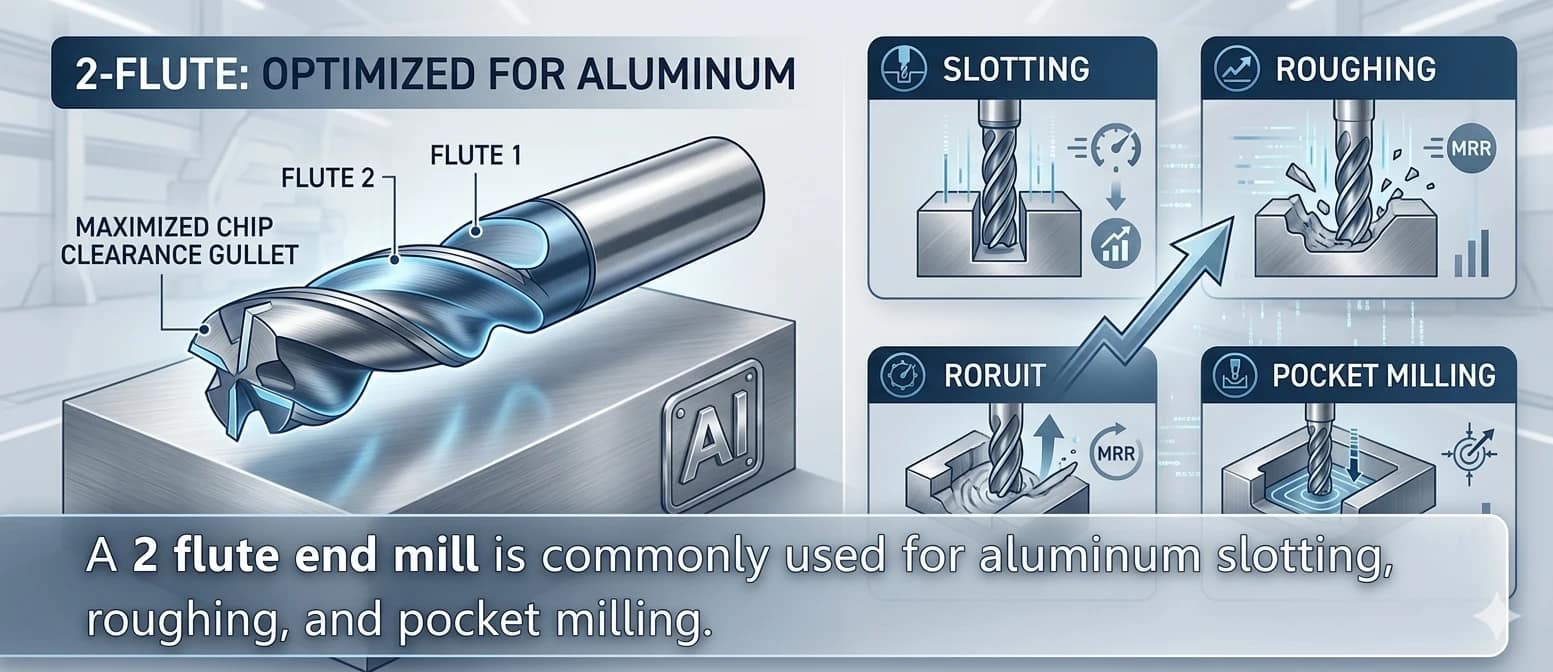

Best Flute Count for Aluminum

For aluminum machining, chip evacuation is usually one of the most important factors. Aluminum often creates larger chips, so chips must leave the cutting zone smoothly to avoid recutting and unstable cutting.

Because of this, a 2 flute end mill is often the best choice for:

• aluminum slotting
• pocket milling
• roughing
• light plunge entry
• general soft-material machining

A 4 flute or 6 flute tool can still cut aluminum in some controlled finishing conditions. However, for most general aluminum slotting, roughing, and pocket milling jobs, a 2 flute cutter is usually the more practical option because it clears chips more easily. If your process also involves light plunge entry, you can read our can you plunge with a 2 flute end mill guide.

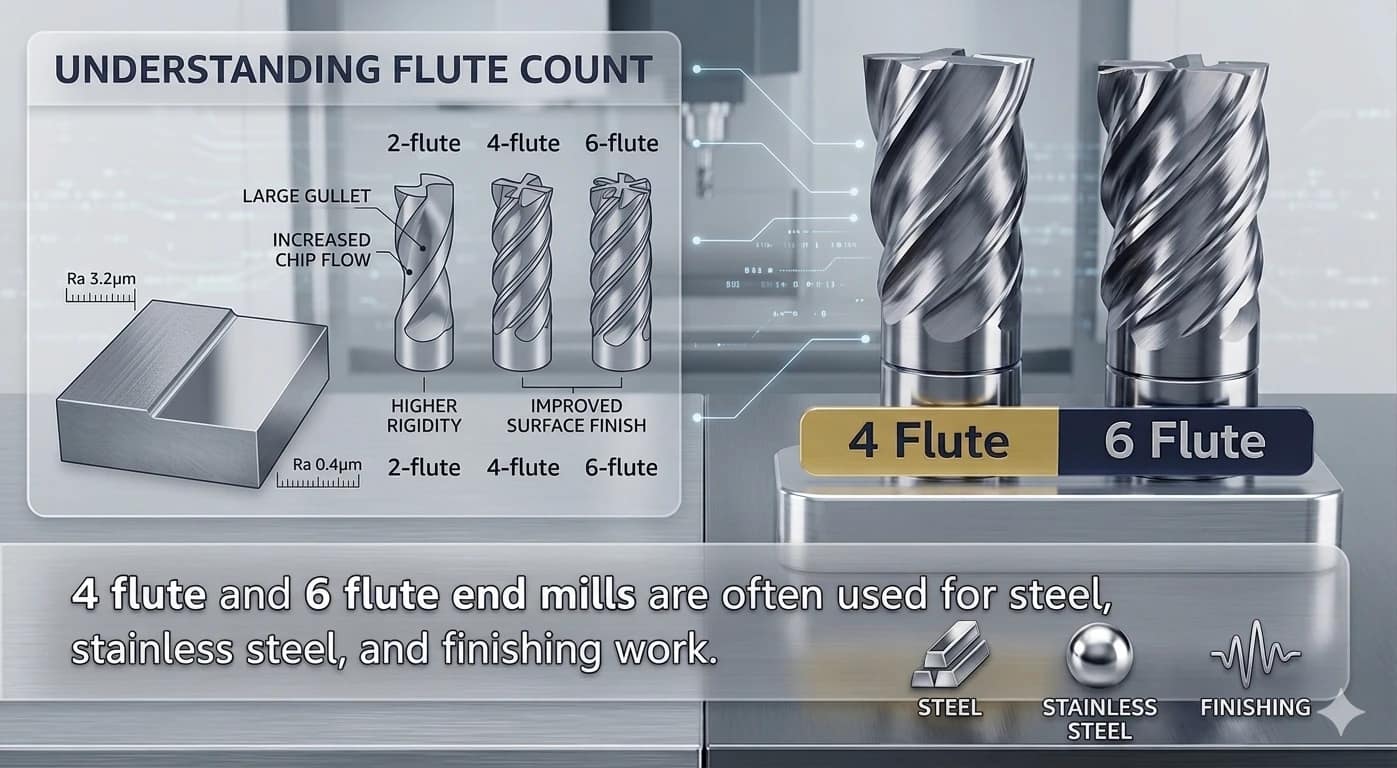

Best Flute Count for Steel and Stainless Steel

For steel and stainless steel, rigidity becomes more important than maximum chip space. Cutting pressure is higher, and the tool often benefits from more edge support.

In many cases:

• a 4 flute end mill is a strong general-purpose option
• a 6 flute end mill is more suitable for semi-finishing and finishing

So, if your work focuses on general steel machining, a 4 flute tool is often the easier first choice. If your goal is better finish quality and more stable side milling, a 6 flute cutter may be the better fit.

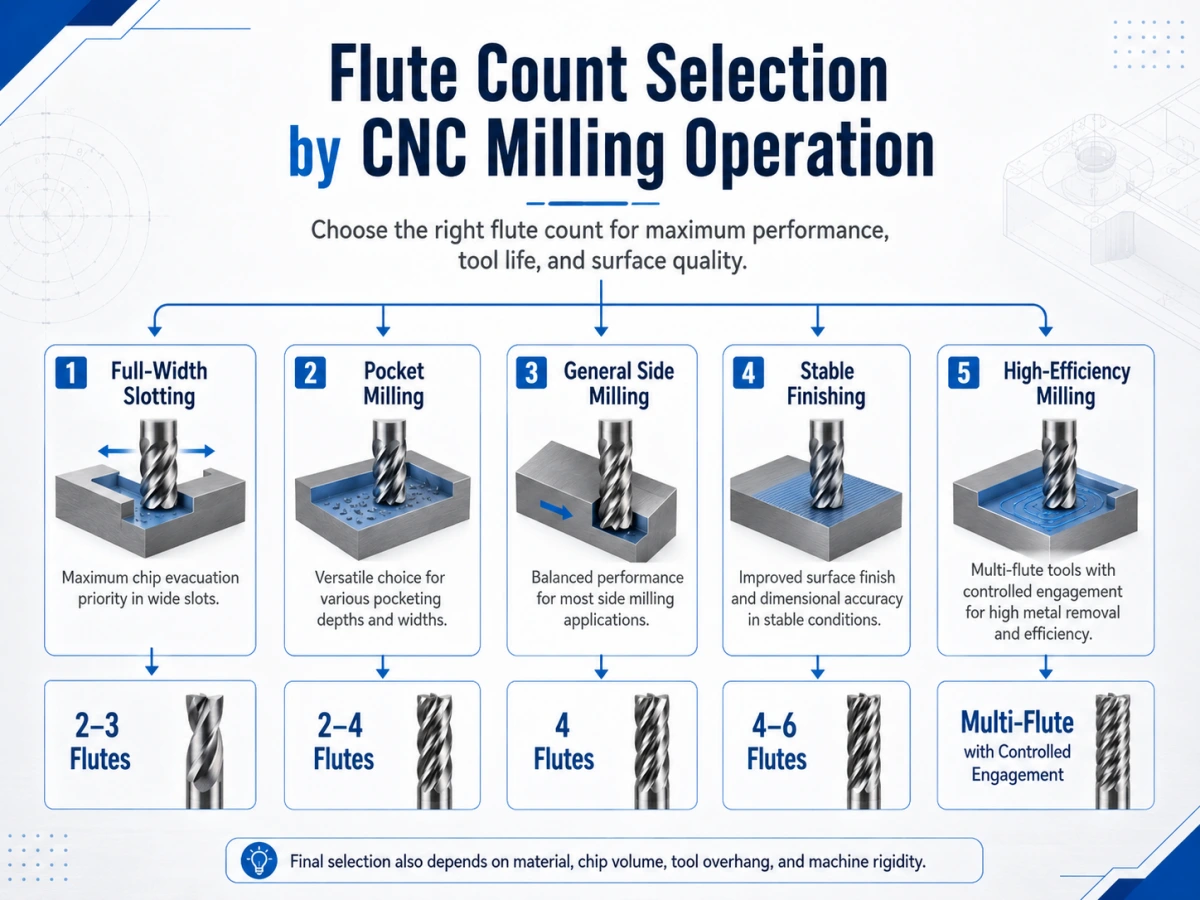

How to Choose by Cutting Operation

The right flute count also depends on the cutting operation. Slotting, pocket milling, roughing, semi-finishing, and finishing need different chip space, rigidity, and surface finish performance.

Slotting

For slotting, chips stay inside the groove more easily. Therefore, chip evacuation becomes critical. In most aluminum and soft-material slotting jobs, a 2 flute end mill is often the better choice.

Pocket Milling

For pocket milling, a 2 flute cutter is often preferred in soft materials because it can clear chips more easily in a limited space.

Roughing

For roughing soft materials, a 2 flute tool is usually effective. For roughing harder materials, a 4 flute cutter may provide a better balance of rigidity and cutting stability.

Semi-finishing

For semi-finishing in steel or stainless steel, a 4 flute or 6 flute end mill is usually more suitable.

Finishing

For finishing, especially in harder materials, a 6 flute end mill is often preferred because it offers higher rigidity and more consistent edge engagement.

Simple Selection Guide

Choose a 2 flute end mill when:

• the material is aluminum or another soft material
• chip evacuation is the priority
• the job involves slotting or roughing
• light plunge entry may be needed

Choose a 4 flute end mill when:

• the material is steel or stainless steel
• you need a balanced general-purpose cutter
• the operation includes side milling or semi-finishing
• rigidity matters more than maximum chip space

Choose a 6 flute end mill when:

• the material is harder
• finishing quality is more important
• the operation is profile machining or side milling
• you need higher rigidity in semi-finishing or finishing work

When Is a 2 Flute Tool Not the Best Choice?

Although a 2 flute cutter is excellent for aluminum and soft materials, it is not ideal for every application.

It may not be the best option when:

• machining hardened steel
• cutting stainless steel under higher load
• requiring finer surface finish
• performing finishing work where rigidity matters most

In these conditions, a 4 flute or 6 flute tool is often more suitable.

When Is a 6 Flute Tool Not the Best Choice?

A 6 flute cutter also has its limits. Because chip space is smaller, it is usually not the best choice for:

• deep slotting
• aggressive plunge cutting
• roughing aluminum
• operations where chips must evacuate quickly

That is why more flutes do not automatically mean a better cutter. The right flute count still depends on the material and operation.

Related Guides

If you want to compare specific flute counts in more detail, read these focused guides:

2 flute vs 4 flute end mill guide

4-flute and 6-flute comparison guide

What is a 6 flute end mill used for?

FAQ

Which is better: 2 flute, 4 flute, or 6 flute?

There is no single best choice. A 2 flute end mill is usually better for aluminum, soft materials, slotting, and roughing. A 4 flute end mill is better for general steel machining, while a 6 flute end mill works better for controlled semi-finishing and finishing.

Is 2 flute better for aluminum?

In many cases, yes. A 2 flute end mill usually works better for aluminum because it provides more flute space and clears chips more easily. This helps reduce chip packing during slotting, pocket milling, and roughing.

Is 4 flute better for steel?

A 4 flute end mill is often a good choice for general steel and stainless steel machining. It gives a practical balance between rigidity, chip evacuation, and surface finish.

Is 6 flute only for finishing?

Not only, but it is more commonly used for semi-finishing, finishing, profile machining, and stable side milling. It is usually not the best choice for deep slotting or aggressive roughing because chip space is more limited.

How do I choose the right flute count?

Start with the material, cutting operation, cutting depth, and finish requirement. Choose fewer flutes when chip evacuation matters most, and choose more flutes when rigidity and surface finish matter more.

Conclusion

When comparing 2 flute vs 4 flute vs 6 flute end mills, the most important rule is to match the flute count to the material, cutting operation, and machining goal.

A 2 flute end mill is usually the better choice for aluminum, soft materials, slotting, and roughing because it offers more chip space. A 4 flute end mill is a practical general-purpose option for steel and stainless steel machining. A 6 flute end mill is often better for controlled side milling, semi-finishing, and finishing when higher rigidity and better surface quality are needed.

Instead of asking which flute count is always better, ask which flute count matches your material, cutting depth, chip evacuation needs, rigidity requirement, and surface finish goal.
