Bull Nose End Mill vs Ball Nose End Mill: What’s the Difference?

Introduction

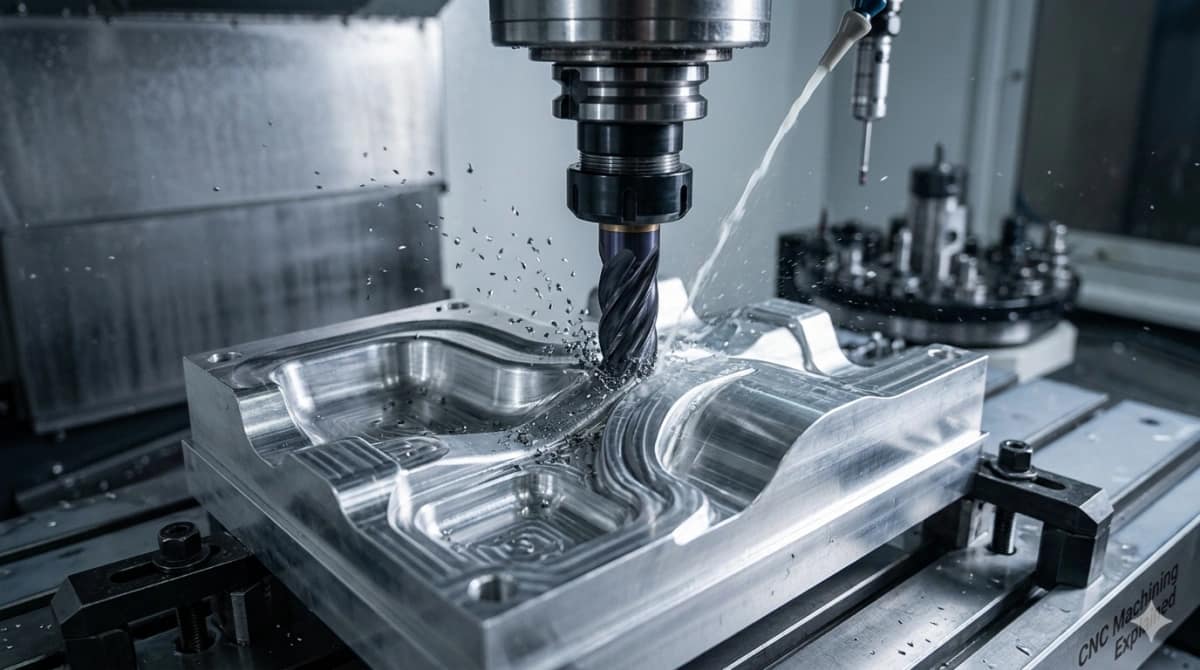

In CNC machining, choosing the right end mill affects surface finish, tool life, machining stability, and overall efficiency. Among the most common tool comparisons, many machinists want to understand the difference between a bull nose end mill and a ball nose end mill.

Although these two cutters are both used in contour-related machining, they are not designed for exactly the same purpose. A bull nose end mill has a flat bottom with a corner radius, while a ball nose end mill has a fully rounded tip. Because of this difference, each tool performs better in specific machining situations.

In simple terms, a bull nose end mill is often preferred when stronger corners, smoother transitions, and better control on stepped or semi-flat features are needed. By contrast, a ball nose end mill is usually the better option for continuous 3D surfaces and complex curved forms.

If you want to check dimensions, radius options, and cutting specifications, view our bull nose end mill.

Quick Answer

Choose a bull nose end mill when you need better corner strength, more stable contouring, and smoother transitions on profiles or stepped surfaces.

Choose a ball nose end mill when you need continuous contact on 3D surfaces, sculpted forms, or complex curved parts.

In many real machining jobs, the key question is not which tool is universally better. Instead, the better choice depends on the part geometry, machining goal, and finish requirement.

What Is a Bull Nose End Mill?

A bull nose end mill is an end mill with a flat bottom and a rounded corner radius. It sits between a flat end mill and a ball nose end mill in terms of geometry and application.

Because the sharp corner is replaced by a radius, the cutting edge becomes stronger and less likely to chip. At the same time, the flat bottom still allows practical machining on many profiles, steps, and semi-flat surfaces. As a result, a bull nose end mill is widely used for contour milling, semi-finishing, cavity machining, and mold work.

If you want a more complete explanation of geometry and common uses, read what is a bull nose end mill.

What Is a Ball Nose End Mill?

A ball nose end mill has a fully rounded tip. Unlike a bull nose end mill, it does not have a flat bottom. This geometry allows the tool to stay in smoother contact with curved and three-dimensional surfaces.

For this reason, a ball nose end mill is commonly used in 3D contour machining, sculpted surfaces, mold finishing, and freeform geometry. However, because the tip is fully rounded, it is usually less efficient on flat or stepped surfaces than a bull nose end mill.

In practice, a ball nose end mill is often selected when the machining path involves continuous curves instead of flat-bottom or semi-flat features.

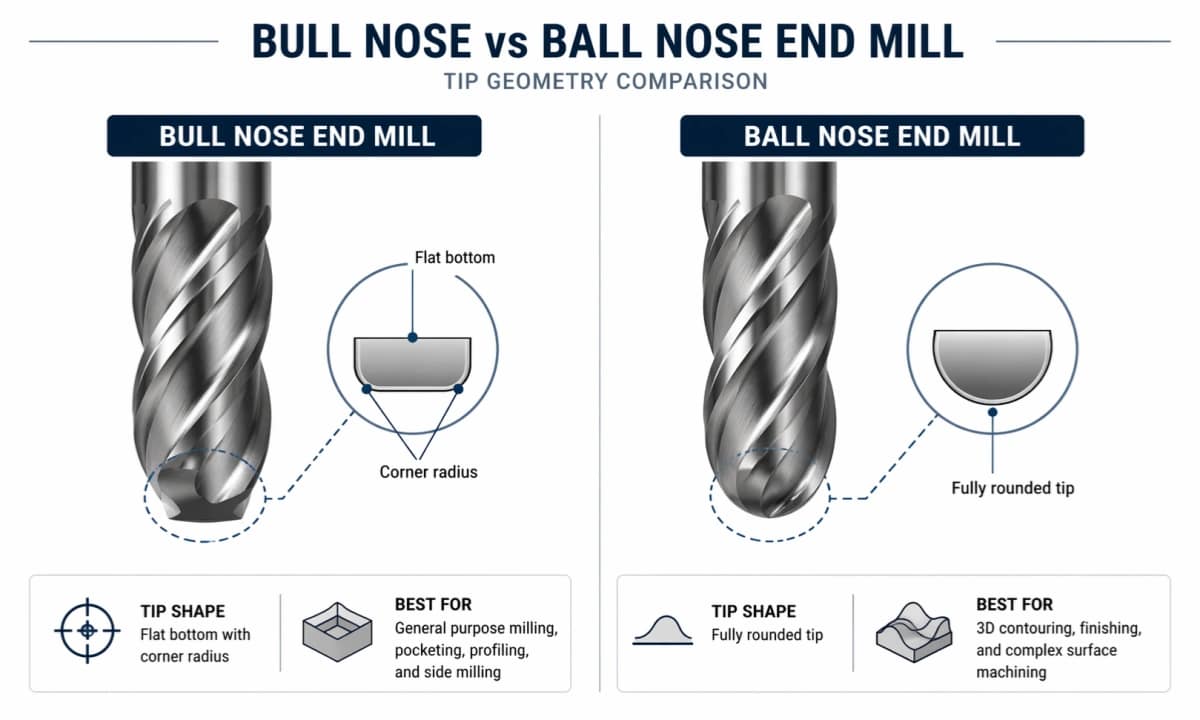

The Main Difference Between a Bull Nose End Mill and a Ball Nose End Mill

The main difference is the tip geometry, and that difference directly affects cutting behavior, finish quality, and application range.

Bull Nose End Mill Geometry

A bull nose end mill has:

• a flat bottom
• a corner radius
• stronger edge support
• better control on stepped or semi-flat features

Ball Nose End Mill Geometry

A ball nose end mill has:

• a fully rounded tip
• continuous curved contact
• better performance on 3D surfaces
• less support for flat-bottom machining

Why Geometry Matters

A bull nose end mill usually offers better corner durability and more practical cutting on stepped or semi-flat shapes. A ball nose end mill, however, is better when the tool must move smoothly across complex curved surfaces. In short, a bull nose tool is more balanced for strength and contour stability, while a ball nose tool is more specialized for curved surface finishing.

Quick Comparison Table

This table is intentionally simple so it stays easy to read on mobile devices.

Surface Finish and Cutting Performance

Although both tools can be used in contour-related work, their cutting behavior is different.

Surface Finish on Curved Surfaces

A ball nose end mill is often the better choice for continuous curved surfaces because the rounded tip moves more smoothly across 3D contours. Therefore, it is widely used in finishing operations for molds, dies, and sculpted parts.

Surface Finish on Stepped or Semi-Flat Areas

A bull nose end mill is often more practical when the workpiece includes transitions between flat and curved sections. Because it has a flat bottom and a corner radius, it can offer a better balance between finish quality and cutting stability.

Tool Stability

A bull nose end mill usually has stronger corners. As a result, it often performs better in demanding conditions where edge durability matters. A ball nose end mill can still perform very well, but its fully rounded tip is not always the most efficient choice for every geometry.

Tool Life

In many practical applications, a bull nose end mill can provide better edge support and lower local chipping risk. A ball nose end mill, however, often performs better when the priority is smooth finishing on continuous curves rather than stronger corner durability.

Which Tool Is Better for Different Applications?

The answer depends on the application. Each tool has clear strengths in specific machining tasks.

Bull Nose End Mill Is Better For

• contour milling
• semi-finishing operations
• cavity machining
• mold machining with stronger edge support
• stepped or partially flat surfaces
• jobs where corner chipping is a concern

Ball Nose End Mill Is Better For

• continuous 3D surface machining
• sculpted shapes
• curved finishing paths
• mold finishing on freeform surfaces
• parts with complex flowing geometry

Best Practical Choice

If the job includes both semi-flat transitions and curved features, a bull nose end mill is often more versatile. If the job is mostly 3D finishing with continuous curvature, a ball nose end mill is usually the better option.

How to Choose the Right Tool

Choosing between a bull nose end mill and a ball nose end mill depends on the part shape, machining goal, and finish requirement.

Choose a Bull Nose End Mill When

• you need better corner strength
• you are machining stepped profiles or semi-flat transitions
• you want more stable semi-finishing or contour milling
• you want to reduce local edge chipping

Choose a Ball Nose End Mill When

• you are machining continuous 3D surfaces
• you need smoother contact on curved geometry
• you are finishing sculpted molds or freeform parts
• you want a more natural toolpath on complex contours

Choose Based on the Most Critical Feature

If the part includes both curved and stepped features, choose the tool based on the most critical surface. In many real applications, machinists may use a bull nose end mill for semi-finishing and a ball nose end mill for final 3D finishing. This approach often gives a better balance between efficiency and surface quality.

If you also need to compare bull nose with a sharp-corner flat-bottom tool, read bull nose vs flat end mill.

Common Search Confusion

Many users compare bull nose, ball nose, and flat end mills at the same time. However, each comparison has a different search intent.

• Bull Nose End Mill vs Ball Nose End Mill focuses on flat bottom with corner radius vs fully rounded tip
• Bull Nose vs Flat End Mill focuses on rounded corner vs sharp corner
• What Is a Bull Nose End Mill focuses on tool definition, uses, and geometry

To avoid keyword overlap, this article stays focused on the difference between a bull nose end mill and a ball nose end mill. That keeps the topic clear and helps this article work better within your current content group.

FAQ

What is the difference between a bull nose end mill and a ball nose end mill?

A bull nose end mill has a flat bottom with a corner radius, while a ball nose end mill has a fully rounded tip. Therefore, the bull nose tool is usually better for stronger corners and semi-flat profiles, while the ball nose tool is better for continuous 3D surfaces.

Which tool is better for 3D surface machining?

A ball nose end mill is usually the better choice for continuous 3D surfaces because its rounded tip follows curved geometry more smoothly.

Which tool is better for contour milling?

In many contour milling applications, a bull nose end mill is more practical because it offers stronger edge support and better control on stepped or semi-flat profiles.

Is a bull nose end mill stronger than a ball nose end mill?

In many applications, yes. A bull nose end mill often provides stronger edge support because of its flat bottom and corner radius design.

Can one tool replace the other?

Not completely. These tools may overlap in some applications, but they are designed for different surface types and finishing goals.

Where can I check bull nose end mill specifications?

You can view our bull nose end mill page for dimensions, radius options, and machining details.

Conclusion

A bull nose end mill and a ball nose end mill may seem similar, but they are designed for different machining needs. A bull nose end mill is usually better for stronger corners, semi-finishing, contour stability, and stepped profiles. A ball nose end mill is usually better for smooth 3D surfaces, sculpted forms, and freeform finishing.

Therefore, the right choice depends on part geometry, cutting strategy, and finish requirement. If the job involves stronger edge support and more versatile profiling, a bull nose end mill is often the better option. If the job focuses on continuous 3D contour finishing, a ball nose end mill is usually the right tool.
