A ball mill cutter is a CNC milling tool with a fully rounded cutting end. It is mainly used for 3D contouring, mold cavity finishing, curved surface machining, and precision profile milling. Because the cutting end follows complex shapes smoothly, the tool can produce a more consistent finish on curved and freeform surfaces.
Buyers may also call this tool a ball end mill cutter, ball cutter tool, milling cutter with a ball end, or ball nose end mill. In professional cutting tool catalogs, “ball nose end mill” is usually the more standard product name. For standard sizes and custom options, view our carbide ball nose end mills.

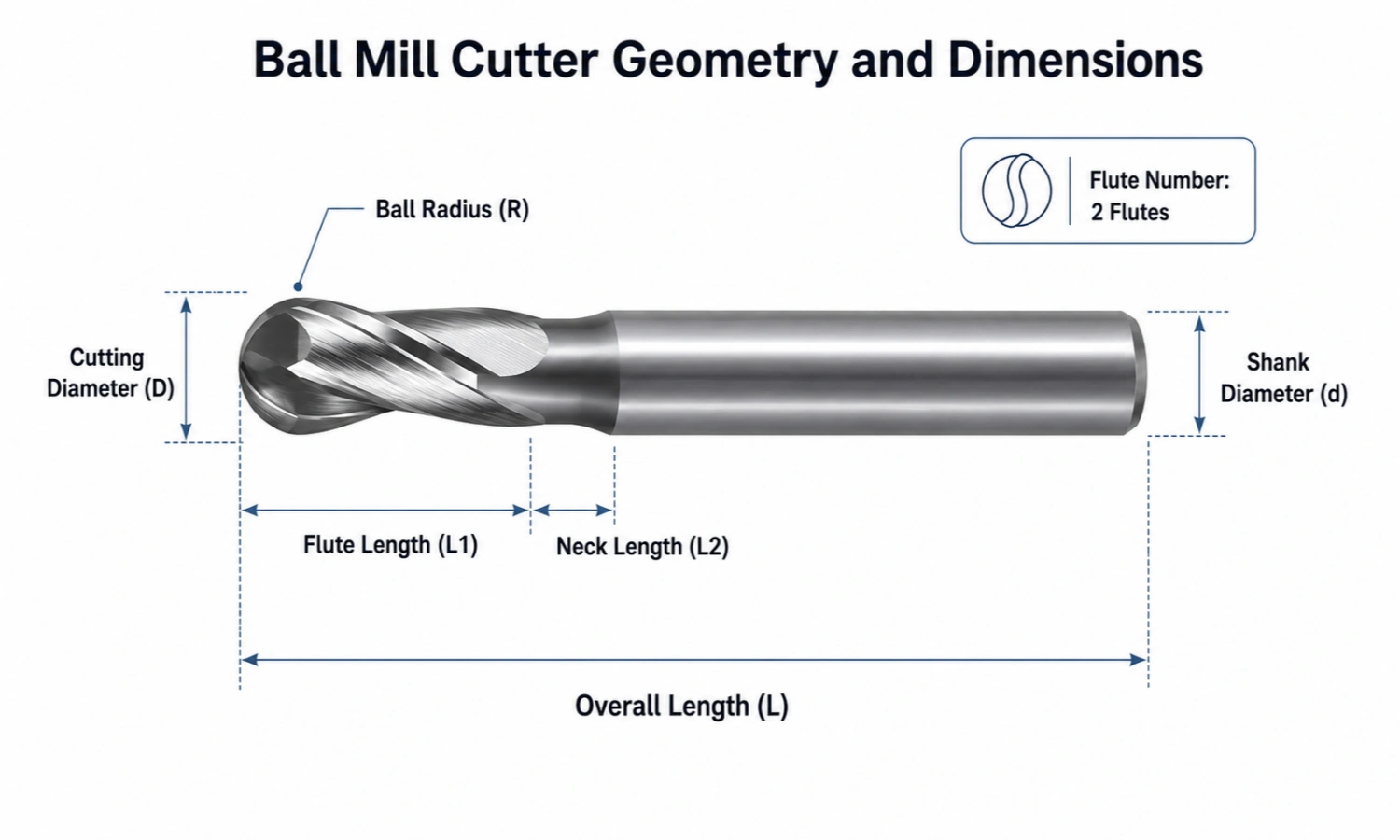

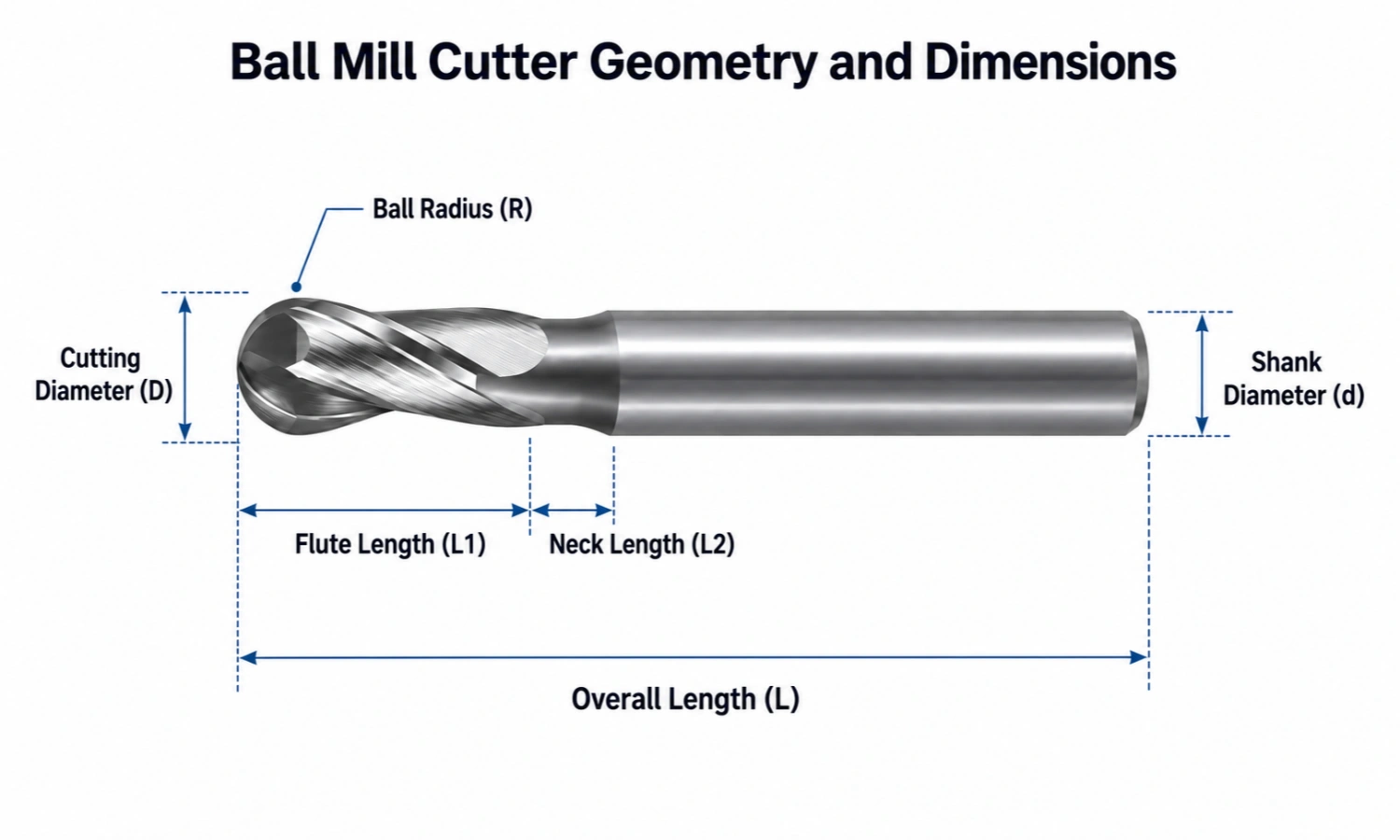

Ball Mill Cutter Geometry and Working Principle
The cutter has a hemispherical end rather than a flat cutting face. As the tool follows a programmed CNC path, different points along the curved edge contact the workpiece. Therefore, the cutter can machine radii, slopes, cavities, and freeform surfaces without creating abrupt transitions.
For a standard full ball-end design, the nose radius is normally half of the cutting diameter. For example, a 6mm cutting diameter normally has a 3mm ball radius. However, surface finish also depends on the programmed step-over, spindle speed, feed rate, tool runout, cutter overhang, and machine rigidity.
The center of the ball end has a lower effective cutting speed than the outer edge. As a result, toolpath strategy matters. A suitable tilt angle or finishing path can improve cutting action and reduce rubbing near the tool center.
Main Uses of a Ball Mill Cutter
Machinists choose this rounded-end cutter when a part contains complex curves, smooth transitions, or three-dimensional features.
Common uses include:
- 3D contour milling

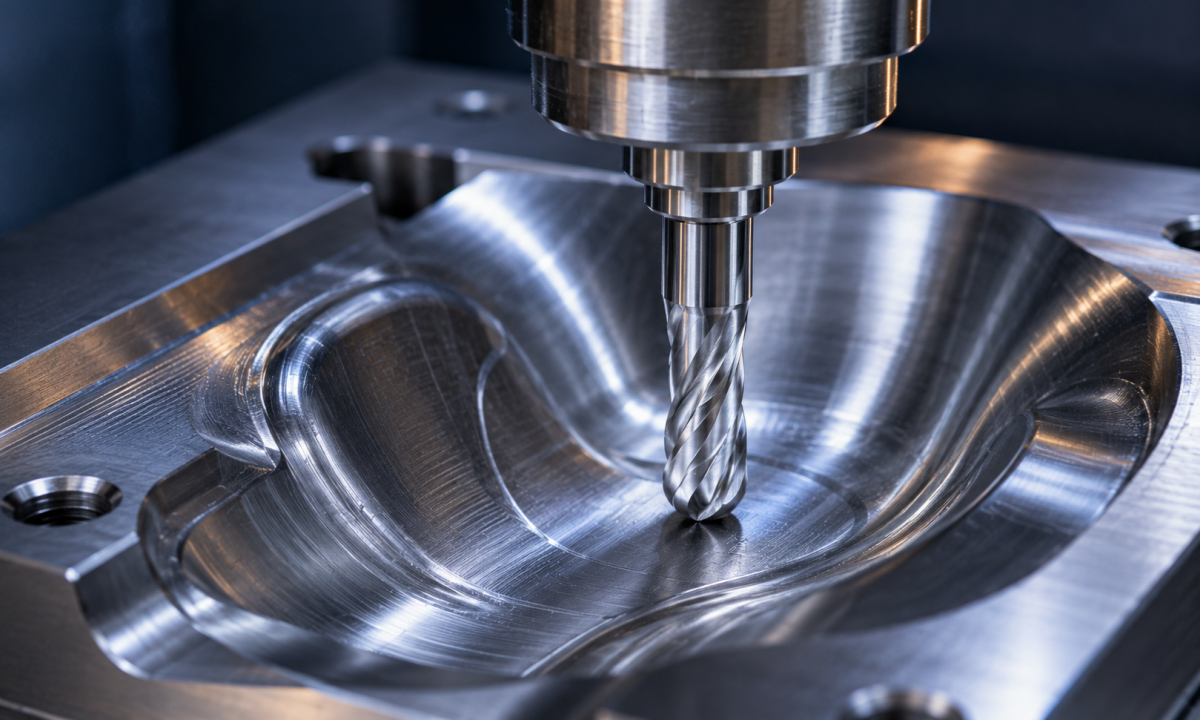

- Mold cavity finishing
- Die and mold machining
- Curved surface finishing
- Radius and profile machining
- Freeform surface cutting
- Graphite and copper electrode machining
- Aerospace and automotive part finishing
- Medical and precision component machining
- CNC engraving and detailed finishing
A smaller diameter can reach narrow cavities and fine details. Meanwhile, a larger diameter can improve machining efficiency on wider surfaces. The selected tool should match the part geometry, required surface finish, machine rigidity, and setup stability.
For a more detailed application guide, read what is a ball nose end mill used for.
Common CNC Applications
The table below shows where this cutter is commonly used and why its rounded geometry is helpful.
| Application | Why the Cutter Is Used |
| Mold cavity finishing | Follows curved cavity walls and helps produce a smooth finish |
| 3D contour milling | Moves along complex toolpaths and sculpted surfaces |
| Die finishing | Machines radii, transitions, and shaped surfaces |
| Electrode machining | Produces detailed graphite or copper profiles |
| Aerospace components | Finishes complex surfaces and blended contours |
| Automotive molds | Supports cavity, radius, and freeform surface finishing |
| Prototype machining | Works well on organic shapes and complex profiles |
In many machining processes, a flat end mill removes most of the material during roughing. After that, a rounded-end cutter finishes the curved areas and improves the final surface quality.

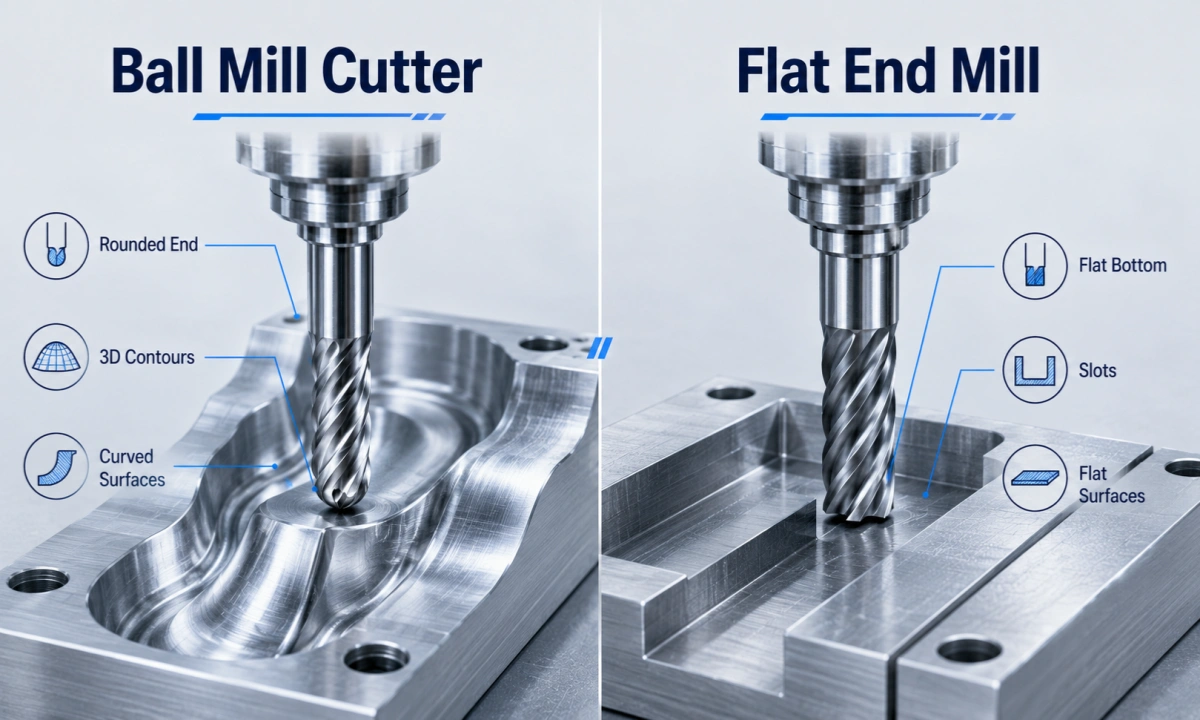

Ball Mill Cutter vs Flat End Mill
These tools serve different machining purposes. A ball mill cutter has a rounded end, while a flat end mill has a flat cutting face.
| Feature | Ball Mill Cutter | Flat End Mill |
| Cutting End | Fully rounded | Flat |
| Best Use | 3D contours and curved surfaces | Slots, pockets, steps, and flat bottoms |
| Typical Operation | Finishing and semi-finishing | Roughing, slotting, facing, and shoulder milling |
| Surface Result | Smooth on radii and freeform profiles | Flat on pocket bottoms and planar surfaces |
| Corner Shape | Creates rounded transitions | Creates sharp or square-bottom features |
The two tools are often used together. First, a flat cutter removes material efficiently. Then, the rounded cutter finishes cavities, radii, and curved surfaces.
For flat-bottom slots, pockets, steps, and square shoulders, view our flat end mill product.
Is a Ball Mill Cutter the Same as a Ball Nose End Mill?
In CNC cutting tool applications, the two names usually describe the same general tool type. Both refer to a cutter with a fully rounded end for 3D contouring, mold finishing, and curved surface machining.
“Ball nose end mill” is the more formal name used in many professional catalogs. By contrast, “ball mill cutter” is a shorter search term used by some buyers.
The name should not be confused with a ball mill machine, which is grinding equipment used for powders or bulk materials.

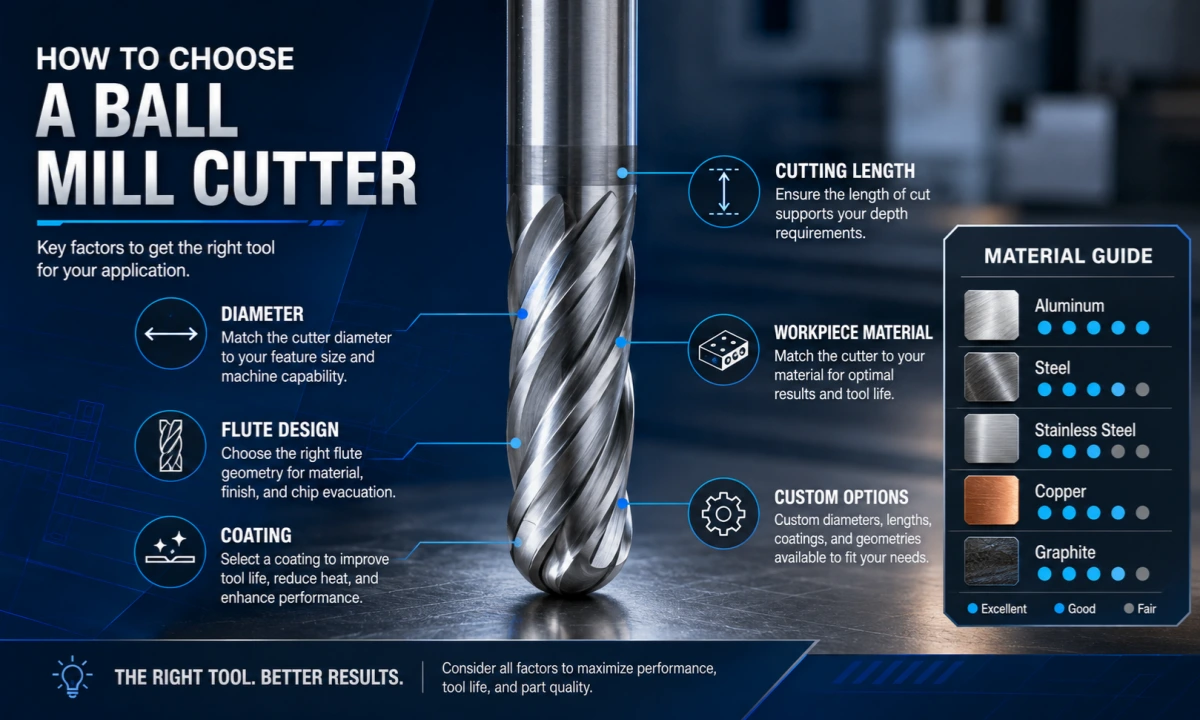

How to Choose a Ball Mill Cutter
The correct tool depends on the workpiece material, part geometry, machining depth, surface finish target, and CNC machine condition. Before ordering, check the following factors.
Cutting Diameter and Ball Radius
Select a diameter that matches the workpiece radius, cavity width, and detail size. A small diameter can reach fine features, while a larger diameter can improve efficiency on broad curved areas.
Flute Count and Chip Space
Two-flute designs provide more chip space and often suit aluminum, copper, graphite, and other applications that need efficient chip evacuation.
Four-flute designs provide more cutting edges and may improve stability during steel machining and finishing operations.
Other flute counts can be evaluated according to the cutter diameter, workpiece material, and required surface finish.
Flute Length, Neck Length, and Overall Length
Use the shortest practical tool that can reach the required depth. Excessive overhang reduces rigidity and may cause vibration, poor surface finish, or premature wear.
For deep cavities, a relieved neck or long-reach design may provide better access than an excessively long cutting edge.
Carbide Grade and Coating
The carbide grade and coating should match the workpiece material, hardness, cutting temperature, and coolant condition.
For aluminum and other non-ferrous materials, sharp edges and polished flutes can reduce chip adhesion. For steel, stainless steel, mold steel, and hardened materials, a suitable heat-resistant coating can improve wear resistance and tool life.
Machine and Tool-Holder Stability
Tool runout, holder condition, spindle rigidity, and cutter overhang directly affect the final finish. Therefore, even a correctly selected tool may perform poorly if the machine setup is unstable.
For a more detailed selection process, read how to choose a ball nose end mill.
Ball Mill Cutter Materials and Design Considerations
Different materials require different edge geometries, flute designs, and coatings.
Aluminum and Non-Ferrous Materials
Good chip evacuation is essential when machining aluminum, copper, and similar materials. Sharp cutting edges, larger flute space, and polished flutes can help reduce built-up edges and improve surface finish.
Steel and Stainless Steel
Steel and stainless steel require stable cutting edges, suitable carbide grades, and appropriate coatings. In addition, excessive tool overhang should be avoided because vibration can damage the finish and shorten tool life.
Mold Steel and Hardened Materials
For mold steel and hardened materials, edge strength, heat resistance, and wear resistance become more important.
Standard designs can support many applications up to approximately HRC65. Selected carbide grades and coatings may support HRC68–70, depending on the exact material, cutter diameter, machining allowance, machine rigidity, and cutting parameters.
Graphite and Copper Electrodes
Graphite machining requires wear resistance and stable cutter geometry. Copper electrode machining usually benefits from sharp cutting edges and a smooth flute surface.
Therefore, the tool design should be selected according to the electrode material and required finish.
Common Selection Mistakes
Several common mistakes can reduce tool life or surface quality:
- Choosing a cutter that is longer than necessary
- Using an unsuitable coating for the workpiece material
- Ignoring flute count and chip evacuation
- Applying a rounded cutter to a flat-bottom operation
- Using excessive step-over during finishing
- Ignoring tool runout or holder condition
- Ordering a custom tool without a clear drawing
Checking these points before ordering can reduce trial-and-error costs and improve machining stability.
Custom Cutter Options
Standard tools may not suit every cavity, mold, radius, or special CNC component. Therefore, CutterBest supports custom cutter production according to drawings, samples, size lists, and machining requirements.
Available custom options may include:
- Cutting diameter
- Ball radius
- Flute length
- Overall length
- Shank diameter
- Neck length
- Relieved-neck or long-reach design
- Flute count
- Carbide grade
- Coating or uncoated carbide
- Dimensional tolerance
- OEM laser marking
- Neutral or private-label packaging
For an accurate quotation, provide the workpiece material, hardness, cutter diameter, flute length, overall length, shank diameter, flute count, coating requirement, quantity, and drawing.
FAQ
What is a ball mill cutter used for?
It is used for 3D contour milling, mold cavity finishing, curved surface machining, die finishing, freeform profiles, and precision CNC finishing. The rounded end helps the cutter follow complex shapes smoothly.
Is a ball mill cutter the same as a ball end mill cutter?
In many CNC milling applications, yes. Buyers may use “ball mill cutter,” “ball end mill cutter,” and “ball nose end mill” for a similar rounded-end cutting tool.
Can this cutter machine aluminum?
Yes. It can machine aluminum molds, curved surfaces, and 3D profiles. However, sharp cutting edges, good chip evacuation, and suitable flute geometry are important for reducing chip adhesion.
Can it make a flat-bottom pocket?
It can machine curved cavity bottoms, but it does not efficiently create a fully flat-bottom profile. A flat end mill is usually more suitable for flat-bottom pockets, slots, steps, and shoulders.
What information is needed for a custom quotation?
Please provide the cutting diameter, ball radius, flute length, overall length, shank diameter, flute count, coating, workpiece material, hardness, quantity, and drawing if available.
Send Your Ball Mill Cutter Requirement
Need a standard or custom cutter for 3D contouring, mold finishing, or curved surface machining?
Send your size list, drawing, workpiece material, hardness, coating requirement, and quantity. Our team will review the application and provide a suitable tool proposal and quotation.
