4 Flute vs 6 Flute End Mill: Which Is Better for Steel and Stainless Steel?

The main difference in a 4 flute vs 6 flute end mill comparison is the balance between chip evacuation and tool rigidity.

A 4 flute end mill provides more flute space. Therefore, it is generally more flexible for moderate slotting, side milling, profile milling, and changing cutting conditions.

In contrast, a 6 flute end mill has more cutting edges and usually a stronger core. It can provide better stability during controlled semi-finishing and finishing, especially when wall quality and surface finish are the main goals.

Neither flute count is always better. The correct choice depends on the machining operation, chip volume, cutting engagement, machine rigidity, tool overhang, and required finish.

Key Differences Between 4 Flute and 6 Flute End Mills

4 Flute End Mill: More Chip Space and Versatility

A 4 flute end mill has four cutting edges with more space between the flutes than a six-flute design. As a result, chips can leave the cutting zone more easily.

This design provides a practical balance of chip evacuation, core strength, and cutting stability. It is commonly selected for general steel and stainless steel machining, moderate slotting, side milling, profile milling, and semi-finishing.

A four-flute cutter is also more forgiving when cutting engagement or machining conditions change during production.

For standard sizes, center-cutting designs, coatings, and custom options, review our 4 flute carbide end mill.

For a broader application guide, read what is a 4 flute end mill used for.

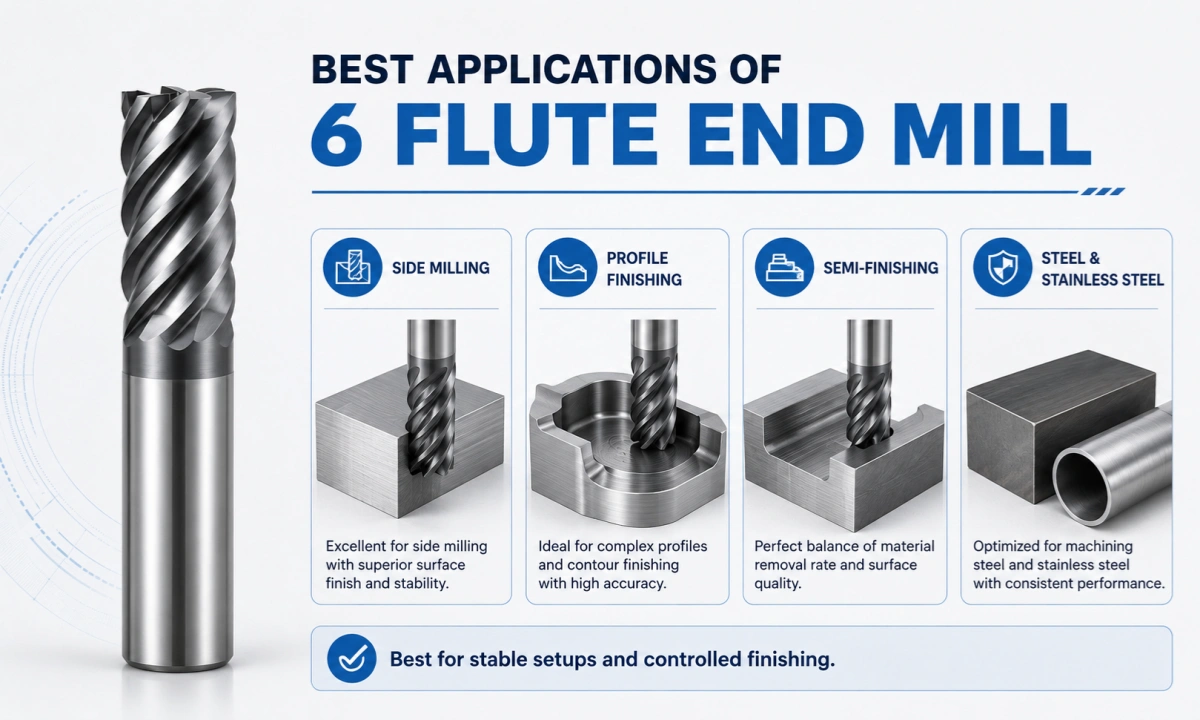

6 Flute End Mill: Higher Rigidity for Finishing

A 6 flute end mill has six cutting edges and less flute space. The additional cutting edges and stronger core can improve rigidity, wall stability, and surface consistency during controlled machining.

Therefore, this design is often used for side milling, profile finishing, semi-finishing, and finishing in steel, stainless steel, and alloy steel.

However, the smaller flute space limits chip evacuation. A six-flute cutter is not normally the first choice for deep full-width slots, heavy roughing, or operations that produce a high chip volume.

For product sizes and customization options, review our 6 flute carbide end mill.

For more information about its applications, read what is a 6 flute end mill used for.

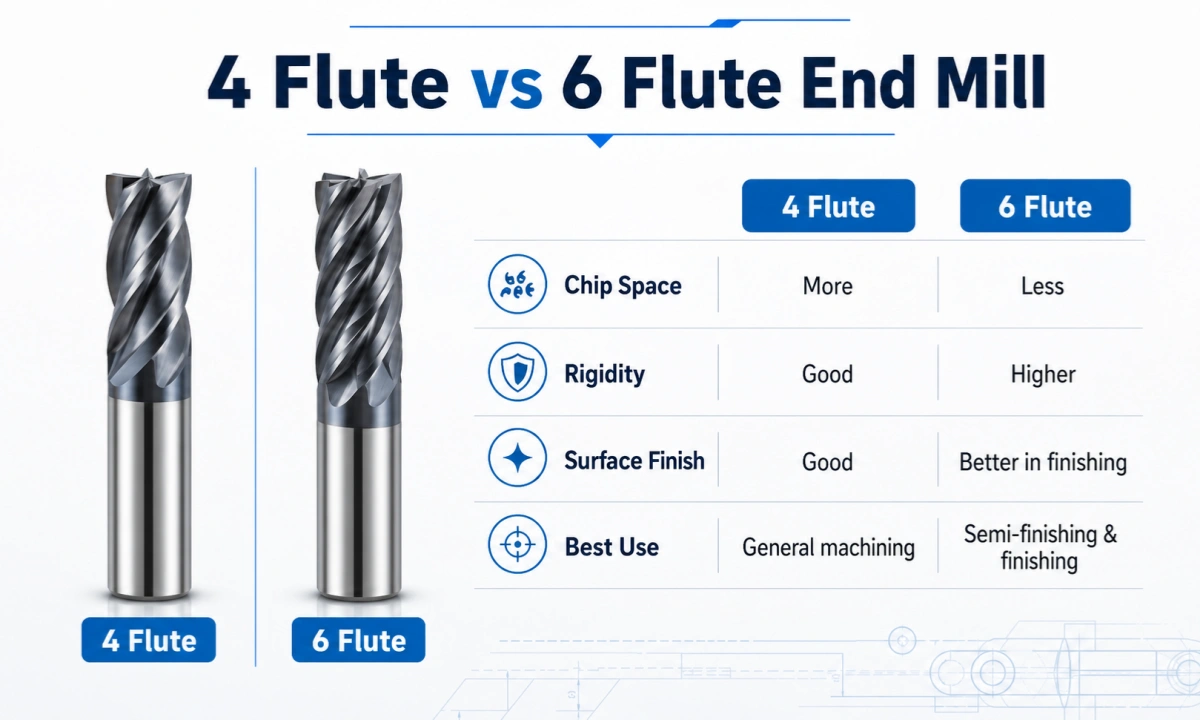

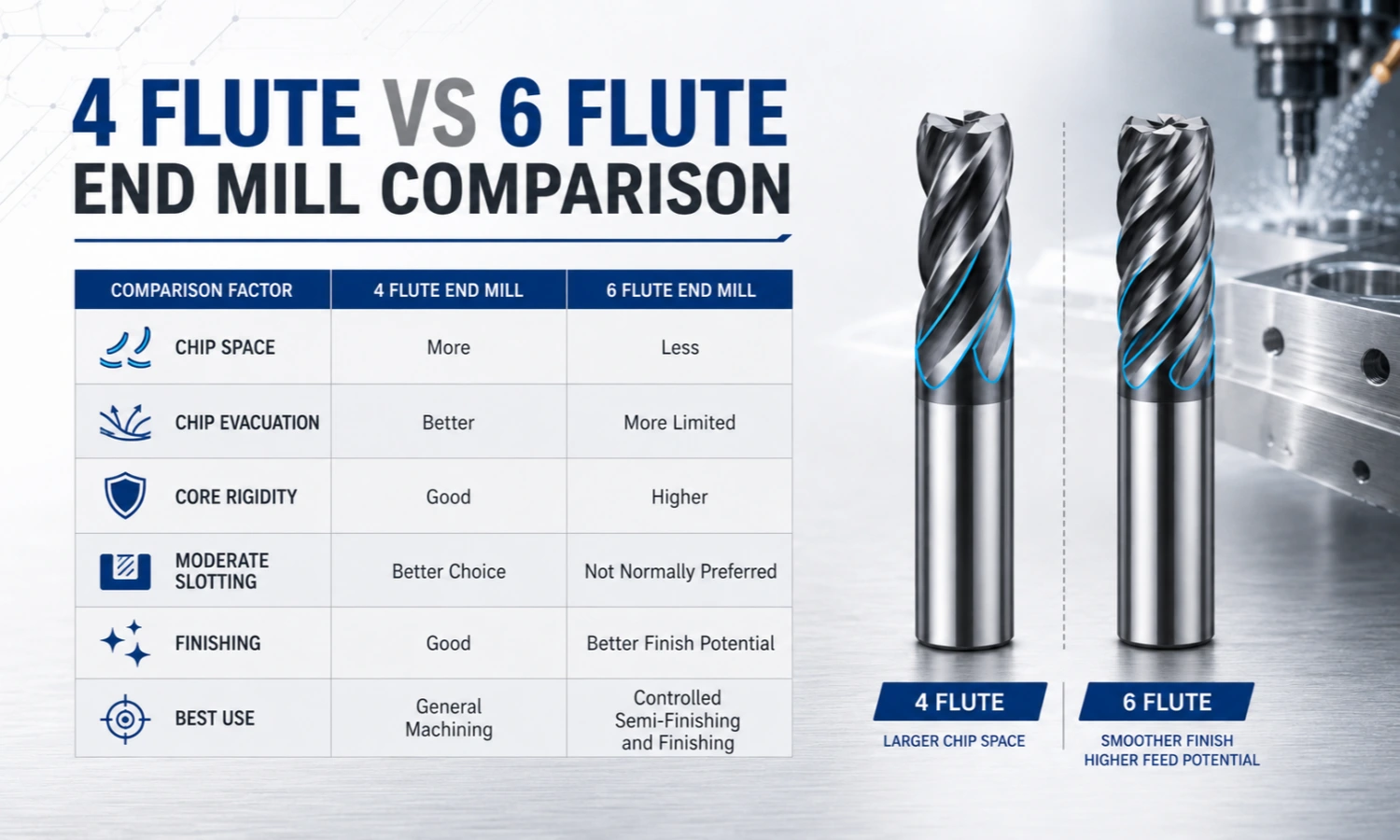

4 Flute vs 6 Flute End Mill Comparison

This table provides general selection guidance. Actual performance also depends on carbide grade, coating, helix angle, tool diameter, flute length, holder condition, coolant delivery, and cutting parameters.

4 Flute vs 6 Flute End Mill for Steel

Both flute counts can machine steel. However, they suit different operations.

A 4 flute end mill is generally the more flexible option for general steel machining. Its larger flute space supports moderate chip removal, changing cutting engagement, side milling, profile milling, and light-to-moderate slotting.

A 6 flute end mill becomes more useful when the operation focuses on controlled semi-finishing or finishing. Its additional cutting edges can improve wall quality and surface consistency. However, the machine, holder, workholding, and toolpath should remain stable.

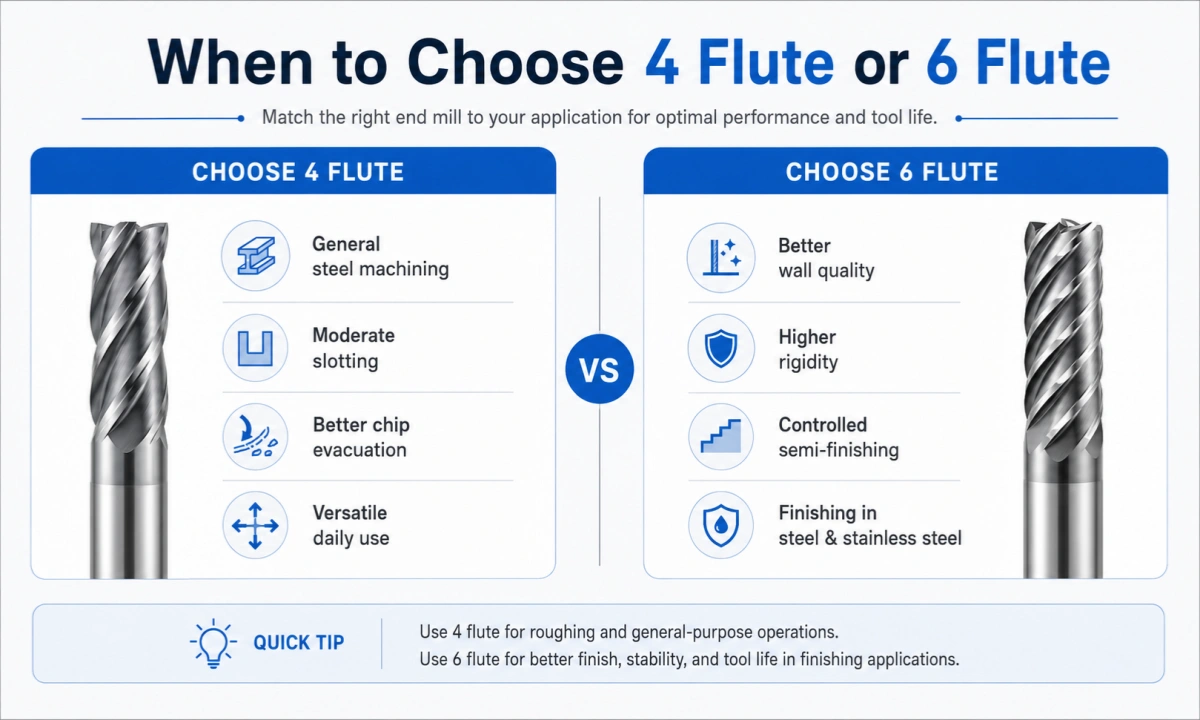

Choose 4 Flute for General Steel Machining

A four-flute cutter is a practical choice when:

• The operation includes moderate slotting.
• Chip evacuation remains important.
• Cutting engagement may change.
• One tool needs to cover several operations.
• The setup is not optimized only for finishing.

Choose 6 Flute for Controlled Finishing

A six-flute cutter may provide better results when:

• The operation mainly involves semi-finishing or finishing.
• Better wall quality is required.
• Radial engagement remains light and controlled.
• The machine and holder provide good rigidity.
• Surface quality matters more than maximum chip space.

In many workshops, a four-flute design serves as the general-purpose starting point. A six-flute tool offers a more specialized choice when the operation becomes stable and finishing-focused.

4 Flute vs 6 Flute End Mill for Stainless Steel

Stainless steel can generate heat and may work harden when cutting conditions become unstable. Therefore, chip evacuation, cutting engagement, coating, tool geometry, and machine rigidity all matter.

A 4 flute end mill is usually a practical starting point for general stainless steel machining. It provides a useful balance between chip space and core strength, so it can handle profile milling, side milling, moderate material removal, and semi-finishing.

A 6 flute end mill is more specialized. It can perform well in controlled semi-finishing and finishing passes where dimensional consistency, wall quality, and smoother surfaces are the main goals.

However, chip volume and cutting engagement must remain controlled. Otherwise, chips and heat may collect around the cutting edges.

For specialized stainless steel finishing, tools with five or more flutes and higher helix angles are also common. Even so, additional flutes only help when chip evacuation, runout, tool holding, and setup rigidity remain under control. Variable-helix or variable-pitch geometry may also improve vibration control.

In general:

• Choose 4 flute for greater versatility and more chip space.
• Choose 6 flute for controlled finishing and higher surface-quality requirements.

How to Choose a 4 Flute or 6 Flute End Mill in Three Steps

Step 1: Start with the Machining Operation

First, identify the main operation.

Choose a 4 flute end mill when the job includes moderate slotting, changing cutting engagement, or general side and profile milling. Its larger flute space provides a safer path for chips to leave the cutting zone.

Consider a 6 flute end mill when the operation uses controlled side engagement and focuses on semi-finishing or finishing.

For heavy roughing, a dedicated roughing cutter may be more suitable than either a standard four-flute or six-flute finishing tool.

Step 2: Check Chip Evacuation and Setup Rigidity

Next, review the complete machining setup.

A six-flute cutter performs best when:

• Cutting engagement remains controlled.
• The machine and holder provide good rigidity.
• Tool overhang is kept as short as practical.
• Coolant or air can reach the cutting zone.
• Chips can leave the workpiece without recutting.

A four-flute tool is generally more forgiving when the setup is less rigid or the cutting conditions change.

A higher flute count cannot correct an unstable holder, excessive overhang, poor workholding, or blocked chip evacuation.

Step 3: Set the Surface-Finish Priority

Finally, decide whether chip control or finishing quality has the higher priority.

Choose four flutes when versatility, chip evacuation, and moderate material removal matter most.

Choose six flutes when the setup is stable and the operation targets wall quality, dimensional consistency, and a smoother finished surface.

More cutting edges can reduce the load carried by each edge when the feed is set correctly. However, poor chip control or excessive heat can remove this advantage.

What to Check When a 6 Flute End Mill Does Not Improve the Result

A six-flute cutter does not automatically produce a better finish. When the result becomes worse, inspect the complete cutting condition before blaming the tool.

These are general troubleshooting signs rather than fixed cutting rules. The correct adjustment depends on the cutter design, workpiece material, machine, holder, and machining parameters.

Practical Selection Examples

General Steel with Moderate Slotting

For moderate slotting or changing cutting engagement in general steel, a 4 flute end mill is normally the more flexible choice.

Its larger flute space supports chip evacuation, while the four-flute core still provides useful rigidity for side and profile milling.

If the operation changes to a light final side-finishing pass, a 6 flute cutter can be evaluated separately.

Stainless Steel Profile Finishing

When stainless steel is machined with light and stable side engagement, a rigid setup, and a clear finishing target, a 6 flute end mill may provide better finishing potential.

However, if chips begin to collect or cutting temperature rises quickly, a 4 flute design may provide a safer balance between flute space and cutting stability.

These examples show why flute count should match the operation instead of being selected only by material name.

Frequently Asked Questions

What is the main difference between a 4 flute and 6 flute end mill?

The main difference is the balance between chip evacuation and rigidity.

A 4 flute end mill provides more flute space and greater versatility. In contrast, a 6 flute end mill provides more cutting edges, higher core rigidity, and better finishing potential under stable conditions.

Is a 4 flute or 6 flute end mill better for steel?

A 4 flute end mill is usually better for general steel machining, moderate slotting, and changing cutting conditions.

A 6 flute cutter often performs better during controlled side milling, semi-finishing, and finishing when surface quality is the main goal.

When should I avoid using a 6 flute end mill?

A 6 flute end mill is normally not the first choice for deep full-width slots, heavy roughing, high chip-volume operations, poor coolant access, or unstable setups.

Its smaller flute space can increase chip recutting and heat when cutting engagement is too high.

Does a higher flute count always produce a better surface finish?

No. A higher flute count can improve finishing potential, but the result also depends on runout, feed per tooth, tool geometry, machine rigidity, holder condition, chip evacuation, and workpiece stability.

If chips or heat remain in the cutting zone, a six-flute cutter may not improve the surface.

How do I choose between a 4 flute and 6 flute end mill?

Start with the machining operation and chip volume. Then check cutting engagement, tool overhang, holder condition, and machine rigidity.

Choose four flutes when chip evacuation and versatility matter more. Choose six flutes when the setup is stable and controlled finishing is the main goal.

Conclusion

When comparing a 4 flute vs 6 flute end mill, start with the machining goal.

A four-flute cutter provides more chip space and greater flexibility for general steel and stainless steel machining, moderate slotting, side milling, and changing cutting conditions.

A six-flute cutter offers higher rigidity and better finishing potential when cutting engagement remains controlled. Therefore, it suits stable semi-finishing and finishing operations that require better wall quality and smoother surfaces.

Instead of selecting a cutter by flute count alone, match the tool to the material, chip volume, cutting depth, machine rigidity, tool holding, and required finish.
